Page 1209 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Lower the vehicle. 6. Using the special tools, raise the engine. 7. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 . 8. Raise and support the vehicle

Page 1210 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1211 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Exhaust Manifold LH Removal and Installation 1. Install the special tool. 2. Install the special tools. 3. Raise and support the vehicle. For additional information, refer to

Page 1212 of 4378

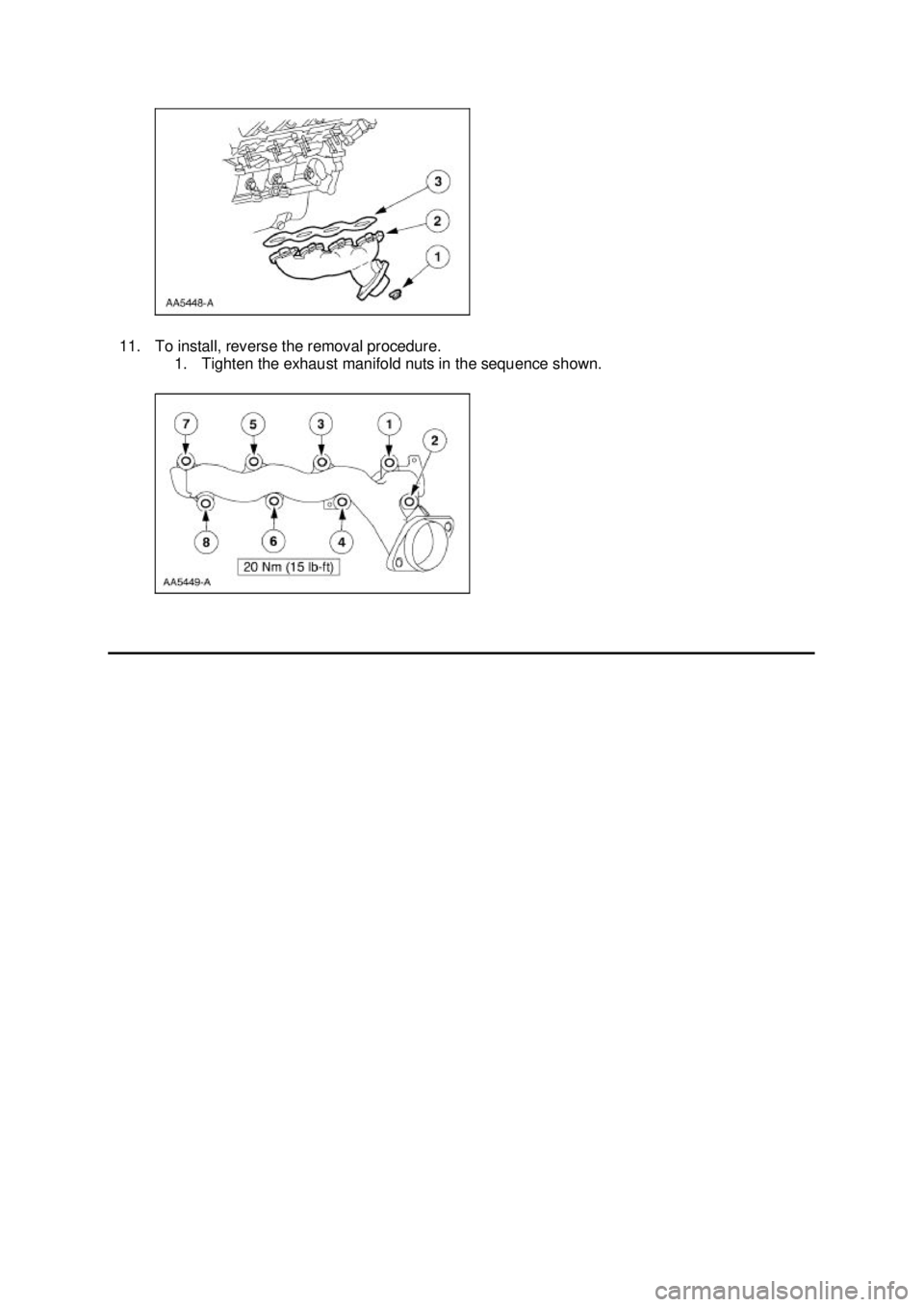

FORD MUSTANG 2003 Workshop Manual 5. Lower the vehicle. 6. Using the special tools, raise the engine. 7. Raise the vehicle. 8. Separate the exhaust at the exhaust manifold. For additional information, refer to Section 309 - 00 .

Page 1213 of 4378

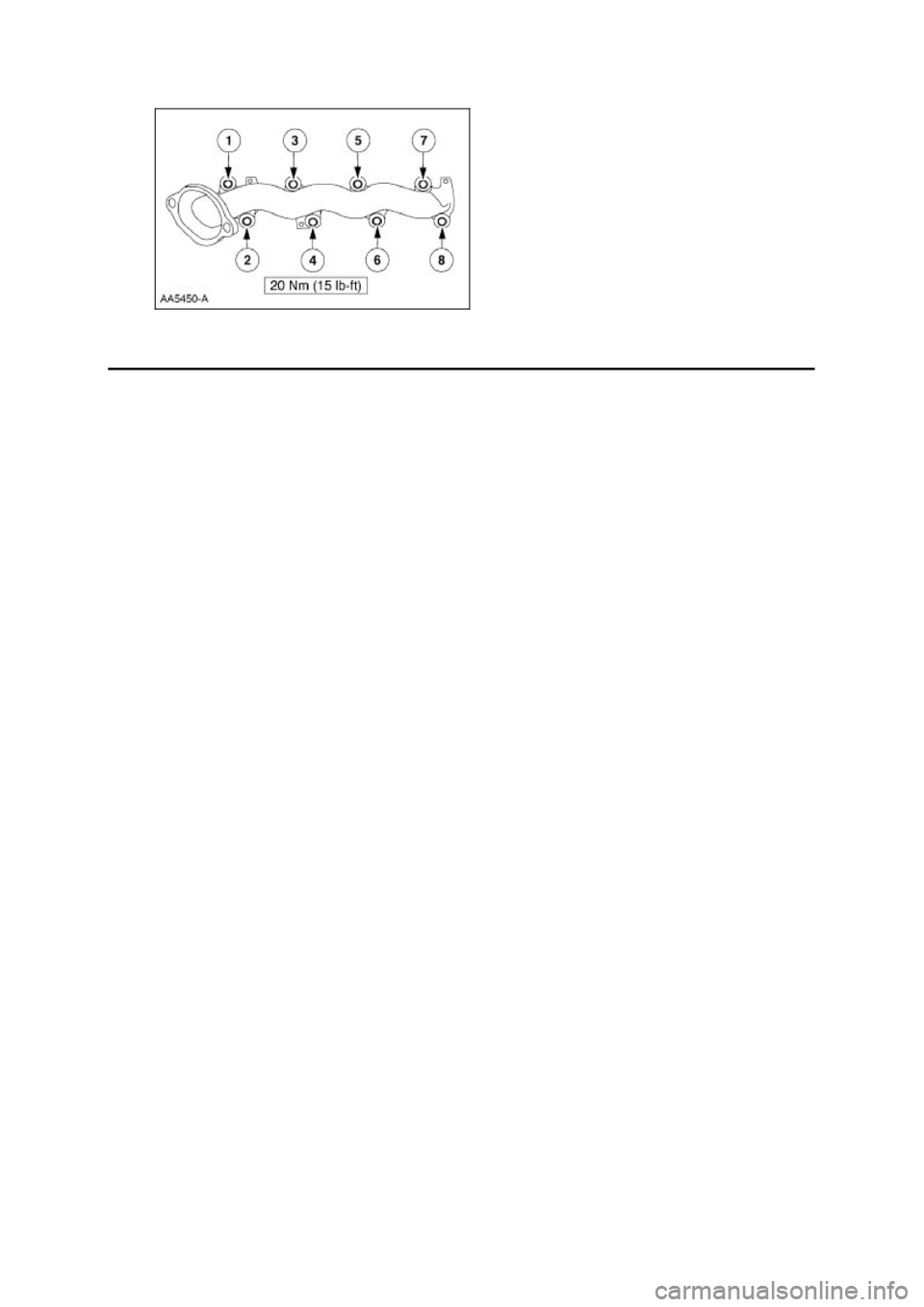

FORD MUSTANG 2003 Workshop Manual 11. To install, reverse the removal procedure. 1. Tighten the exhaust manifold nuts in the sequence shown. Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/ts

Page 1214 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Oil Filter Adapter Removal and Installation 1. Drain the cooling system. For additional information, refer to Section 303 - 03A or Section 303 - 03B . 2. Disconnect the lowe

Page 1215 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the oil pressure sensor. 7. Remove the oil filter adapter (6881). 1. Remove the oil bypass filter. 2. Remove the bolts. 3. Remove the oil filter adapter. 4. Clean and inspect the sealin

Page 1216 of 4378

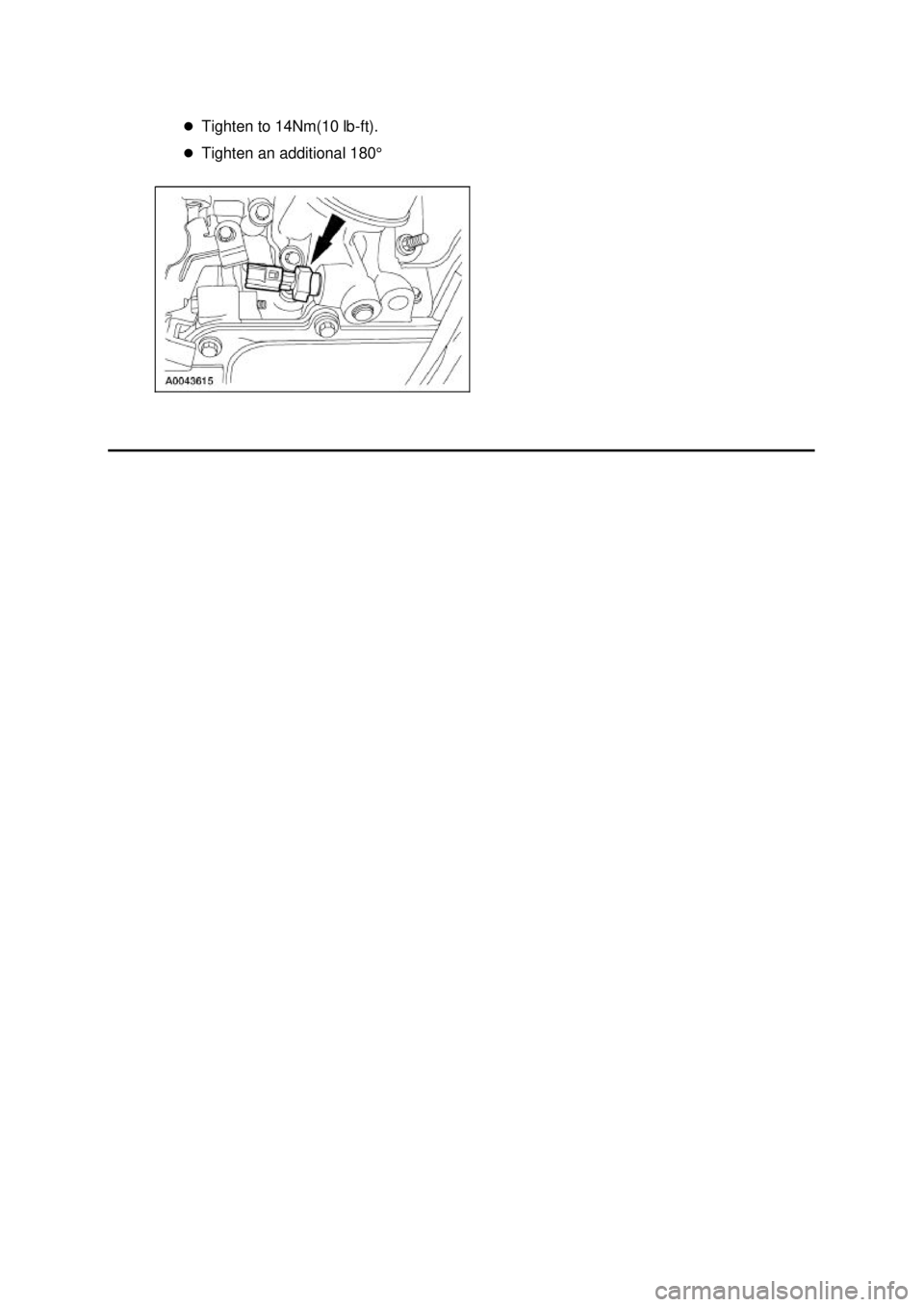

FORD MUSTANG 2003 Workshop Manual �z Tighten to 14Nm(10 lb- ft). �z Tighten an additional 180° Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
