Page 2473 of 4378

FORD MUSTANG 2003 Workshop Manual 4. NOTE: If the transmission fluid pan gasket is not damaged, it may be reused. Remove the transmission fluid pan and transmission fluid pan gasket. 1. Remove the bolts. 2. Remove the transmission

Page 2474 of 4378

FORD MUSTANG 2003 Workshop Manual 7. CAUTION: Do not pull on the molded lead frame. This may cause damage to the connector ends. Carefully pry up on the locking tabs to disconnect the solenoids. Disconnect the molded lead frame fro

Page 2475 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Remove the digital transmission range (TR) sensor. 1. Remove the bolts. 2. Remove the digital TR sensor. 10. Remove the manual control valve detent lever spring. 1. Remove the bolt. 2. Remove

Page 2476 of 4378

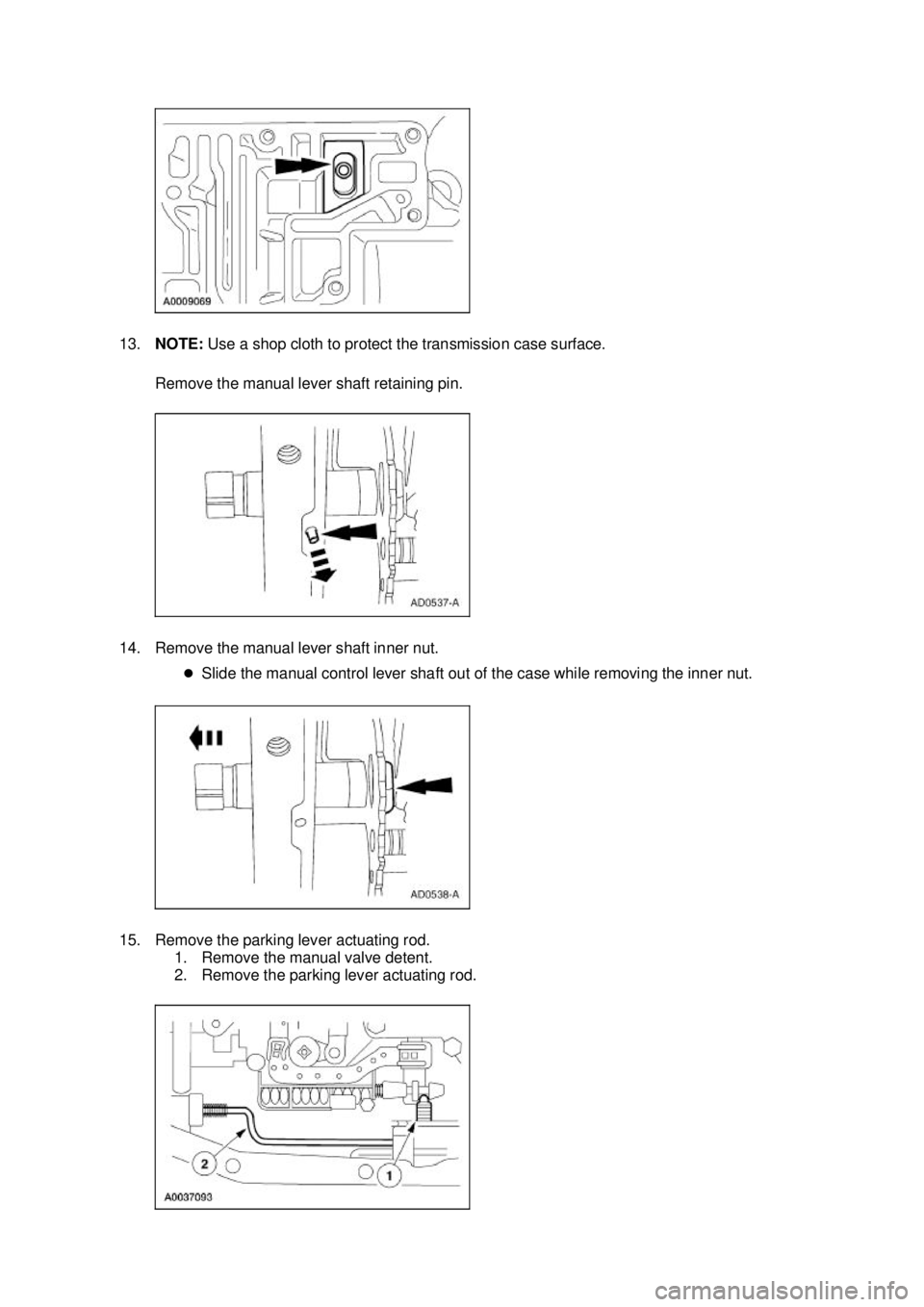

FORD MUSTANG 2003 Workshop Manual 13. NOTE: Use a shop cloth to protect the transmission case surface. Remove the manual lever shaft retaining pin. 14. Remove the manual lever shaft inner nut. �zSlide the manual control lever shaf

Page 2477 of 4378

FORD MUSTANG 2003 Workshop Manual 16. CAUTION: Use care not to damage the manual control lever shaft bore. If the bore is damaged the new seal may leak. Remove the manual control lever shaft seal. 17. Remove the EPC solenoid. 1.

Page 2478 of 4378

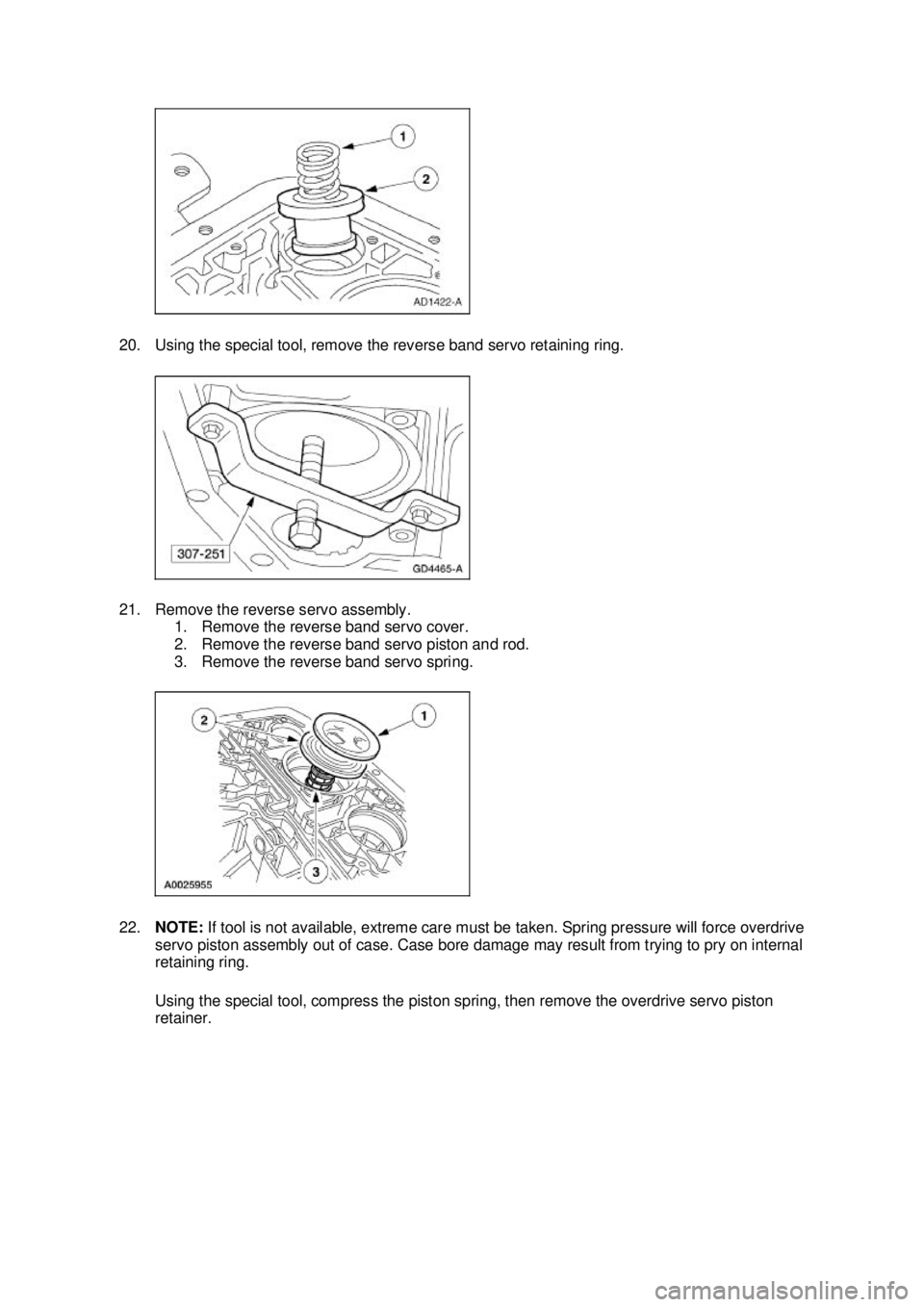

FORD MUSTANG 2003 Workshop Manual 20. Using the special tool, remove the reverse band servo retaining ring. 21. Remove the reverse servo assembly. 1. Remove the reverse band servo cover. 2. Remove the reverse band servo piston and

Page 2479 of 4378

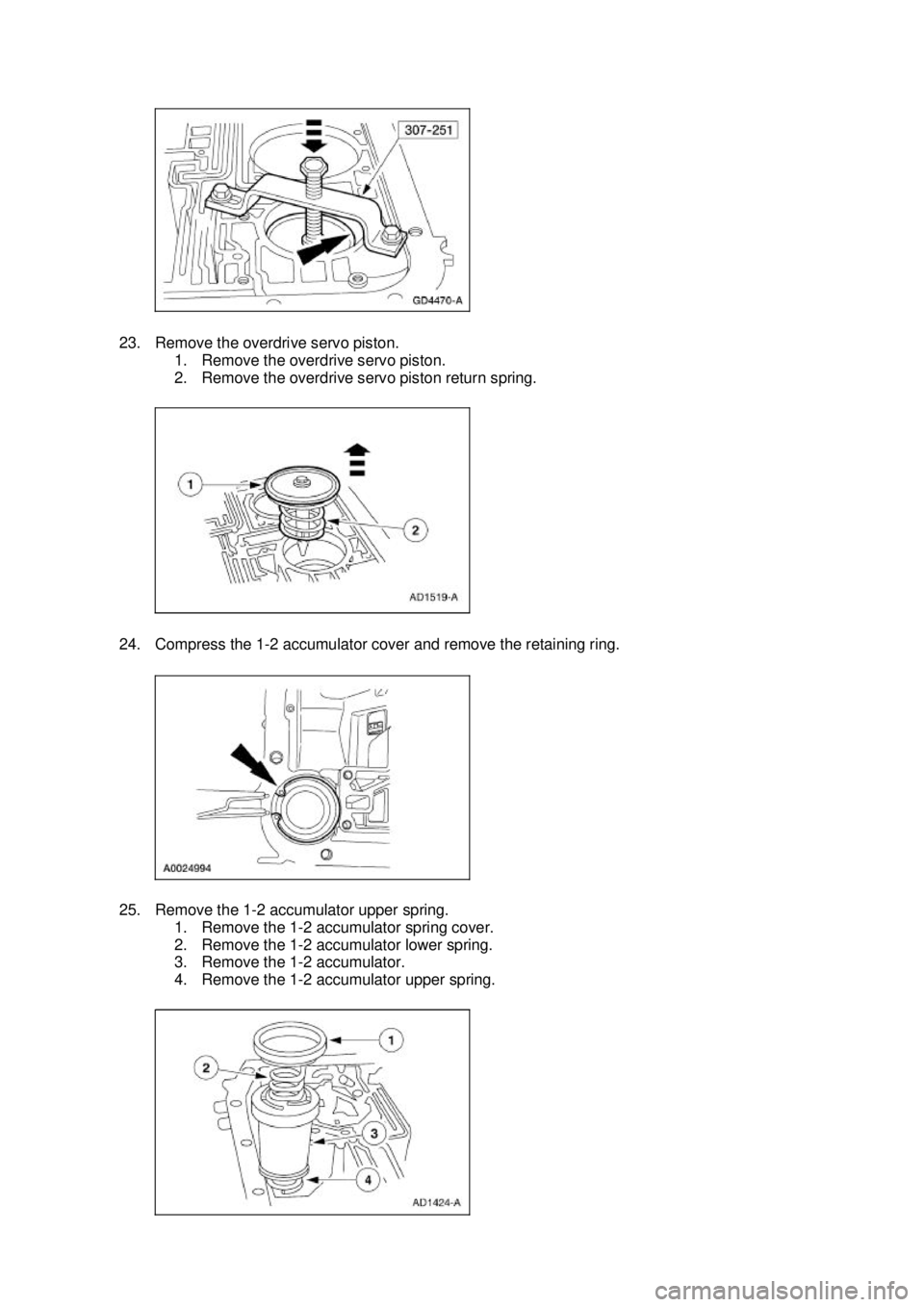

FORD MUSTANG 2003 Workshop Manual 23. Remove the overdrive servo piston. 1. Remove the overdrive servo piston. 2. Remove the overdrive servo piston return spring. 24. Compress the 1- 2 accumulator cover and remove the retaining rin

Page 2480 of 4378

FORD MUSTANG 2003 Workshop Manual 26. Using the special tools, remove the extension housing seal. 27. NOTE: These bolts have been coated with a sealant. High break torque may be required to remove these bolts. Remove the extension
