Page 1833 of 4378

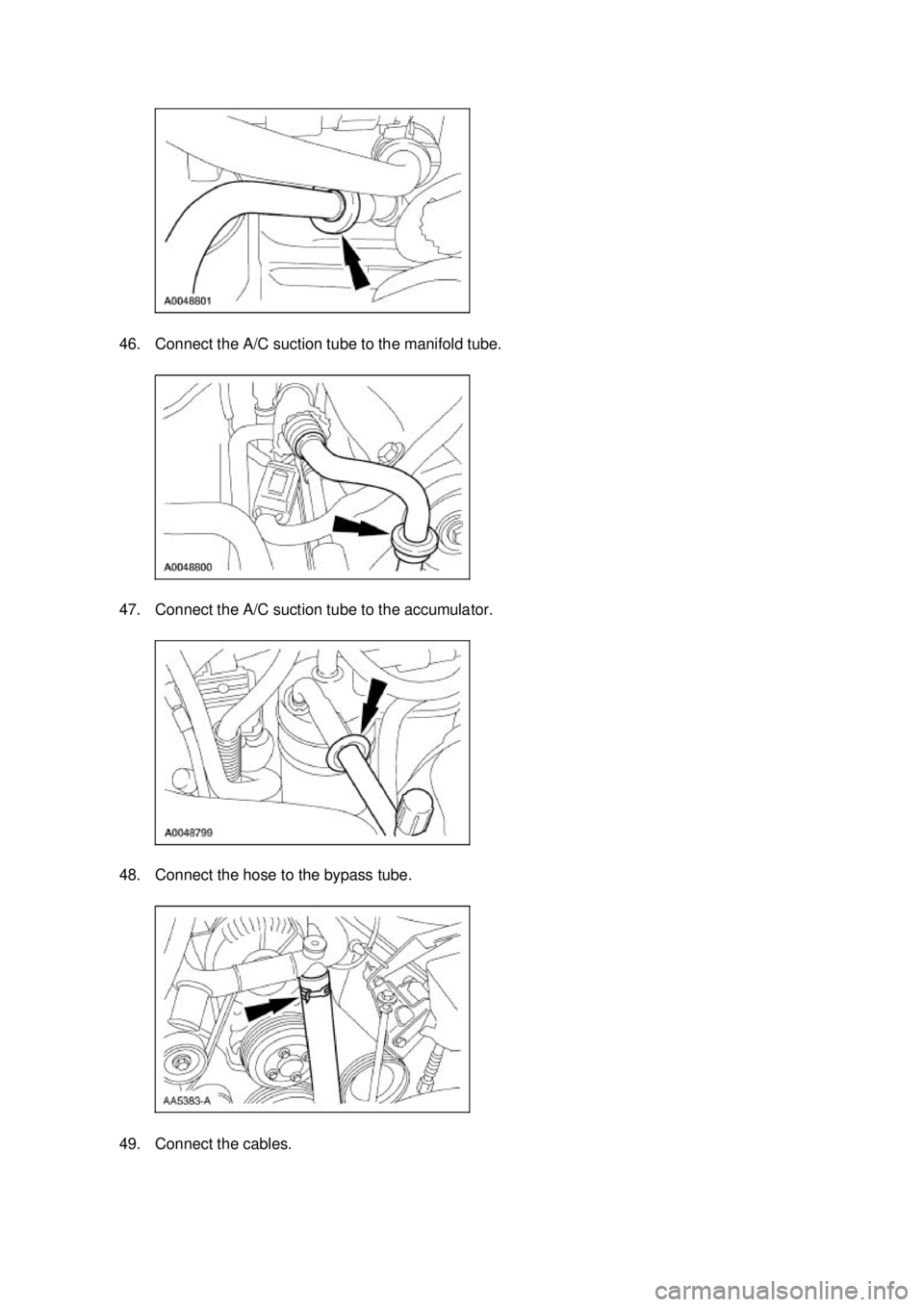

FORD MUSTANG 2003 Workshop Manual 46. Connect the A/C suction tube to the manifold tube. 47. Connect the A/C suction tube to the accumulator. 48. Connect the hose to the bypass tube. 49. Connect the cables. Klj . 13 ba 182

Page 1834 of 4378

FORD MUSTANG 2003 Workshop Manual 50. Connect the connectors. 51. Position the wiring support bracket and install the nuts. 52. Connect the heater hoses. 53. Connect the vacuum hoses. Klj . 14 ba 182003 Mustang Workshop Ma

Page 1835 of 4378

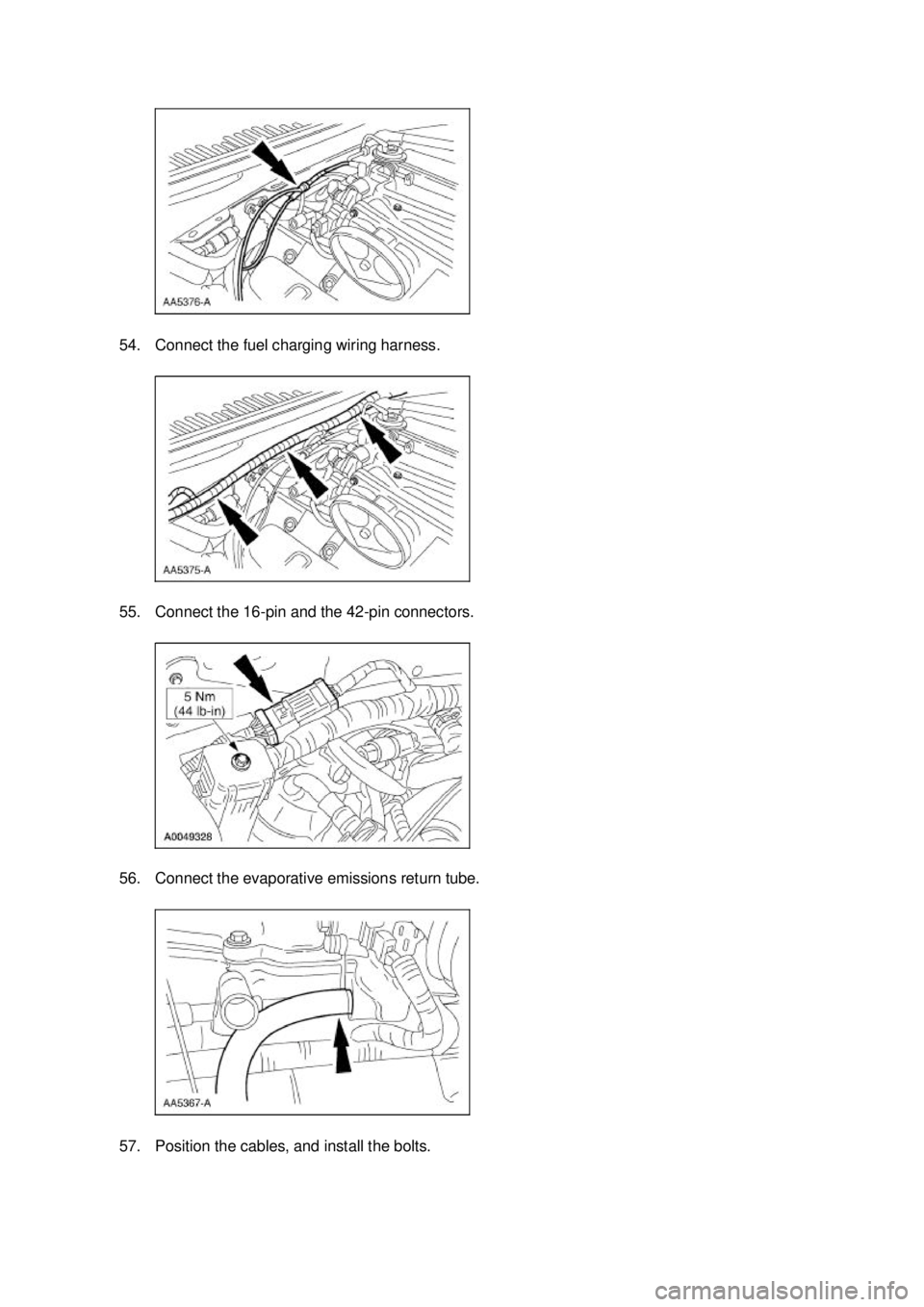

FORD MUSTANG 2003 Workshop Manual 54. Connect the fuel charging wiring harness. 55. Connect the 16- pin and the 42-pin connectors. 56. Connect the evaporative emissions return tube. 57. Position the cables, and install the bolts.

Page 1836 of 4378

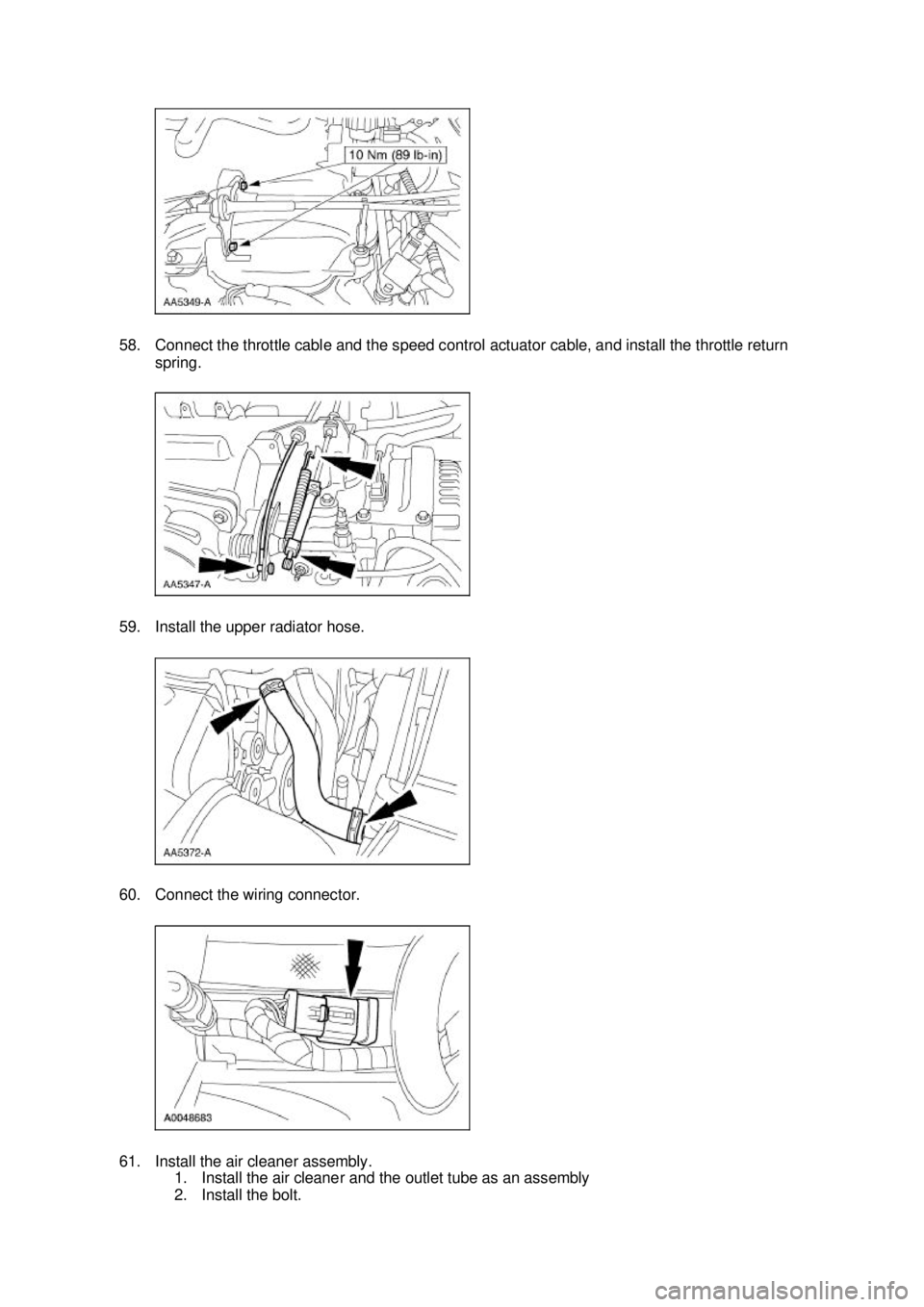

FORD MUSTANG 2003 Workshop Manual 58. Connect the throttle cable and the speed control actuator cable, and install the throttle return spring. 59. Install the upper radiator hose. 60. Connect the wiring connector. 61. Install the

Page 1837 of 4378

FORD MUSTANG 2003 Workshop Manual 62. Connect the mass air flow (MAF) sensor electrical connector. 63. Connect the air cleaner outlet pipe at the throttle body. 1. Connect the positive crankcase ventilation (PCV) inlet tube. 2. Tig

Page 1838 of 4378

FORD MUSTANG 2003 Workshop Manual 65. Install the hood- to-body ground strap. 66. Connect the fuel spring lock coupling. For additional information, refer to Section 310 - 00 . 67. Install the air intake scoop bracket. For additio

Page 1839 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 303- 03A: Engine Cooling 2003 Mustang Workshop Manual General Specifications Item Specification Cooling System Capacity 15.2 L (4.0 gal) Coolant Type Motorcraft Premium

Page 1840 of 4378

FORD MUSTANG 2003 Workshop Manual Intake manifold bolts 10 — 89 Supercharger drive belt cover 10 — 89 Thermostat housing bolts 10 — 89 Vacuum accessory bracket fasteners 10 — 89 Coolant outlet connection bolts (4.6
