Page 1921 of 4378
GENERAL PROCEDURES

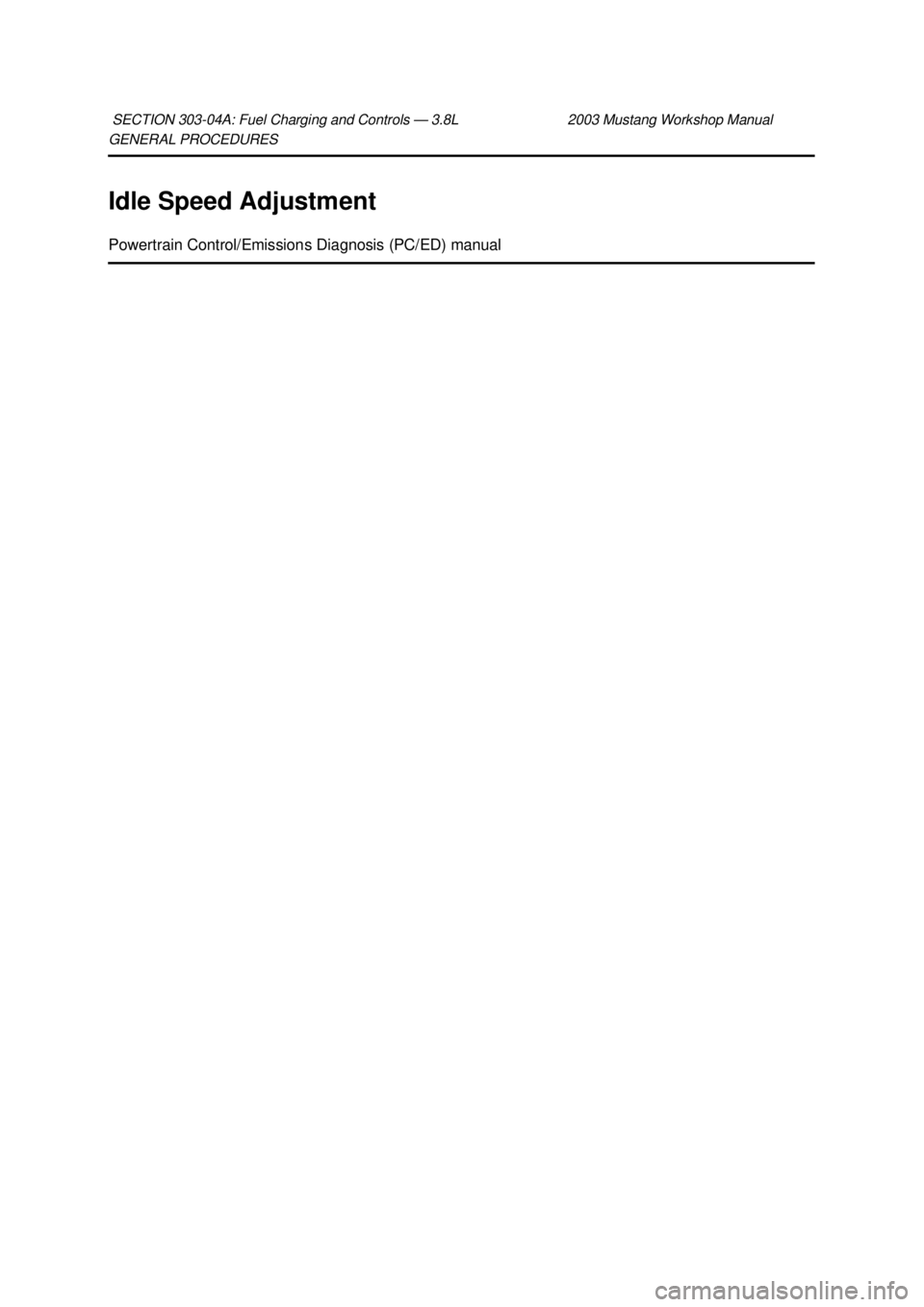

Idle Speed Adjustment
Powertrain Control/Emissions Diagnosis (PC/ED) manual
SECTION 303-
04A: Fuel Charging and Controls — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1922 of 4378

REMOVAL AND INSTALLATION
Throttle Body
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION: The throttle body bore and plate area have a special coating and cannot be
cleaned.
1. Remove the air cleaner outlet tube (9B659). For additional information, refer to Section 303 - 12 .
2. Disconnect the throttle position (TP) sensor electrical connector.
3. Disconnect the accelerator cable (9A758) and (if equipped) the speed control actuator cable (9A825).
4. NOTE: Discard the throttle body gasket after removing the throttle body.

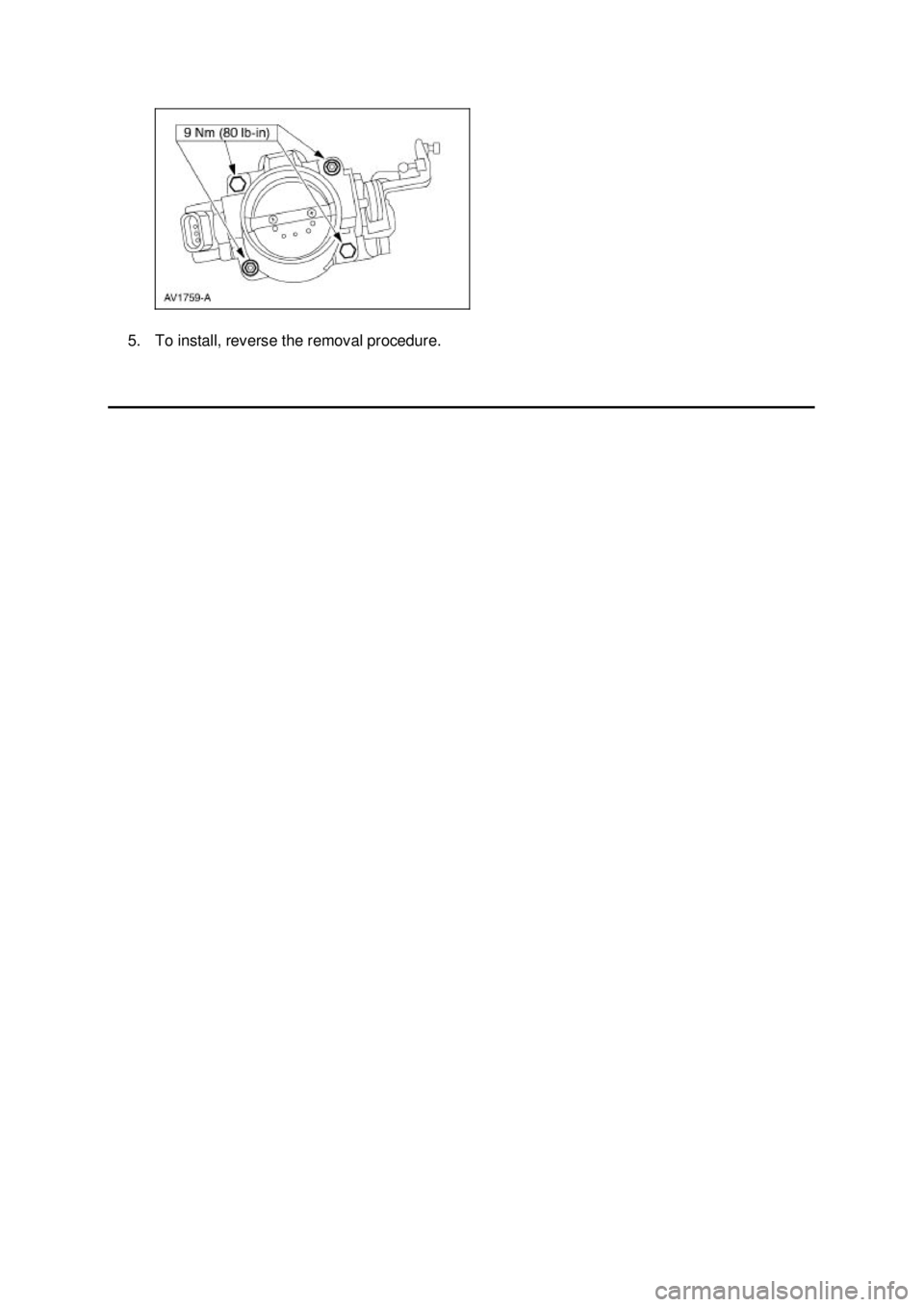

Remove the throttle body. zRemove the nuts.
z Remove the bolts.
SECTION 303-
04A: Fuel Charging and Controls — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1923 of 4378
5. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1924 of 4378

REMOVAL AND INSTALLATION
Fuel Injectors
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and may ignite. Failure to follow these instructions may result in personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before working on or disconnecting any of the fuel lines or fuel system
components, the fuel pressure must be relieved. Failure to follow these instructions may result
in personal injury
1. Remove the supply manifold. For additional information, refer to Supply Manifold in this section.
2. Remove the six fuel injectors from the supply manifold.
3. CAUTION: The retaining clip must be in the upper groove on the injector or the
injector may become loose.

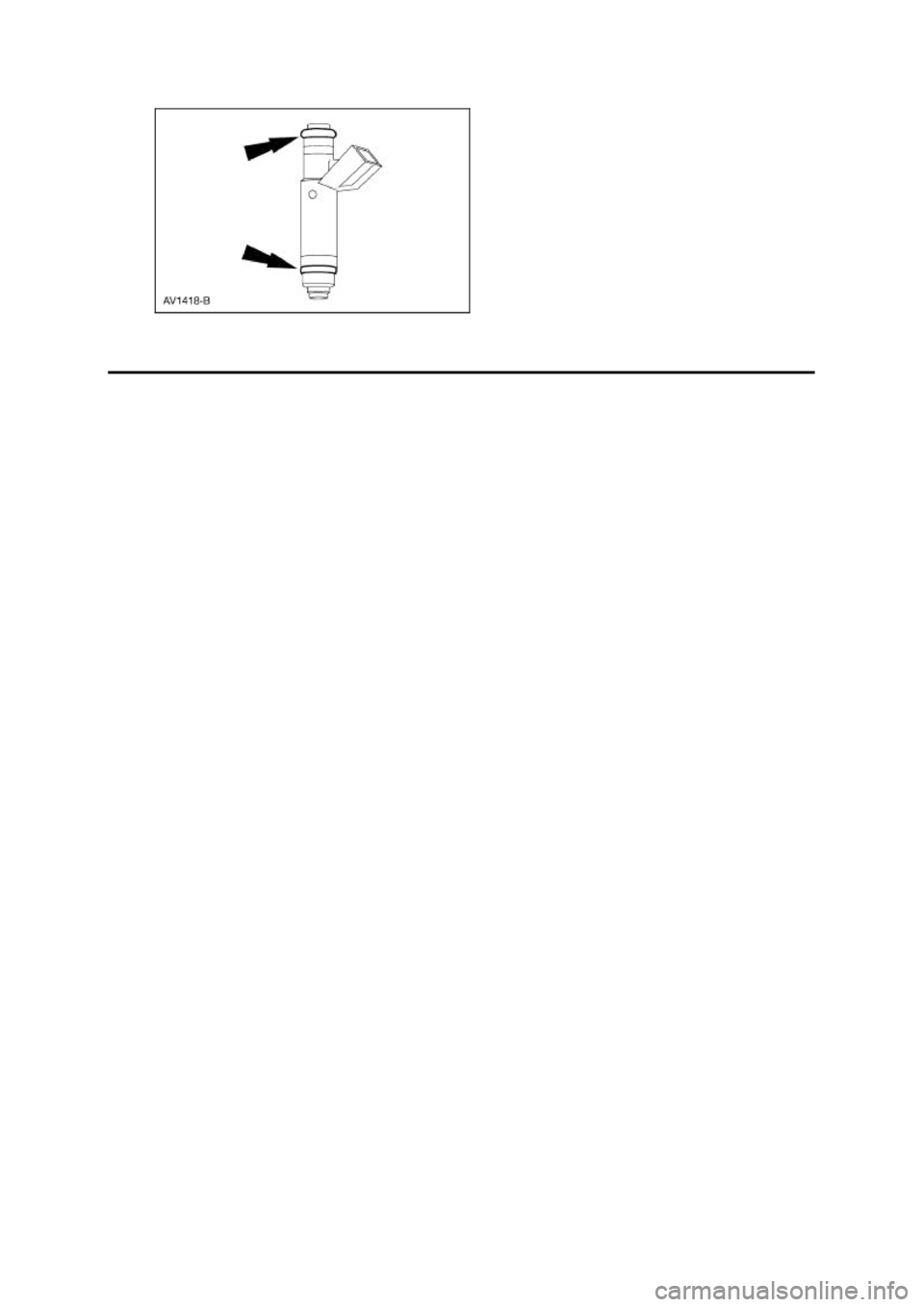

NOTE: Inspect the two O- rings from each fuel injector. Install new O- rings as needed.
NOTE: Lubricate the new O- rings with clean engine oil to aid installation.
To install, reverse the removal procedure.
SECTION 303-
04A: Fuel Charging and Controls — 3.8L 2003 Mustang Workshop Manual Material
Item Specification
SAE 5W-
20 Premium Synthetic
Blend Motor Oil
XO- 5W20-QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1925 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1926 of 4378

REMOVAL AND INSTALLATION
Fuel Charging Wiring Harness
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and may ignite. Failure to follow these instructions may result in personal injury.
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the upper intake manifold. For additional information, refer to Section 303 - 01A .
3. Disconnect the following electrical connectors. z42- pin engine bulkhead connector
z 16- pin connector
z 8-pin connector
z A/C pressure switch
4. Separate the wiring harness from the dash panel.
5. Disconnect the intake manifold runner control (IMRC) actuator electrical connector.
SECTION 303-
04A: Fuel Charging and Controls — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1927 of 4378
6. Disconnect the RH heated oxygen sensor (HO2S) electrical connector and the 16-
pin electrical
connector.
7. Disconnect the crankshaft position (CKP) sensor electrical connector.
8. Disconnect the camshaft position (CMP) sensor electrical connector.
9. NOTE: Right side shown, left side similar.
Disconnect the six fuel injector electrical connectors. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1928 of 4378
10. Disconnect the cylinder head temperature (CHT) sensor electrical connector on the back of the
left cylinder head.
11. Disconnect the engine oil pressure sender electrical connector.
12. Disconnect the fuel pressure sensor electrical connector. 13. Disconnect the LH heated oxygen sensor (HO2S) electrical connector. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
