Page 2865 of 4378

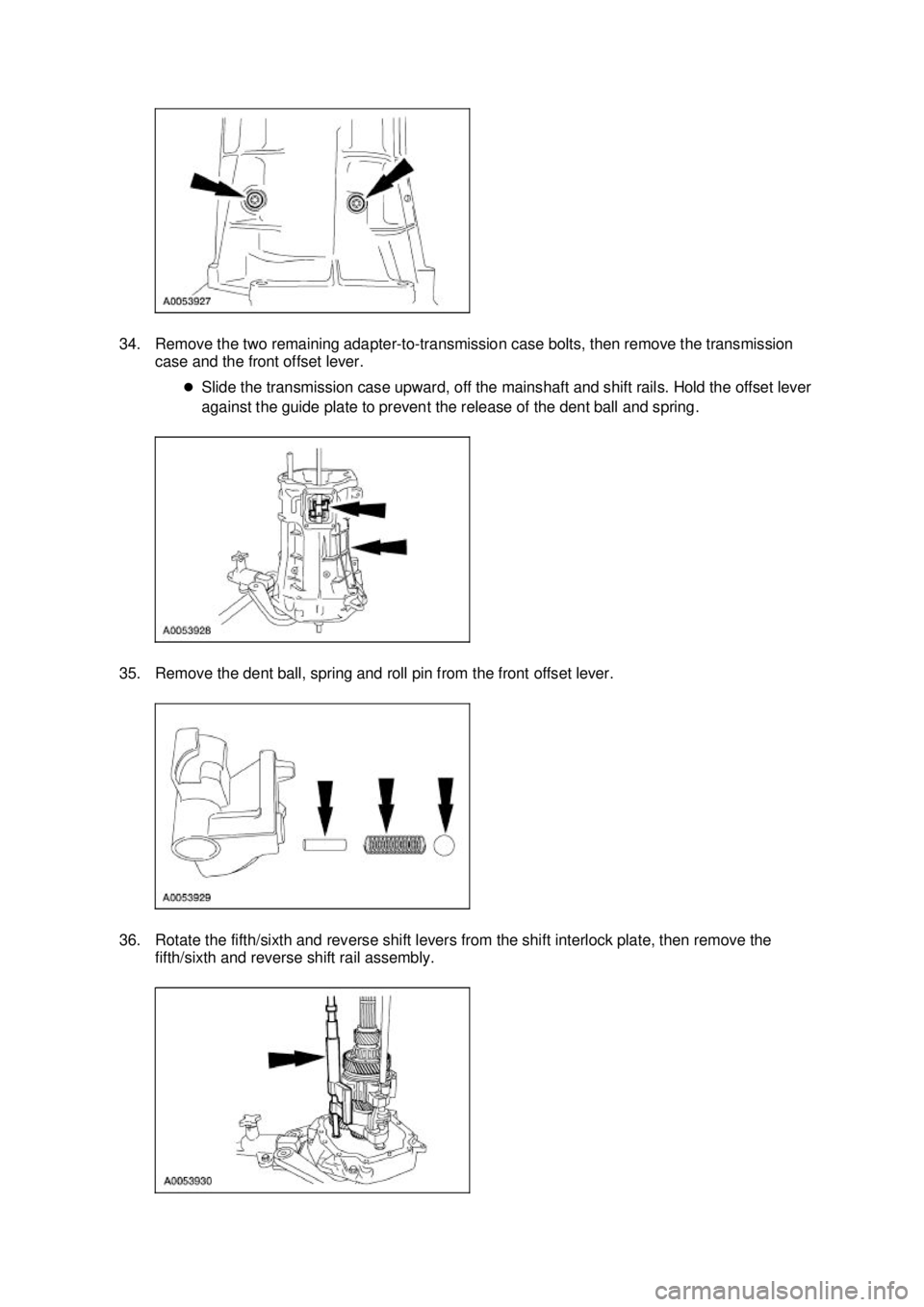

FORD MUSTANG 2003 Workshop Manual 34. Remove the two remaining adapter- to-transmission case bolts, then remove the transmission case and the front offset lever. �zSlide the transmission case upward, off the mainshaft and shift rail

Page 2866 of 4378

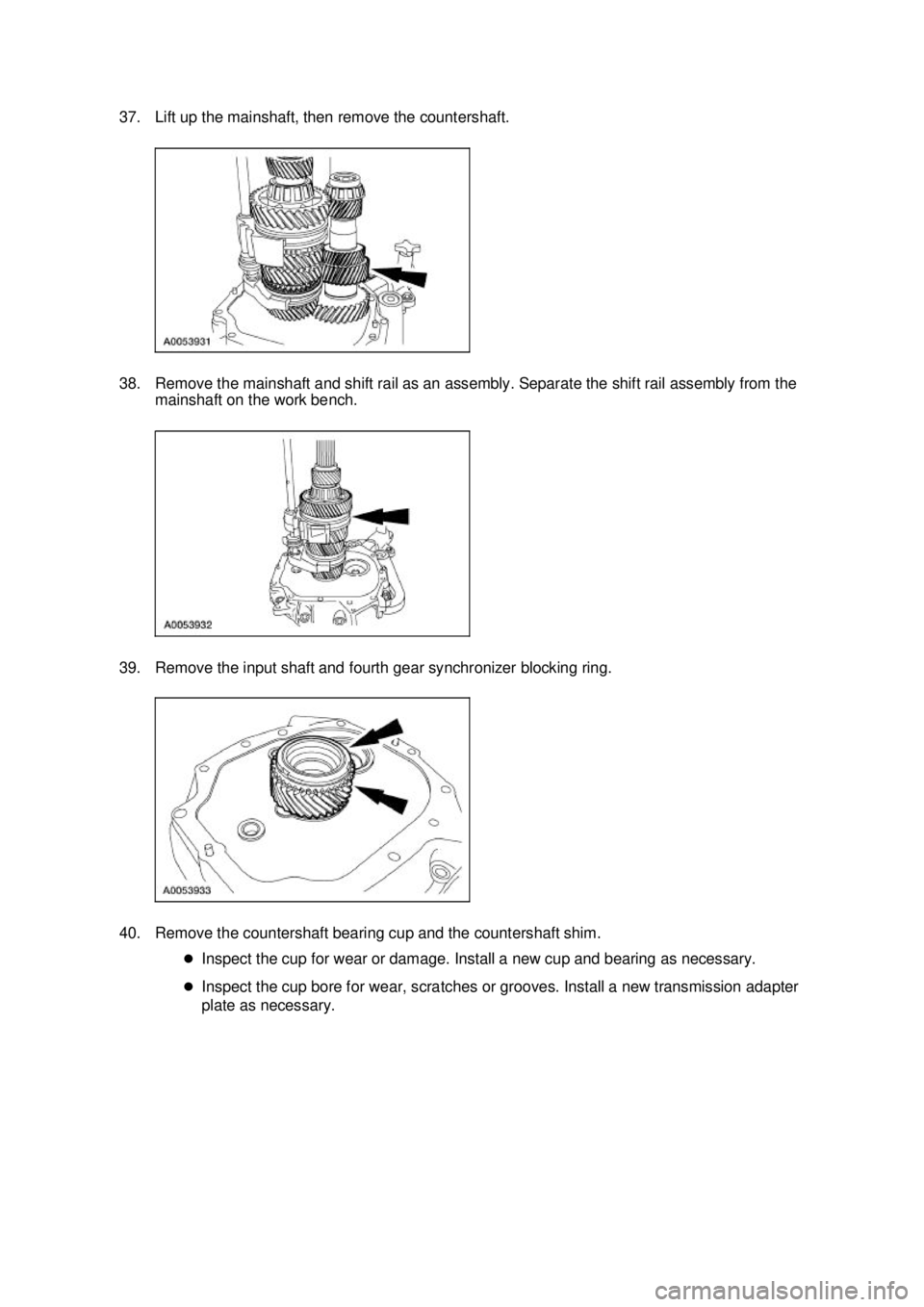

FORD MUSTANG 2003 Workshop Manual 37. Lift up the mainshaft, then remove the countershaft. 38. Remove the mainshaft and shift rail as an assembly. Separate the shift rail assembly from the mainshaft on the work bench. 39. Remove th

Page 2867 of 4378

FORD MUSTANG 2003 Workshop Manual 41. Remove the input shaft bearing cup and input shaft shim. �zInspect the cup for wear or damage. Install a new cup and bearing as necessary. �z Inspect the cup bore for wear, scratches or grooves.

Page 2868 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 13 ba 132003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2869 of 4378

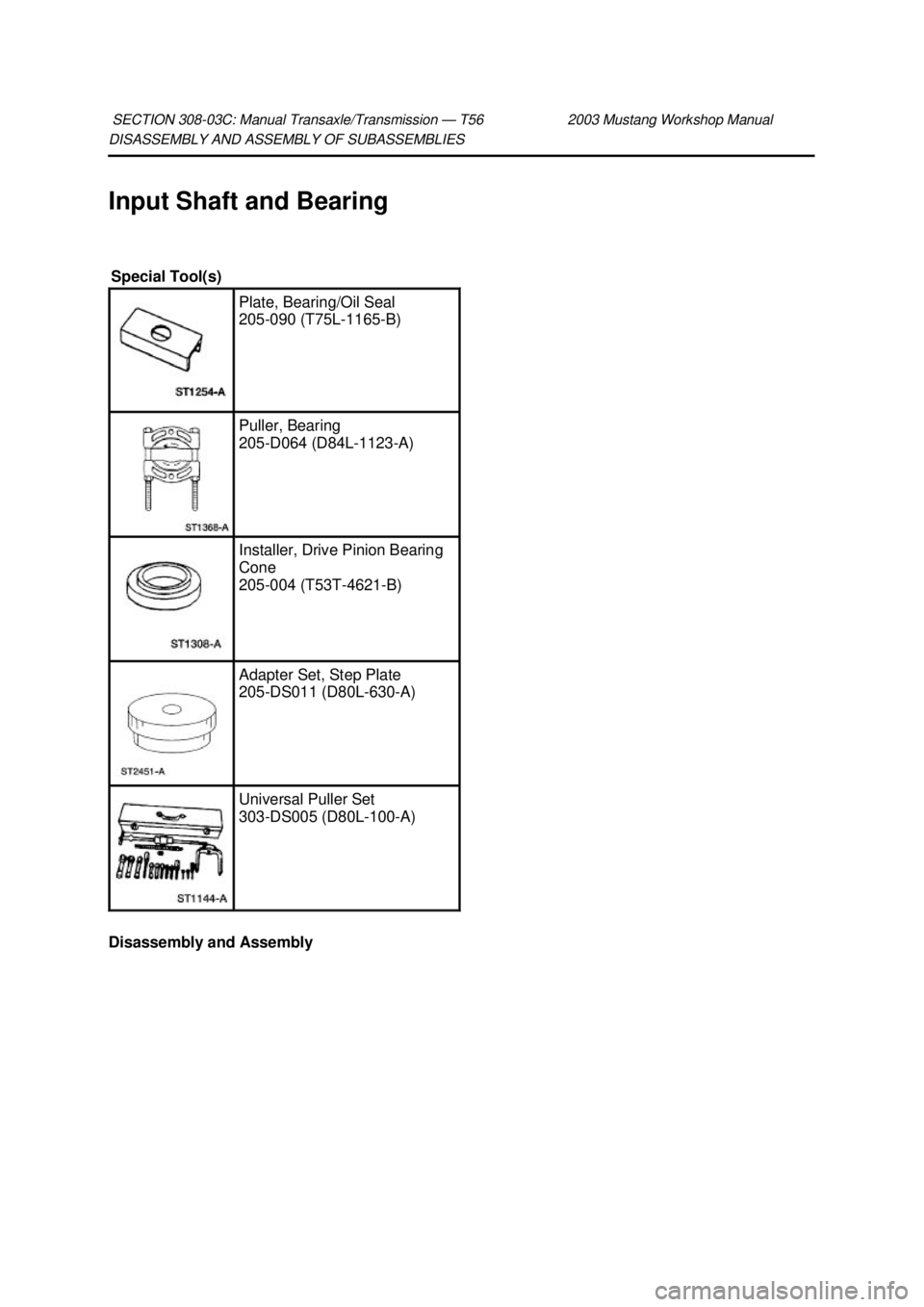

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Input Shaft and Bearing Disassembly and Assembly SECTION 308- 03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual Special Tool(s) Pla

Page 2870 of 4378

FORD MUSTANG 2003 Workshop Manual 1. CAUTION: Use a vise with brass jaws or wood blocks. Secure the input shaft in a vise. Using the special tools and a slide hammer, remove the input shaft bearing cup. �zInspect the cup for wear

Page 2871 of 4378

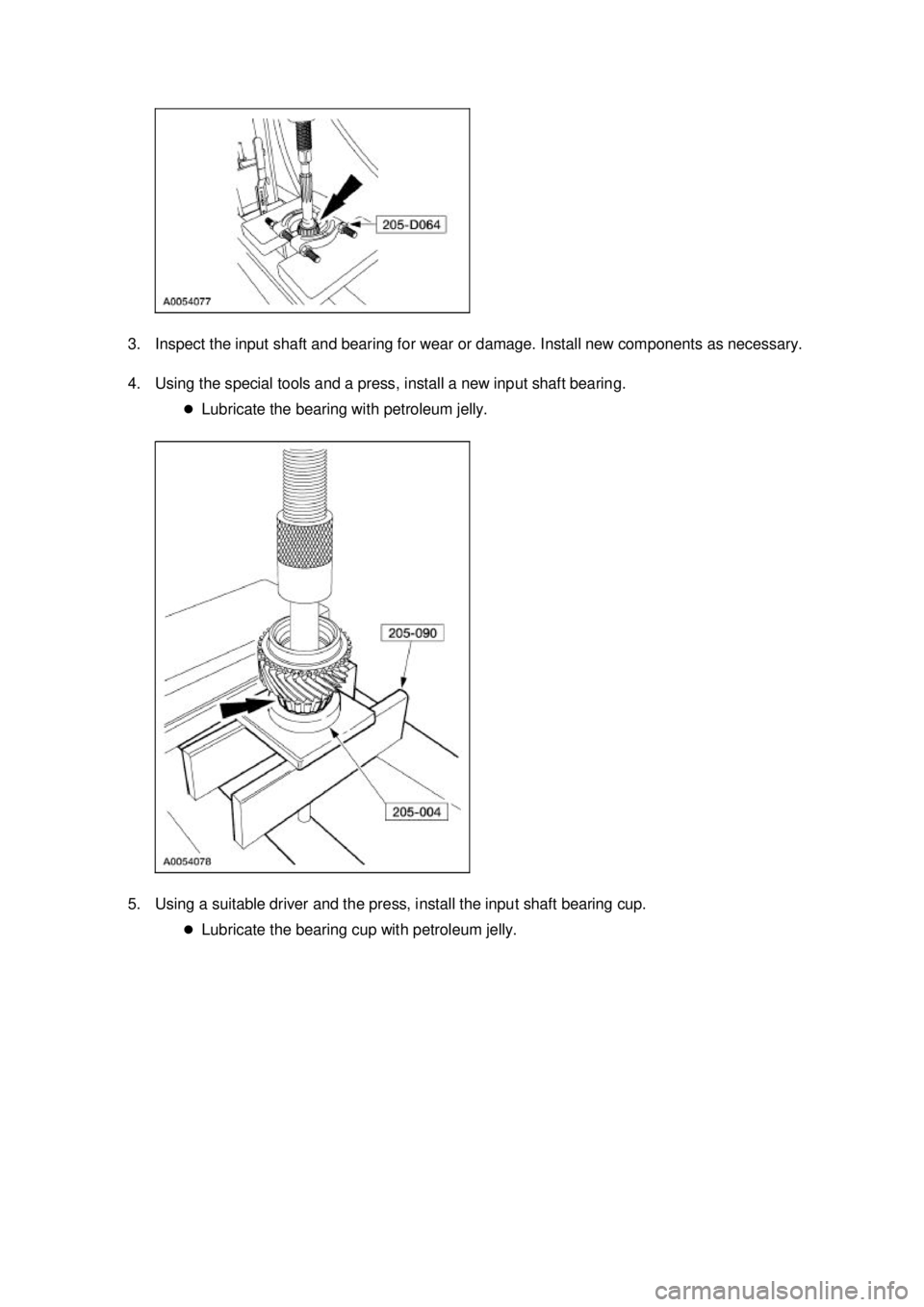

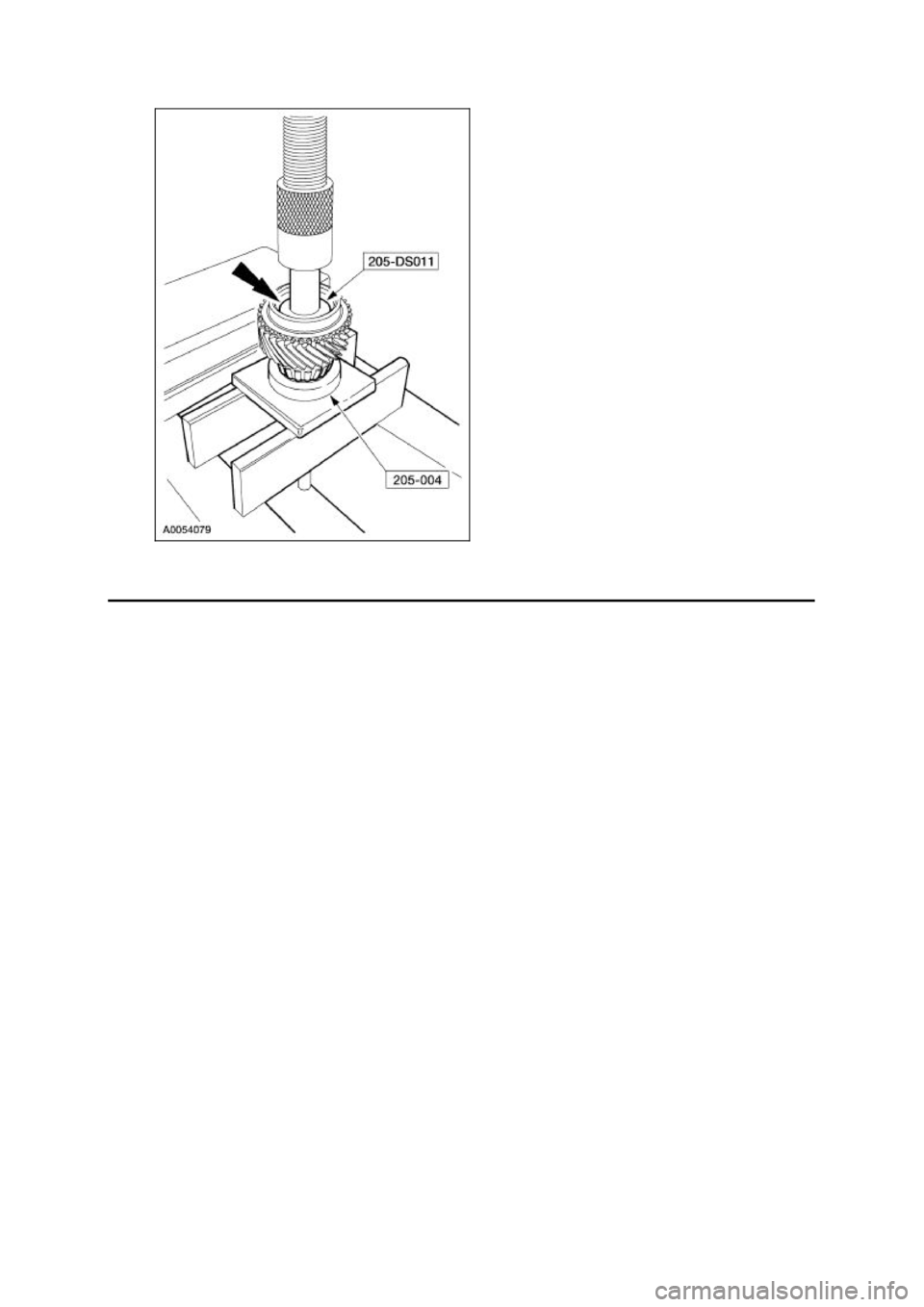

FORD MUSTANG 2003 Workshop Manual 3. Inspect the input shaft and bearing for wear or damage. Install new components as necessary. 4. Using the special tools and a press, install a new input shaft bearing. �zLubricate the bearing wit

Page 2872 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
