Page 3625 of 4378

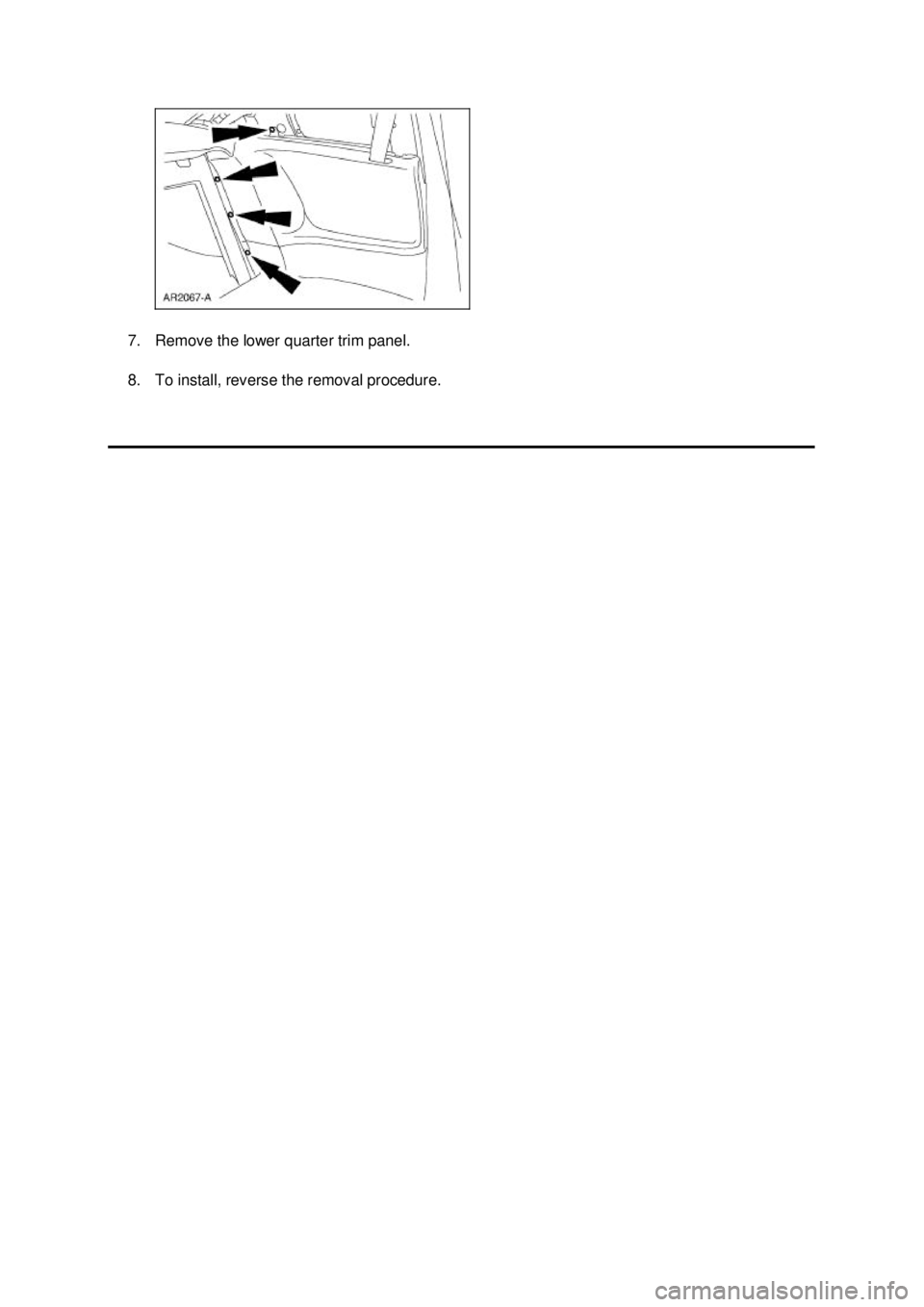

FORD MUSTANG 2003 Workshop Manual 7. Remove the lower quarter trim panel. 8. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~

Page 3626 of 4378

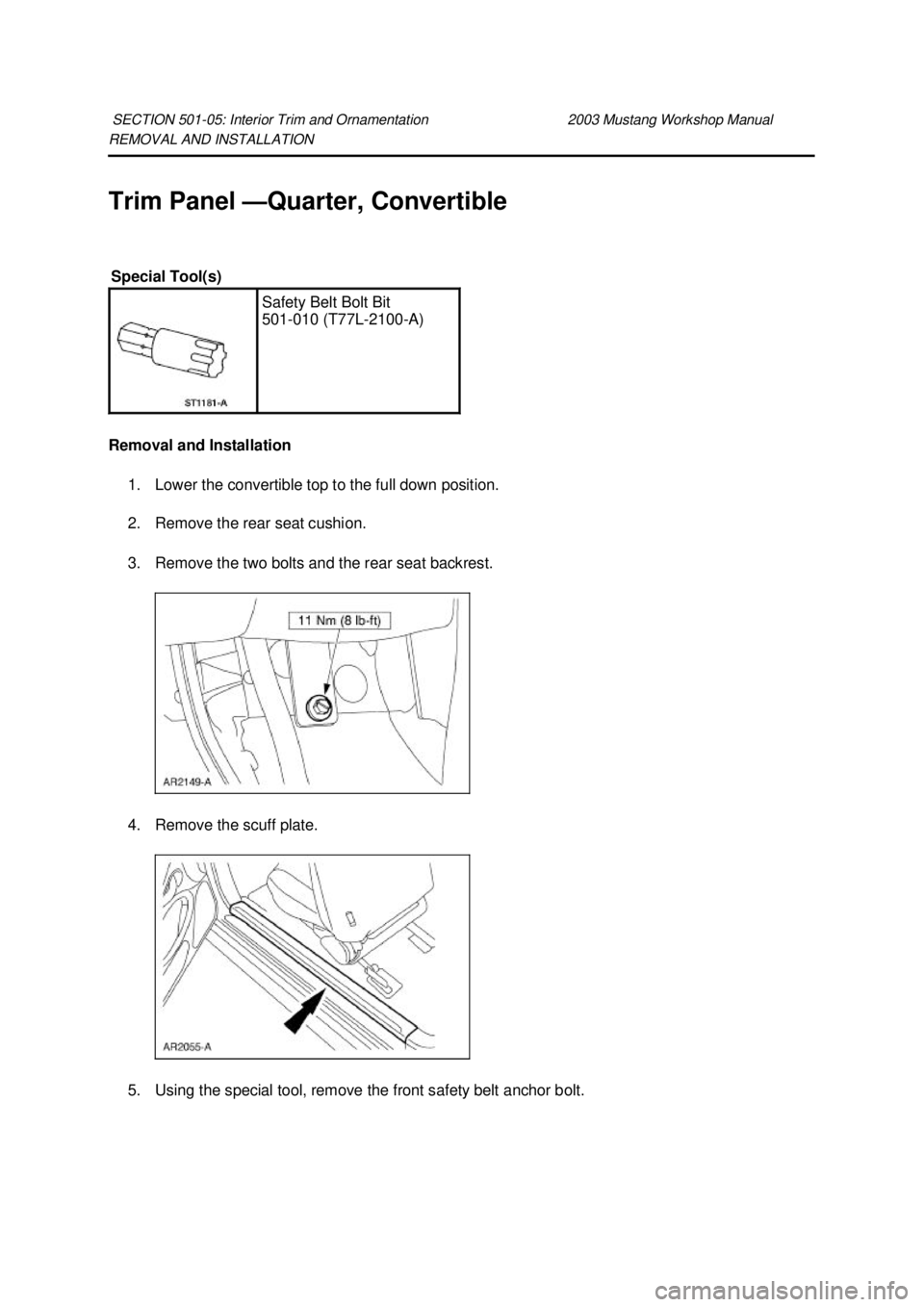

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Trim Panel — Quarter, Convertible Removal and Installation 1. Lower the convertible top to the full down position. 2. Remove the rear seat cushion. 3. Remove the two bo

Page 3627 of 4378

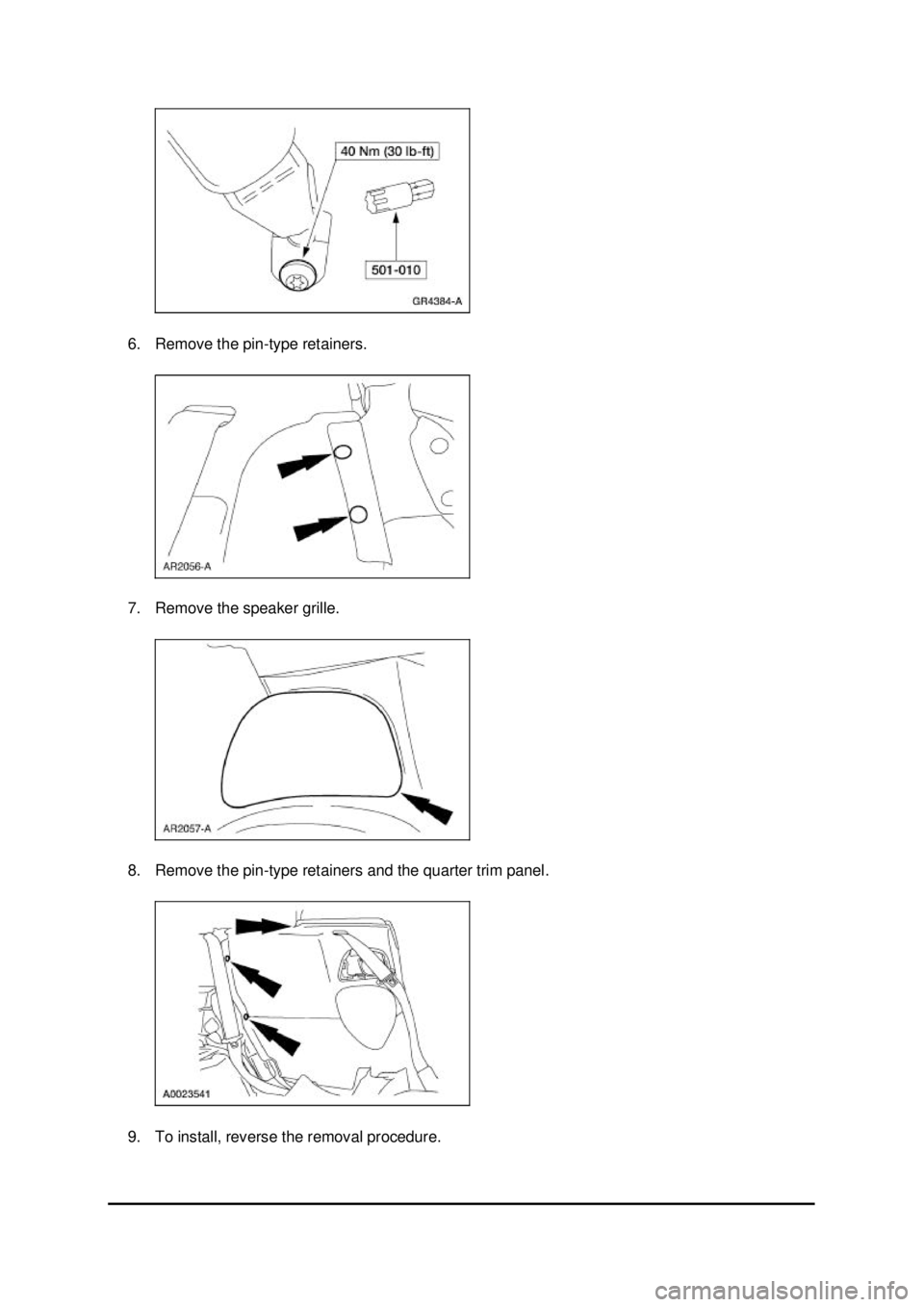

FORD MUSTANG 2003 Workshop Manual 6. Remove the pin- type retainers. 7. Remove the speaker grille. 8. Remove the pin- type retainers and the quarter trim panel. 9. To install, reverse the removal procedure. Klj . 2 ba 3200

Page 3628 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3629 of 4378

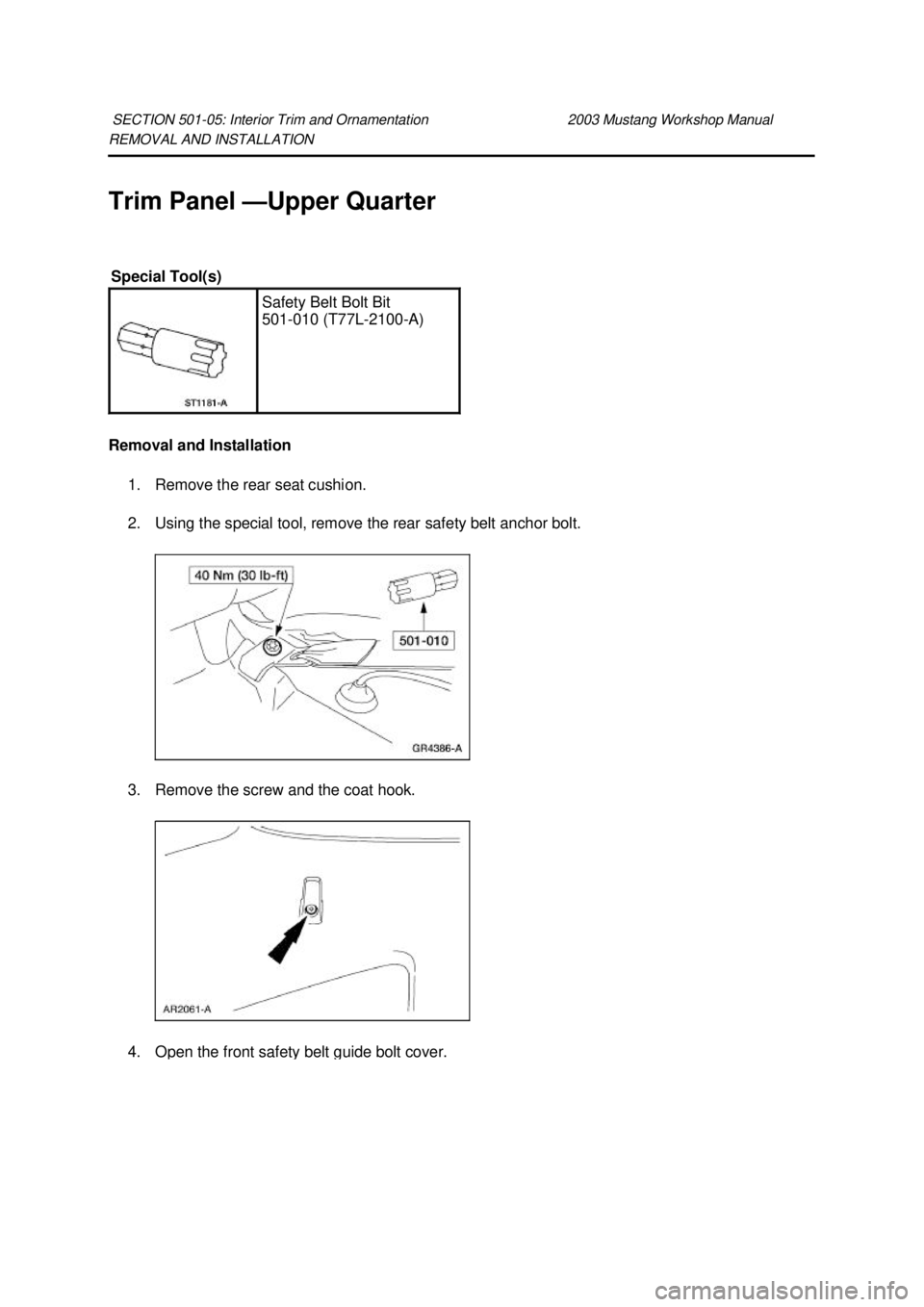

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Trim Panel — Upper Quarter Removal and Installation 1. Remove the rear seat cushion. 2. Using the special tool, remove the rear safety belt anchor bolt. 3. Remove the s

Page 3630 of 4378

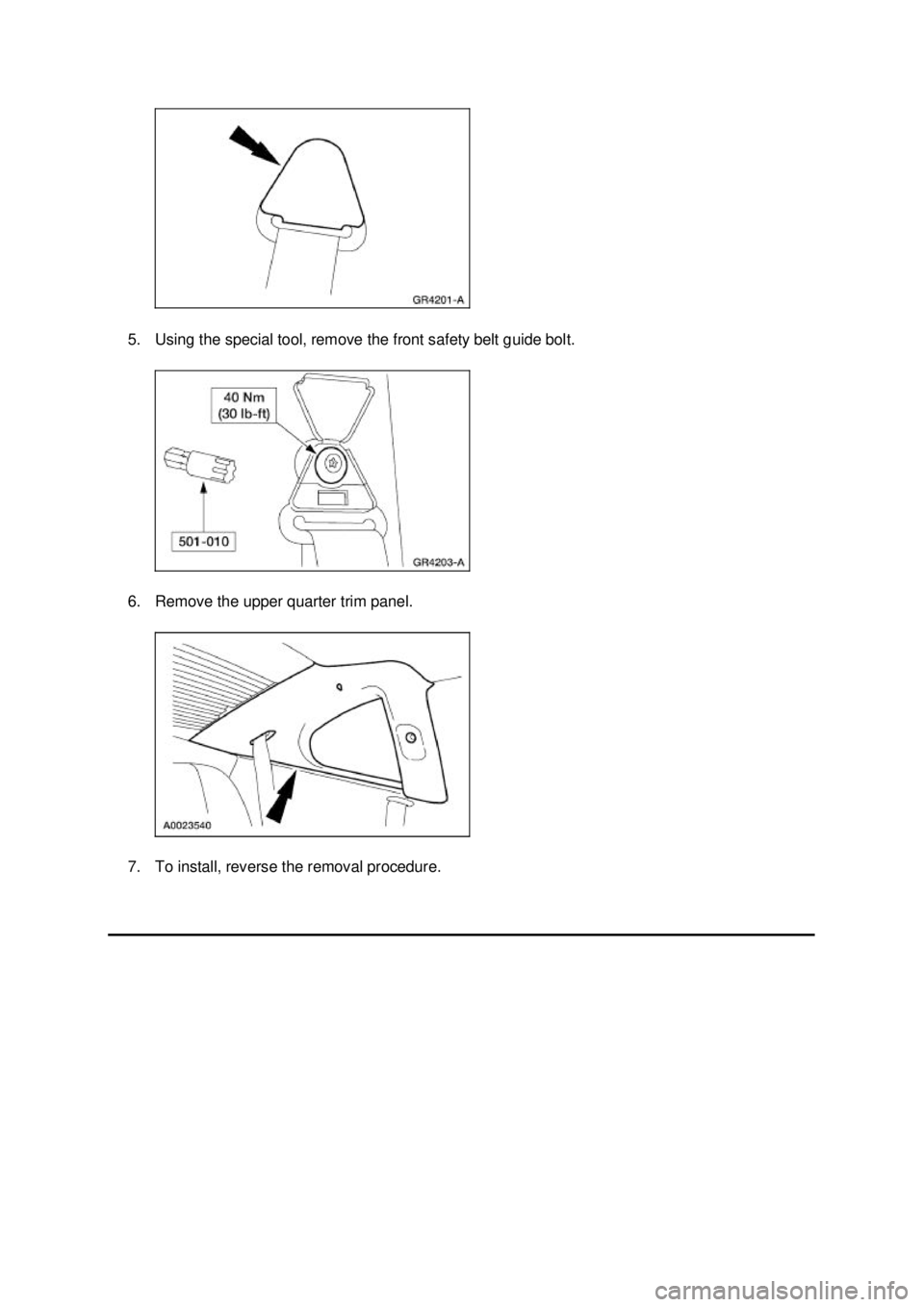

FORD MUSTANG 2003 Workshop Manual 5. Using the special tool, remove the front safety belt guide bolt. 6. Remove the upper quarter trim panel. 7. To install, reverse the removal procedure. Klj . 2 ba 32003 Mustang Workshop M

Page 3631 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3632 of 4378

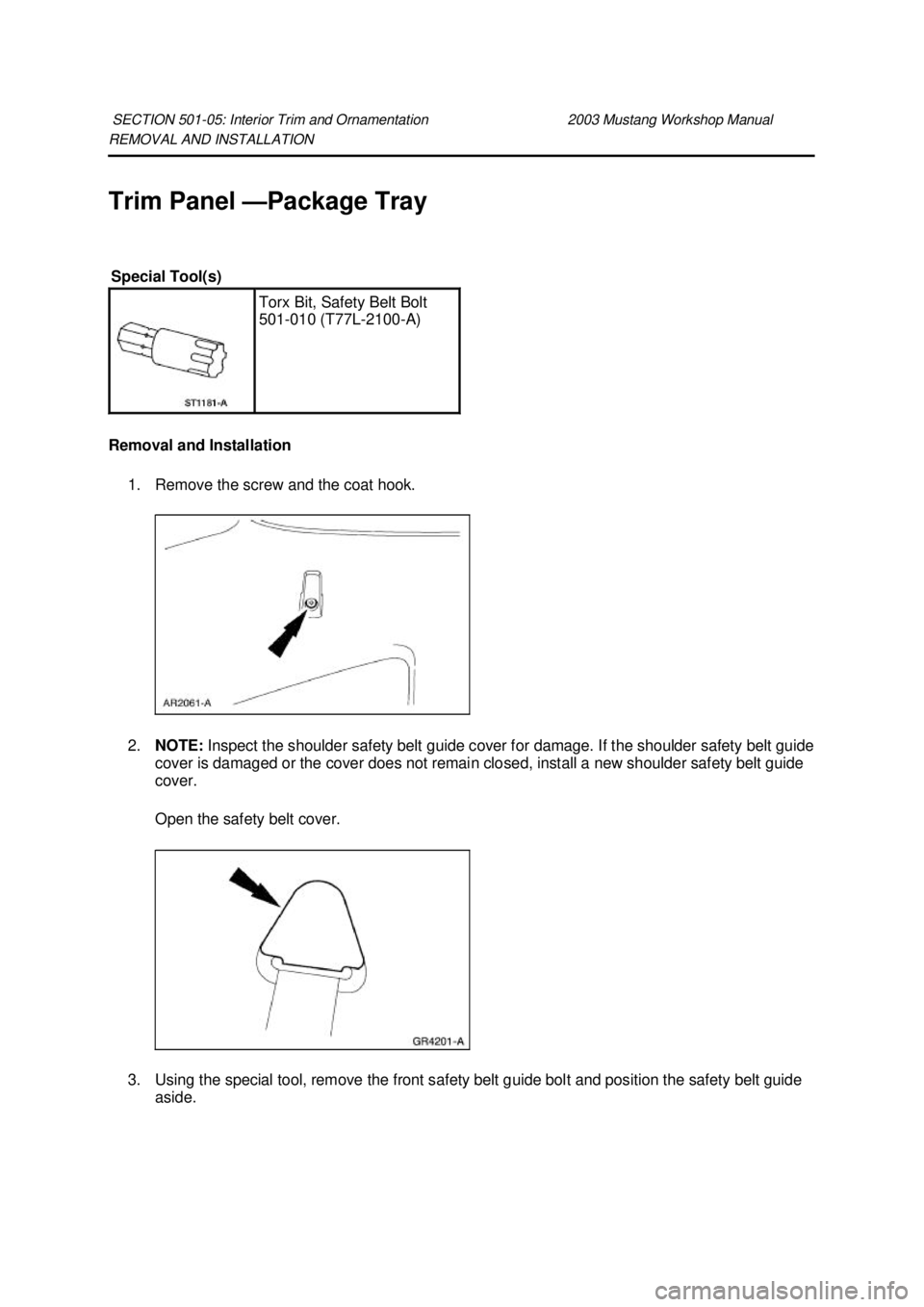

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Trim Panel — Package Tray Removal and Installation 1. Remove the screw and the coat hook. 2. NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoul
