FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Clutch And Clutch Field Coil Removal SECTION 412- 03: Air Conditioning 2003 Mustang Workshop Manual Special Tool(s) 2- Jaw Puller 205- D026 (D80L-1002- L) or equivalent

Page 3194 of 4378

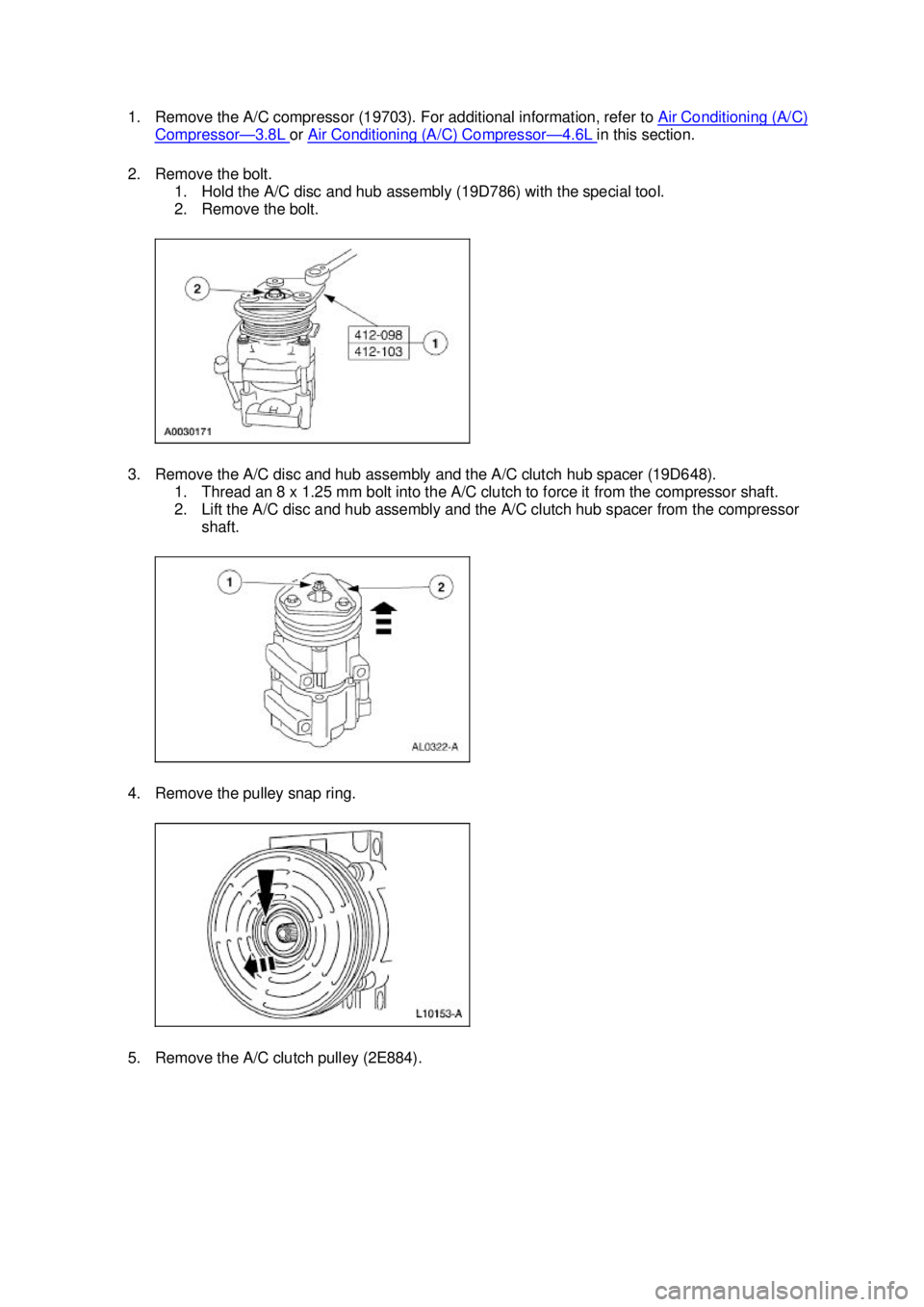

FORD MUSTANG 2003 Workshop Manual 1. Remove the A/C compressor (19703). For additional information, refer to Air Conditioning (A/C) Compressor — 3.8L or Air Conditioning (A/C) Compressor — 4.6L in this section. 2. Remove the

Page 3195 of 4378

FORD MUSTANG 2003 Workshop Manual 6. CAUTION: Do not use air tools. The A/C clutch field coil (19D798) can be easily damaged. Remove the A/C clutch field coil. 1. Note the location of the A/C clutch field coil electrical connector

Page 3196 of 4378

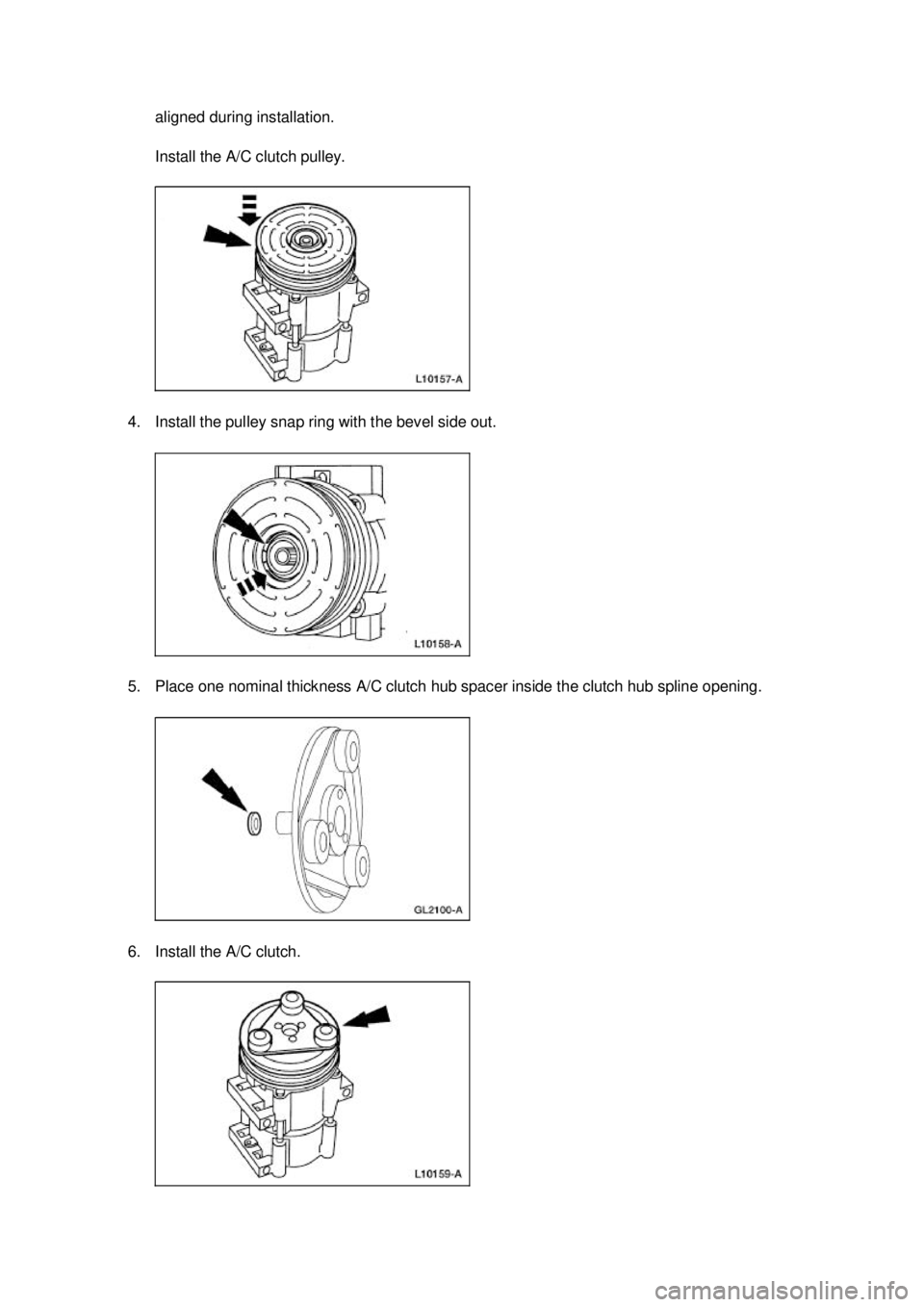

FORD MUSTANG 2003 Workshop Manual aligned during installation. Install the A/C clutch pulley. 4. Install the pulley snap ring with the bevel side out. 5. Place one nominal thickness A/C clutch hub spacer inside the clutch hub splin

Page 3197 of 4378

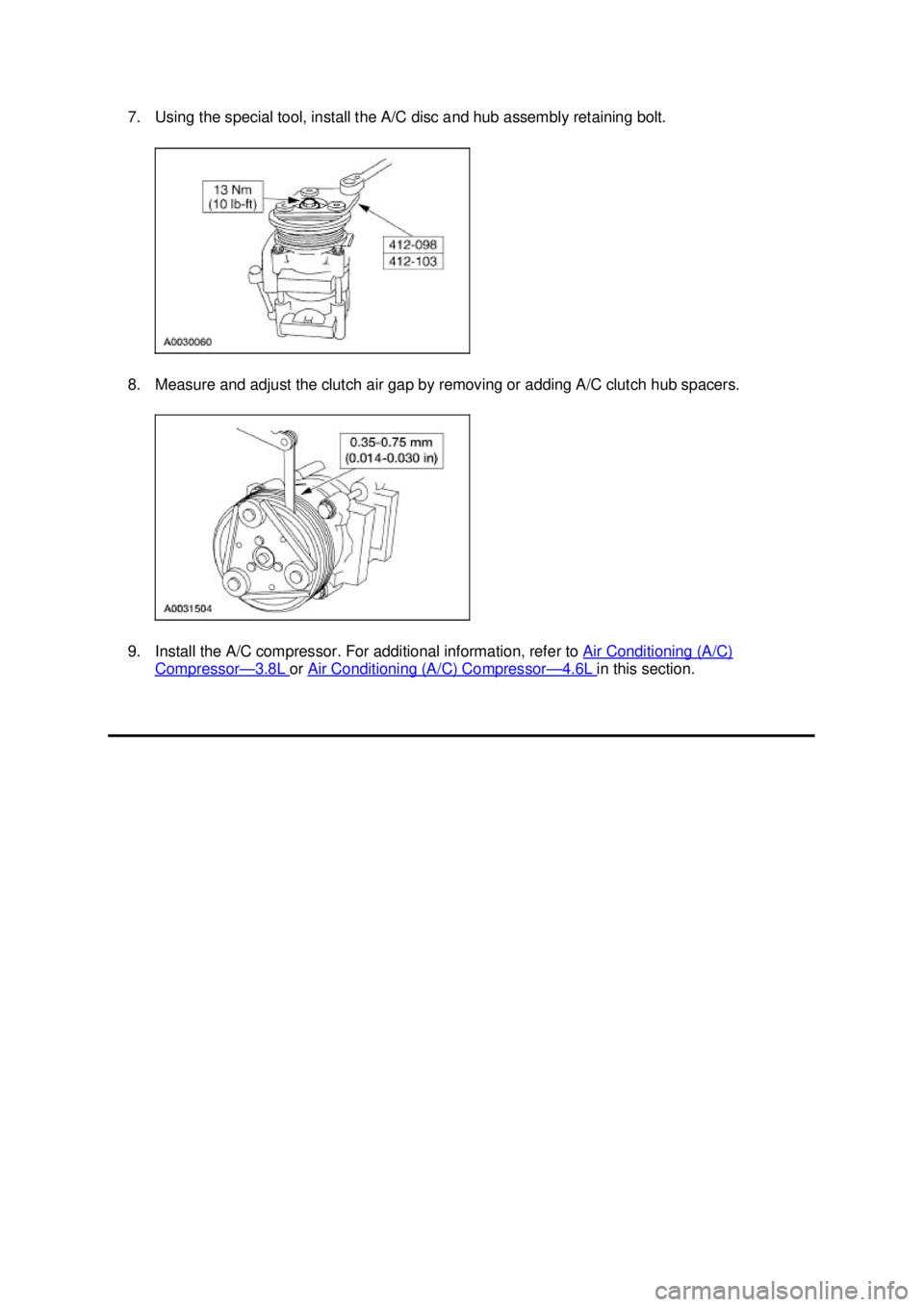

FORD MUSTANG 2003 Workshop Manual 7. Using the special tool, install the A/C disc and hub assembly retaining bolt. 8. Measure and adjust the clutch air gap by removing or adding A/C clutch hub spacers. 9. Install the A/C compressor.

Page 3198 of 4378

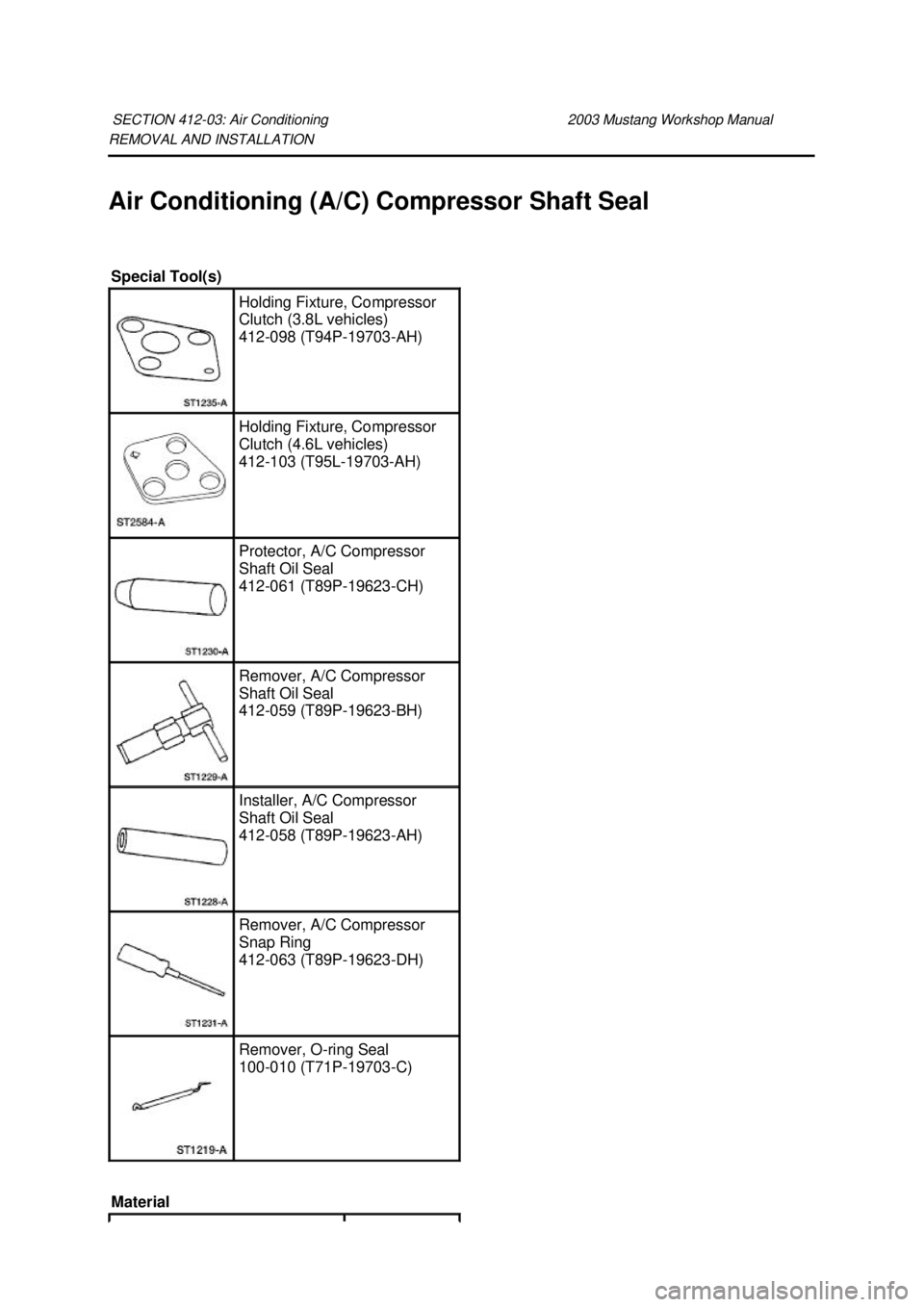

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Conditioning (A/C) Compressor Shaft Seal SECTION 412- 03: Air Conditioning 2003 Mustang Workshop Manual Special Tool(s) Holding Fixture, Compressor Clutch (3.8L vehic

Page 3199 of 4378

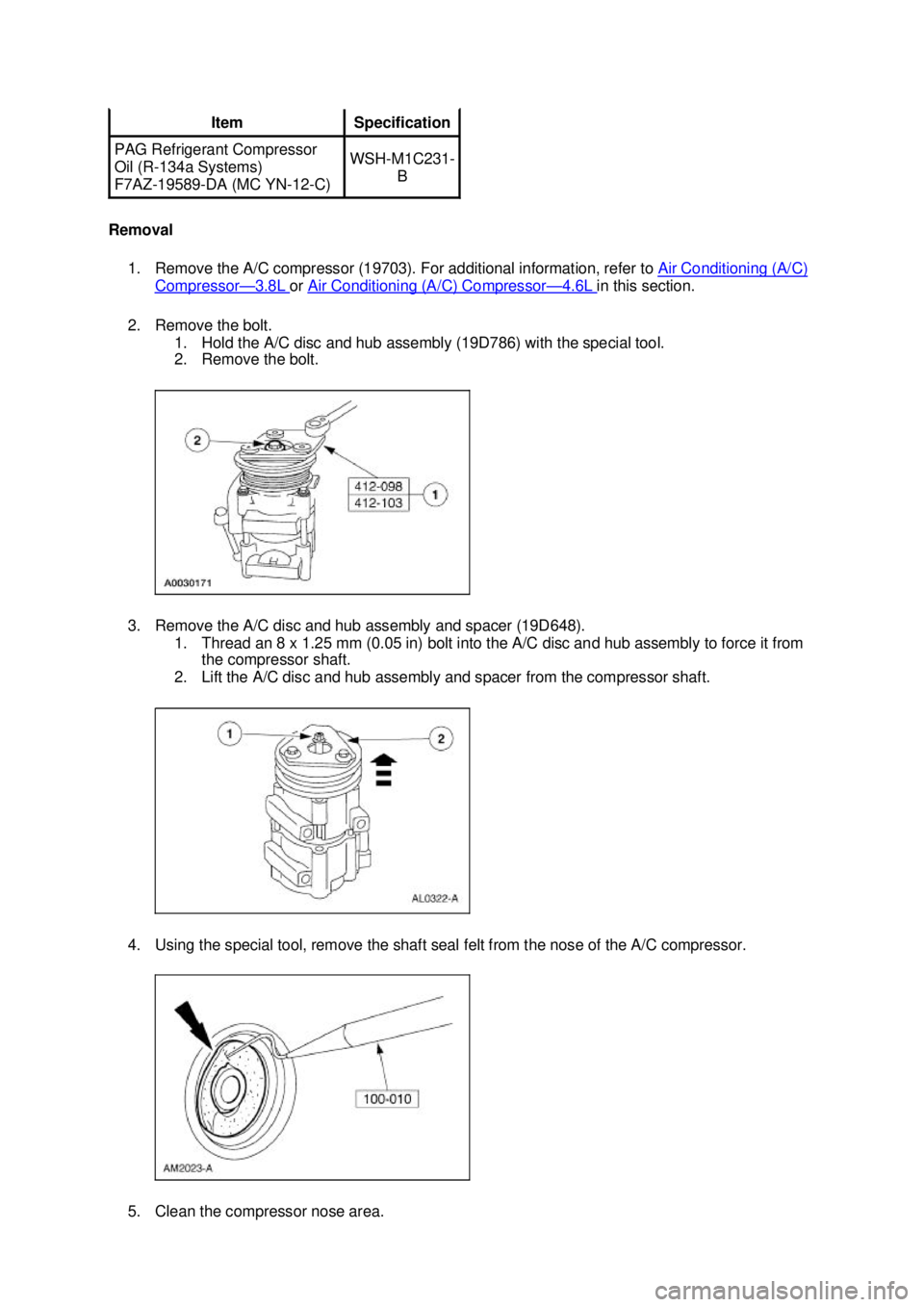

FORD MUSTANG 2003 Workshop Manual Removal 1. Remove the A/C compressor (19703). For additional information, refer to Air Conditioning (A/C) Compressor — 3.8L or Air Conditioning (A/C) Compressor — 4.6L in this section. 2. Re

Page 3200 of 4378

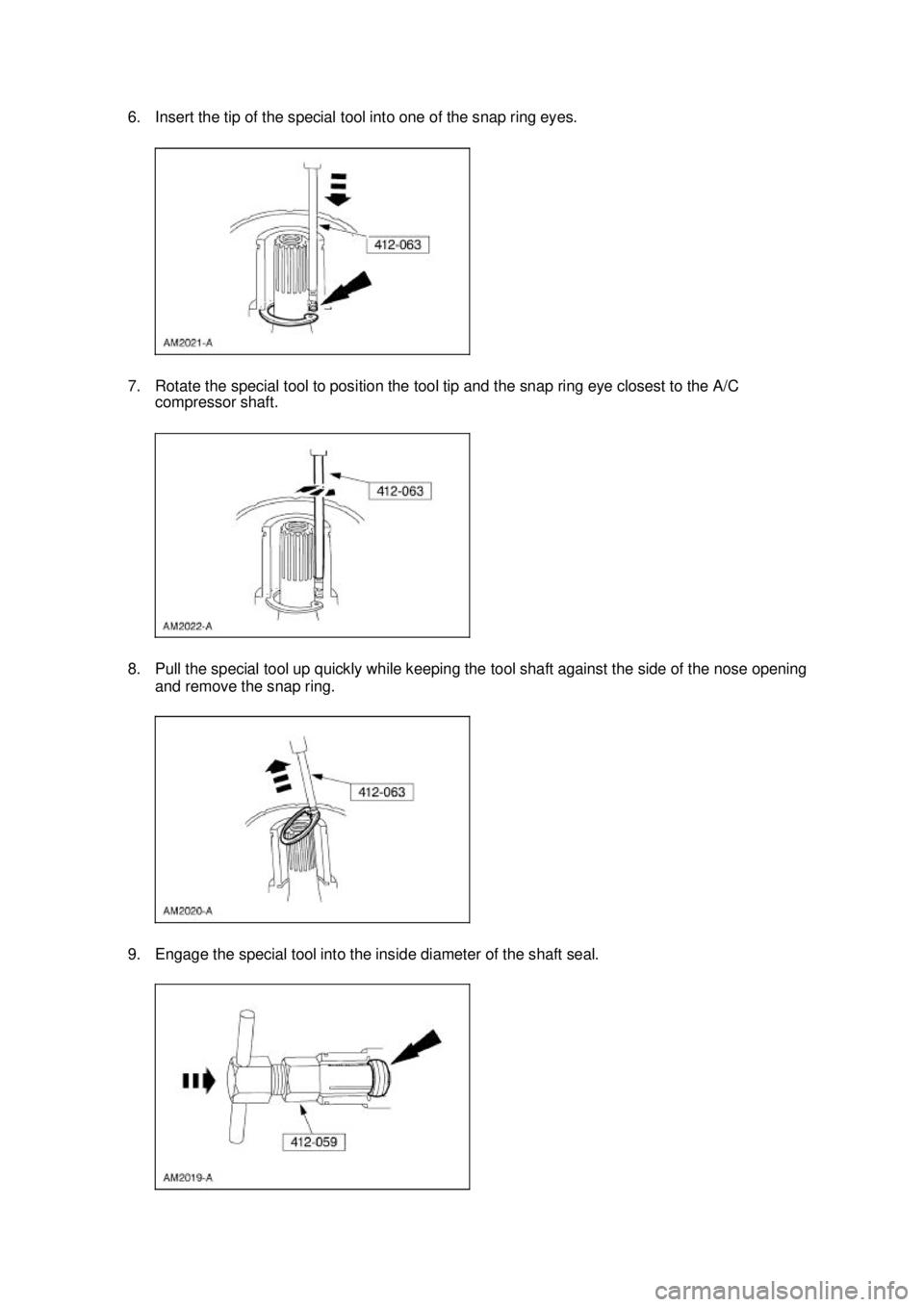

FORD MUSTANG 2003 Workshop Manual 6. Insert the tip of the special tool into one of the snap ring eyes. 7. Rotate the special tool to position the tool tip and the snap ring eye closest to the A/C compressor shaft. 8. Pull the spec
