Page 2609 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2610 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Selector Lever Removal 1. Remove the shifter top control panel. 2. Disconnect the electrical connectors. 3. Remove the shifter bezel. 4. Remove the bulb from the bezel.

Page 2611 of 4378

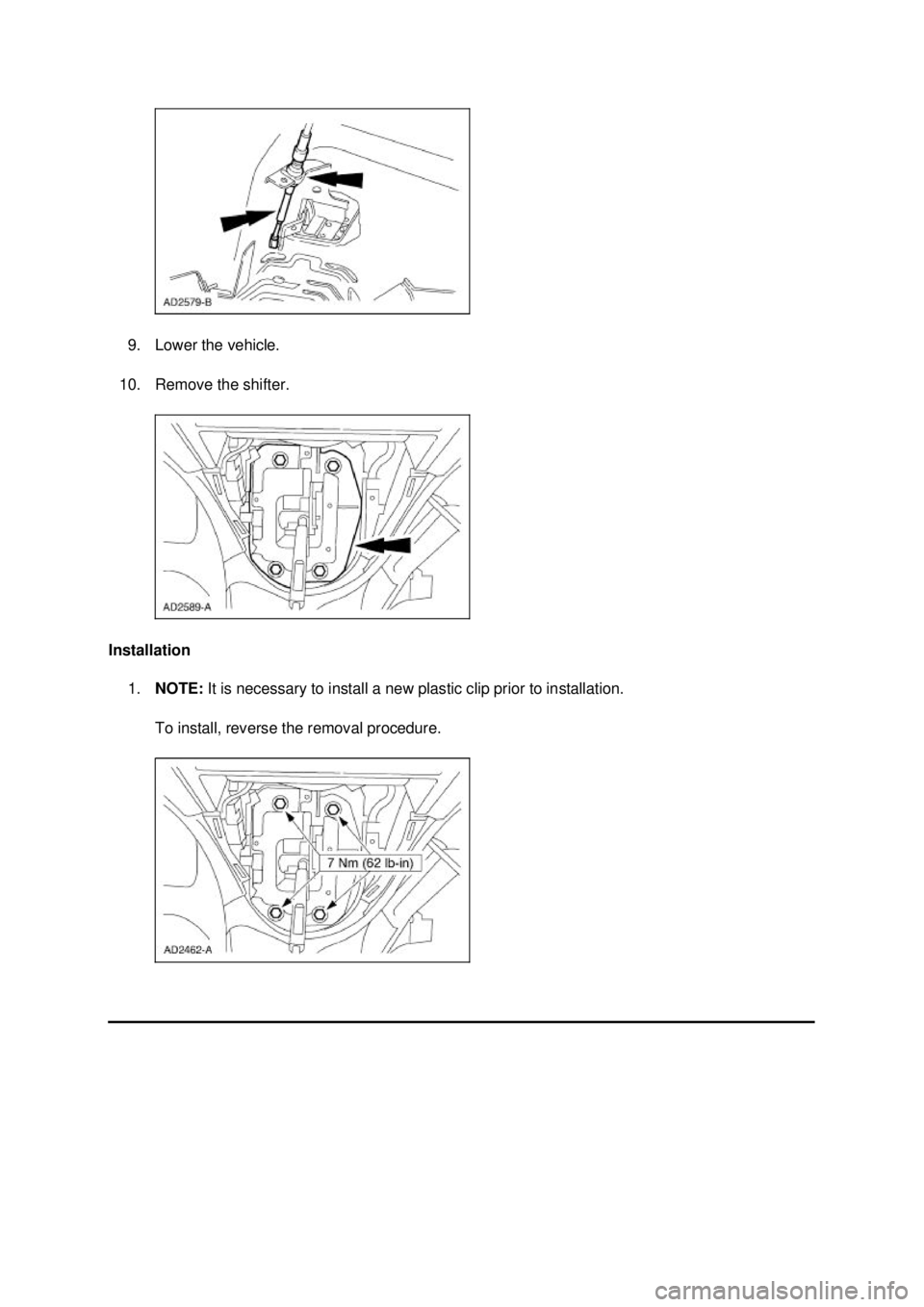

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the TCS connector. 6. CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pull

Page 2612 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Lower the vehicle. 10. Remove the shifter. Installation 1. NOTE: It is necessary to install a new plastic clip prior to installation. To install, reverse the removal procedure. Klj . 3 b

Page 2613 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2614 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Transmission Control Switch Removal 1. Remove the shifter top control panel. 2. Disconnect the electrical connectors. 3. Remove the shifter bezel. 4. Remove the bulb fro

Page 2615 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the TCS connector. 6. CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pull

Page 2616 of 4378

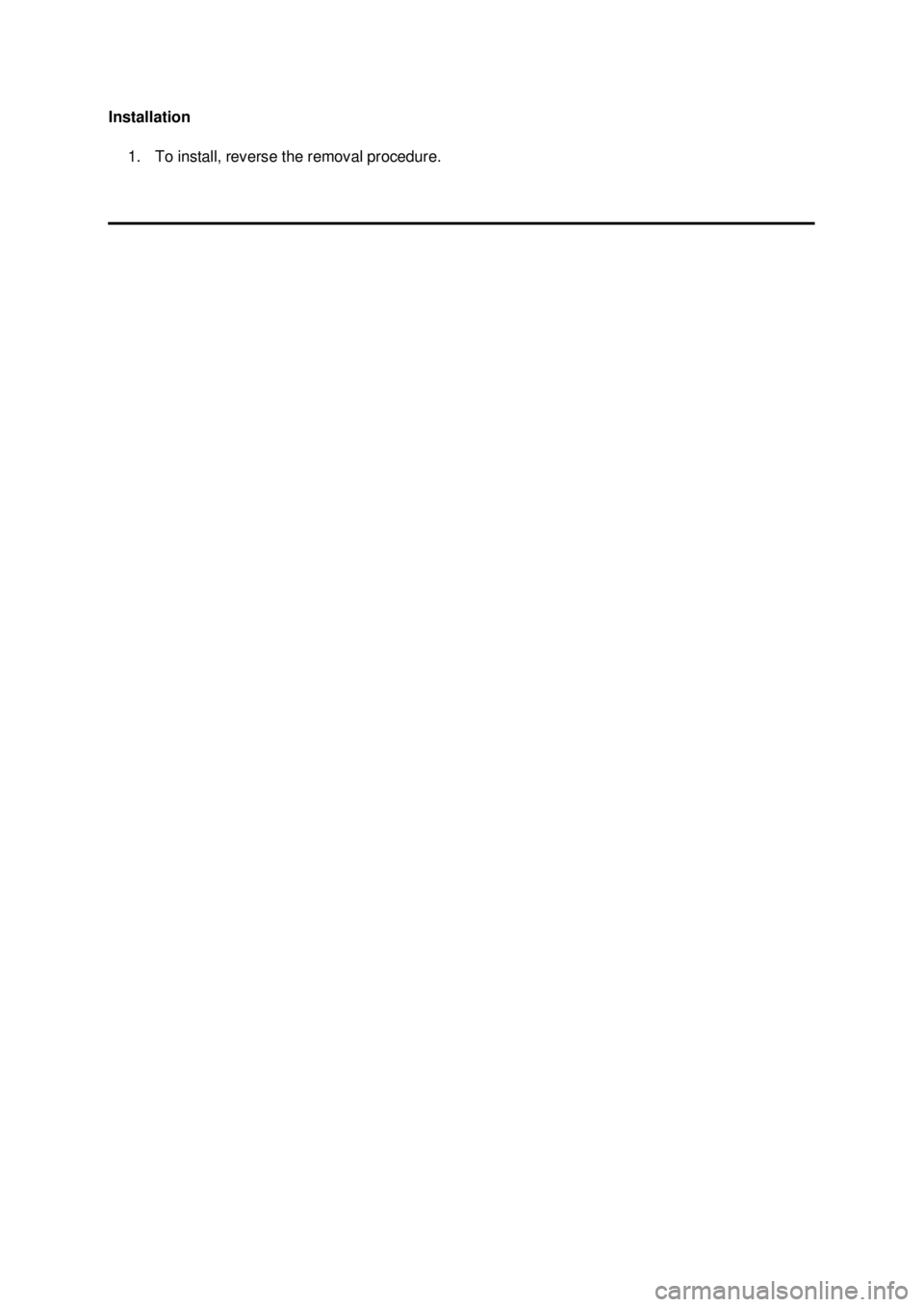

FORD MUSTANG 2003 Workshop Manual Installation 1. To install, reverse the removal procedure. Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
