Page 377 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Differential Housing Cover Removal 1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 2. NOTE: Empty the lubricant into a clean contain

Page 378 of 4378

FORD MUSTANG 2003 Workshop Manual 3. NOTE: If possible, allow one hour before filling the axle with lubricant to make sure the silicone sealant has cured. Install the differential housing cover. 1. Install the differential housing

Page 379 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 380 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Axle Housing Bushing Removal CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in ma

Page 381 of 4378

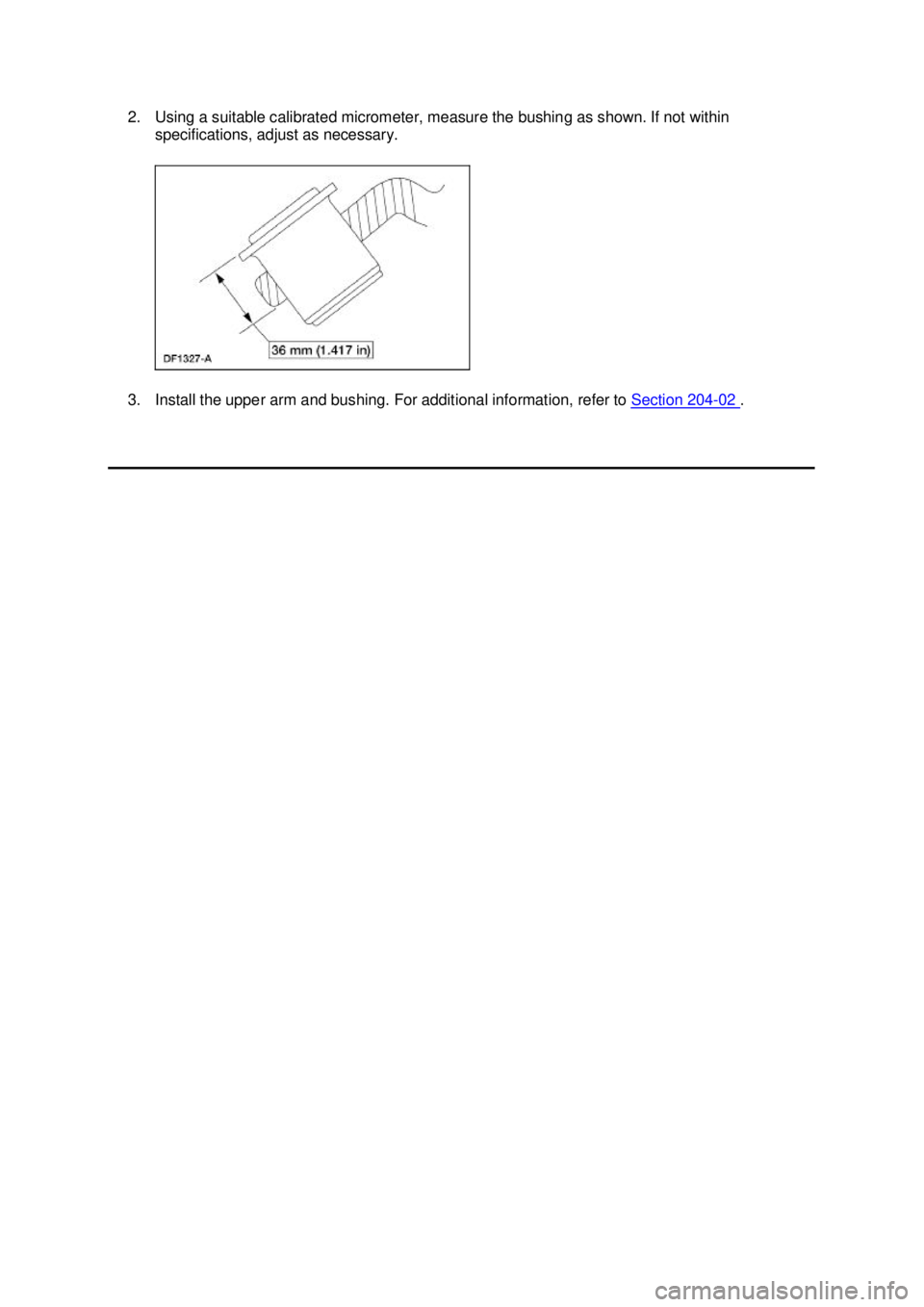

FORD MUSTANG 2003 Workshop Manual 2. Using a suitable calibrated micrometer, measure the bushing as shown. If not within specifications, adjust as necessary. 3. Install the upper arm and bushing. For additional information, refer to

Page 382 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Drive Pinion SECTION 205- 02B: Rear Drive Axle/Differential — Ford 8.8-Inch Ring Gear 2003 Mustang Workshop Manual Special Tool(s) Adapter for 205- S127 205- 105 (T76P-402

Page 383 of 4378

FORD MUSTANG 2003 Workshop Manual equivalent Holding Fixture, Drive Pinion Flange 205- 126 (T78P-4851- A) Installer, Drive Pinion Bearing Cone 205- 005 (T53T-4621- C) Installer, Drive Pinion Bearing Cup 205- 024 (T67P-4616- A

Page 384 of 4378

FORD MUSTANG 2003 Workshop Manual Removal 1. Remove the differential assembly from the differential housing. For additional information, refer to Differential Case in this section. 2. CAUTION: Record the torque necessary to maint
