Page 2433 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Extension Housing Seal and Gasket Removal 1. Drain the transmission fluid. For additional information, refer to Fluid Pan, Gasket and Filter in this section. 2. NOTE: The ou

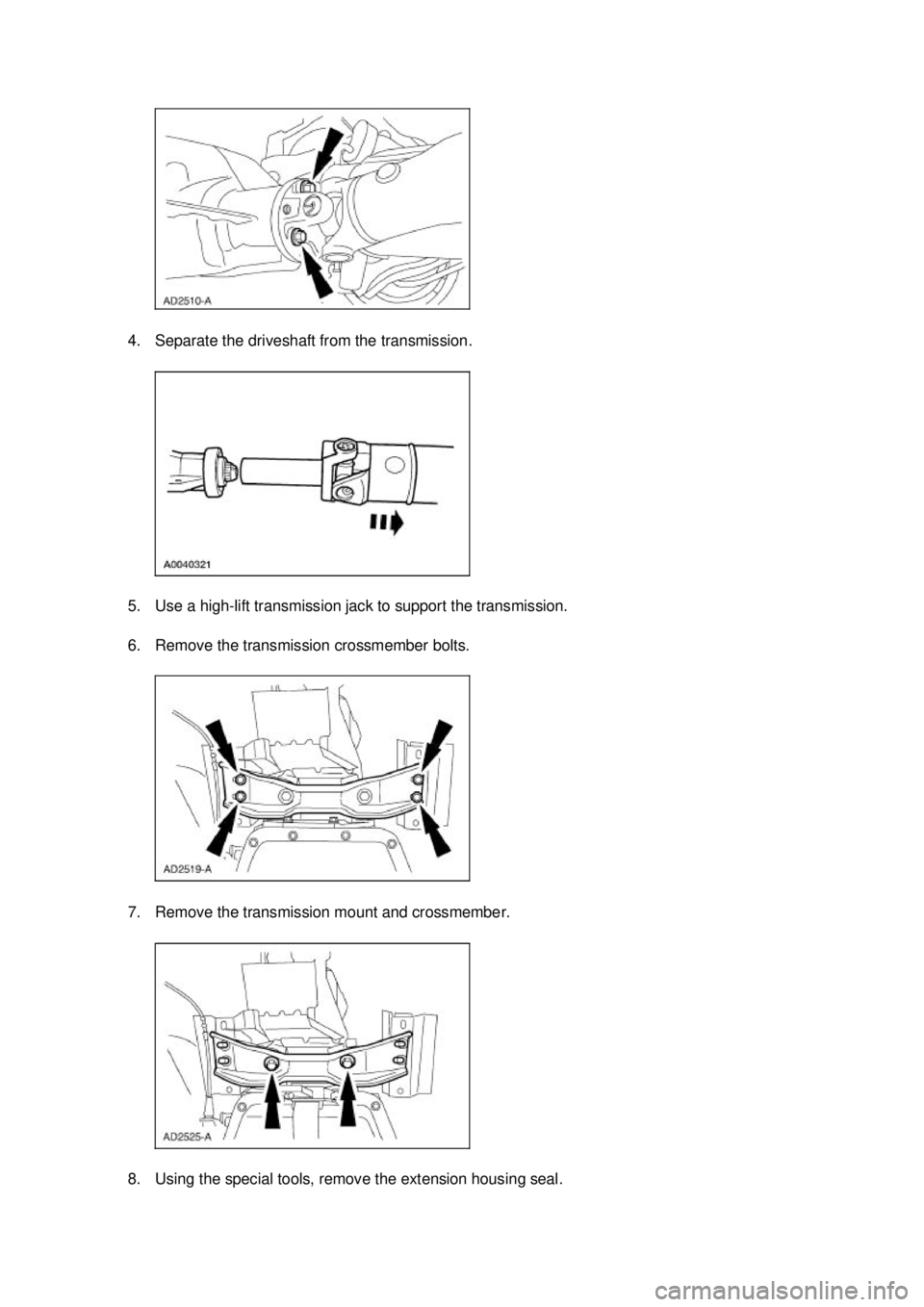

Page 2434 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Separate the driveshaft from the transmission. 5. Use a high- lift transmission jack to support the transmission. 6. Remove the transmission crossmember bolts. 7. Remove the transmission mount a

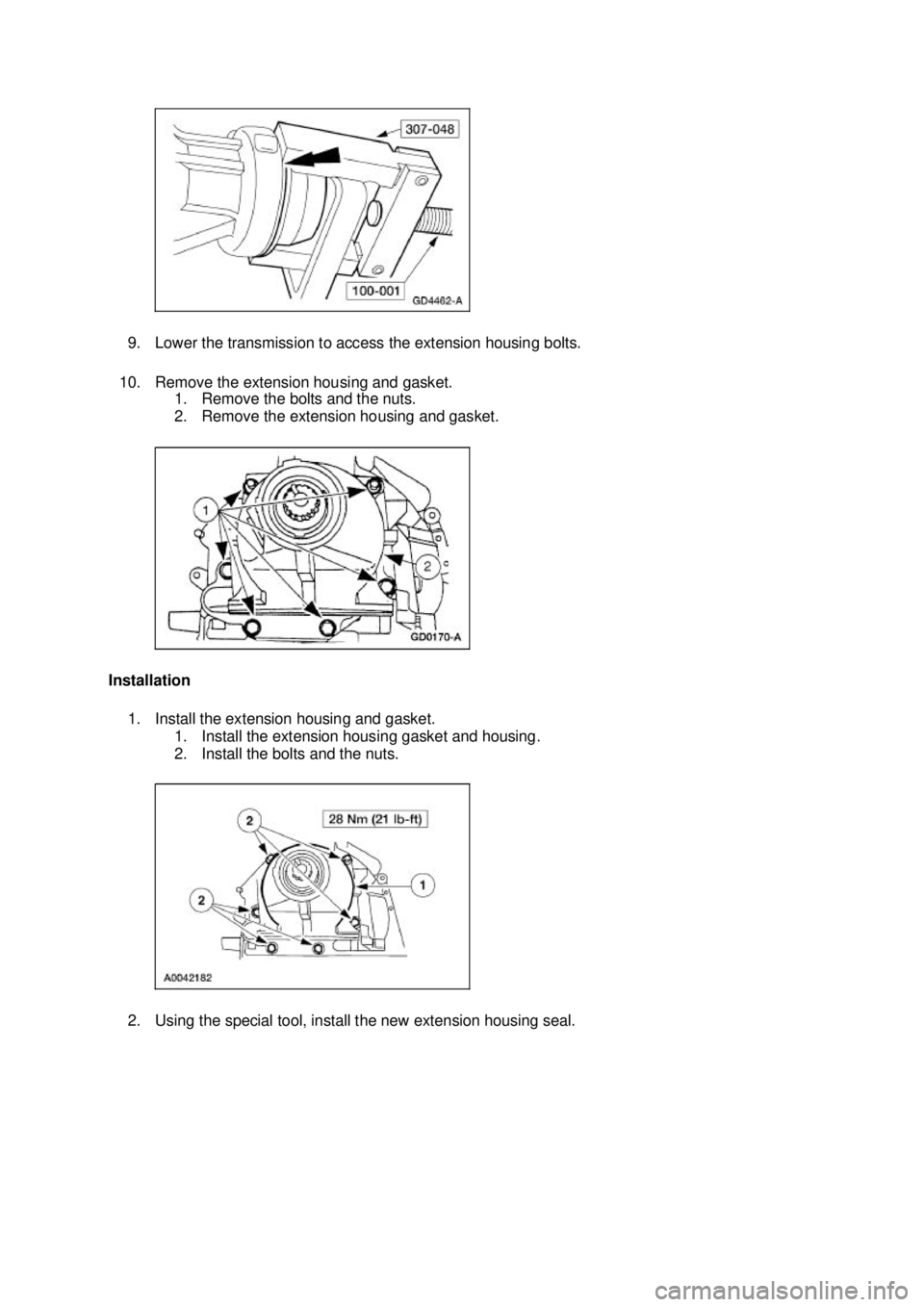

Page 2435 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Lower the transmission to access the extension housing bolts. 10. Remove the extension housing and gasket. 1. Remove the bolts and the nuts. 2. Remove the extension housing and gasket. Installa

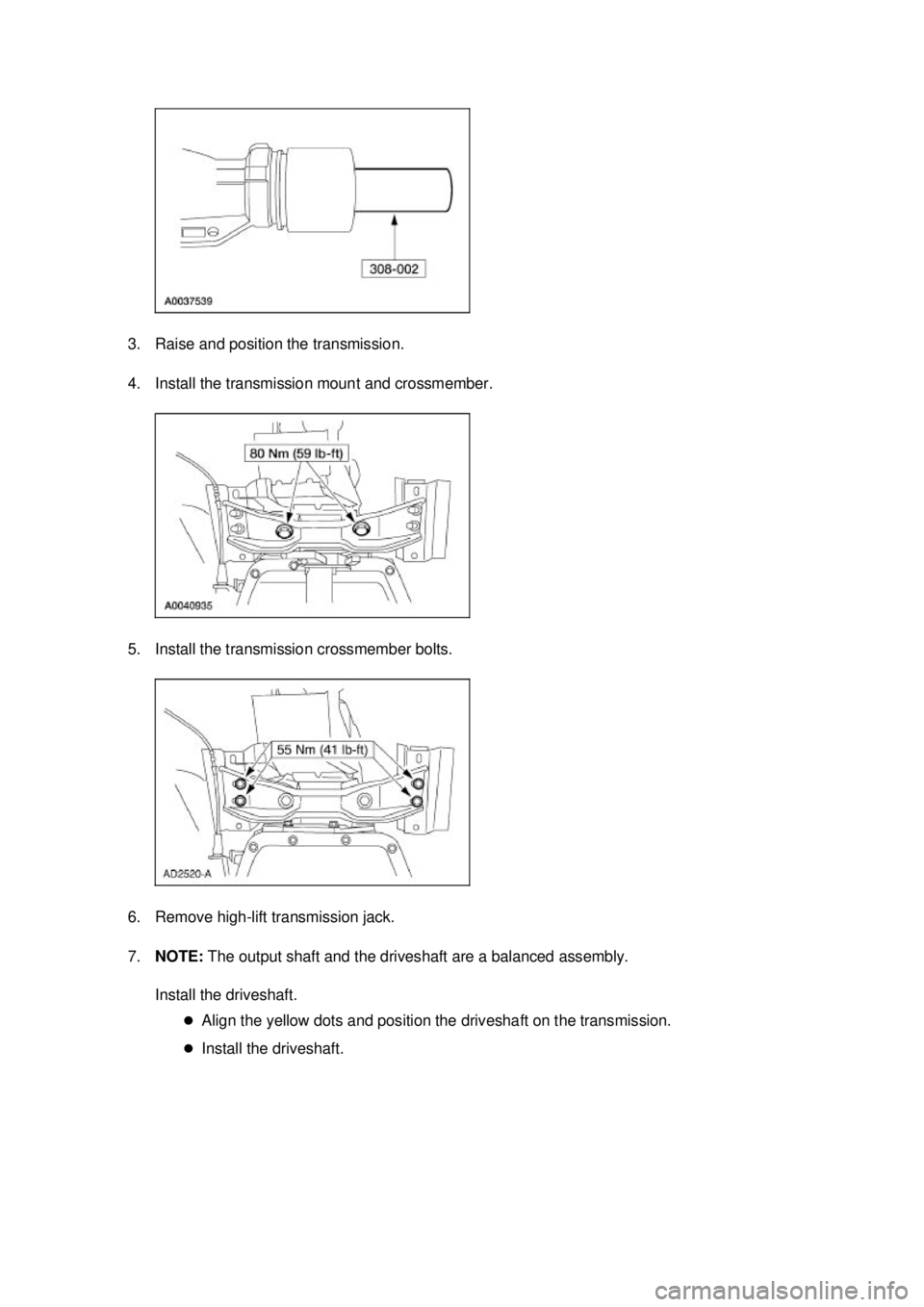

Page 2436 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Raise and position the transmission. 4. Install the transmission mount and crossmember. 5. Install the transmission crossmember bolts. 6. Remove high- lift transmission jack. 7. NOTE: The outp

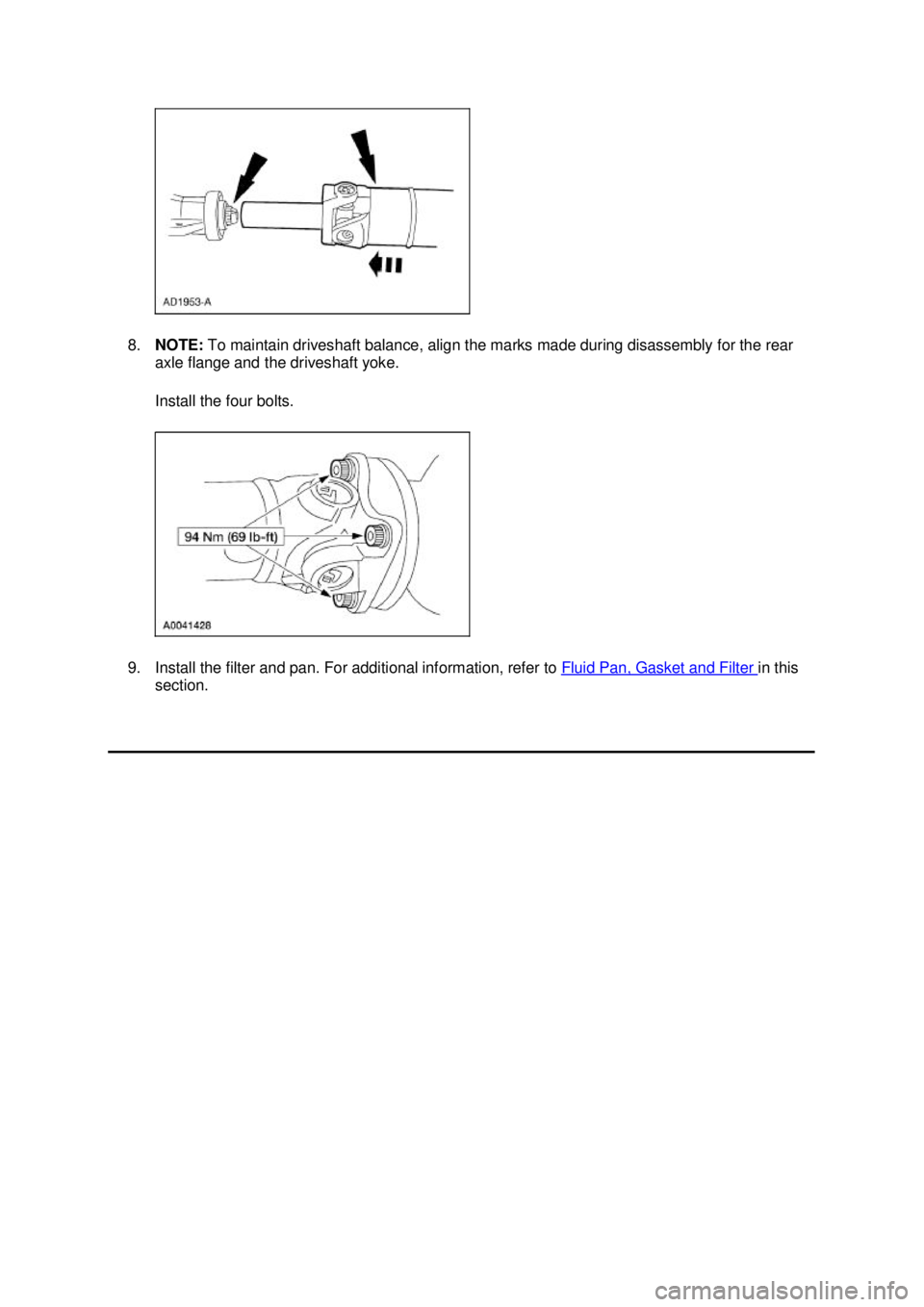

Page 2437 of 4378

FORD MUSTANG 2003 Workshop Manual 8. NOTE: To maintain driveshaft balance, align the marks made during disassembly for the rear axle flange and the driveshaft yoke. Install the four bolts. 9. Install the filter and pan. For additi

Page 2438 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Electronic Pressure Control (EPC) Solenoid Removal 1. Remove the manual control lever. For additional information, refer to Manual Control Lever Shaft and Seal in this section.

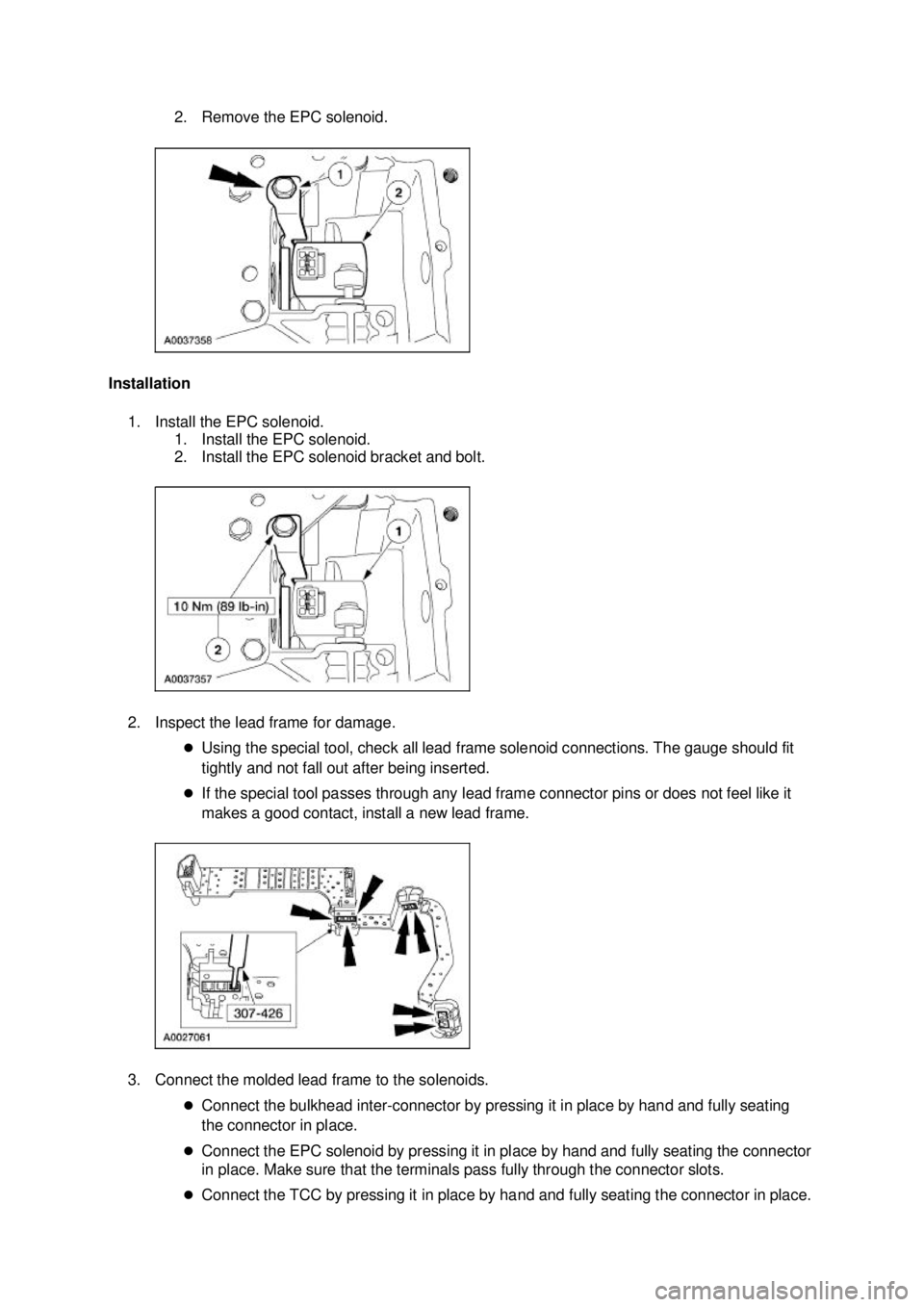

Page 2439 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Remove the EPC solenoid. Installation 1. Install the EPC solenoid. 1. Install the EPC solenoid. 2. Install the EPC solenoid bracket and bolt. 2. Inspect the lead frame for damage. �zUsing the

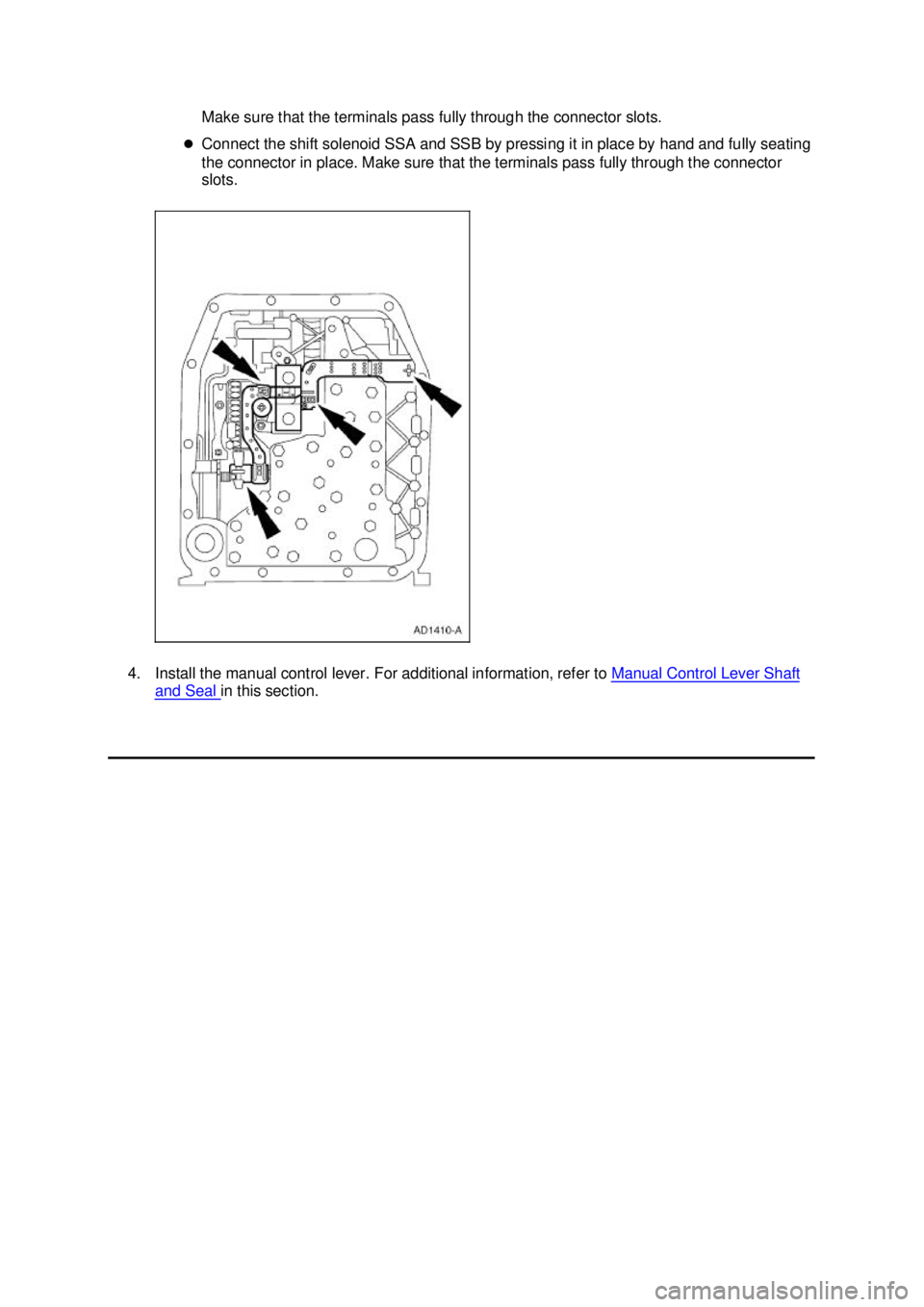

Page 2440 of 4378

FORD MUSTANG 2003 Workshop Manual Make sure that the terminals pass fully through the connector slots. �z Connect the shift solenoid SSA and SSB by pressing it in place by hand and fully seating the connector in place. Make sure tha
