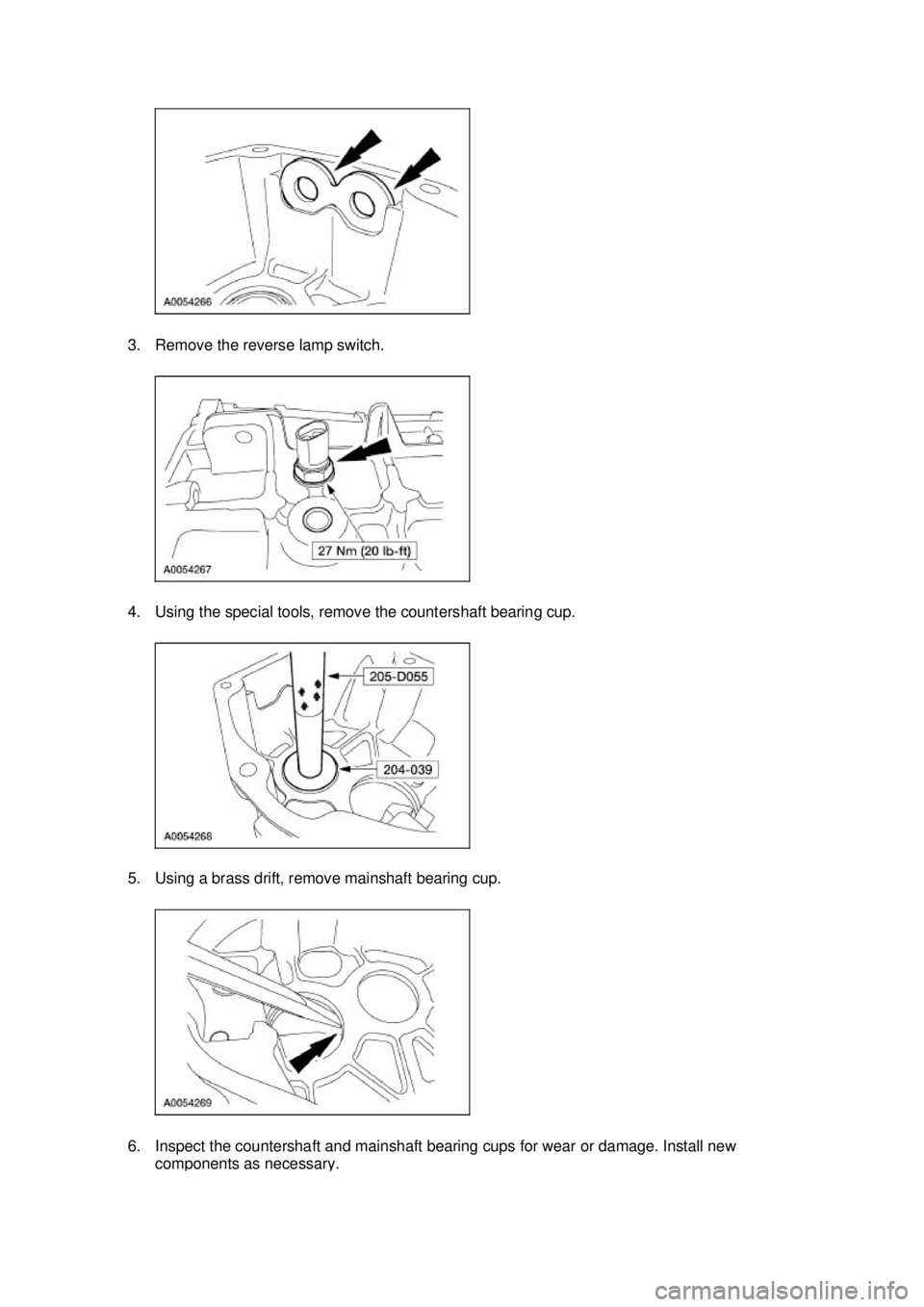

FORD MUSTANG 2003 Workshop Manual 3. Remove the reverse lamp switch. 4. Using the special tools, remove the countershaft bearing cup. 5. Using a brass drift, remove mainshaft bearing cup. 6. Inspect the countershaft and mainshaft b

Page 2906 of 4378

FORD MUSTANG 2003 Workshop Manual 7. WARNING: Make sure protective eye wear is in place. Clean the case with solvent and dry with compressed air. Clean and check the sealing surface for nicks or scratches. Inspect the case for crac

Page 2907 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2908 of 4378

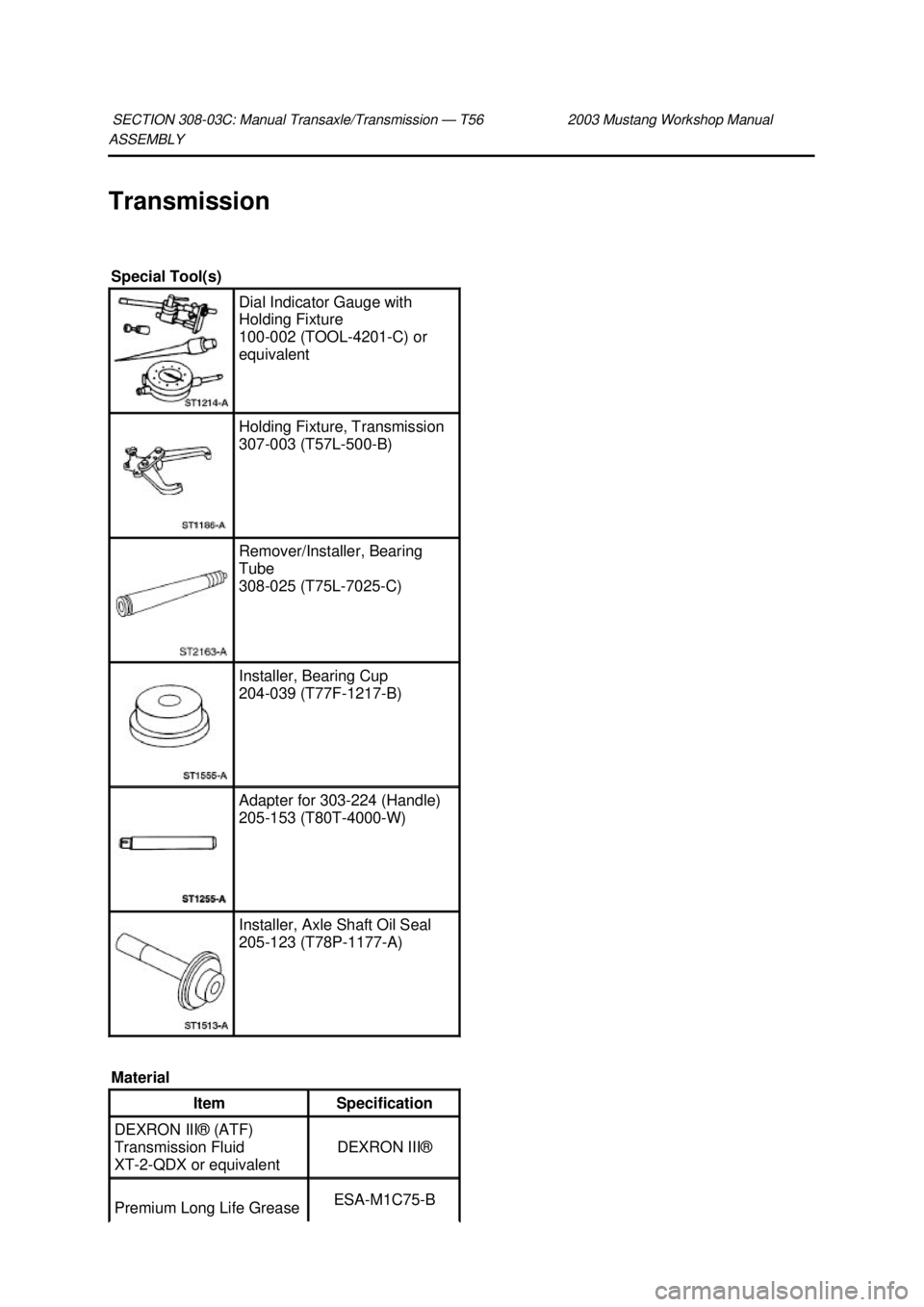

FORD MUSTANG 2003 Workshop Manual ASSEMBLY Transmission SECTION 308- 03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual Special Tool(s) Dial Indicator Gauge with Holding Fixture 100- 002 (TOOL- 4201-C) or e

Page 2909 of 4378

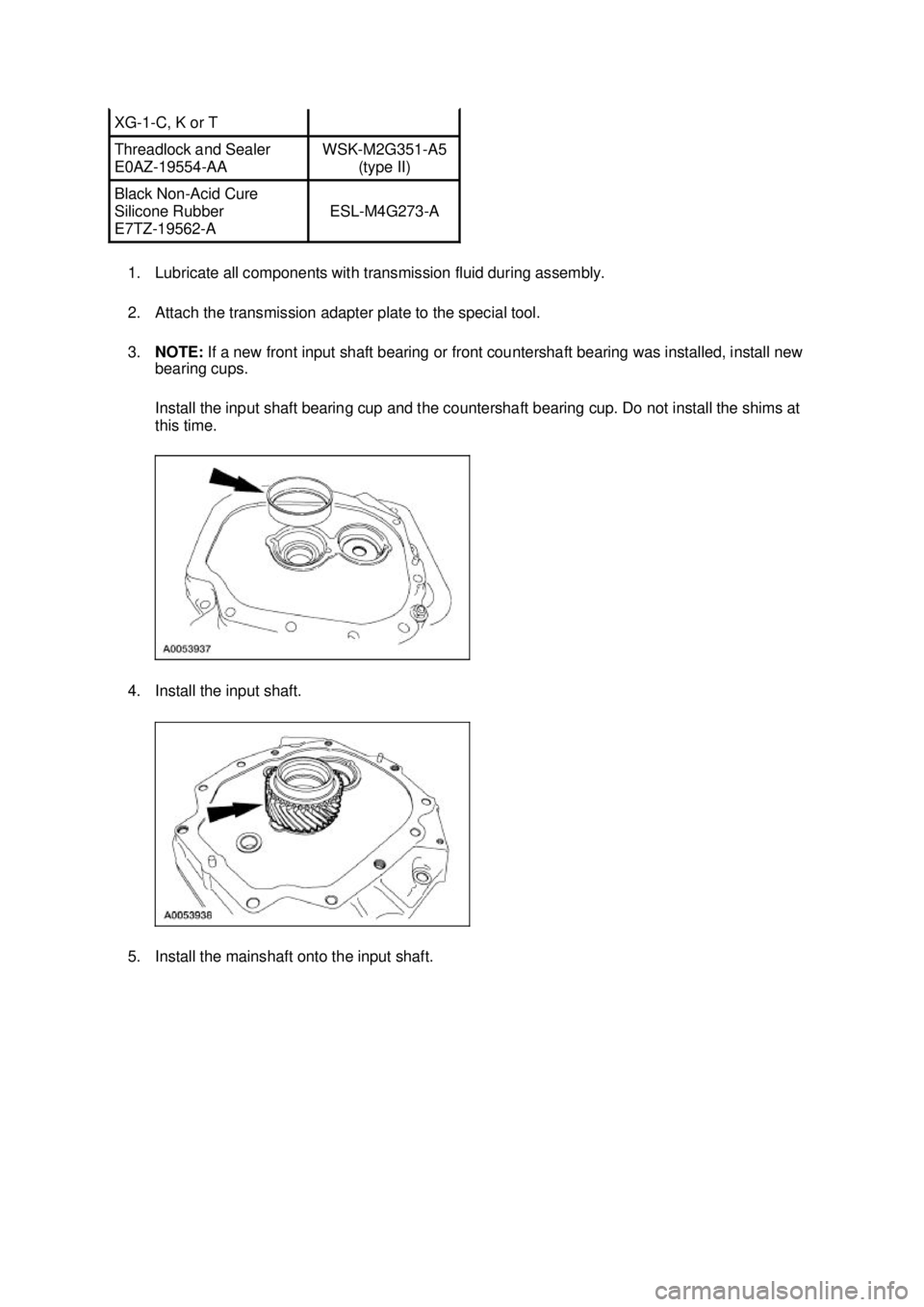

FORD MUSTANG 2003 Workshop Manual 1. Lubricate all components with transmission fluid during assembly. 2. Attach the transmission adapter plate to the special tool. 3. NOTE: If a new front input shaft bearing or front countershaft

Page 2910 of 4378

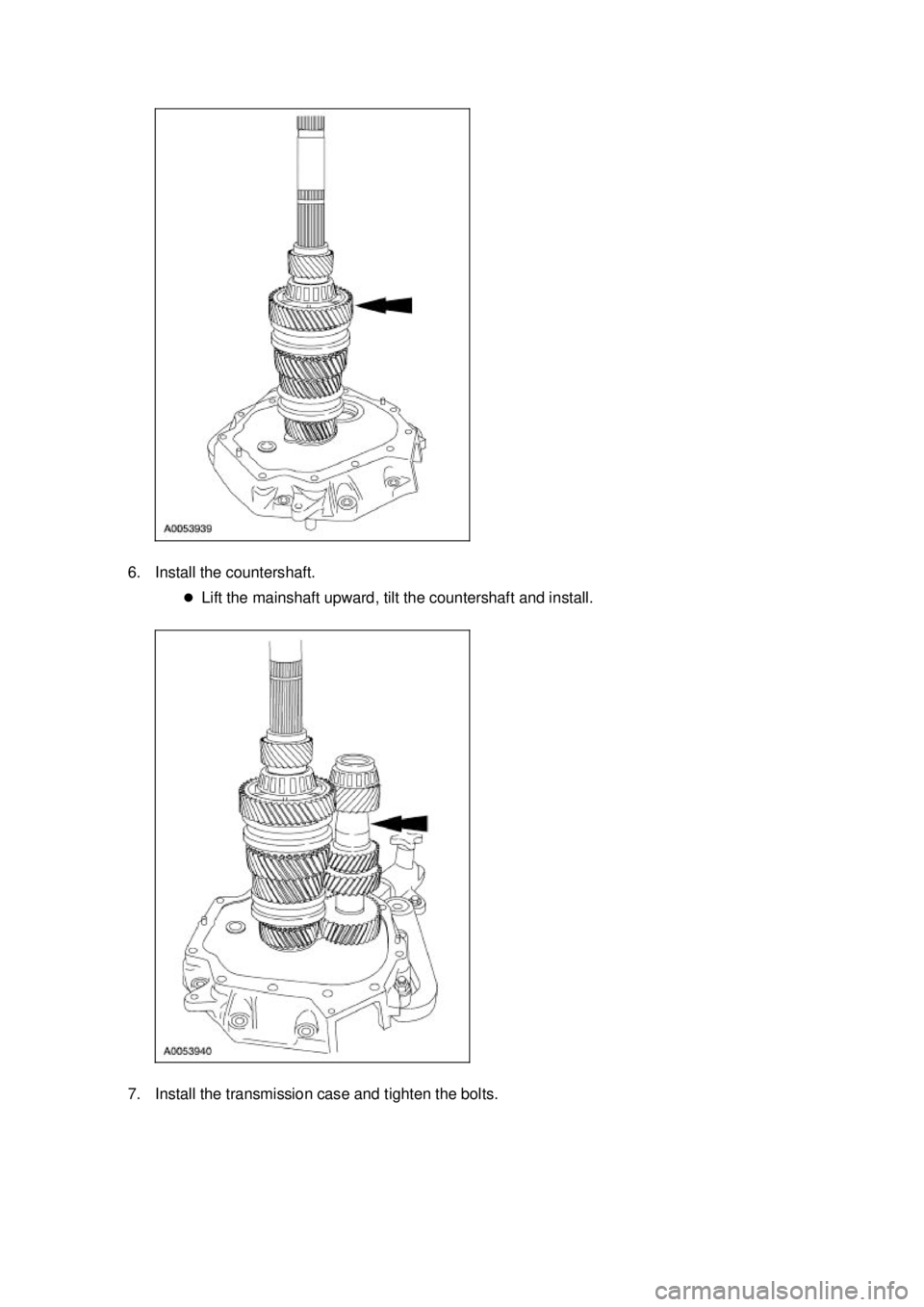

FORD MUSTANG 2003 Workshop Manual 6. Install the countershaft. �zLift the mainshaft upward, tilt the countershaft and install. 7. Install the transmission case and tighten the bolts. Klj . 3 ba 182003 Mustang Workshop Manua

Page 2911 of 4378

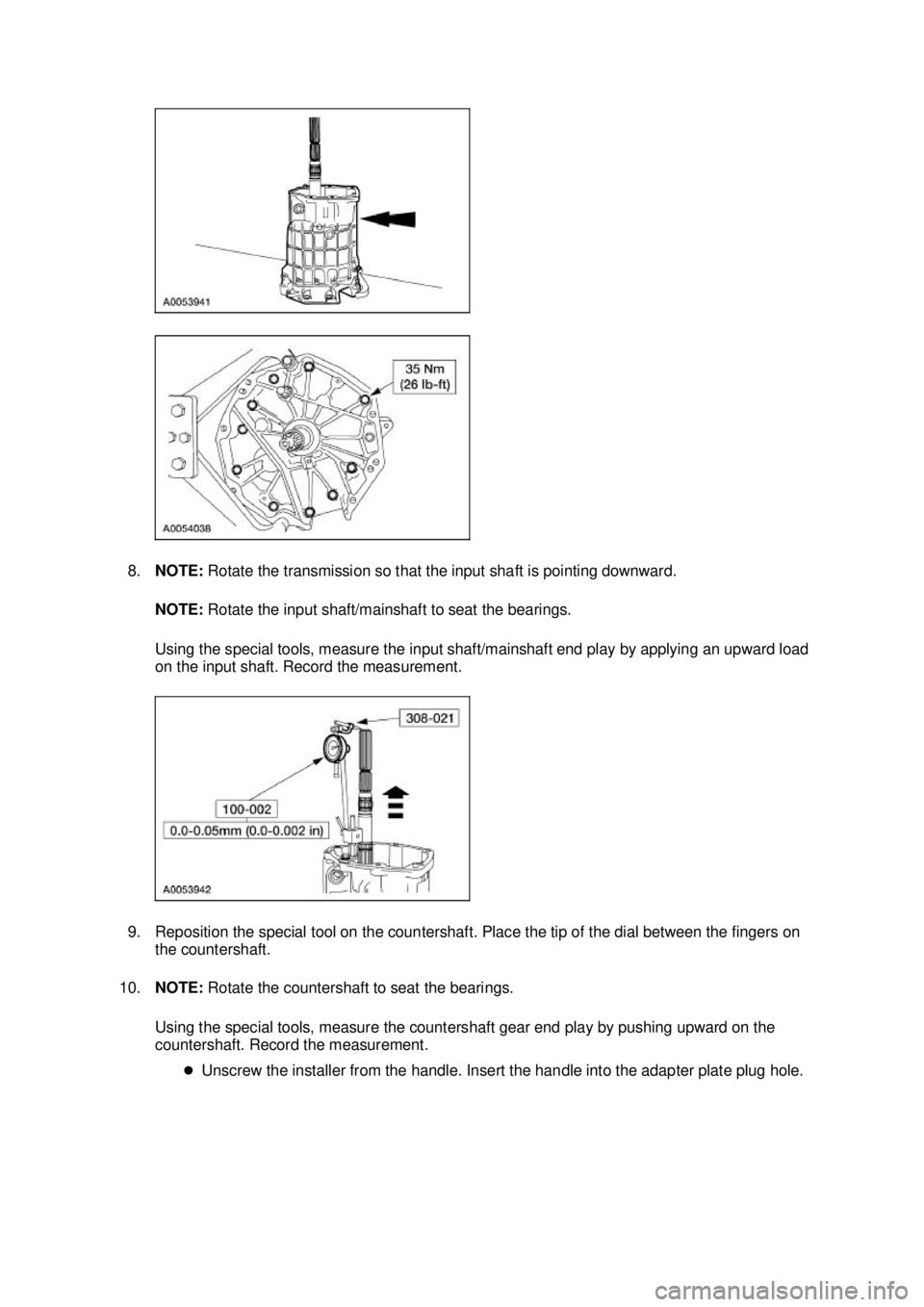

FORD MUSTANG 2003 Workshop Manual 8. NOTE: Rotate the transmission so that the input shaft is pointing downward. NOTE: Rotate the input shaft/mainshaft to seat the bearings. Using the special tools, measure the input shaft/mainsha

Page 2912 of 4378

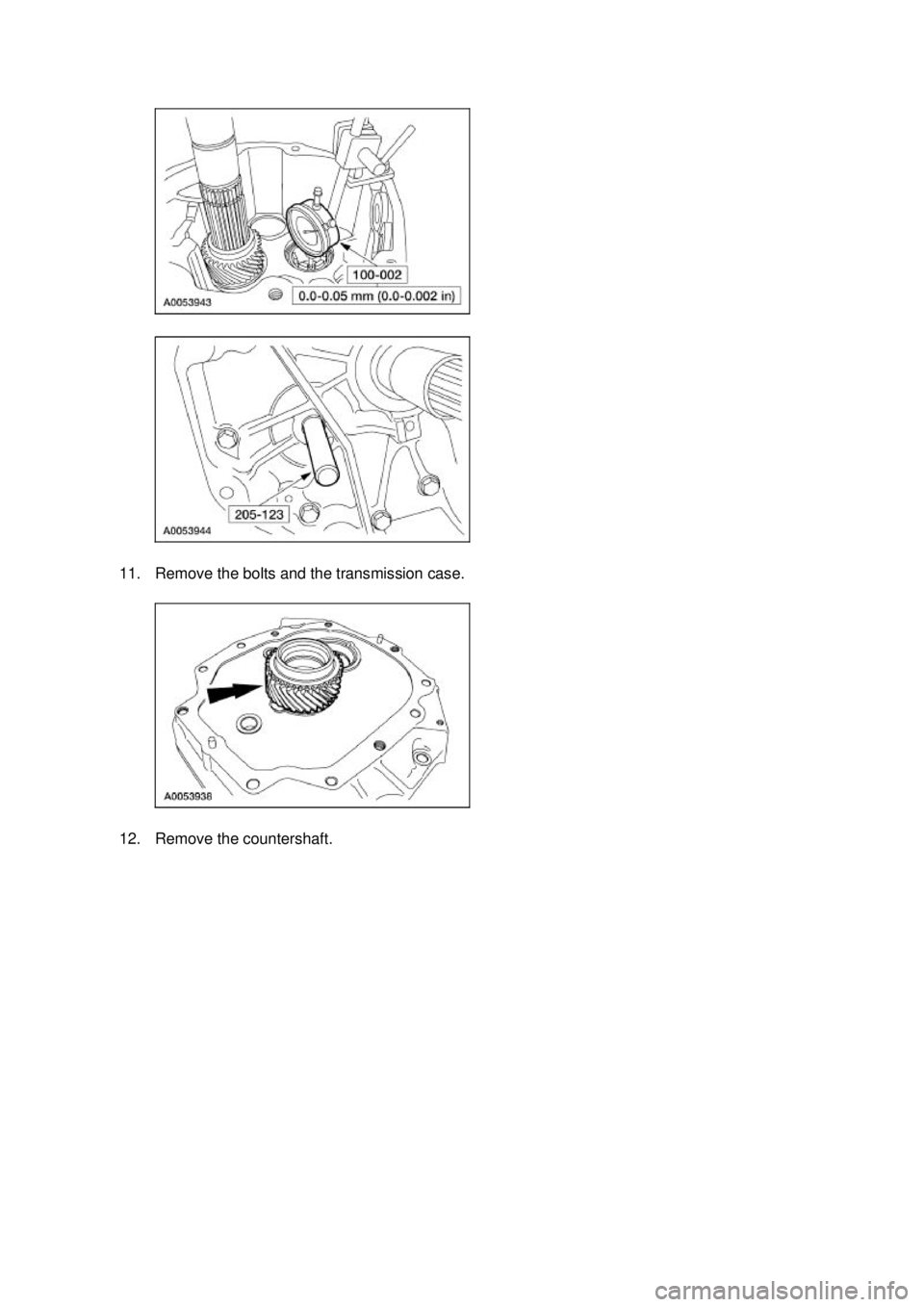

FORD MUSTANG 2003 Workshop Manual 11. Remove the bolts and the transmission case. 12. Remove the countershaft. Klj . 5 ba 182003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ .
