Page 3505 of 4378

FORD MUSTANG 2003 Workshop Manual C4 CHECK INTERIOR LAMP SWITCH INPUT TO THE GEM — MONITOR GEM PID DOMESW �z Monitor the GEM PID DOMESW, while moving the interior lamp switch from the OFF to the ON position. �z Does the GEM PID D

Page 3506 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST D: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE TRANSMITTER (coupe), map C907 (convertible), right hand vanity C906, left hand vanity C978, or luggage compartment C4111.

Page 3507 of 4378

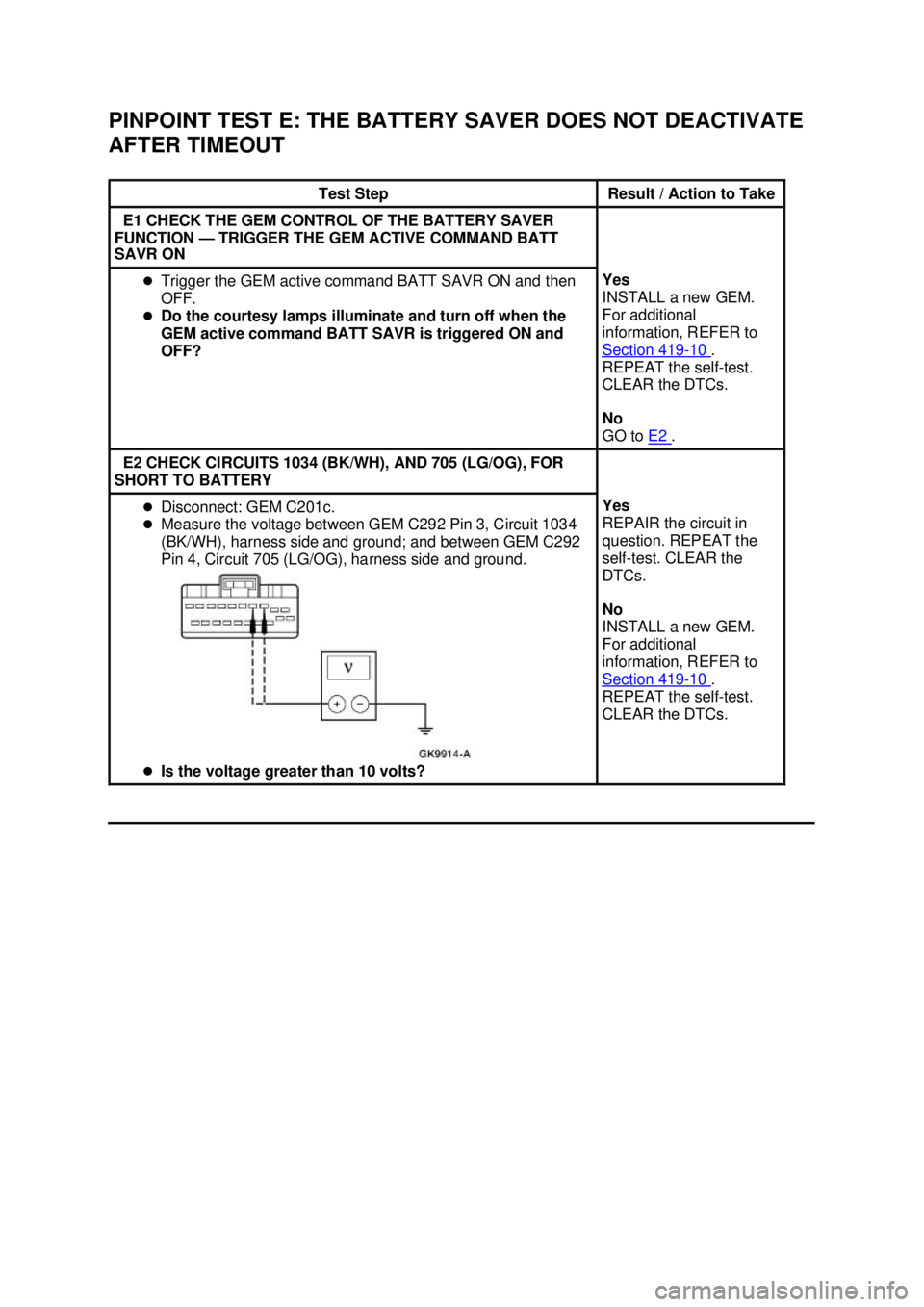

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST E: THE BATTERY SAVER DOES NOT DEACTIVATE AFTER TIMEOUT Test Step Result / Action to Take E1 CHECK THE GEM CONTROL OF THE BATTERY SAVER FUNCTION — TRIGGER THE GEM ACTIVE COMMAND BA

Page 3508 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 16 ba 162003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3509 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Lamp Assembly — Map/Dome Removal 1. Disconnect the battery ground cable. 2. Remove the lamp lens from the lamp assembly. 3. Remove the lamp assembly. 1. Remove the scr

Page 3510 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3511 of 4378

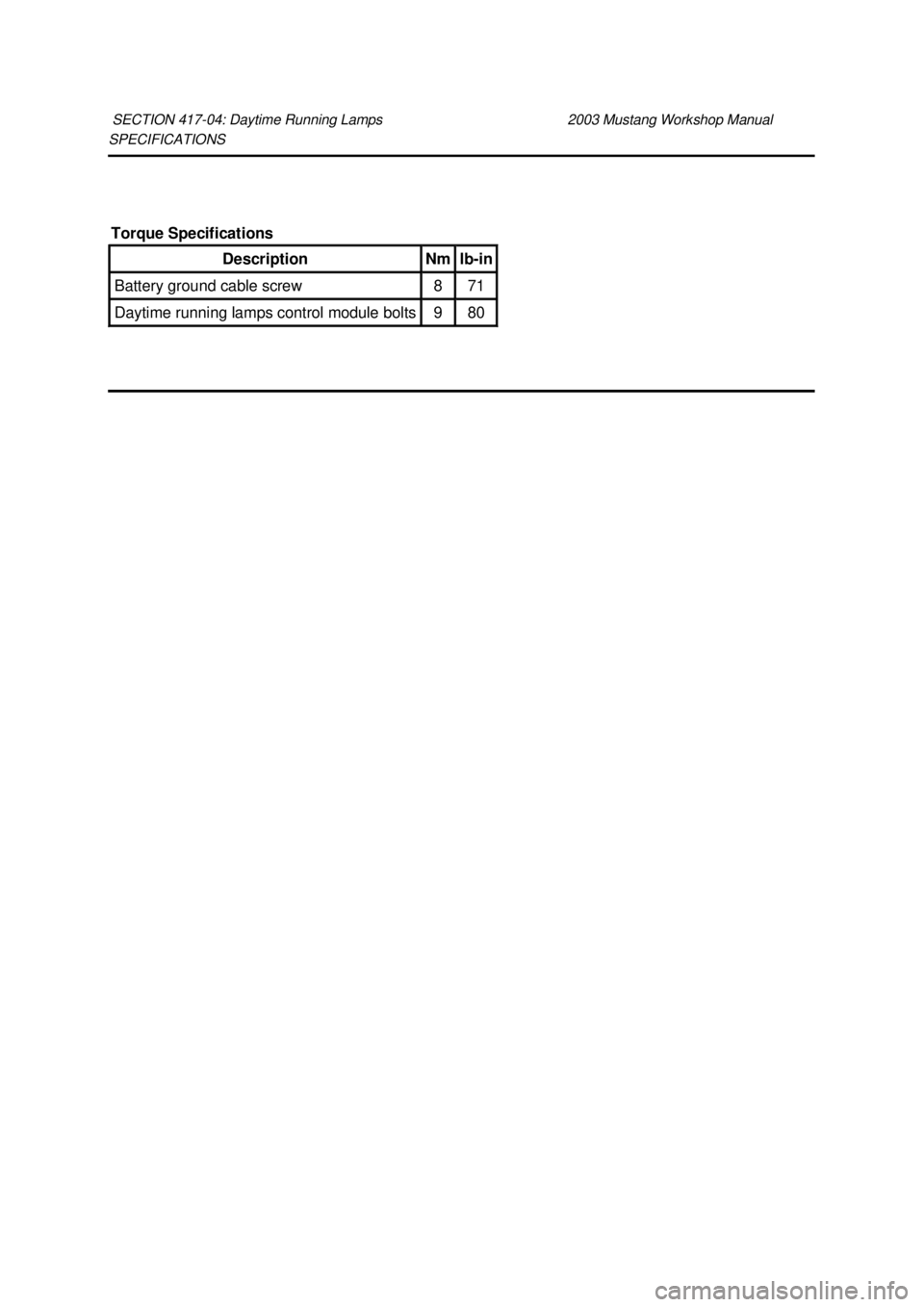

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 417- 04: Daytime Running Lamps 2003 Mustang Workshop Manual Torque Specifications Description Nm lb- in Battery ground cable screw 8 71 Daytime running lamps control mo

Page 3512 of 4378

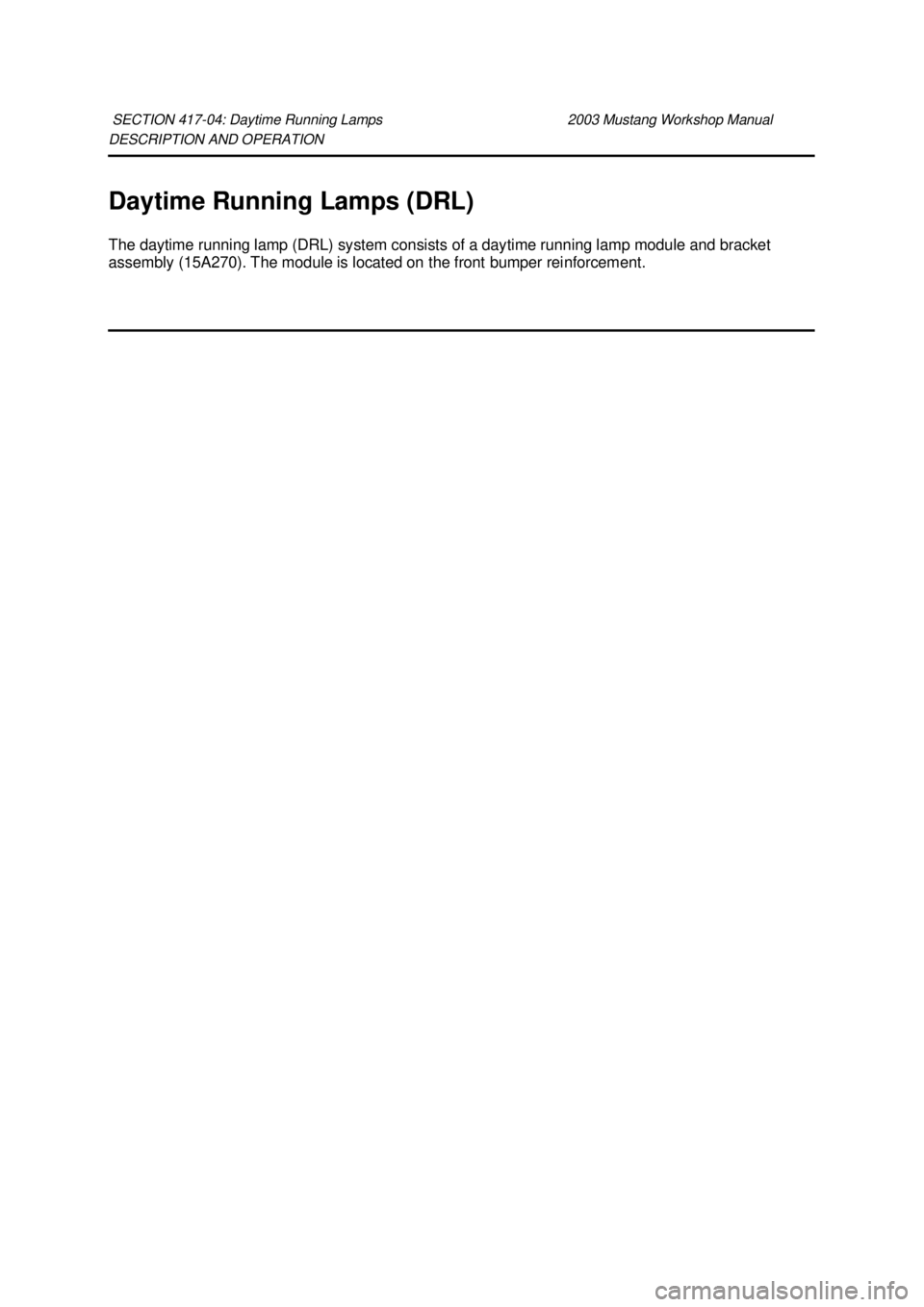

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Daytime Running Lamps (DRL) The daytime running lamp (DRL) system consists of a daytime running lamp module and bracket assembly (15A270). The module is located on the fro
