FORD MUSTANG 2003 Workshop Manual 18. Remove the reversing lamp switch (15520). 19. Remove the reverse gear shift rail. 1. Rotate the reverse gear shift rail clockwise to disengage the ball stud from the reverse gearshift lever. 2.

Page 2714 of 4378

FORD MUSTANG 2003 Workshop Manual 21. Remove the four bolts and the input shaft bearing retainer (7050). 22. CAUTION: Do not drop the 15 roller bearings (7118), the input shaft bearing spacer (7L357), the thrust bearing (7D234), an

Page 2715 of 4378

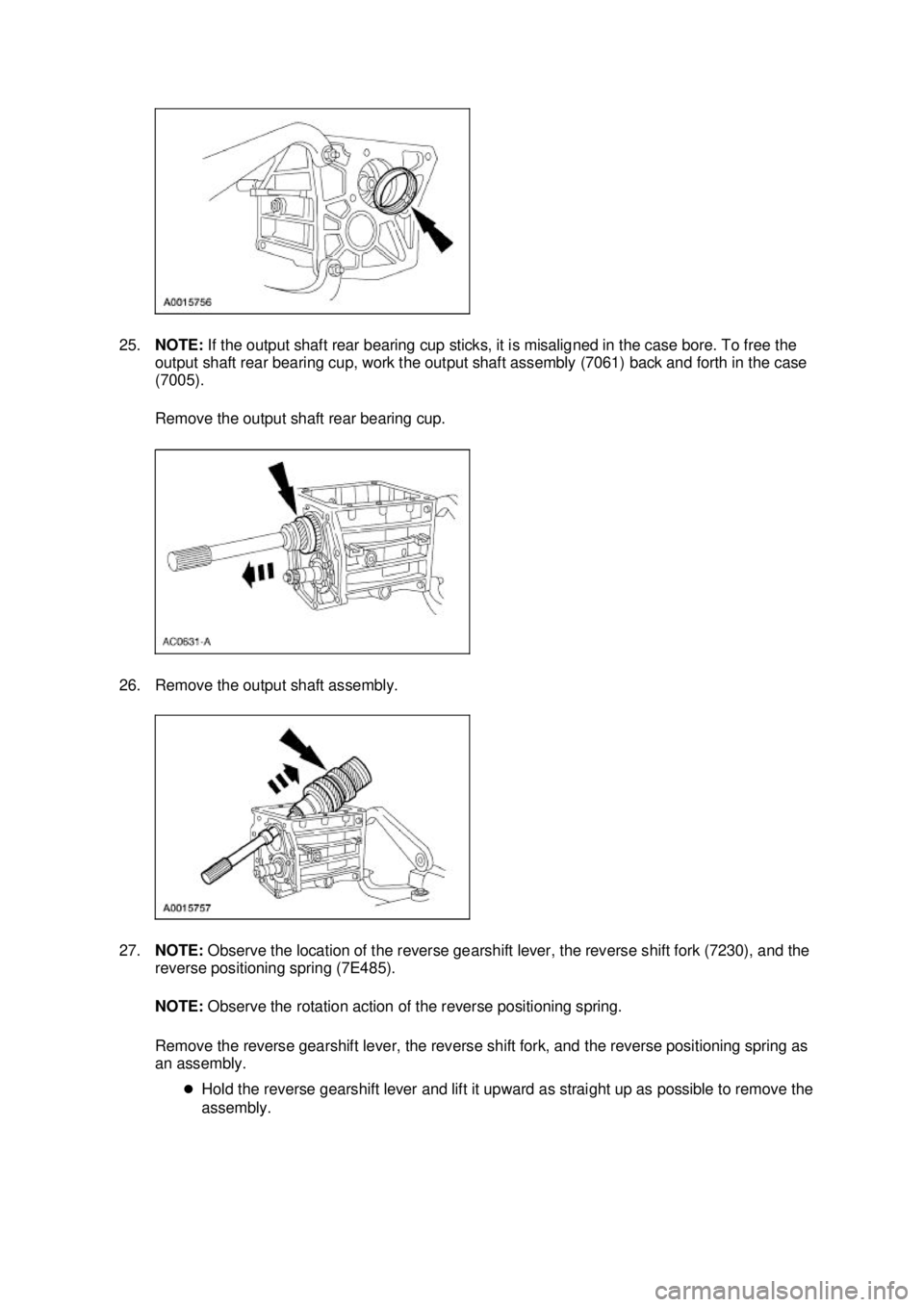

FORD MUSTANG 2003 Workshop Manual 25. NOTE: If the output shaft rear bearing cup sticks, it is misaligned in the case bore. To free the output shaft rear bearing cup, work the output shaft assembly (7061) back and forth in the case

Page 2716 of 4378

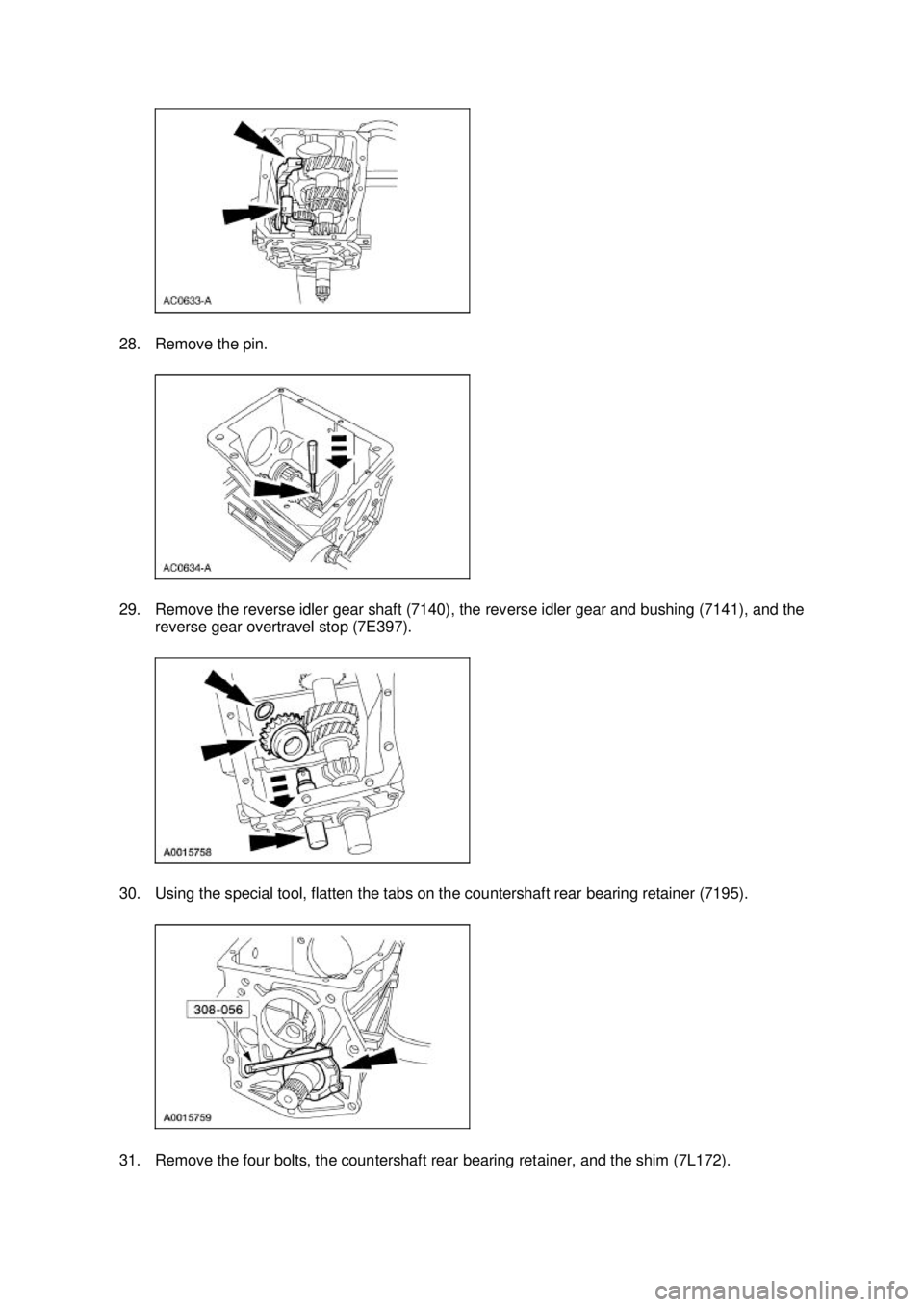

FORD MUSTANG 2003 Workshop Manual 28. Remove the pin. 29. Remove the reverse idler gear shaft (7140), the reverse idler gear and bushing (7141), and the reverse gear overtravel stop (7E397). 30. Using the special tool, flatten the

Page 2717 of 4378

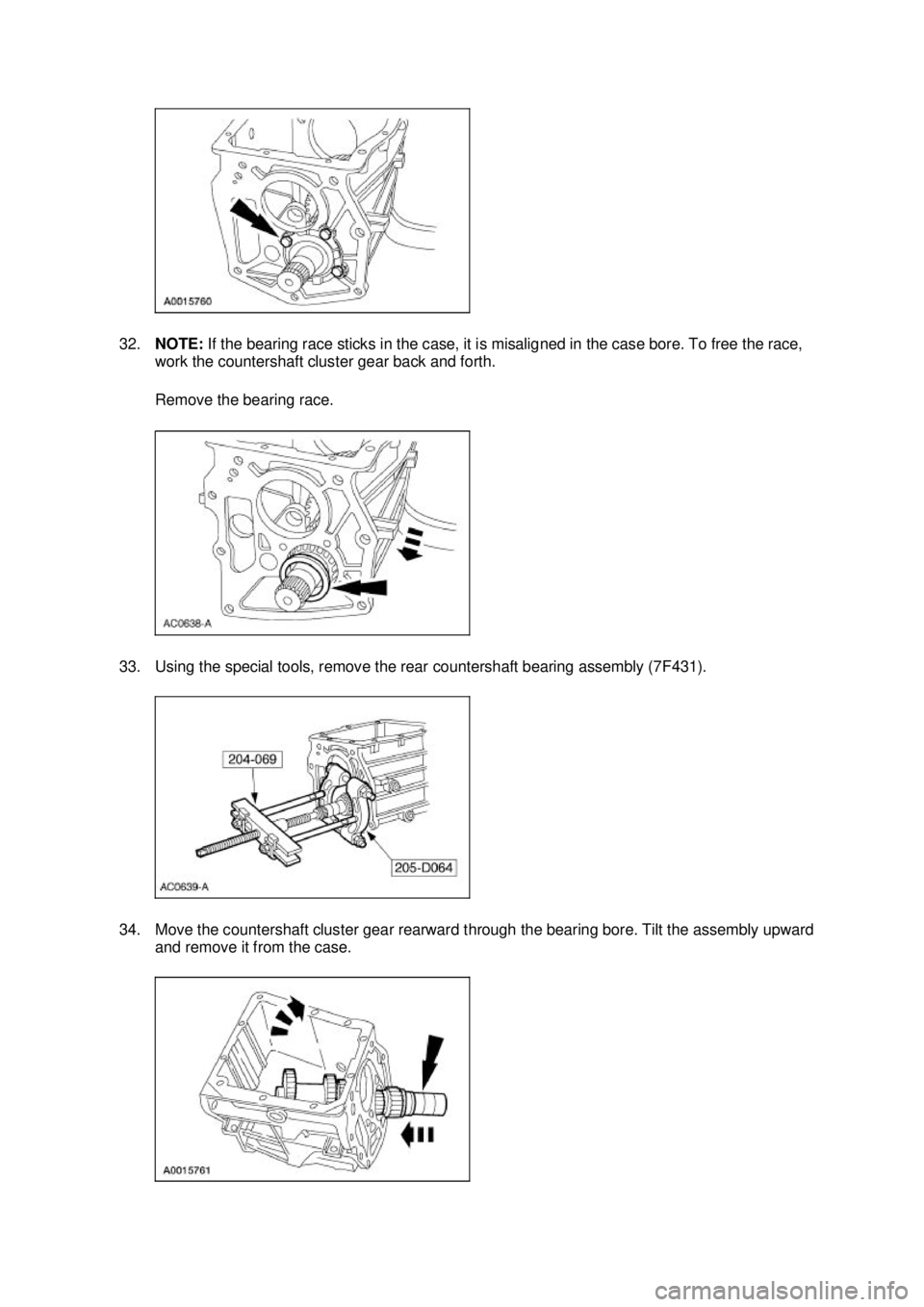

FORD MUSTANG 2003 Workshop Manual 32. NOTE: If the bearing race sticks in the case, it is misaligned in the case bore. To free the race, work the countershaft cluster gear back and forth. Remove the bearing race. 33. Using the spe

Page 2718 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 11 ba 112003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2719 of 4378

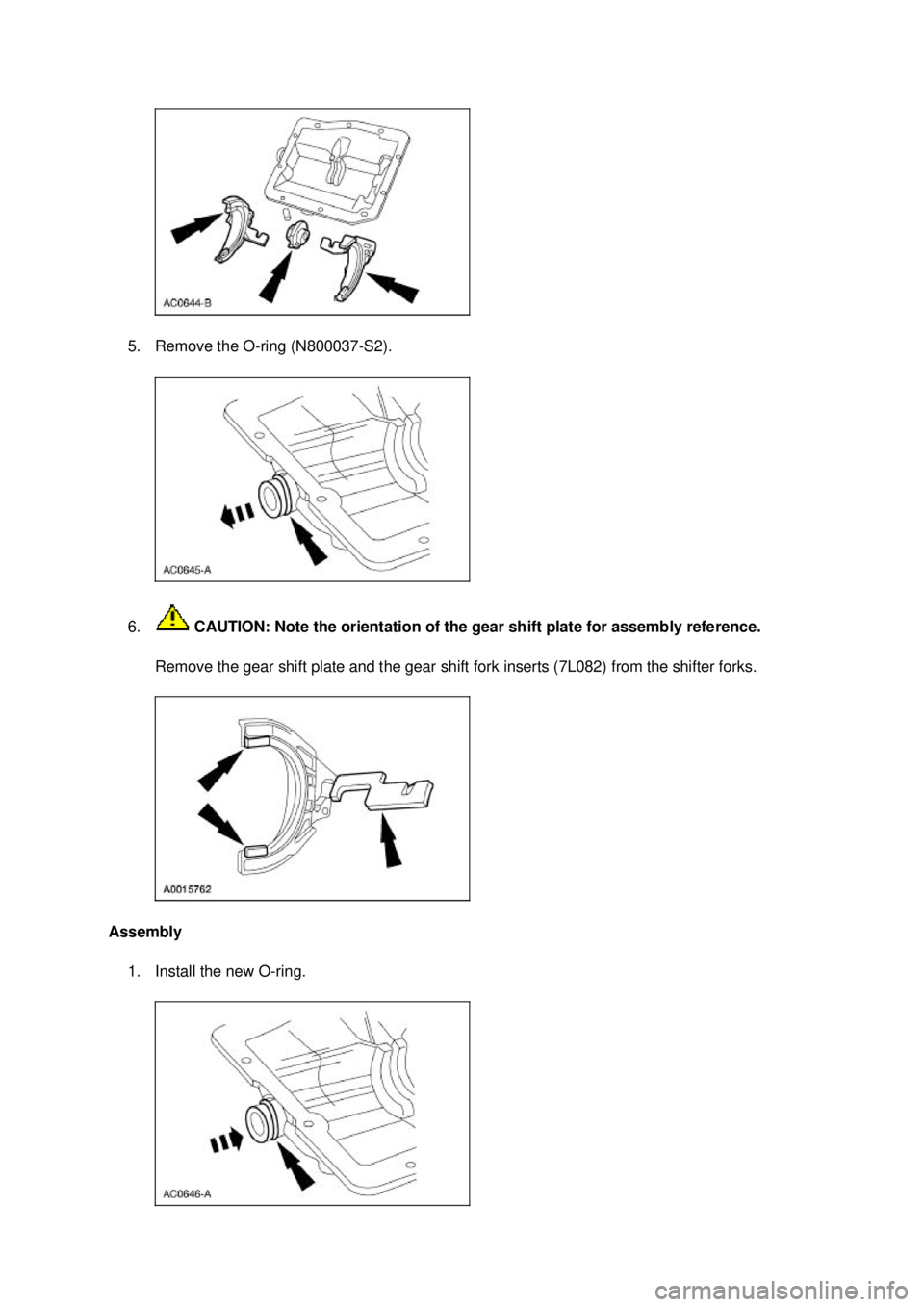

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Selector Plate Disassembly 1. NOTE: Mark the position of each gear shifter fork (7230). Place the gear shift plates (7N232) and the gear selector interlo

Page 2720 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Remove the O- ring (N800037-S2). 6. CAUTION: Note the orientation of the gear shift plate for assembly reference. Remove the gear shift plate and the gear shift fork inserts (7L082) from the shi
