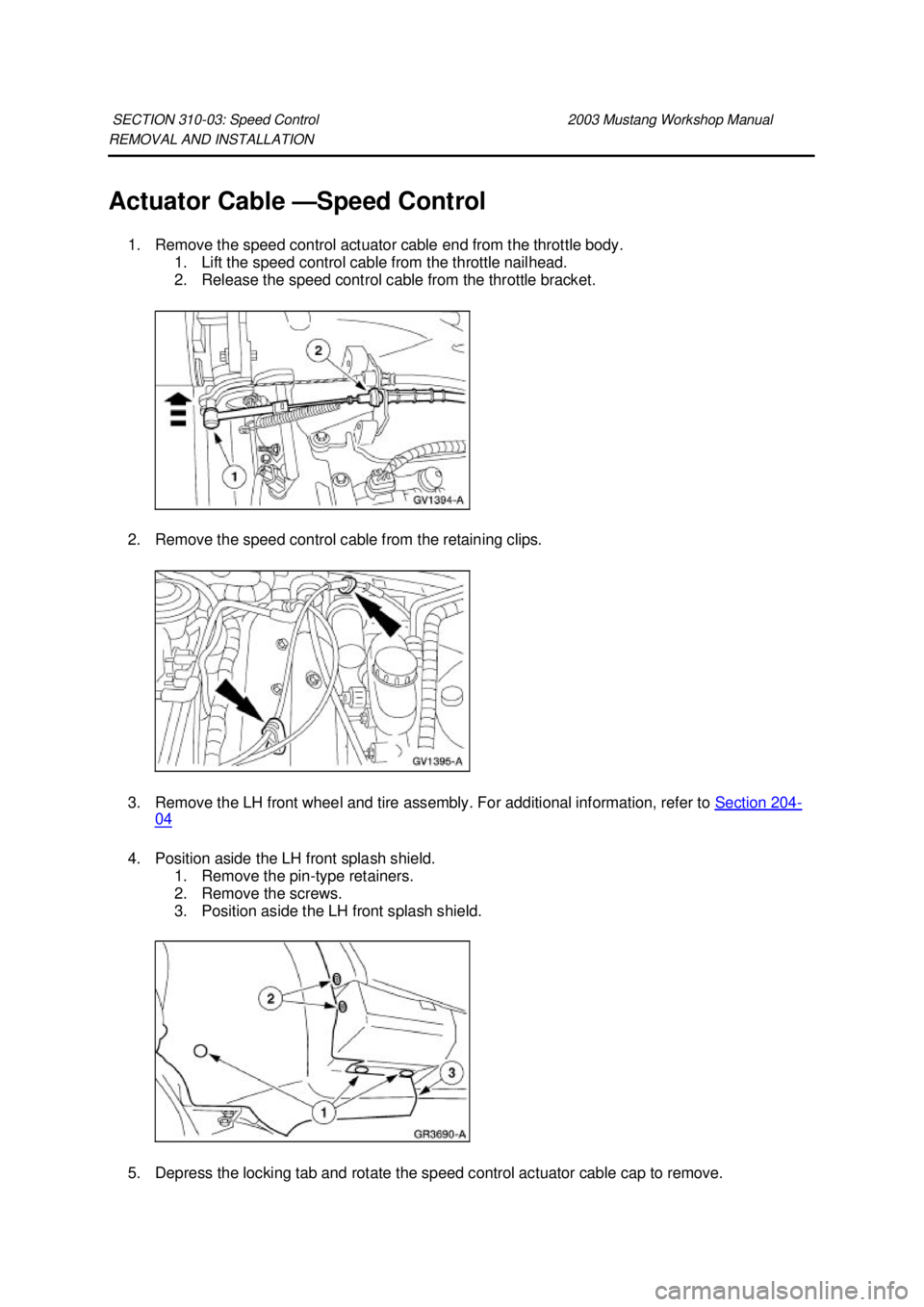

Page 3025 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Actuator Cable — Speed Control 1. Remove the speed control actuator cable end from the throttle body. 1. Lift the speed control cable from the throttle nailhead. 2. Rele

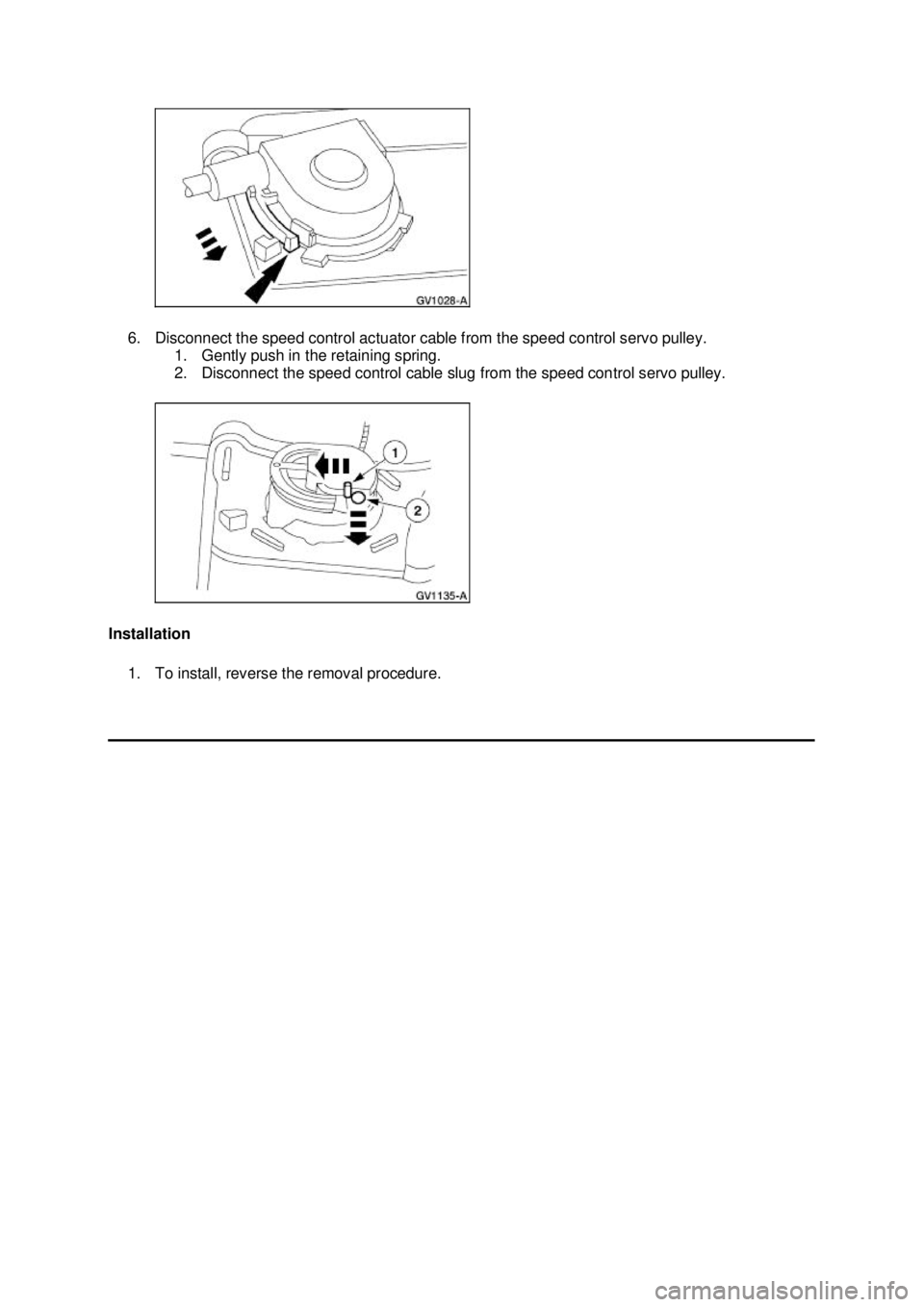

Page 3026 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Disconnect the speed control actuator cable from the speed control servo pulley. 1. Gently push in the retaining spring. 2. Disconnect the speed control cable slug from the speed control servo pu

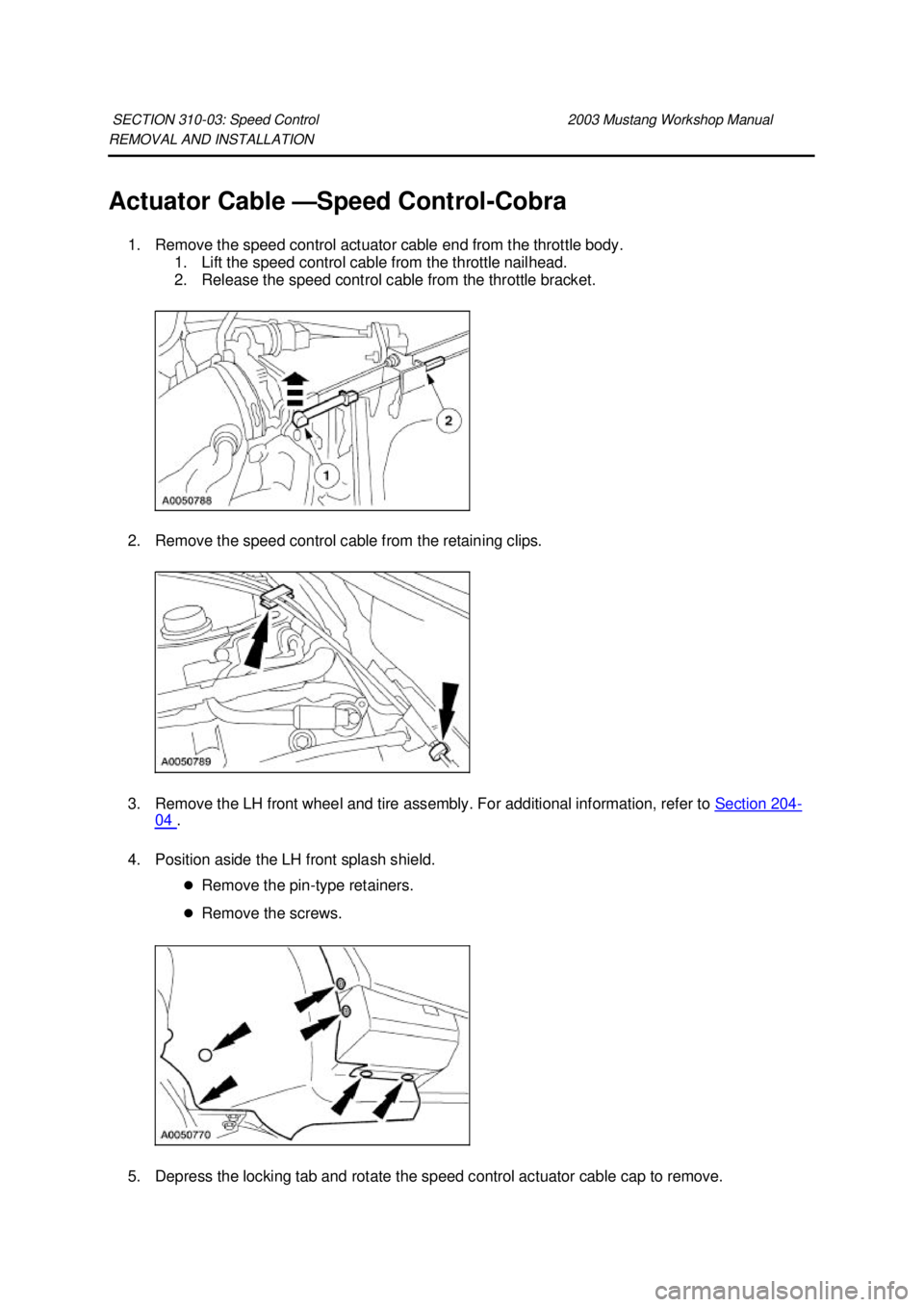

Page 3027 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Actuator Cable — Speed Control-Cobra 1. Remove the speed control actuator cable end from the throttle body. 1. Lift the speed control cable from the throttle nailhead. 2

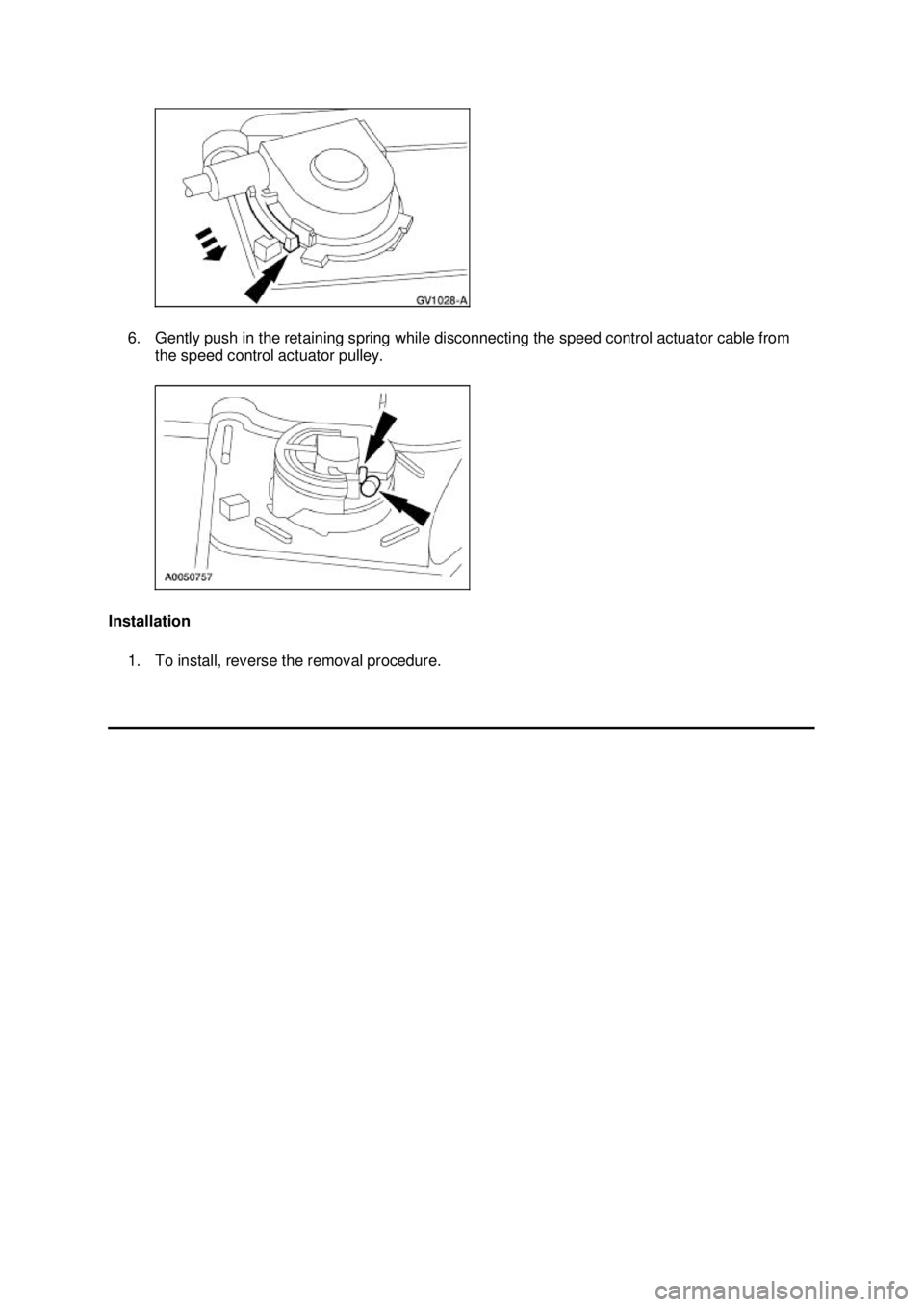

Page 3028 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Gently push in the retaining spring while disconnecting the speed control actuator cable from the speed control actuator pulley. Installation 1. To install, reverse the removal procedure. Kl

Page 3029 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Actuator — Speed Control Servo 1. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result. Disconnect the

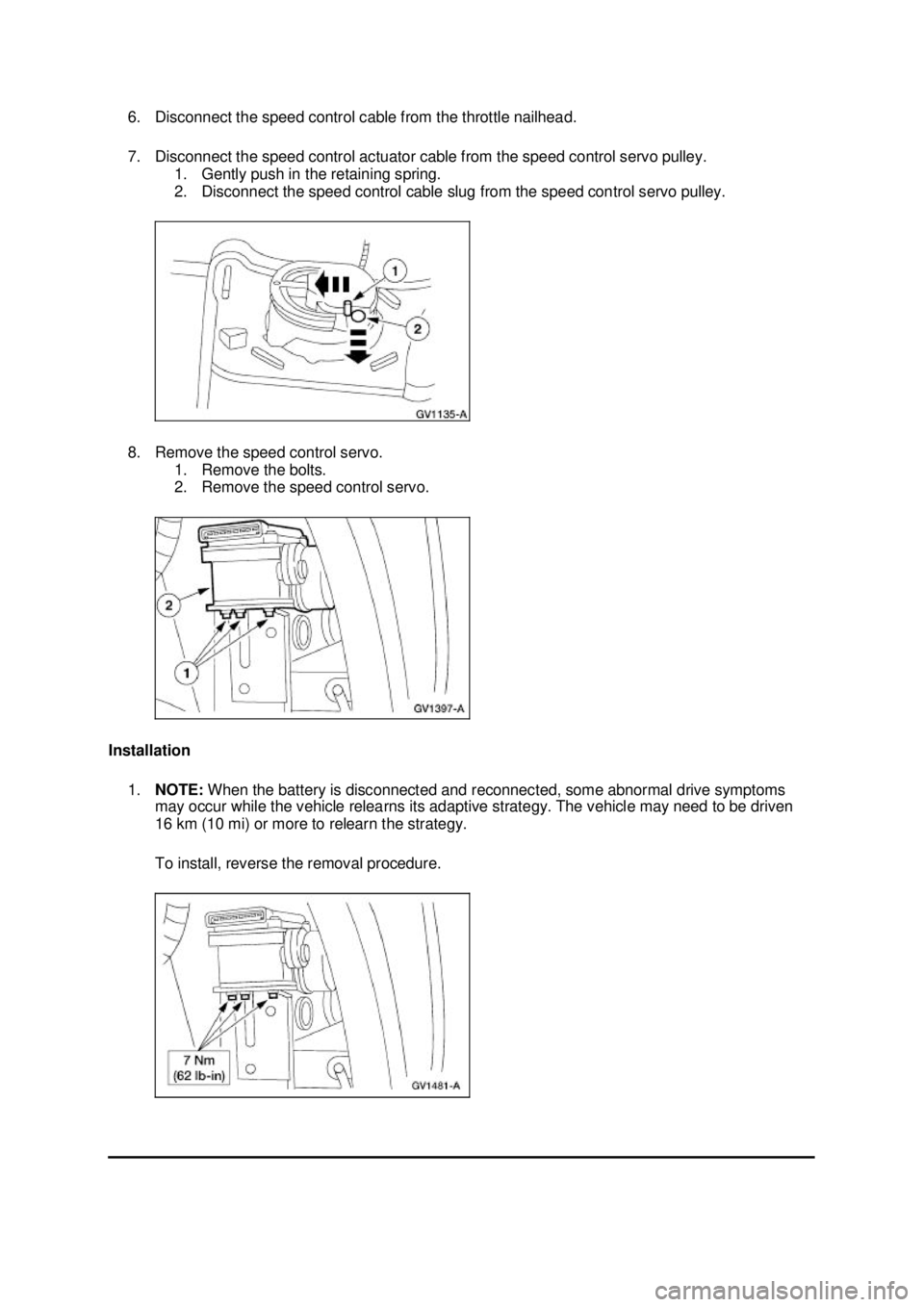

Page 3030 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Disconnect the speed control cable from the throttle nailhead. 7. Disconnect the speed control actuator cable from the speed control servo pulley. 1. Gently push in the retaining spring. 2. Disc

Page 3031 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

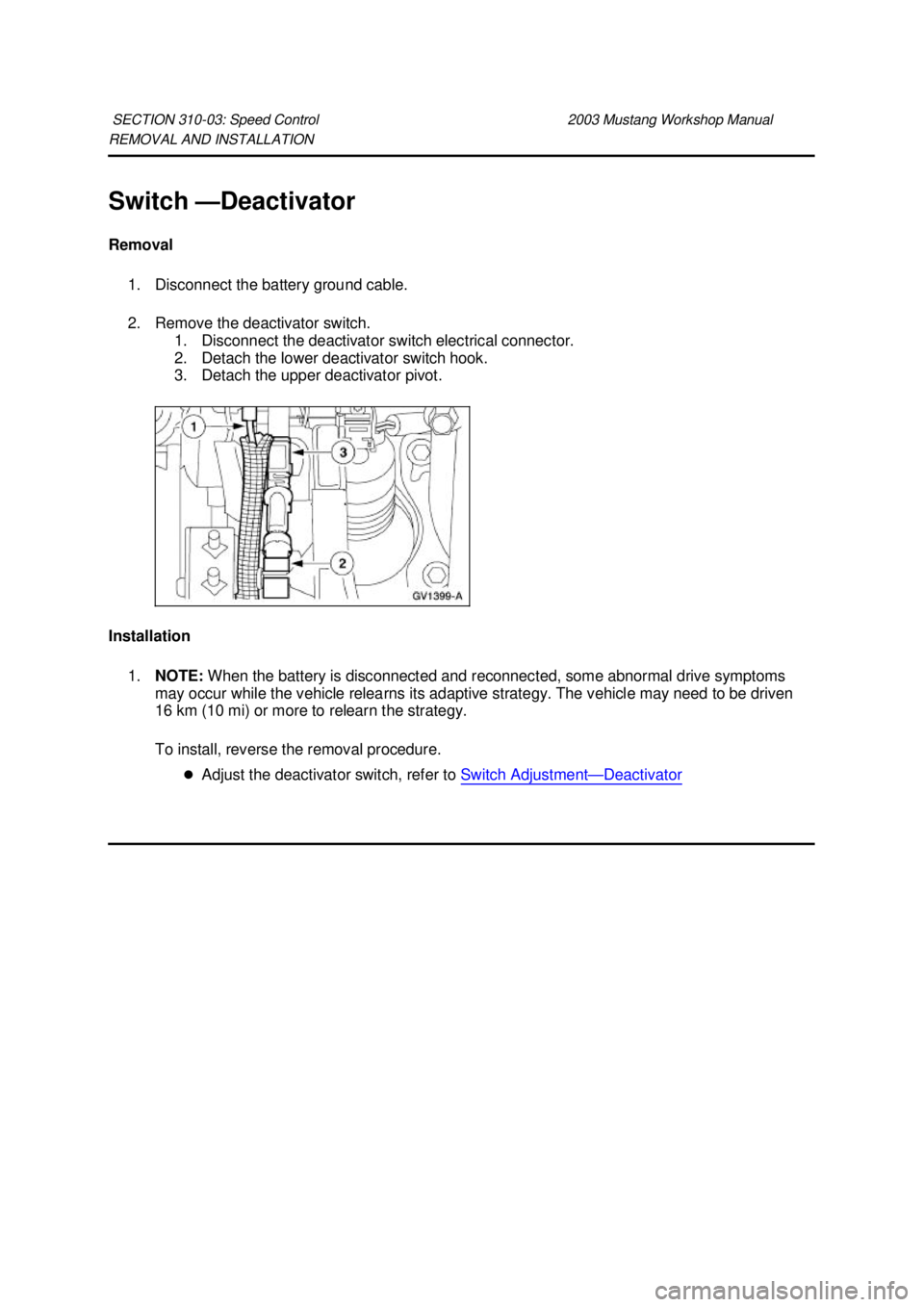

Page 3032 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Switch — Deactivator Removal 1. Disconnect the battery ground cable. 2. Remove the deactivator switch. 1. Disconnect the deactivator switch electrical connector. 2. De
