Page 2097 of 4378

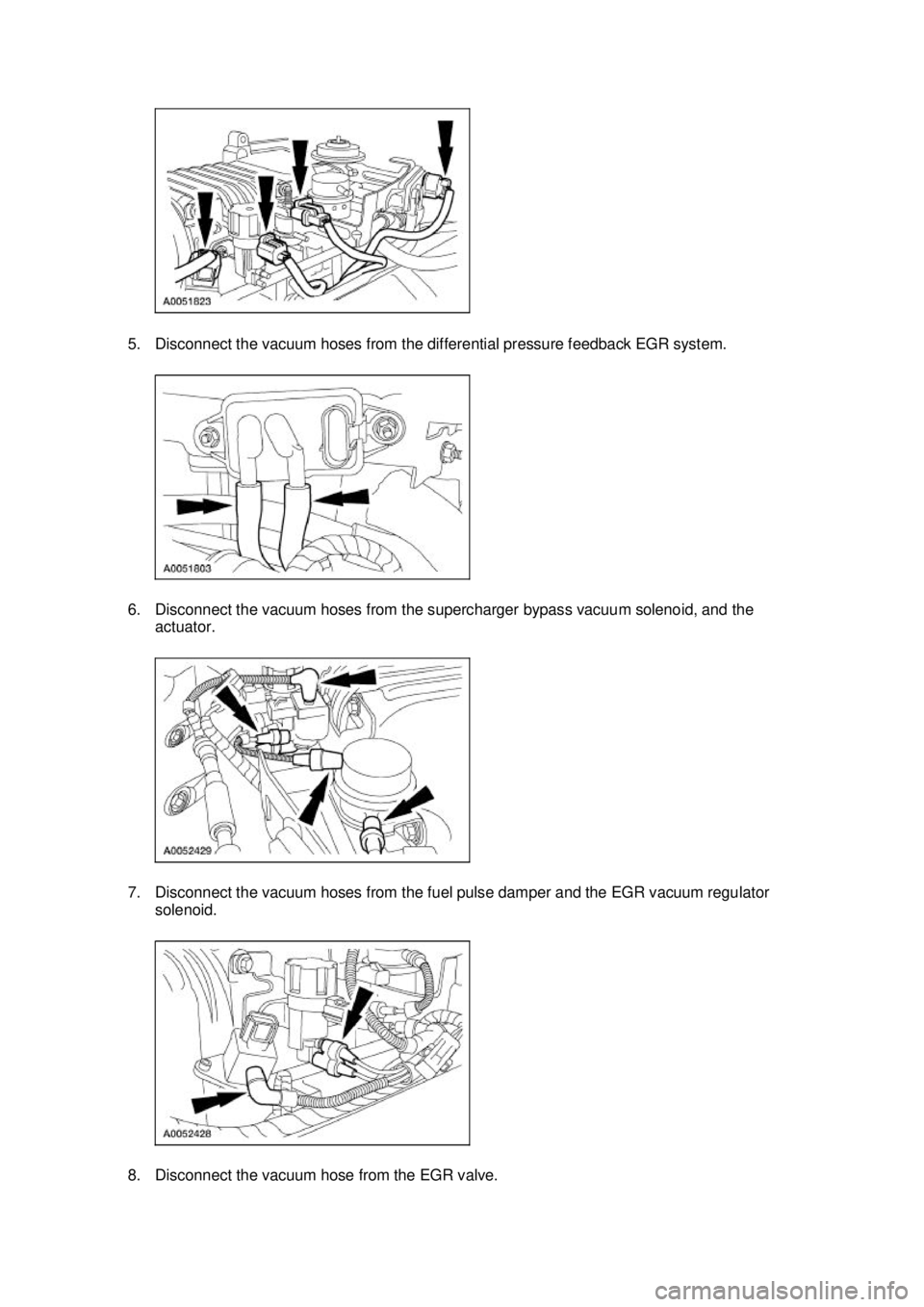

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the vacuum hoses from the differential pressure feedback EGR system. 6. Disconnect the vacuum hoses from the supercharger bypass vacuum solenoid, and the actuator. 7. Disconnect the v

Page 2098 of 4378

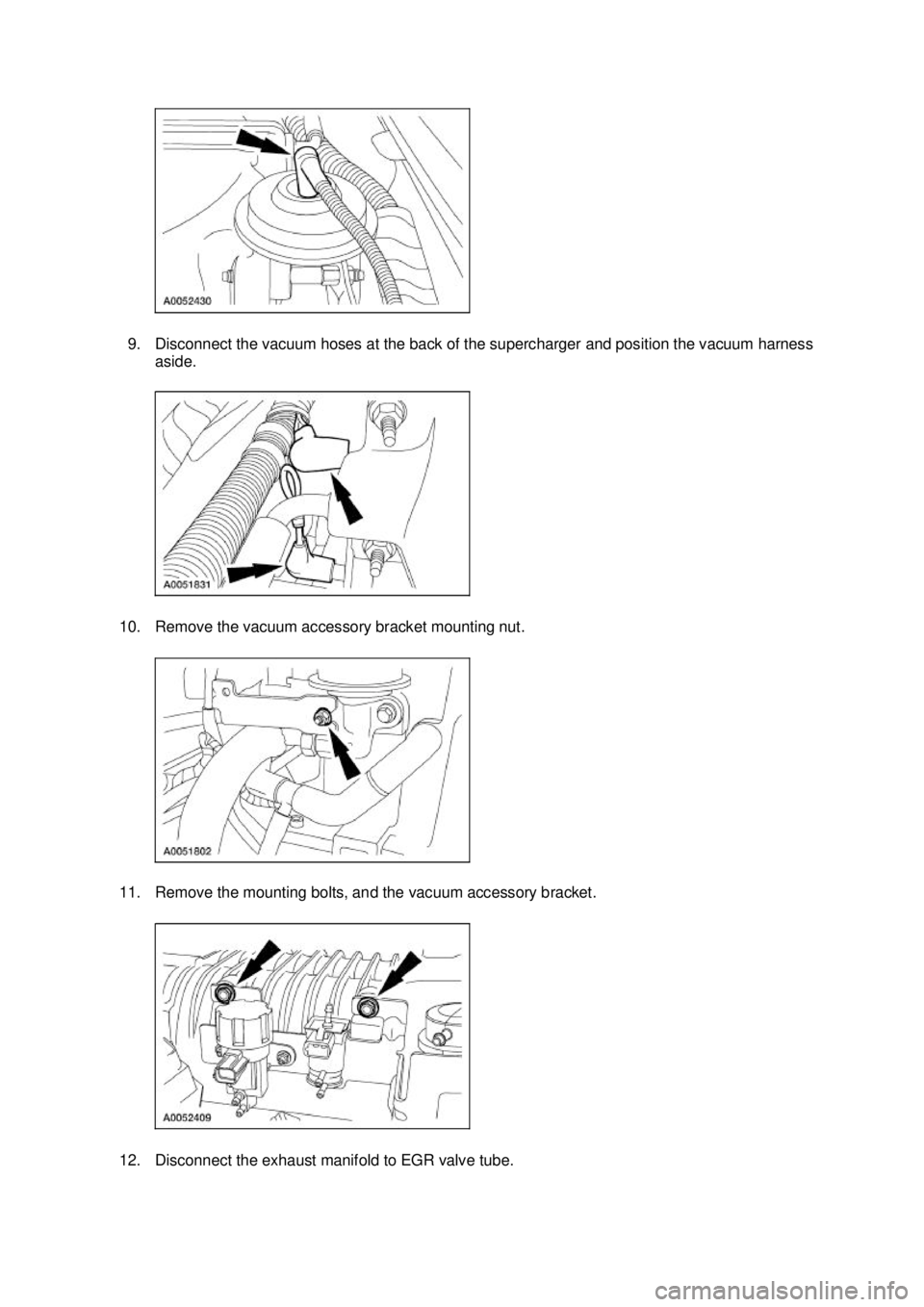

FORD MUSTANG 2003 Workshop Manual 9. Disconnect the vacuum hoses at the back of the supercharger and position the vacuum harness aside. 10. Remove the vacuum accessory bracket mounting nut. 11. Remove the mounting bolts, and the va

Page 2099 of 4378

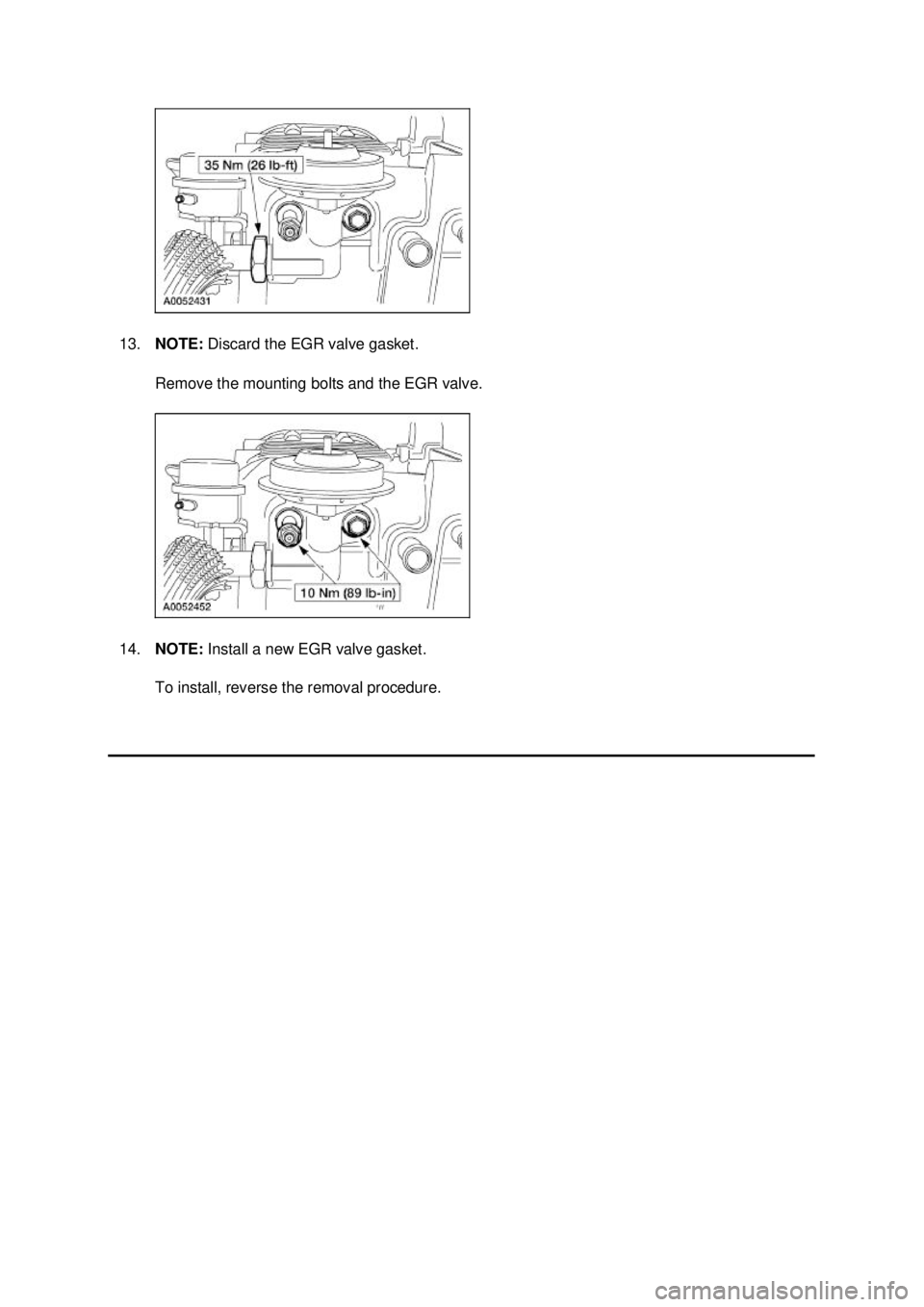

FORD MUSTANG 2003 Workshop Manual 13. NOTE: Discard the EGR valve gasket. Remove the mounting bolts and the EGR valve. 14. NOTE: Install a new EGR valve gasket. To install, reverse the removal procedure. Klj . 4 ba 42003

Page 2100 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Exhaust Gas Recirculation (EGR) Valve — Mach I Removal and Installation 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 . 2. Remo

Page 2101 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2102 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Exhaust Manifold to Exhaust Gas Recirculation (EGR) Valve Tube Removal and Installation NOTE: 3.8L shown, 4.6L (2V) similar. 1. With the vehicle in NEUTRAL, position it

Page 2103 of 4378

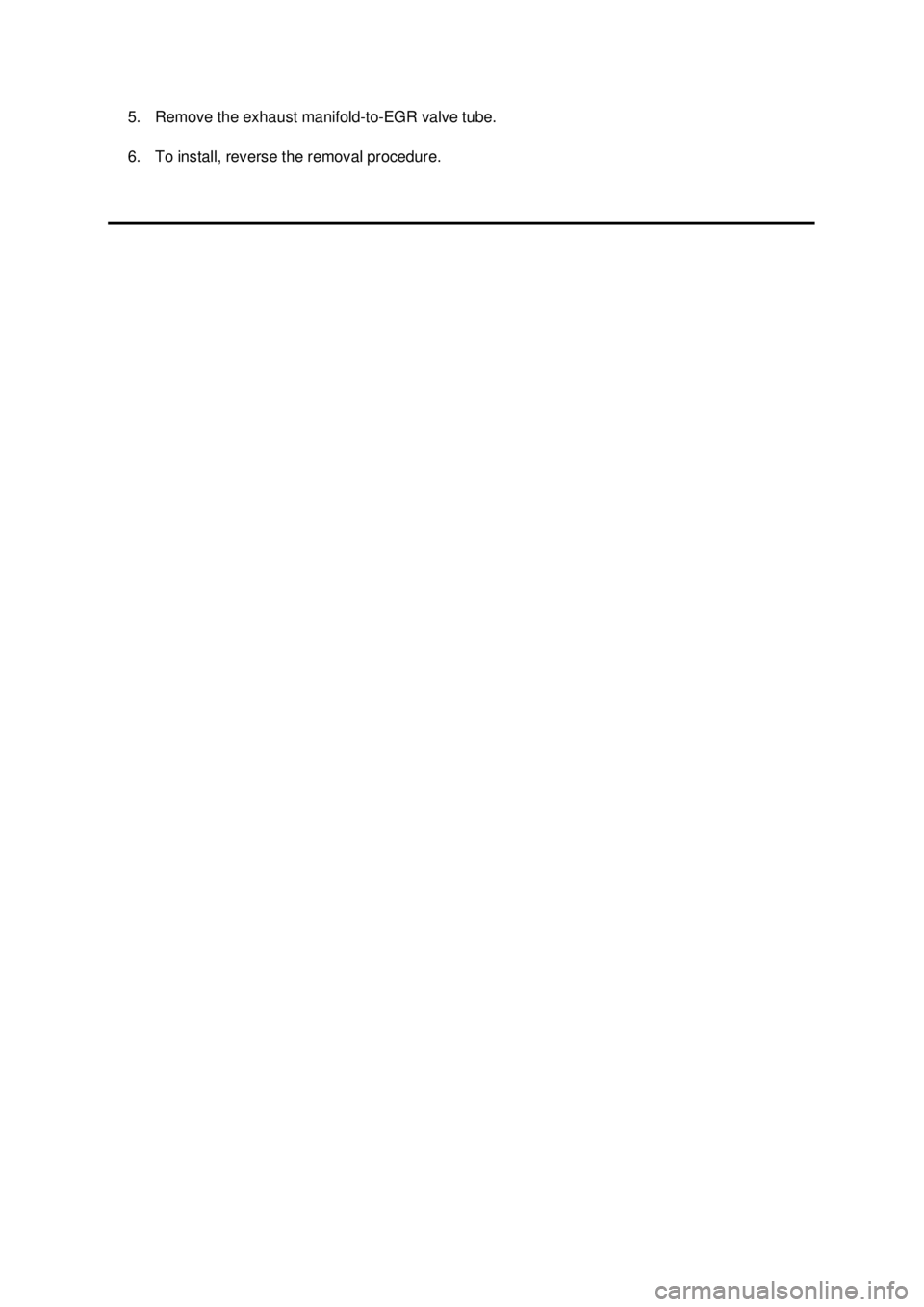

FORD MUSTANG 2003 Workshop Manual 5. Remove the exhaust manifold- to-EGR valve tube. 6. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHE

Page 2104 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Exhaust Manifold to Exhaust Gas Recirculation (EGR) Valve Tube — Cobra Removal and Installation 1. Remove the EGR valve. For addditional information, refer to Exhaust Ga
