Page 2785 of 4378

FORD MUSTANG 2003 Workshop Manual 14. Remove the shipping seal. 15. Remove the OSS sensor tone wheel retaining ring. 16. Using the special tools, remove the OSS sensor tone wheel. 17. Remove the OSS sensor tone wheel check ball.

Page 2786 of 4378

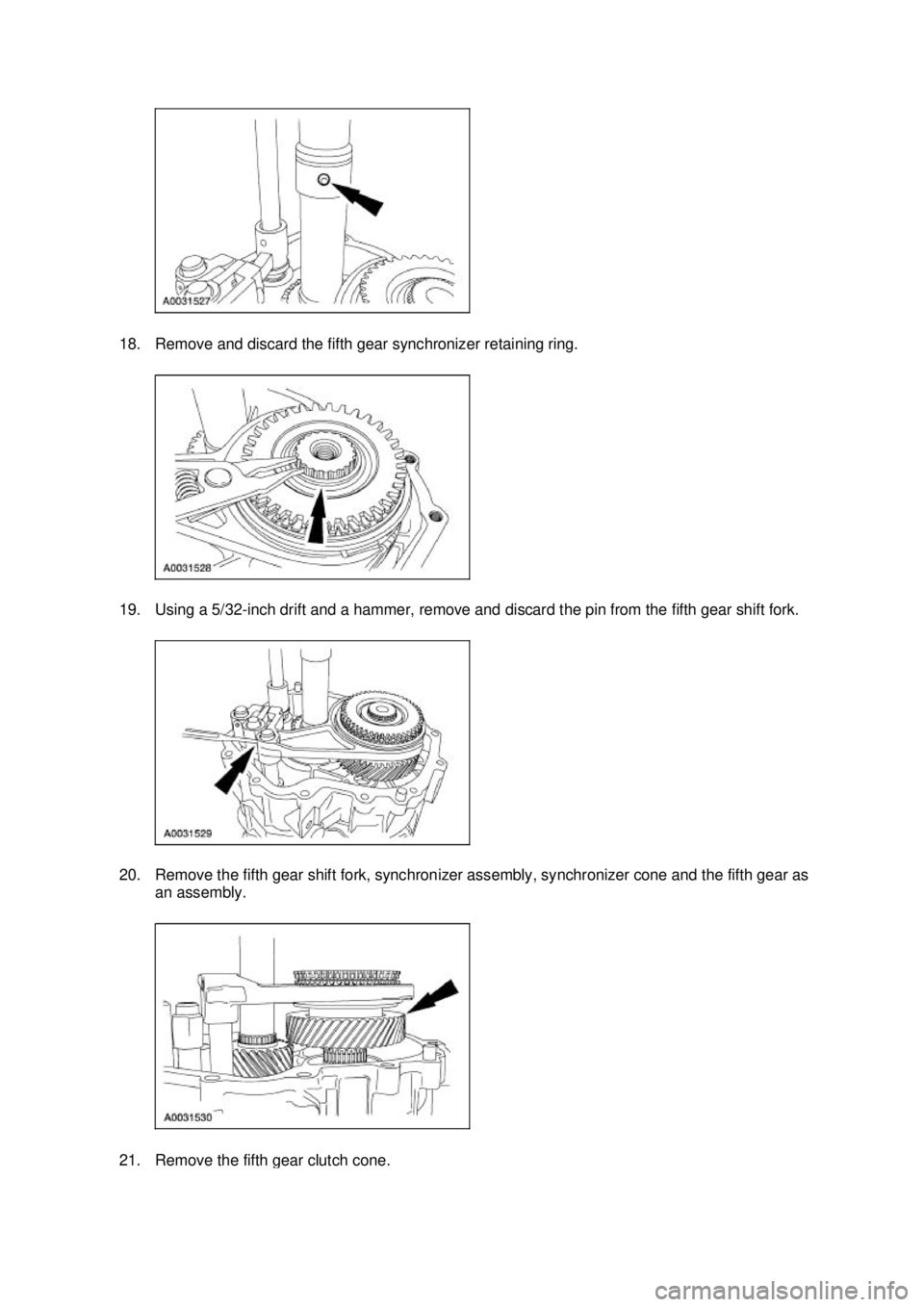

FORD MUSTANG 2003 Workshop Manual 18. Remove and discard the fifth gear synchronizer retaining ring. 19. Using a 5/32- inch drift and a hammer, remove and discard the pin from the fifth gear shift fork. 20. Remove the fifth gear shi

Page 2787 of 4378

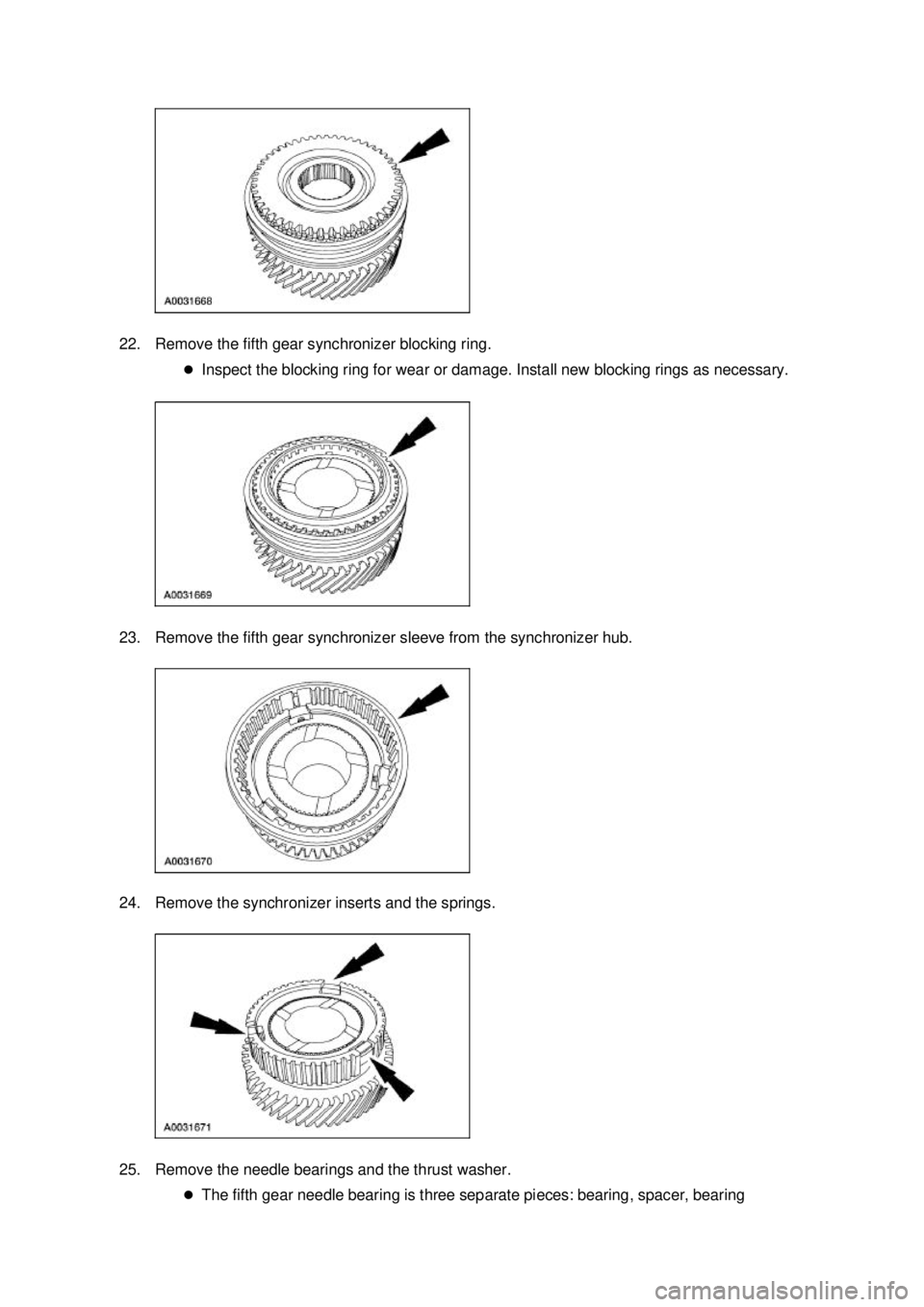

FORD MUSTANG 2003 Workshop Manual 22. Remove the fifth gear synchronizer blocking ring. �zInspect the blocking ring for wear or damage. Install new blocking rings as necessary. 23. Remove the fifth gear synchronizer sleeve from the

Page 2788 of 4378

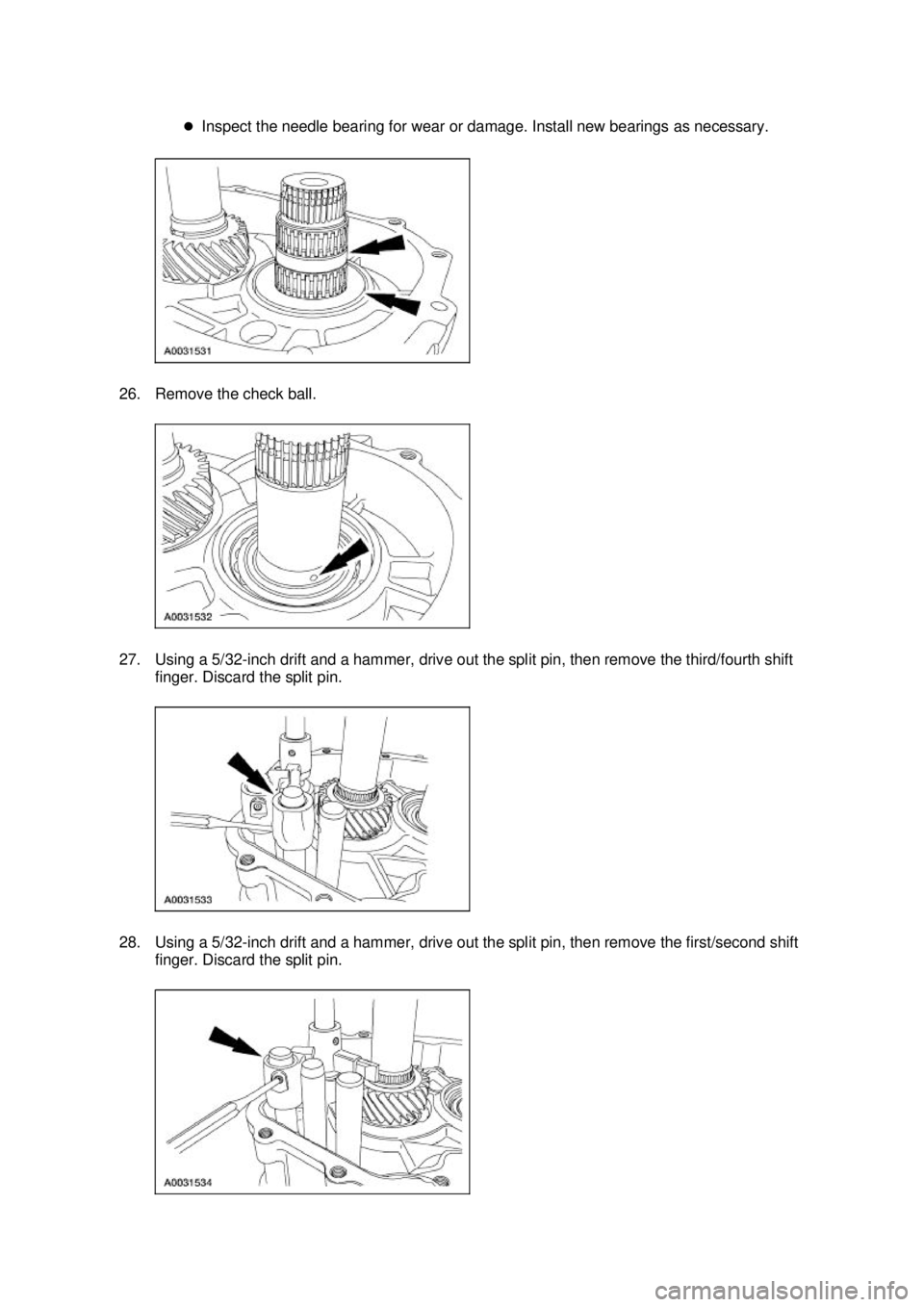

FORD MUSTANG 2003 Workshop Manual �z Inspect the needle bearing for wear or damage. Install new bearings as necessary. 26. Remove the check ball. 27. Using a 5/32- inch drift and a hammer, drive out the split pin, then remove the th

Page 2789 of 4378

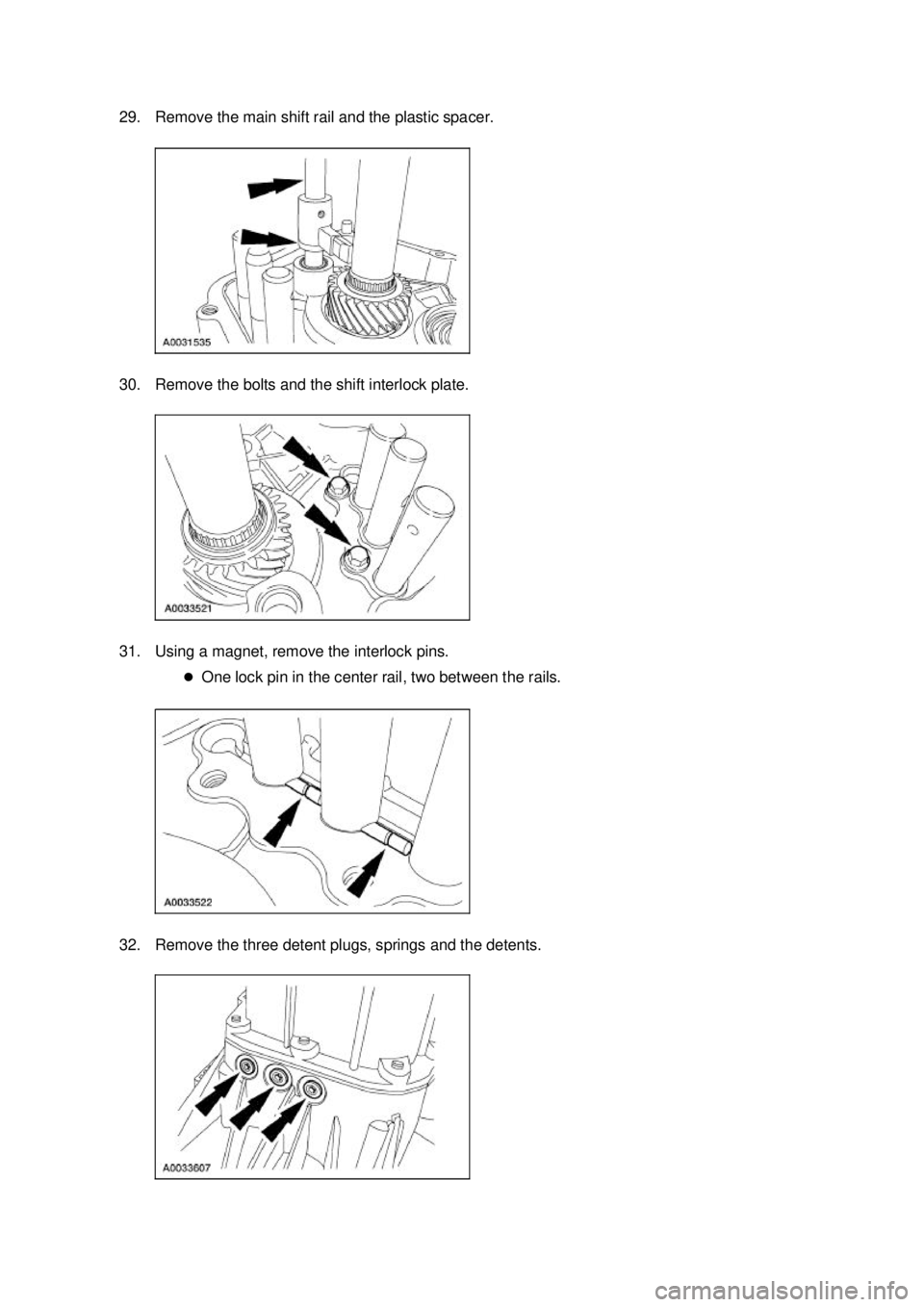

FORD MUSTANG 2003 Workshop Manual 29. Remove the main shift rail and the plastic spacer. 30. Remove the bolts and the shift interlock plate. 31. Using a magnet, remove the interlock pins. �zOne lock pin in the center rail, two betw

Page 2790 of 4378

FORD MUSTANG 2003 Workshop Manual 33. CAUTION: Do not remove all the bolts while in the horizontal position. Remove the bolts. �zRotate the transmission to a horizontal position. Remove 12 bolts, leaving two opposing bolts in. Rot

Page 2791 of 4378

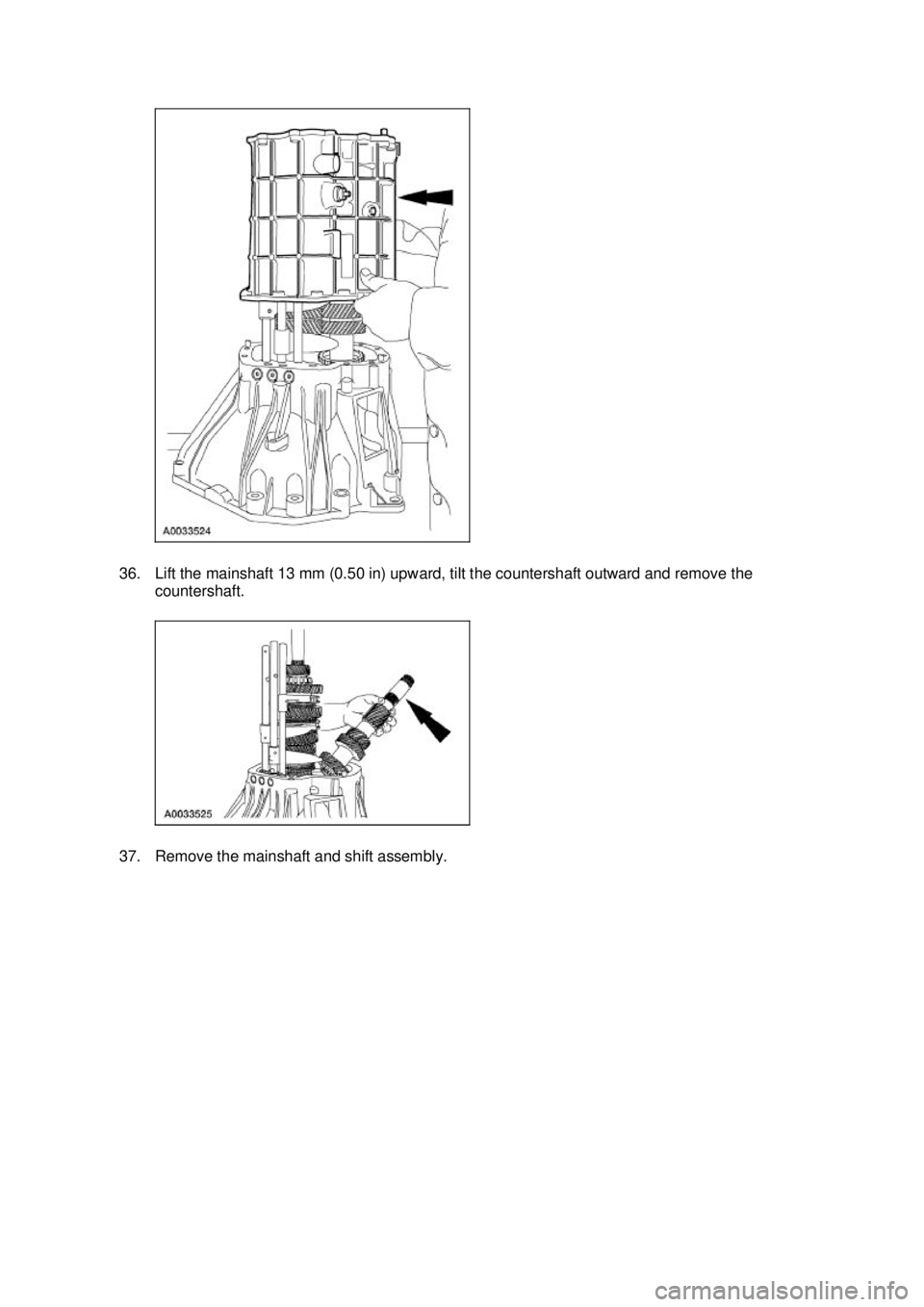

FORD MUSTANG 2003 Workshop Manual 36. Lift the mainshaft 13 mm (0.50 in) upward, tilt the countershaft outward and remove the countershaft. 37. Remove the mainshaft and shift assembly. Klj . 11 ba 152003 Mustang Workshop Ma

Page 2792 of 4378

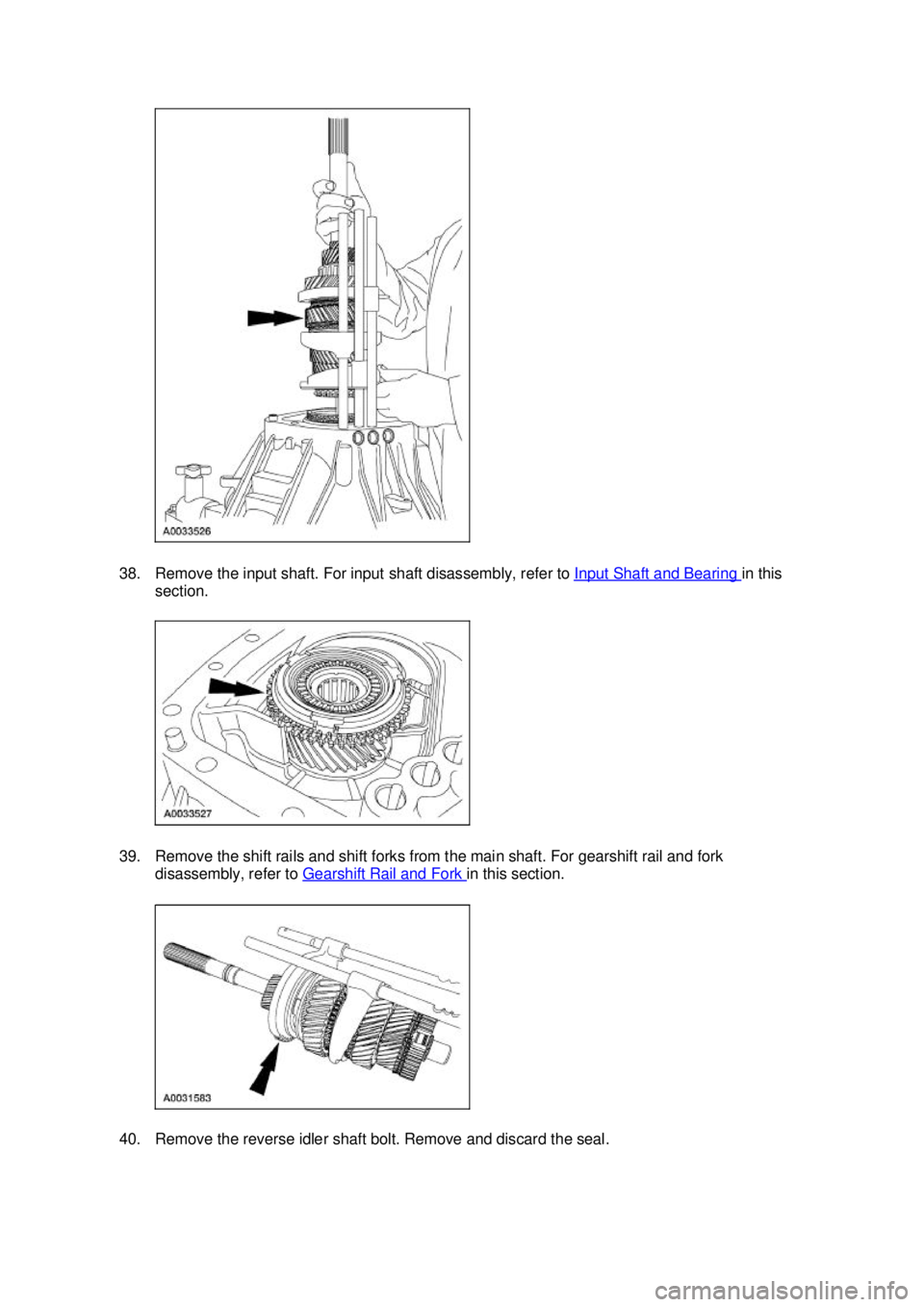

FORD MUSTANG 2003 Workshop Manual 38. Remove the input shaft. For input shaft disassembly, refer to Input Shaft and Bearing in this section. 39. Remove the shift rails and shift forks from the main shaft. For gearshift rail and fo
