Page 3153 of 4378

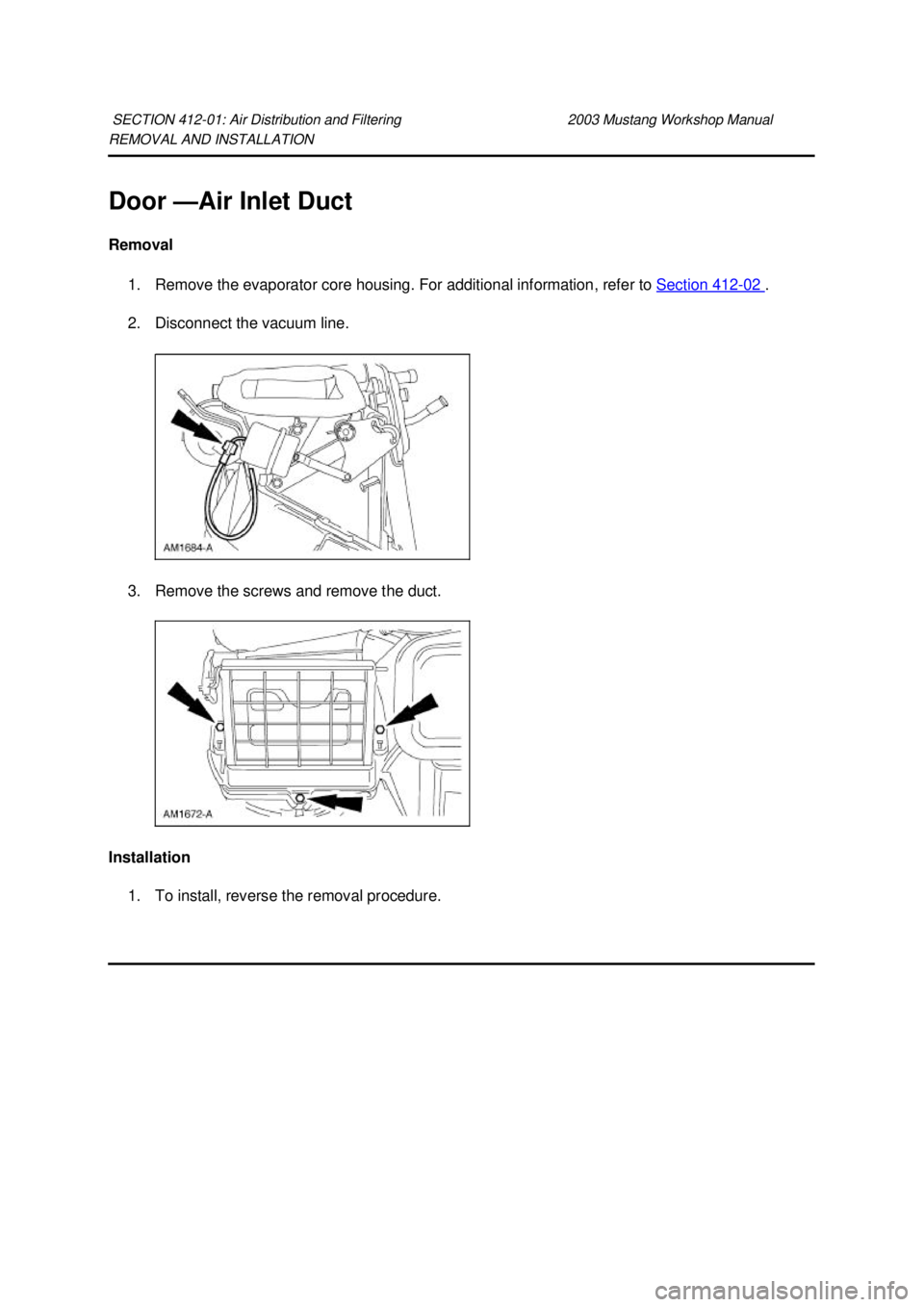

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Door — Air Inlet Duct Removal 1. Remove the evaporator core housing. For additional information, refer to Section 412 - 02 . 2. Disconnect the vacuum line. 3. Remove

Page 3154 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 3155 of 4378

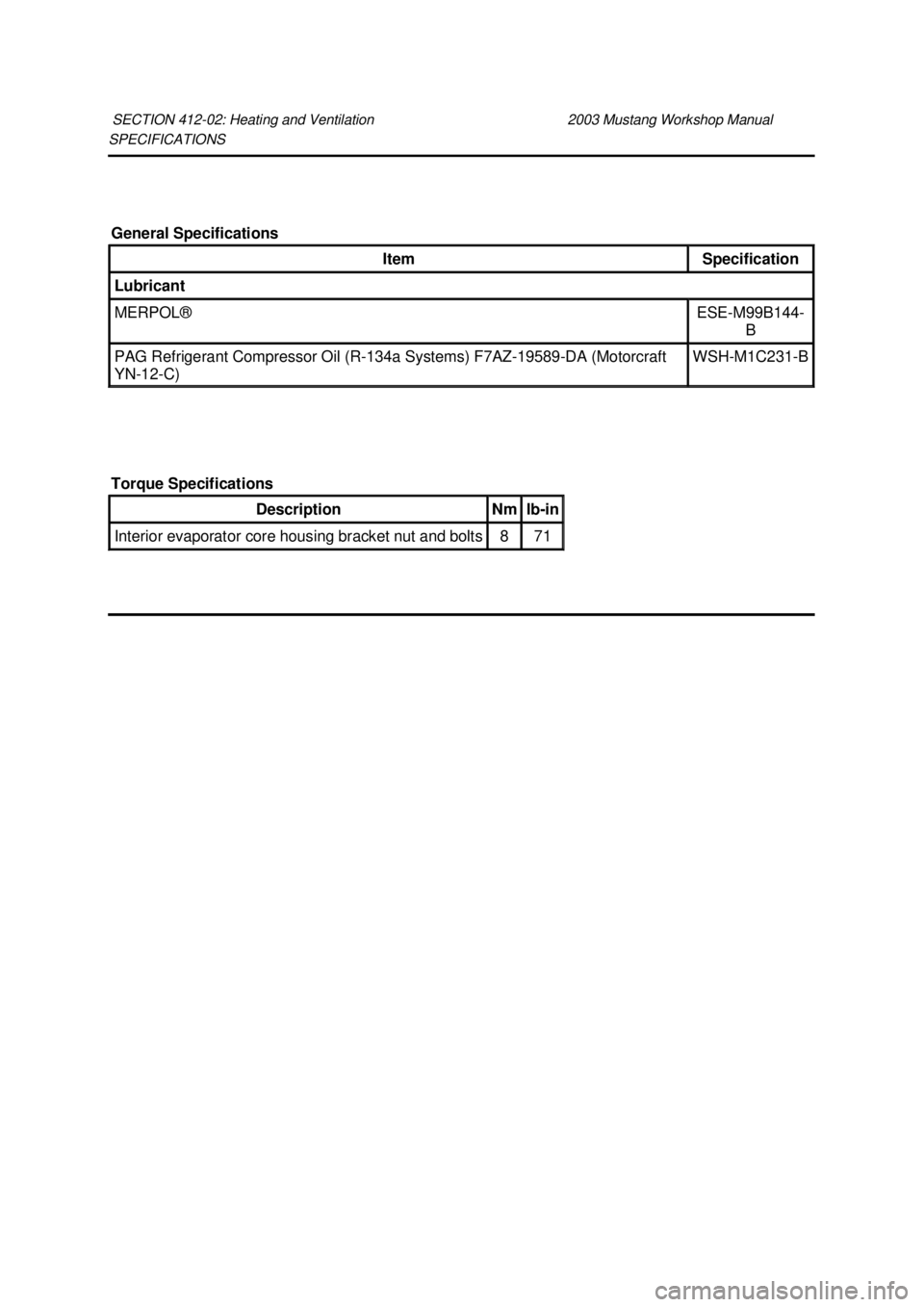

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 412- 02: Heating and Ventilation 2003 Mustang Workshop Manual General Specifications Item Specification Lubricant MERPOL® ESE- M99B144- B PAG Refrigerant Compressor Oil

Page 3156 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Heating and Defrosting The heating and defrosting system has the following features: �zControls the temperature and, during A/C operation, reduces the relative humidity of

Page 3157 of 4378

FORD MUSTANG 2003 Workshop Manual The A/C blower motor (19805 ) pulls air from the air inlet and forces it into the plenum assembly where it is mixed and distributed. Heater Hoses NOTE: The heater water hoses connect to the heater

Page 3158 of 4378

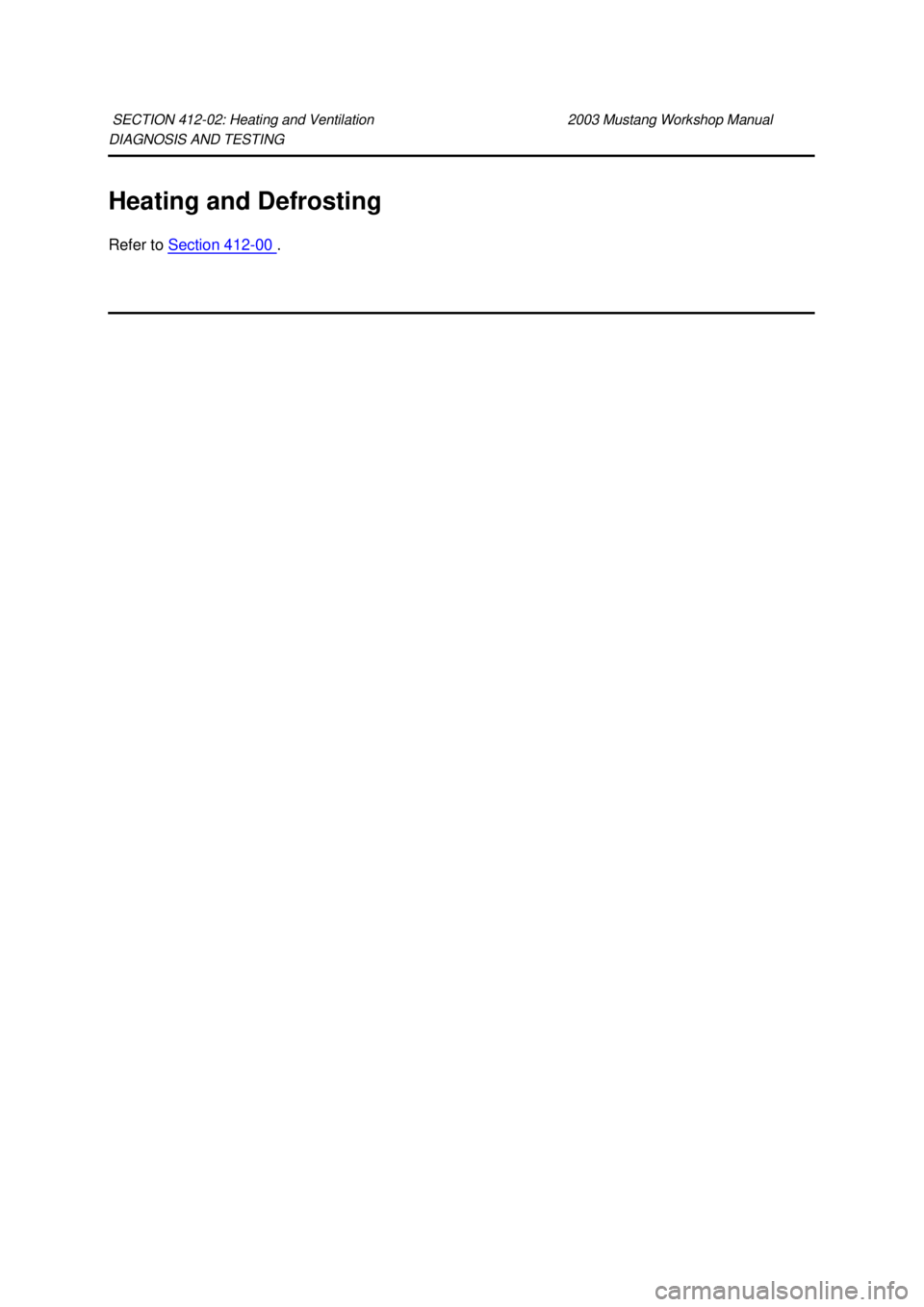

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Heating and Defrosting Refer to Section 412 - 00 . SECTION 412- 02: Heating and Ventilation 2003 Mustang Workshop Manual Klj . 1 ba 12003 Mustang Workshop Manual 1

Page 3159 of 4378

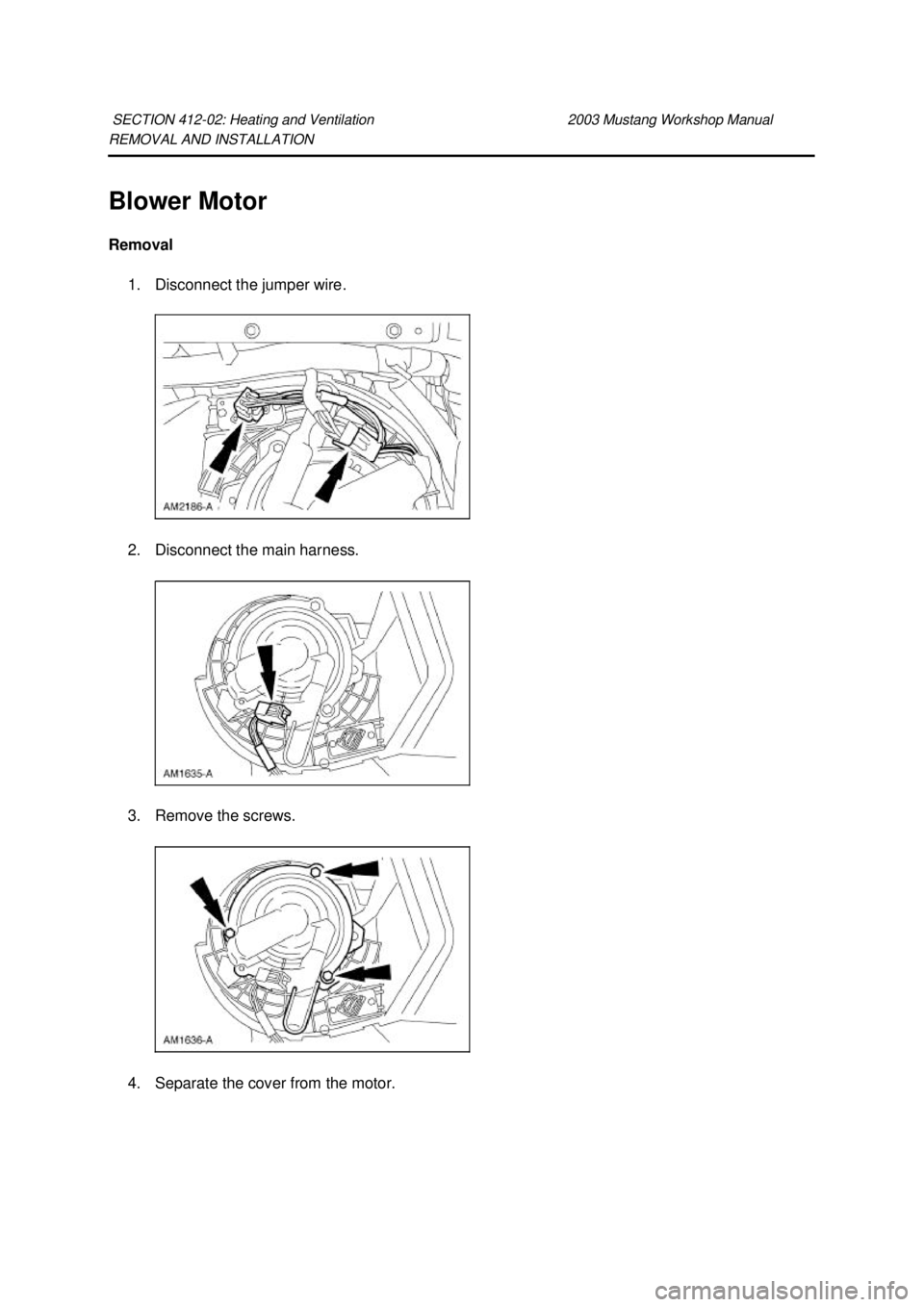

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Blower Motor Removal 1. Disconnect the jumper wire. 2. Disconnect the main harness. 3. Remove the screws. 4. Separate the cover from the motor. SECTION 412- 02: Heating

Page 3160 of 4378

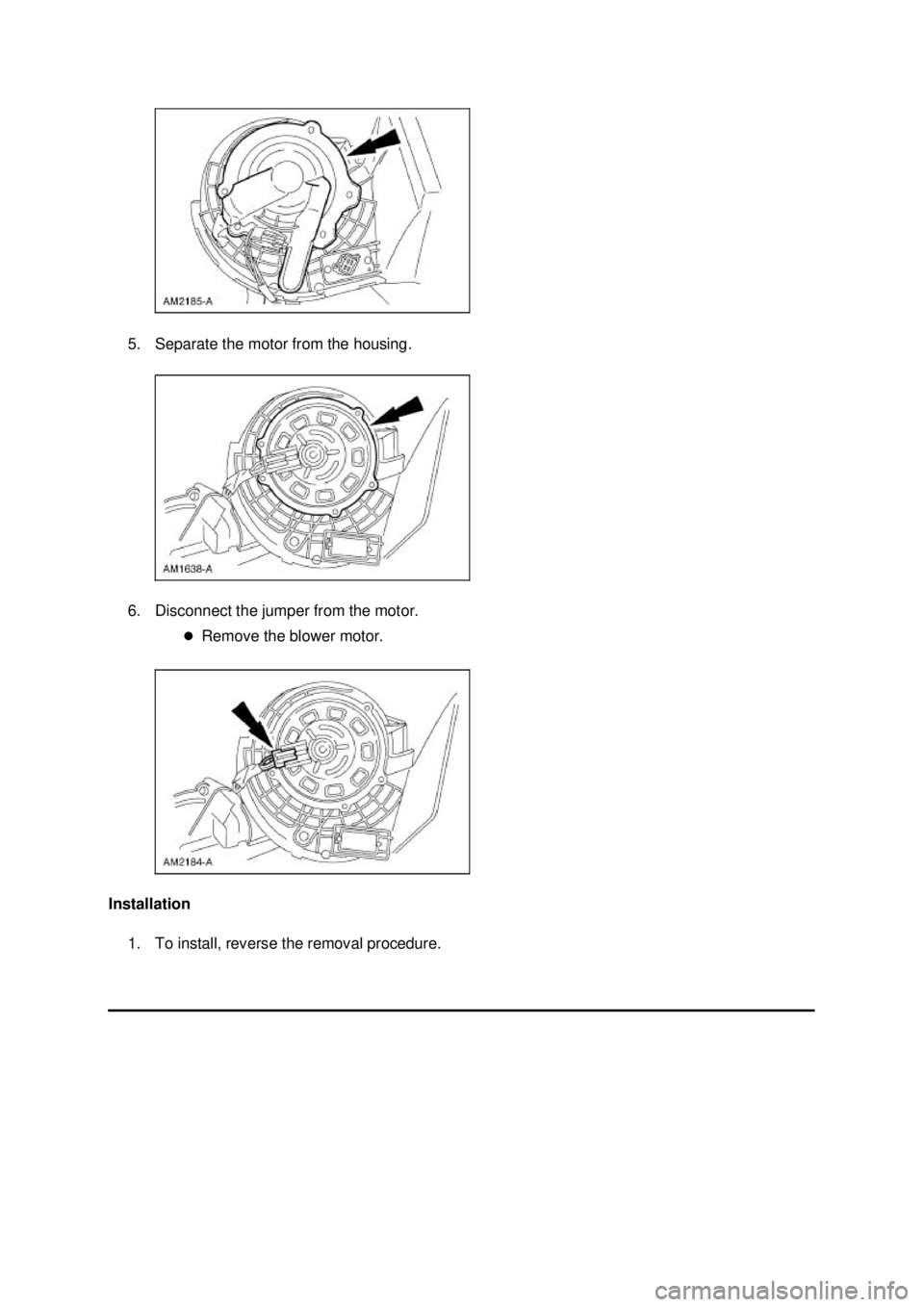

FORD MUSTANG 2003 Workshop Manual 5. Separate the motor from the housing. 6. Disconnect the jumper from the motor. �zRemove the blower motor. Installation 1. To install, reverse the removal procedure. Klj . 2 ba 32003 Mus
