31. Lower the vehicle.
All vehicles 32. Remove the LH valve cover.
33. CAUTION: Do not use metal scraper, wire brushes, power abrasive discs or other
abrasive means to clean the sealing surfaces. These tools cause scratches and gouges
which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
Clean and inspect sealing surfaces and valve cover gaskets. If necessary, install new gaskets.
Make sure the gaskets are correctly seated on the valve cover.
34. Remove the four bolts and the coolant pump pulley. Klj . 8 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1666 of 4378
35. Remove the three bolts and position the power steering reservoir and bracket assembly aside.
36. Disconnect the camshaft position (CMP) sensor electrical connector.
37. Remove the idler pulleys.
38. Remove the bolts and the studs and remove the engine front cover. Klj . 9 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1667 of 4378
39.
CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other
abrasive means to clean the sealing surfaces. These tools cause scratches and gouges
which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
Remove and discard the gasket. Clean and inspect the sealing surfaces.
Installation
All vehicles 1. Position the engine front cover gasket on the engine front cover.
2. NOTE: If the engine front cover is not secured within four minutes, the sealant must be removed
and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of
wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future
oil leakage.
Apply the silicone gasket and sealant along the cylinder head- to-cylinder block surface and the
oil pan- to-cylinder block surface. Klj . 10 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1668 of 4378
3. Install the engine front cover and tighten the bolts and studs in sequence shown.
Item Part
Number Description
1 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
2 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
3 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
4 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
5 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
6 W706508 Stud, Hex Shldr Pilot, M8 x 1.25 x 50 —
M6 x 1 x
10 7 N808586 Stud and Washer, Hex-
Head Pilot, M8 x 1.25 x 60
— M6 x 1 x 26 8 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
9 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
10 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53
11 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 65 —
M8 x 1.25
x 26 12 W706560 Stud, Hex Head Pilot, M8 x 1.25 x 65 —
M8 x Klj . 11 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1669 of 4378
4. Install the idler pulleys.
5. Connect the camshaft position (CMP) sensor electrical connector.
6. Position the power steering reservoir and bracket assembly and install the bolts.
7. Install the coolant pump pulley and the bolts. 1.25 x 16
13 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 65 —
M8 x 1.25
x 26 14 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 65 —
M8 x 1.25
x 26 15 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 65 —
M8 x 1.25
x 26 Klj . 12 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1670 of 4378

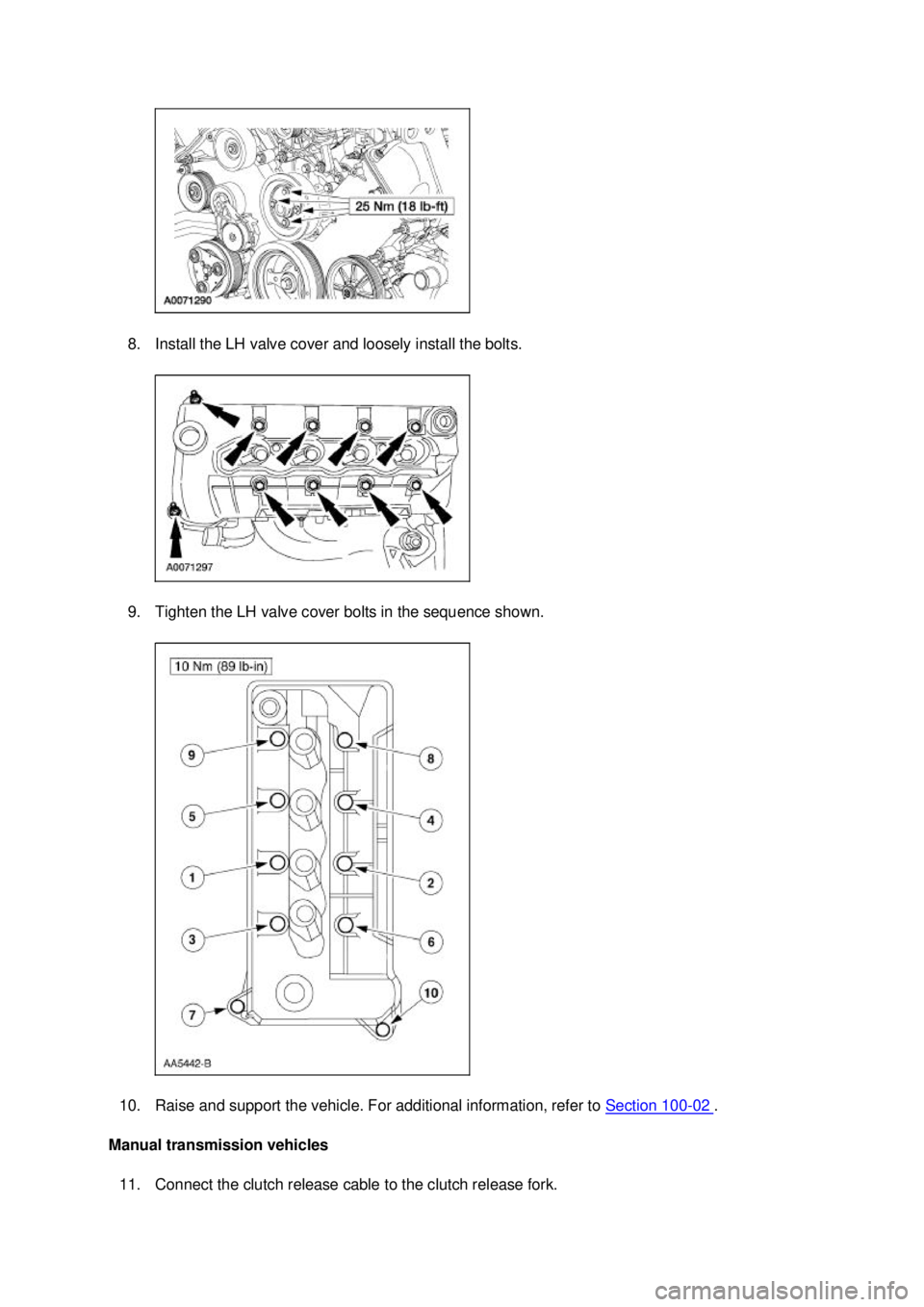

8. Install the LH valve cover and loosely install the bolts.
9. Tighten the LH valve cover bolts in the sequence shown.
10. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
Manual transmission vehicles 11. Connect the clutch release cable to the clutch release fork. Klj . 13 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1671 of 4378

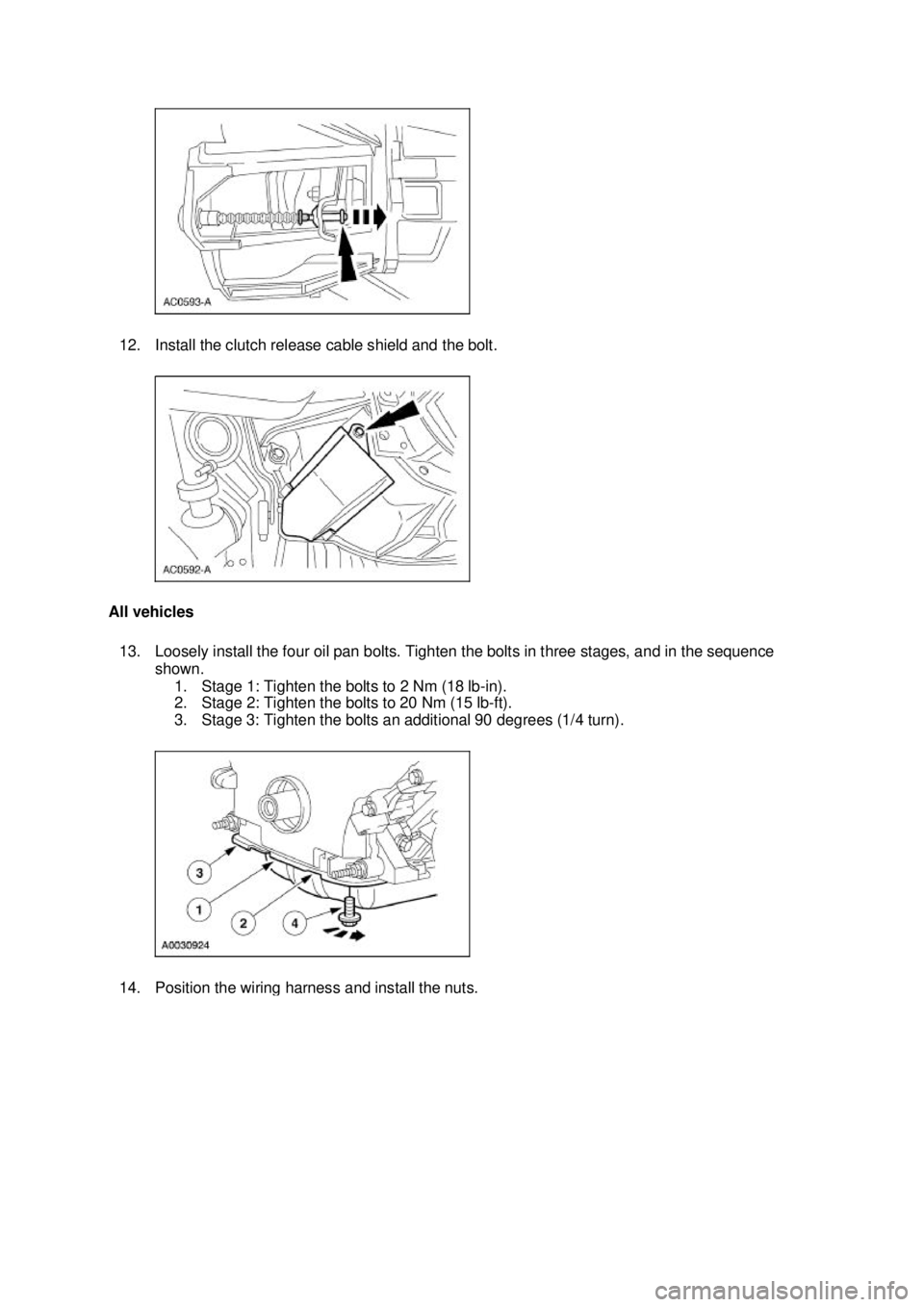

12. Install the clutch release cable shield and the bolt.
All vehicles 13. Loosely install the four oil pan bolts. Tighten the bolts in three stages, and in the sequence shown. 1. Stage 1: Tighten the bolts to 2 Nm (18 lb- in).
2. Stage 2: Tighten the bolts to 20 Nm (15 lb- ft).
3. Stage 3: Tighten the bolts an additional 90 degrees (1/4 turn). 14. Position the wiring harness and install the nuts. Klj . 14 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1672 of 4378
15. Connect the crankshaft position (CKP) sensor electrical connector.
16. Position the A/C compressor, A/C muffler, and the hose. Install the bolts.
17. Install the A/C muffler bracket nut.
18. Position the power steering pump and install the bolts. Klj . 15 ba
