Page 2593 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION External Controls The transmission shift cable transfers the transmission operating mode from the gearshift lever to the automatic transmission (7003). The indicated posit

Page 2594 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING External Controls Refer to Wiring Diagrams Cell 37 , Shift Lock for schematic and connector information. Refer to Wiring Diagrams Cell 29 , Transmission Control for schema

Page 2595 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Tests PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY �z The shift control is out of correct gear relationship �z Transmission shift cable and bracket. �z

Page 2596 of 4378

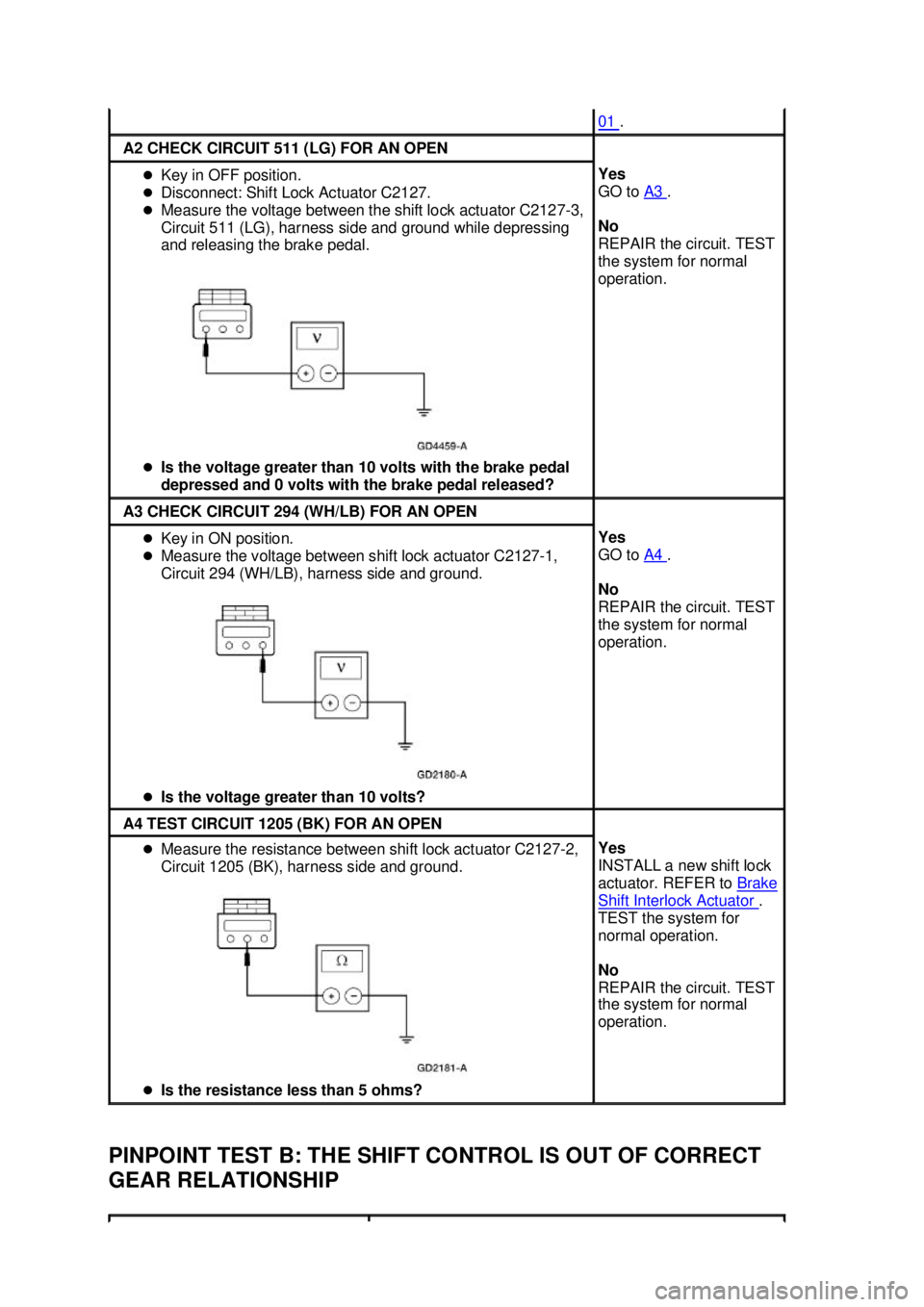

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: THE SHIFT CONTROL IS OUT OF CORRECT GEAR RELATIONSHIP 01 . A2 CHECK CIRCUIT 511 (LG) FOR AN OPEN �z Key in OFF position. �z Disconnect: Shift Lock Actuator C2127. �z Measure th

Page 2597 of 4378

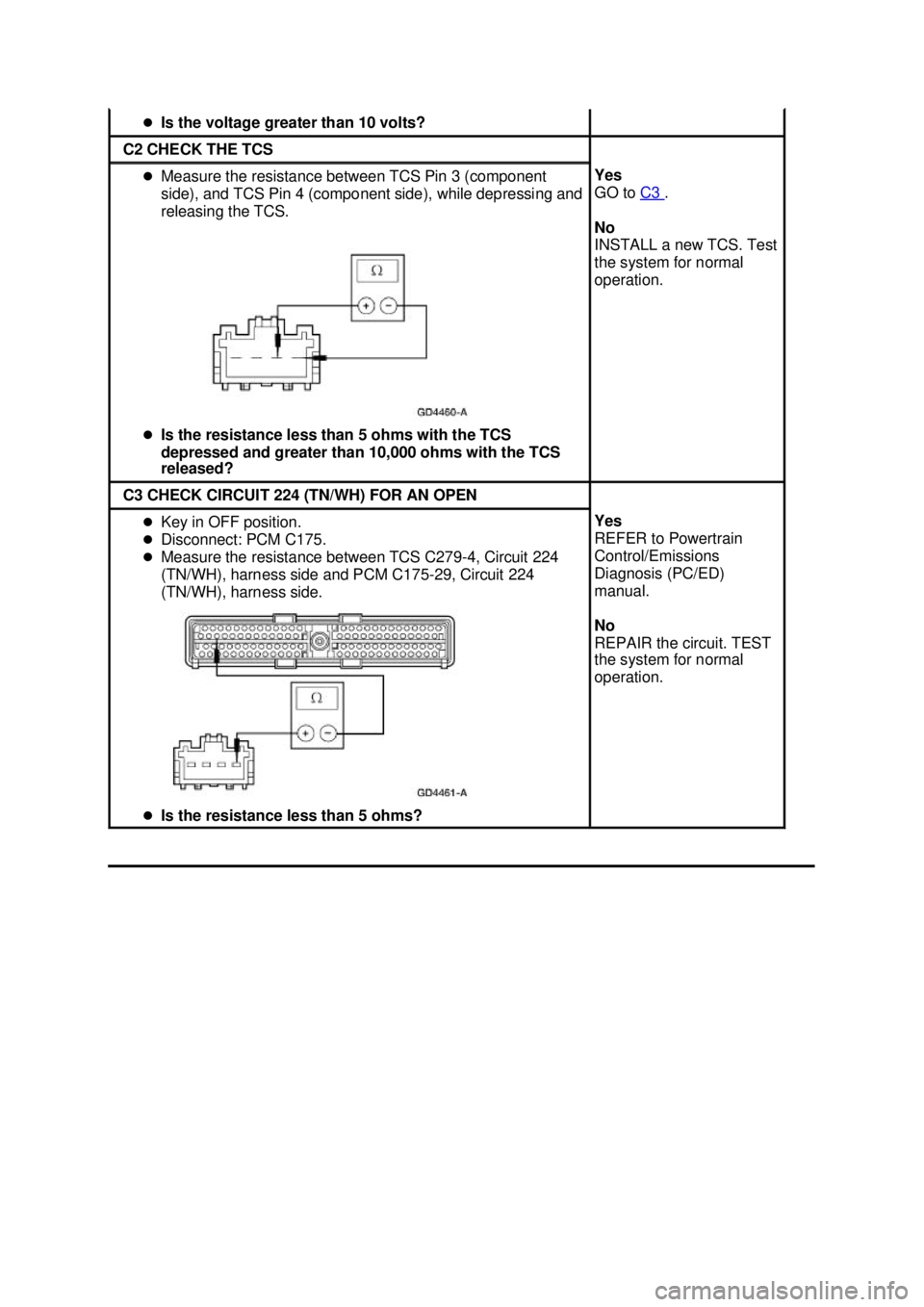

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: THE TRANSMISSION CONTROL SWITCH (TCS) IS INOPERATIVE Test Step Result / Action to Take B1 CHECK THE SHIFT CONTROL LINKAGE �z Key in ON position. �z Apply the brake pedal. �z A

Page 2598 of 4378

FORD MUSTANG 2003 Workshop Manual �z Is the voltage greater than 10 volts? C2 CHECK THE TCS �z Measure the resistance between TCS Pin 3 (component side), and TCS Pin 4 (component side), while depressing and releasing the TCS. �z

Page 2599 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 6 ba 62003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2600 of 4378

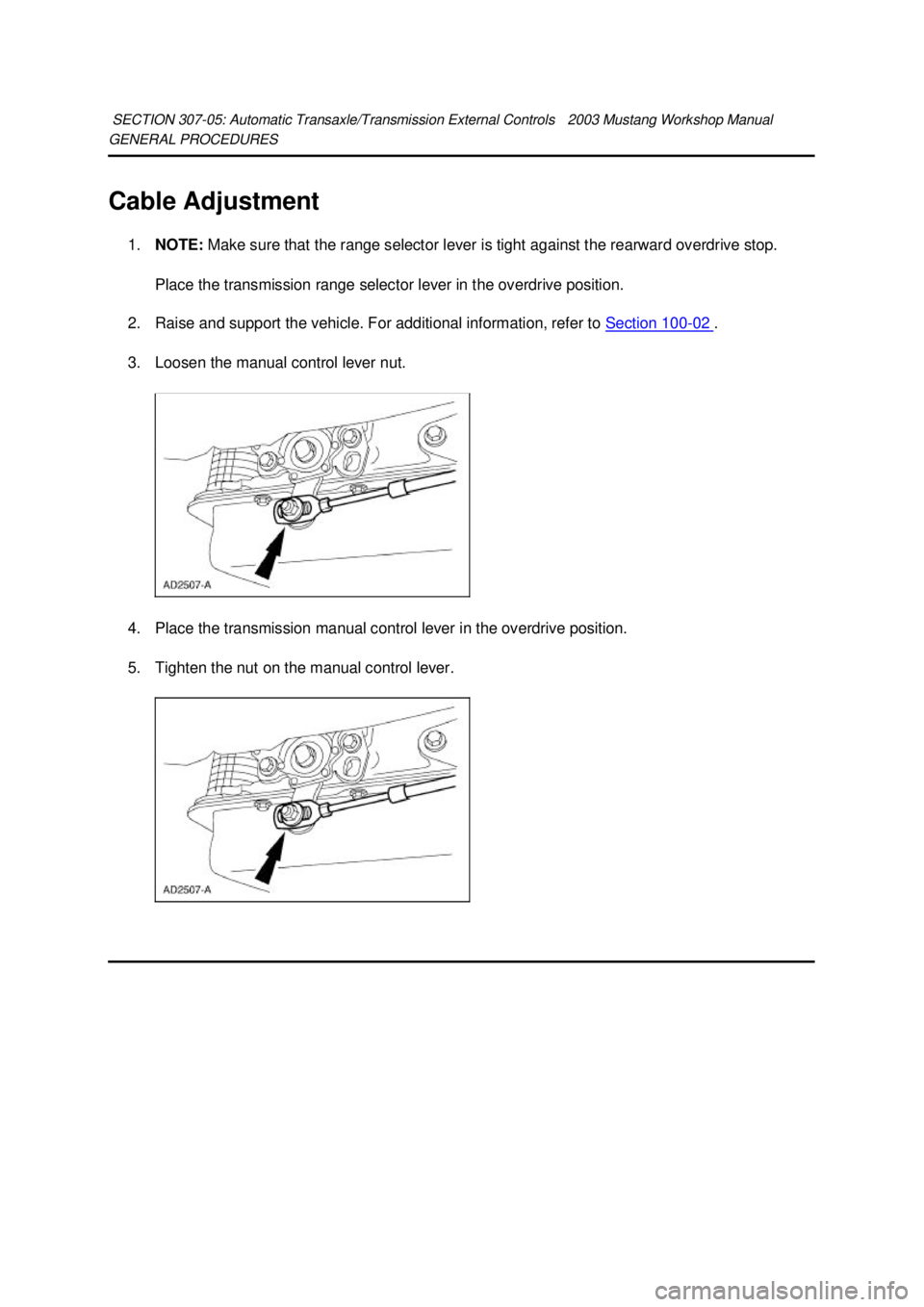

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Cable Adjustment 1. NOTE: Make sure that the range selector lever is tight against the rearward overdrive stop. Place the transmission range selector lever in the overdrive posi
