Page 3889 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3890 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Pivot Arm Removal 1. NOTE: New windshield wiper pivot arms need to be installed as an assembly. Remove the pivot arm. 1. Pull up on the pivot arm. 2. Pull out on the re

Page 3891 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Mounting Arm and Pivot Shaft Removal 1. Park the windshield wipers in the full upright position. This will allow for easy access to the retaining clip on the wiper motor o

Page 3892 of 4378

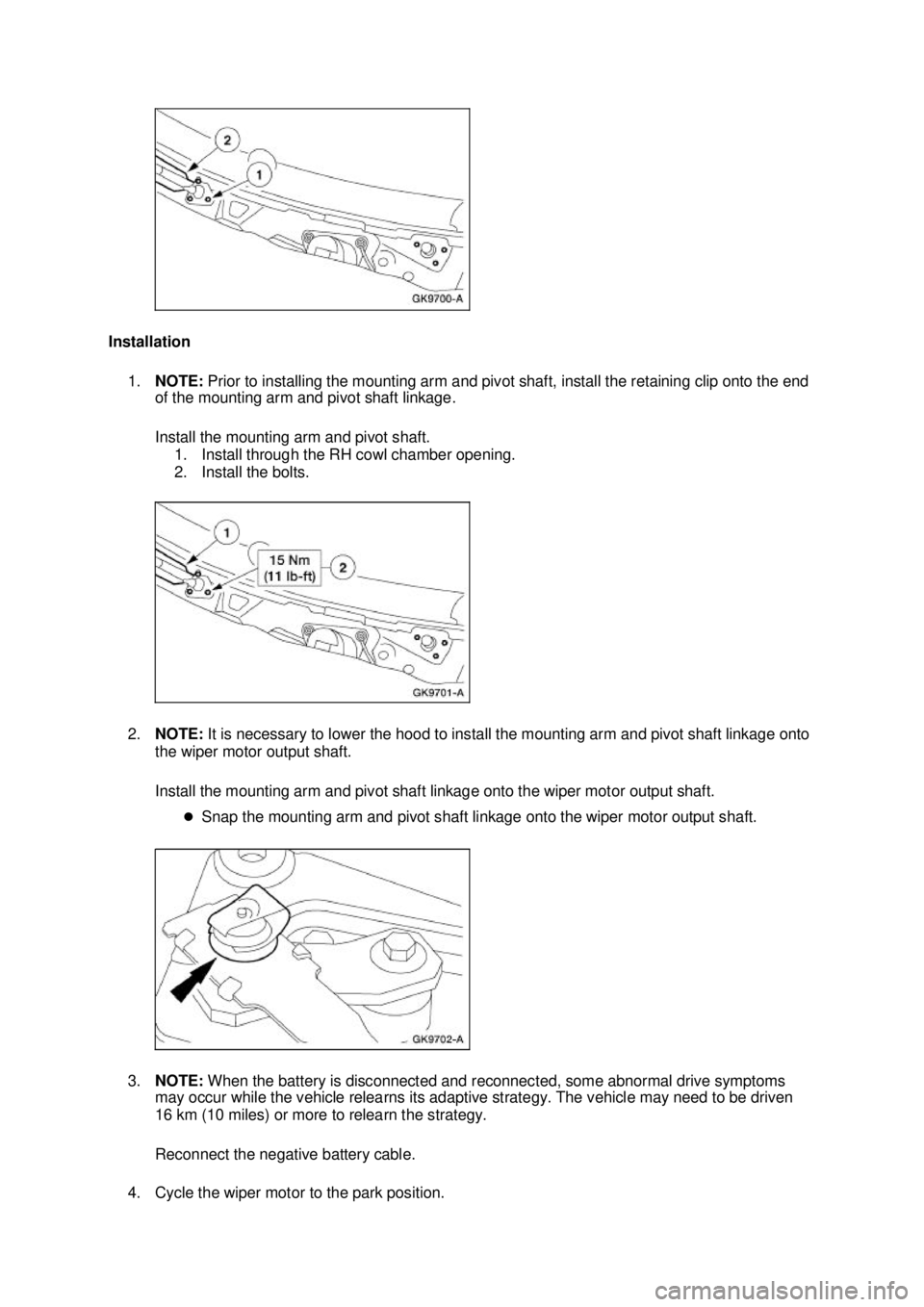

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: Prior to installing the mounting arm and pivot shaft, install the retaining clip onto the end of the mounting arm and pivot shaft linkage. Install the mounting arm and pivot

Page 3893 of 4378

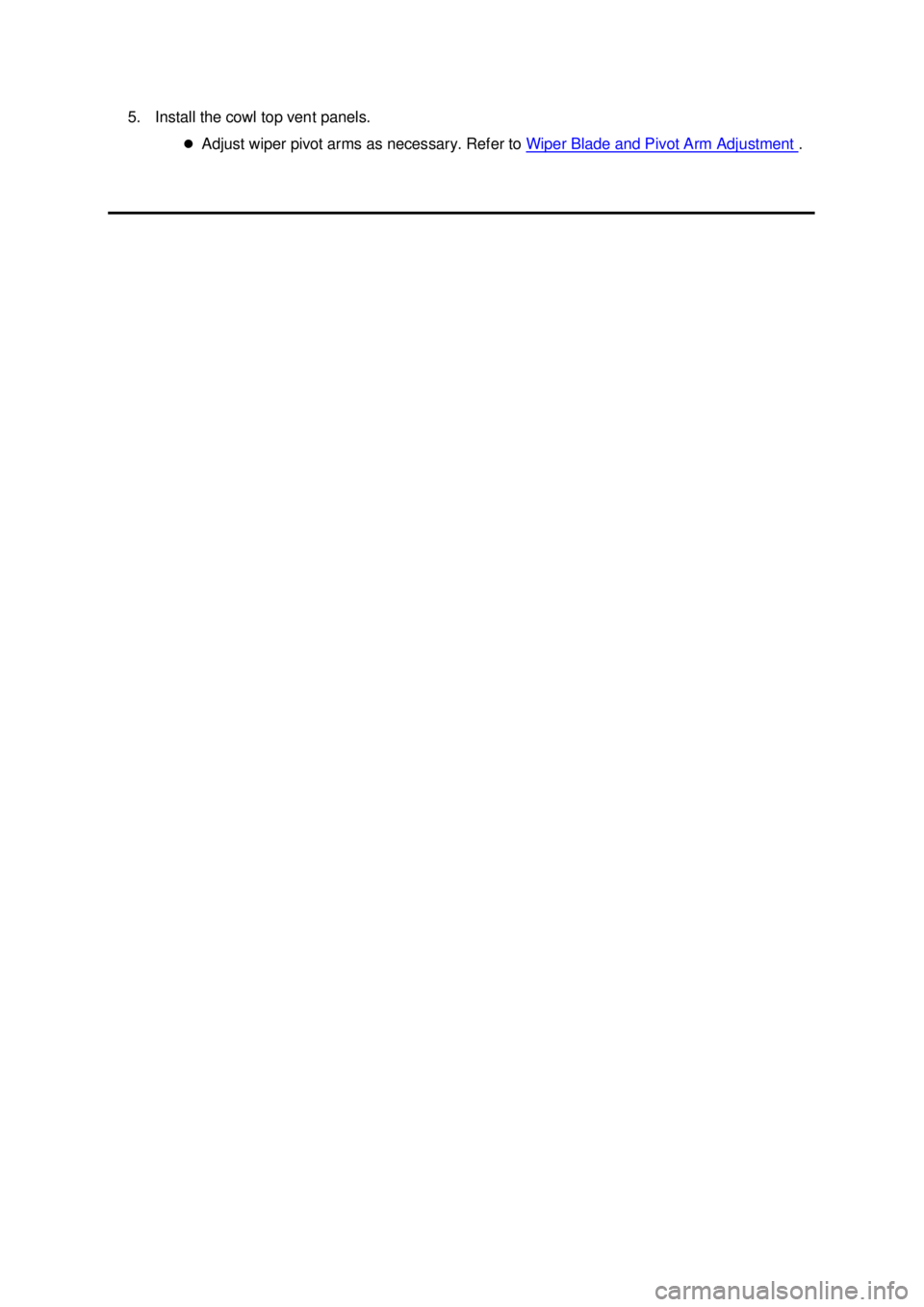

FORD MUSTANG 2003 Workshop Manual 5. Install the cowl top vent panels. �zAdjust wiper pivot arms as necessary. Refer to Wiper Blade and Pivot Arm Adjustment . Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/

Page 3894 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Motor — Windshield Wiper Removal CAUTION: The internal permanent magnets used in the windshield wiper motor are made of a glass- like material. To avoid damaging the ma

Page 3895 of 4378

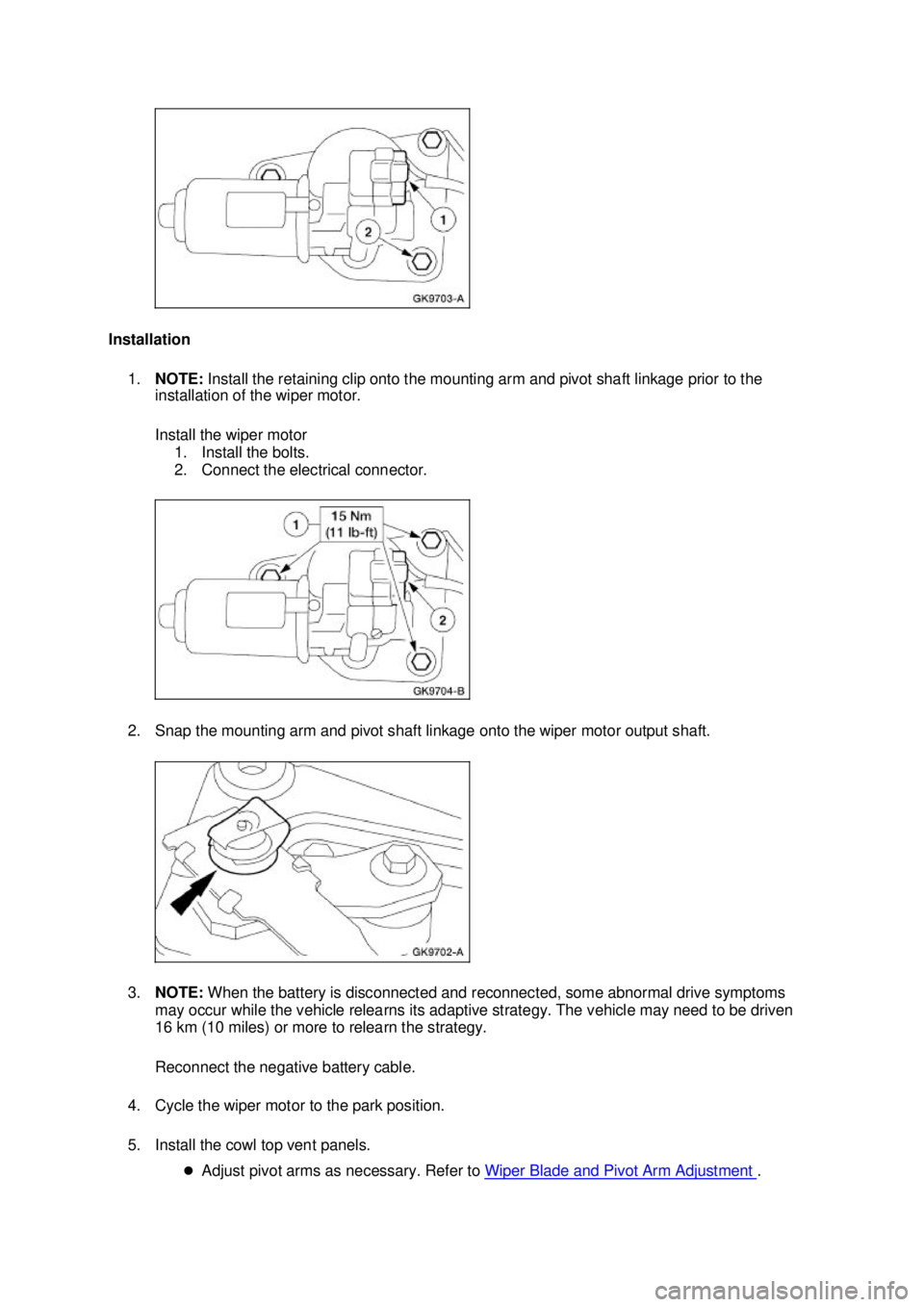

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: Install the retaining clip onto the mounting arm and pivot shaft linkage prior to the installation of the wiper motor. Install the wiper motor 1. Install the bolts. 2. Conn

Page 3896 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
