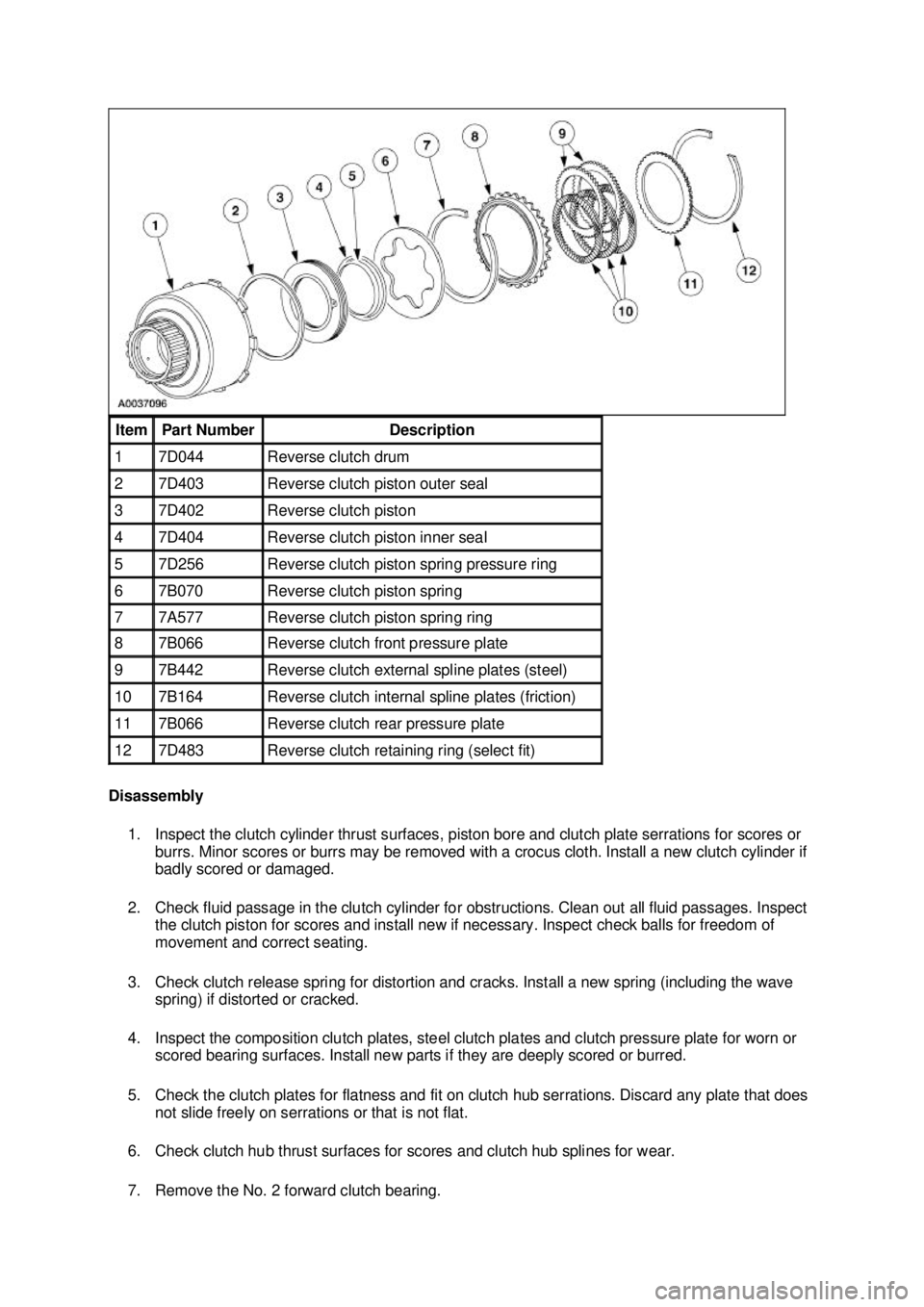

FORD MUSTANG 2003 Workshop Manual Disassembly 1. Inspect the clutch cylinder thrust surfaces, piston bore and clutch plate serrations for scores or burrs. Minor scores or burrs may be removed with a crocus cloth. Install a new clutc

Page 2506 of 4378

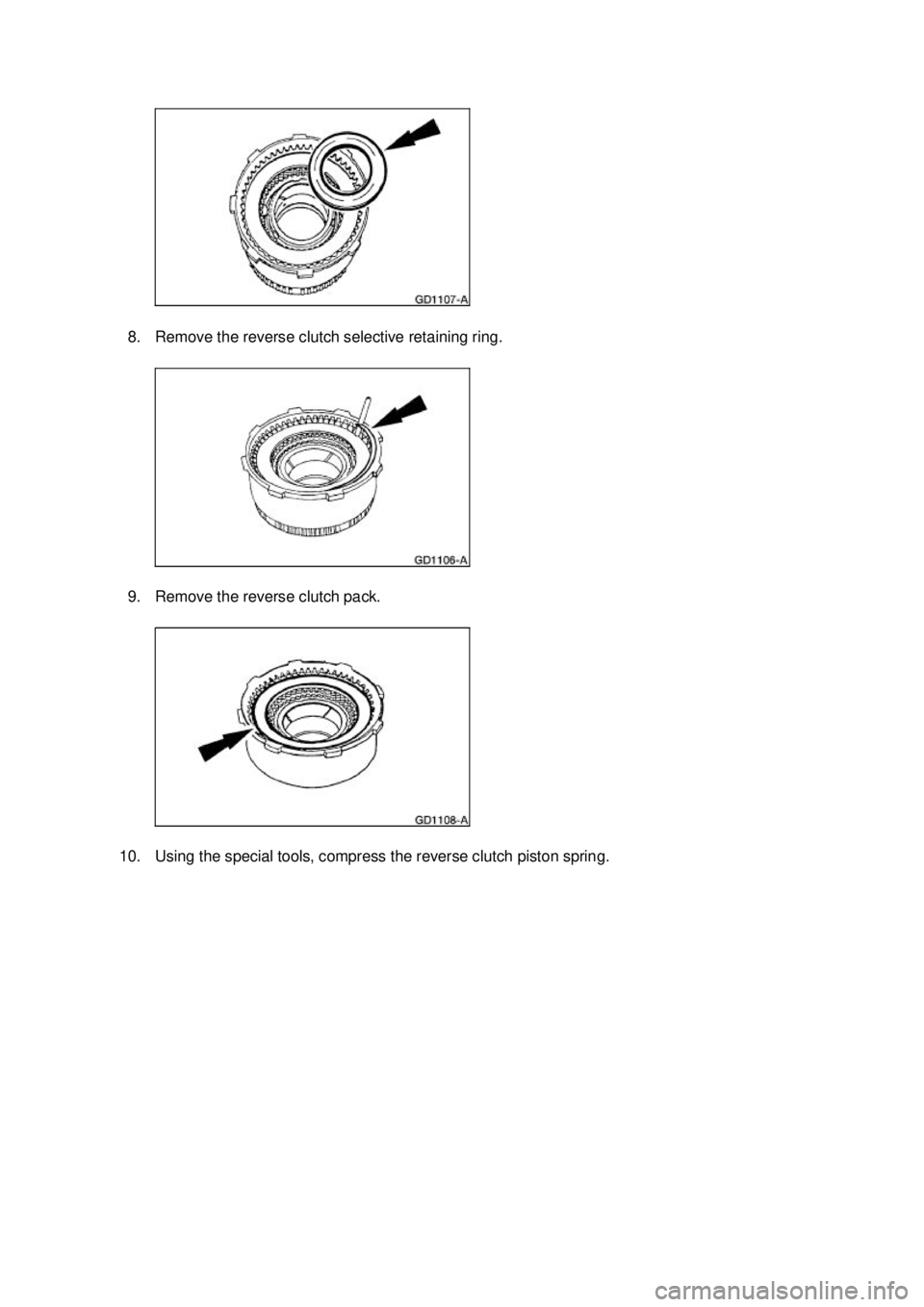

FORD MUSTANG 2003 Workshop Manual 8. Remove the reverse clutch selective retaining ring. 9. Remove the reverse clutch pack. 10. Using the special tools, compress the reverse clutch piston spring. Klj . 3 ba 92003 Mustang Wo

Page 2507 of 4378

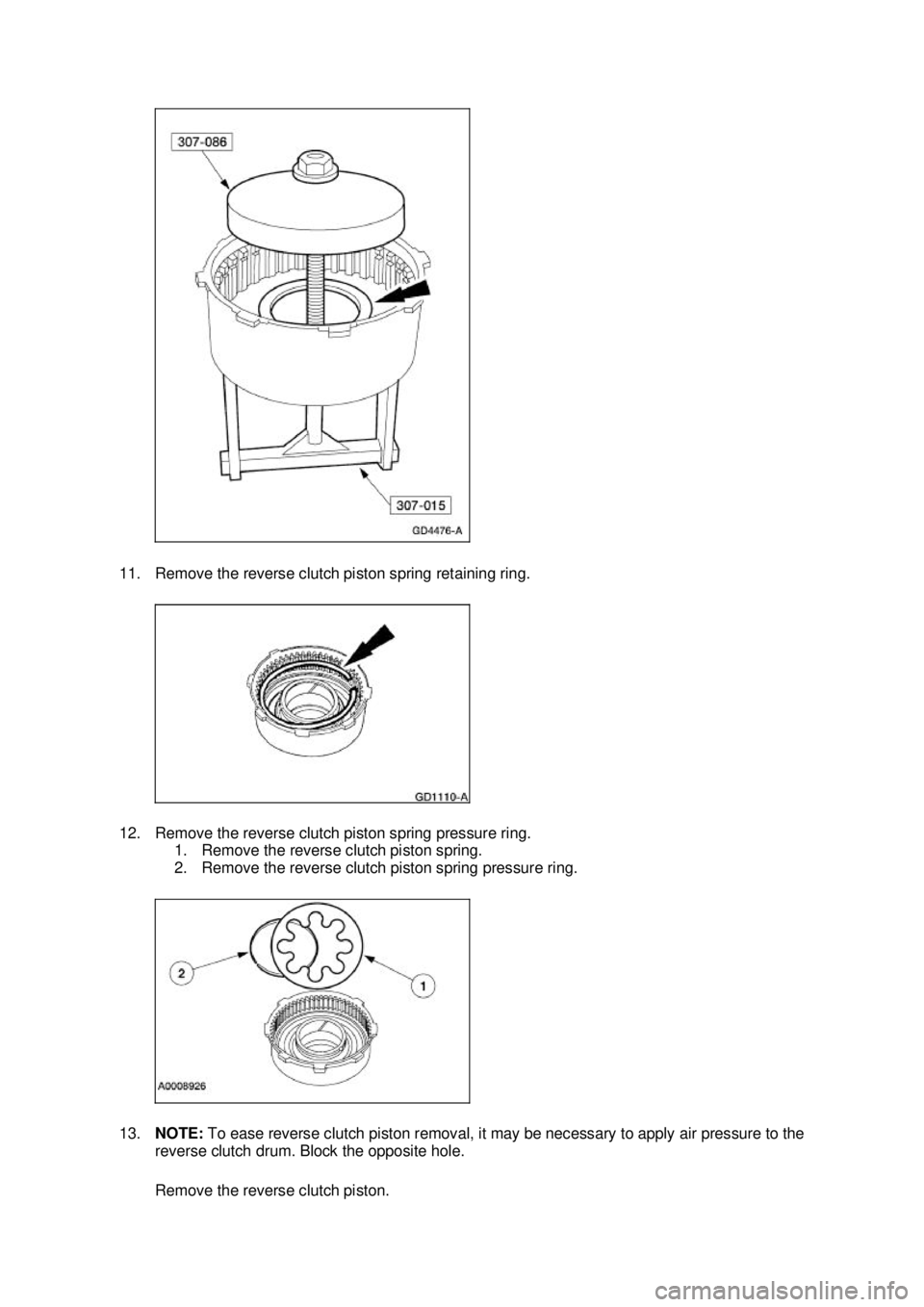

FORD MUSTANG 2003 Workshop Manual 11. Remove the reverse clutch piston spring retaining ring. 12. Remove the reverse clutch piston spring pressure ring. 1. Remove the reverse clutch piston spring. 2. Remove the reverse clutch pisto

Page 2508 of 4378

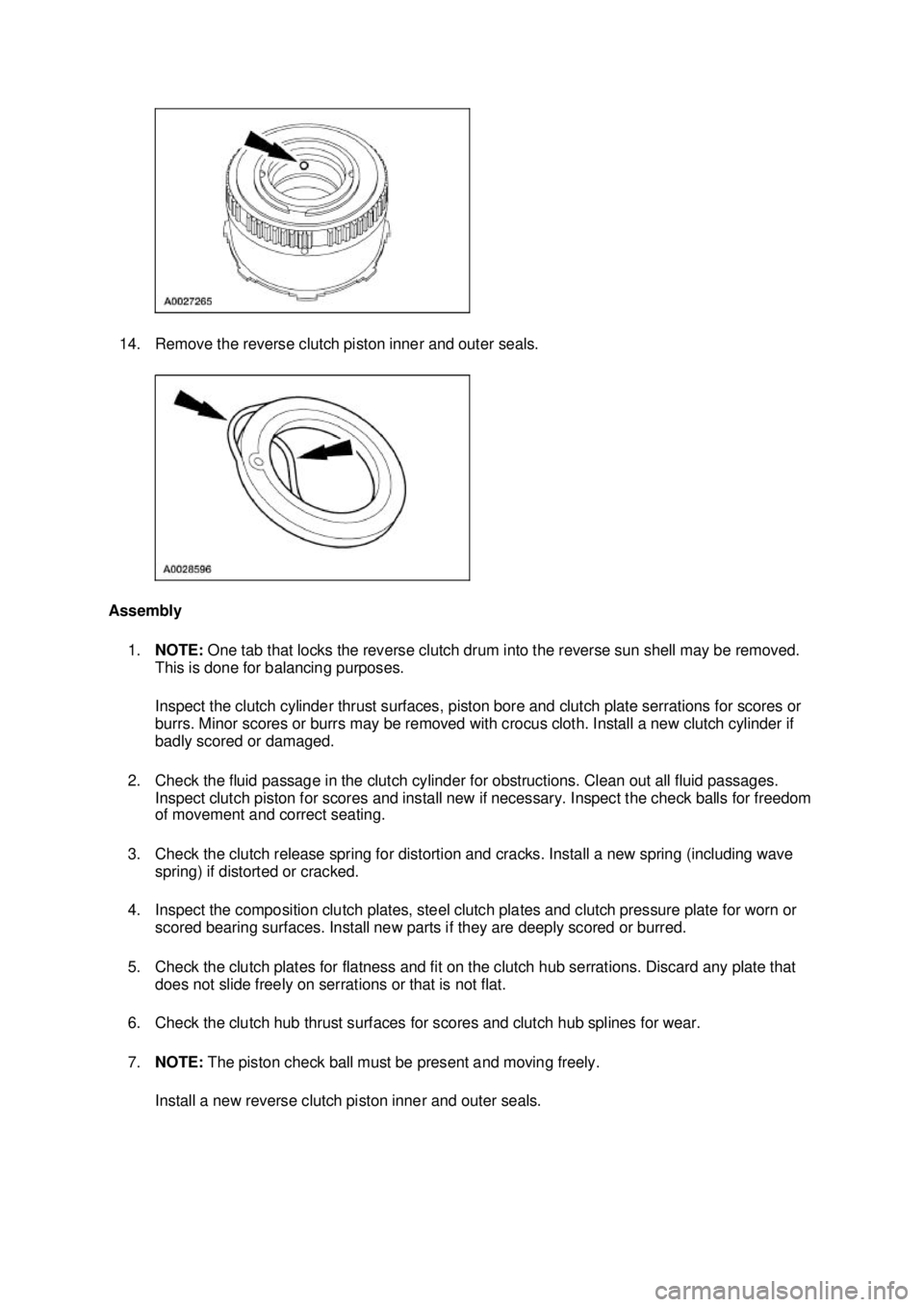

FORD MUSTANG 2003 Workshop Manual 14. Remove the reverse clutch piston inner and outer seals. Assembly 1. NOTE: One tab that locks the reverse clutch drum into the reverse sun shell may be removed. This is done for balancing purpo

Page 2509 of 4378

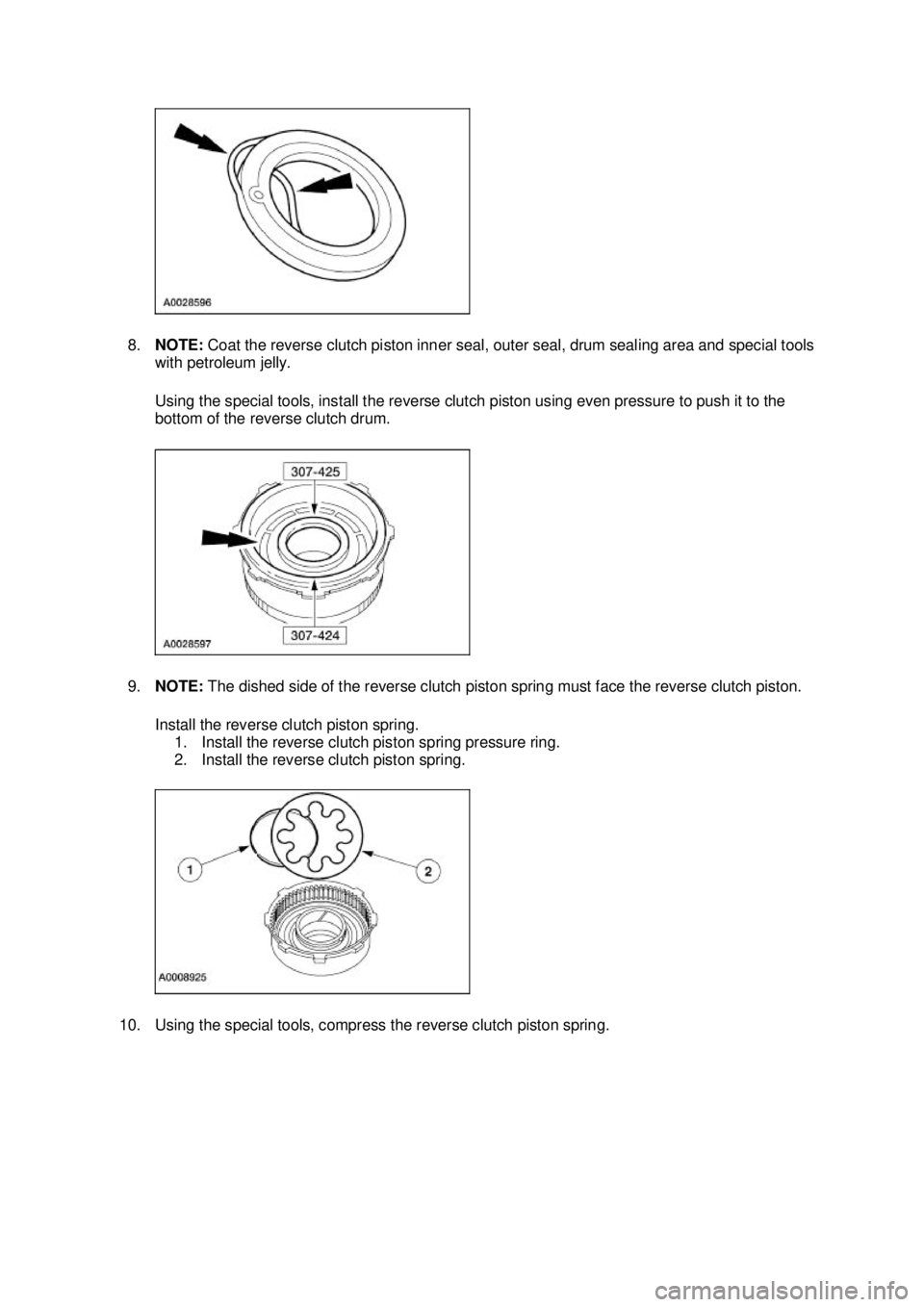

FORD MUSTANG 2003 Workshop Manual 8. NOTE: Coat the reverse clutch piston inner seal, outer seal, drum sealing area and special tools with petroleum jelly. Using the special tools, install the reverse clutch piston using even press

Page 2510 of 4378

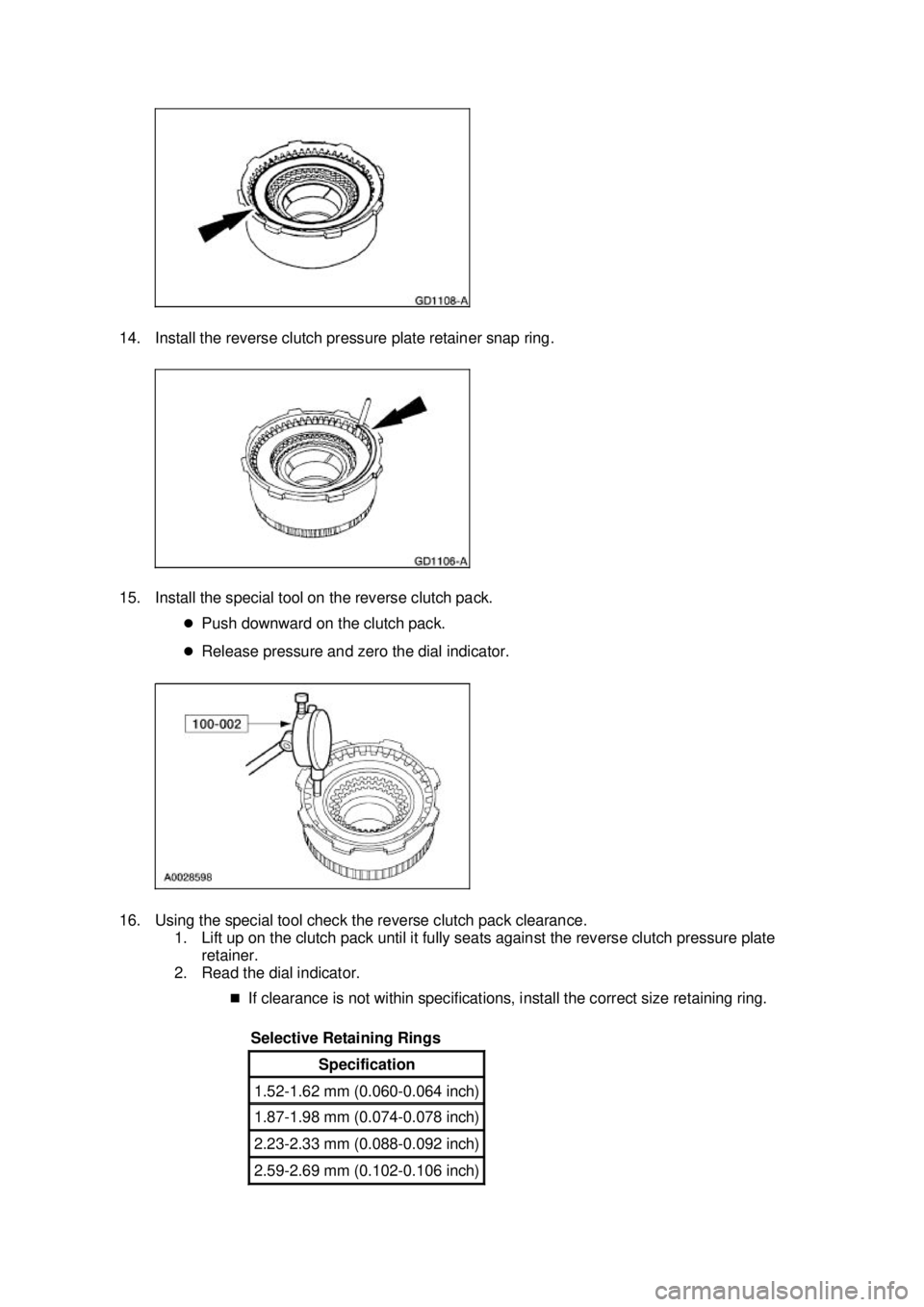

FORD MUSTANG 2003 Workshop Manual 11. Install the reverse clutch piston spring retaining ring. 12. Remove the special tool. 13. CAUTION: Install the pressure plates with the flat sides facing the clutch pack. NOTE: Before assembl

Page 2511 of 4378

FORD MUSTANG 2003 Workshop Manual 14. Install the reverse clutch pressure plate retainer snap ring. 15. Install the special tool on the reverse clutch pack. �zPush downward on the clutch pack. �z Release pressure and zero the dial

Page 2512 of 4378

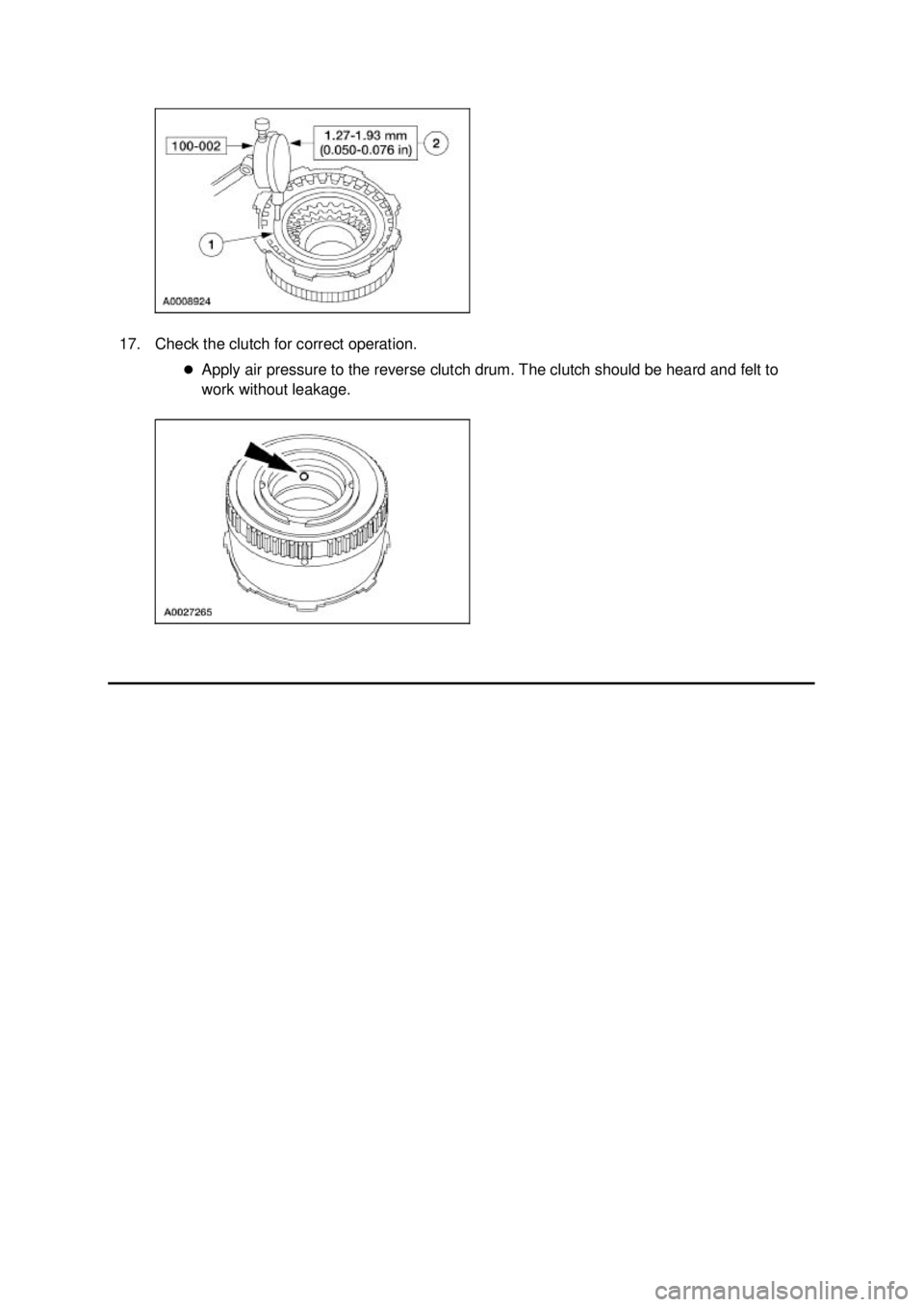

FORD MUSTANG 2003 Workshop Manual 17. Check the clutch for correct operation. �zApply air pressure to the reverse clutch drum. The clutch should be heard and felt to work without leakage. Klj . 9 ba 92003 Mustang Workshop M
