Page 2937 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Muffler — 3.8L Removal and Installation 1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 2. Support the rear axle with a suita

Page 2938 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Remove the exhaust pipe assembly (5232) from the rear exhaust hanger insulator (5260). 8. Remove the exhaust hanger insulators. 9. Remove the muffler (5230). 10. CAUTION: Do not use oil or grea

Page 2939 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2940 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Muffler — 4.6L (2V) Removal and Installation 1. Use a jack to support and lower the rear axle. 2. Remove the upper arm- to-differential bolt. 3. Remove the nut and bolt

Page 2941 of 4378

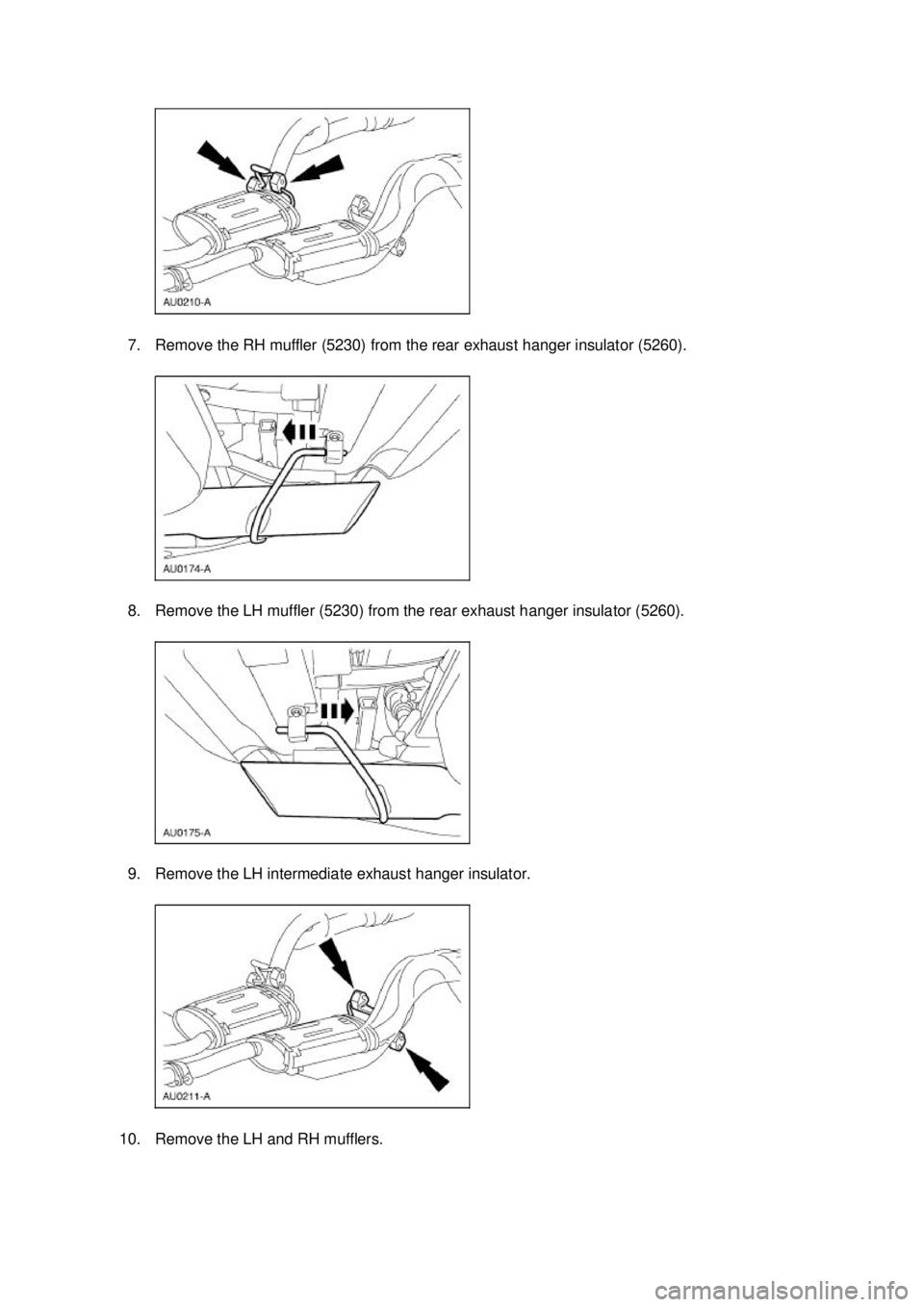

FORD MUSTANG 2003 Workshop Manual 7. Remove the RH muffler (5230) from the rear exhaust hanger insulator (5260). 8. Remove the LH muffler (5230) from the rear exhaust hanger insulator (5260). 9. Remove the LH intermediate exhaust ha

Page 2942 of 4378

FORD MUSTANG 2003 Workshop Manual 11. CAUTION: Do not use oil or grease- based lubricants on the insulators as they deteriorate the rubber. NOTE: A soap-and- water solution will ease installation of the exhaust hanger insulators.

Page 2943 of 4378

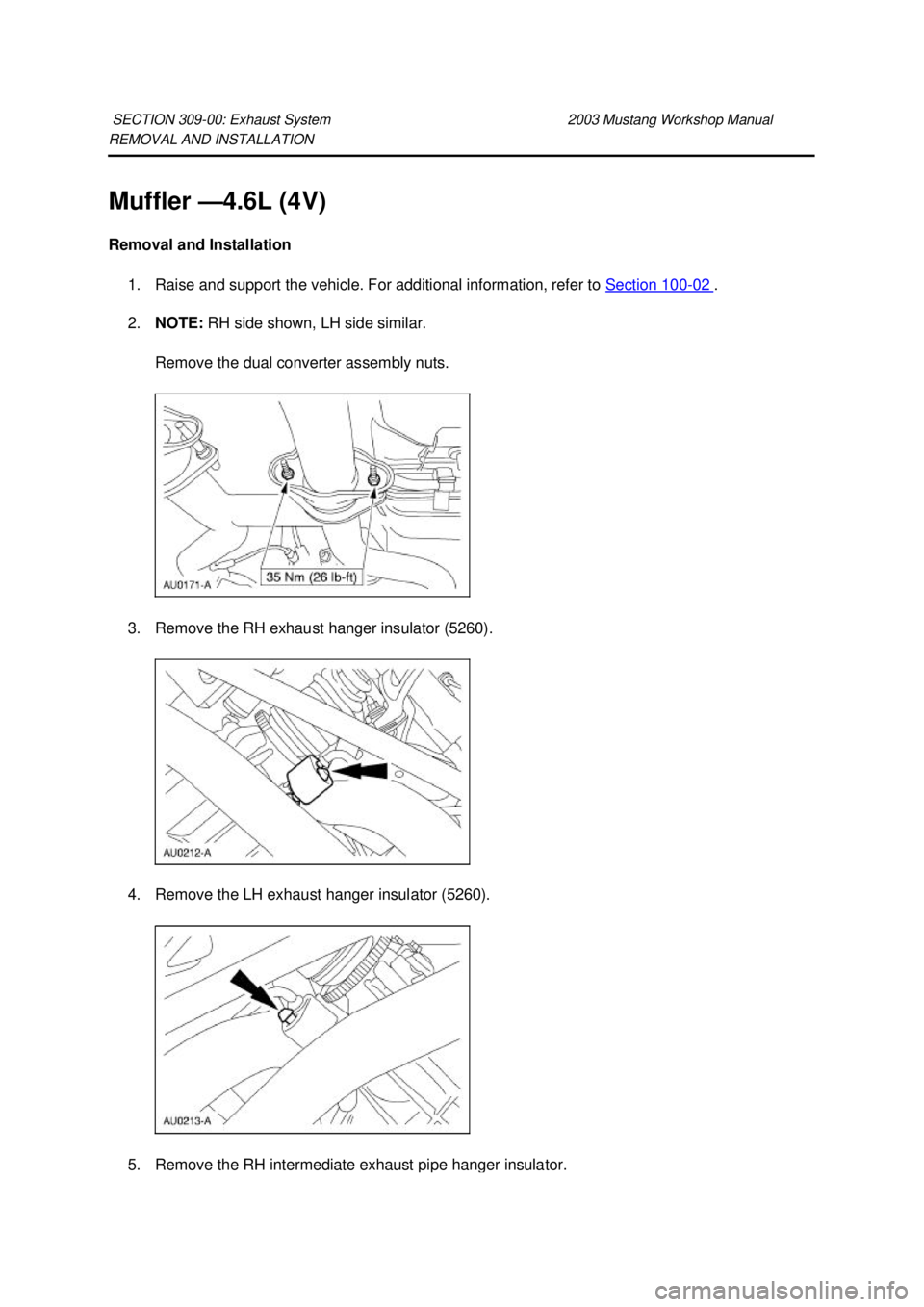

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Muffler — 4.6L (4V) Removal and Installation 1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 2. NOTE: RH side shown, LH side

Page 2944 of 4378

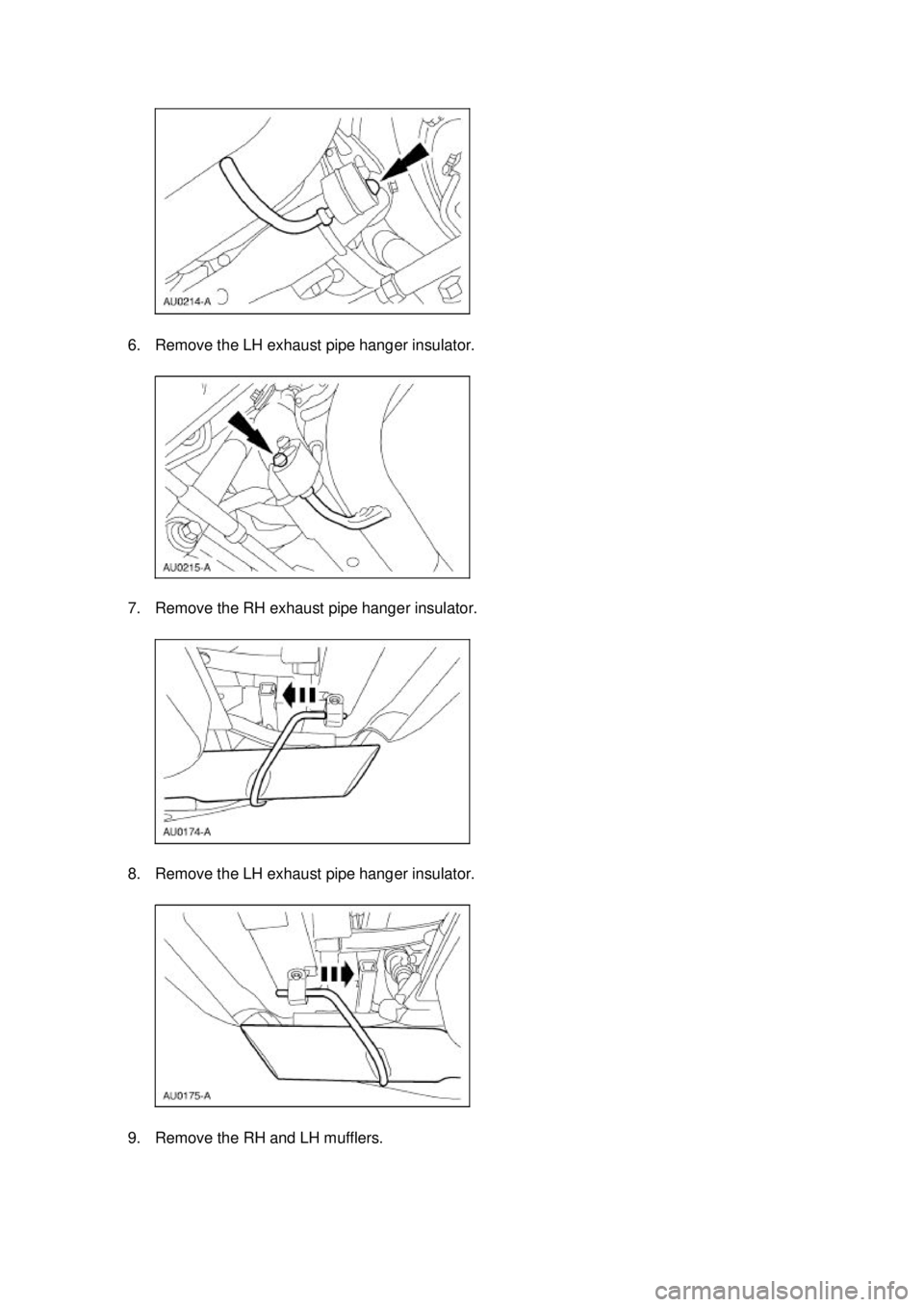

FORD MUSTANG 2003 Workshop Manual 6. Remove the LH exhaust pipe hanger insulator. 7. Remove the RH exhaust pipe hanger insulator. 8. Remove the LH exhaust pipe hanger insulator. 9. Remove the RH and LH mufflers. Klj . 2 ba
