Page 1393 of 4378

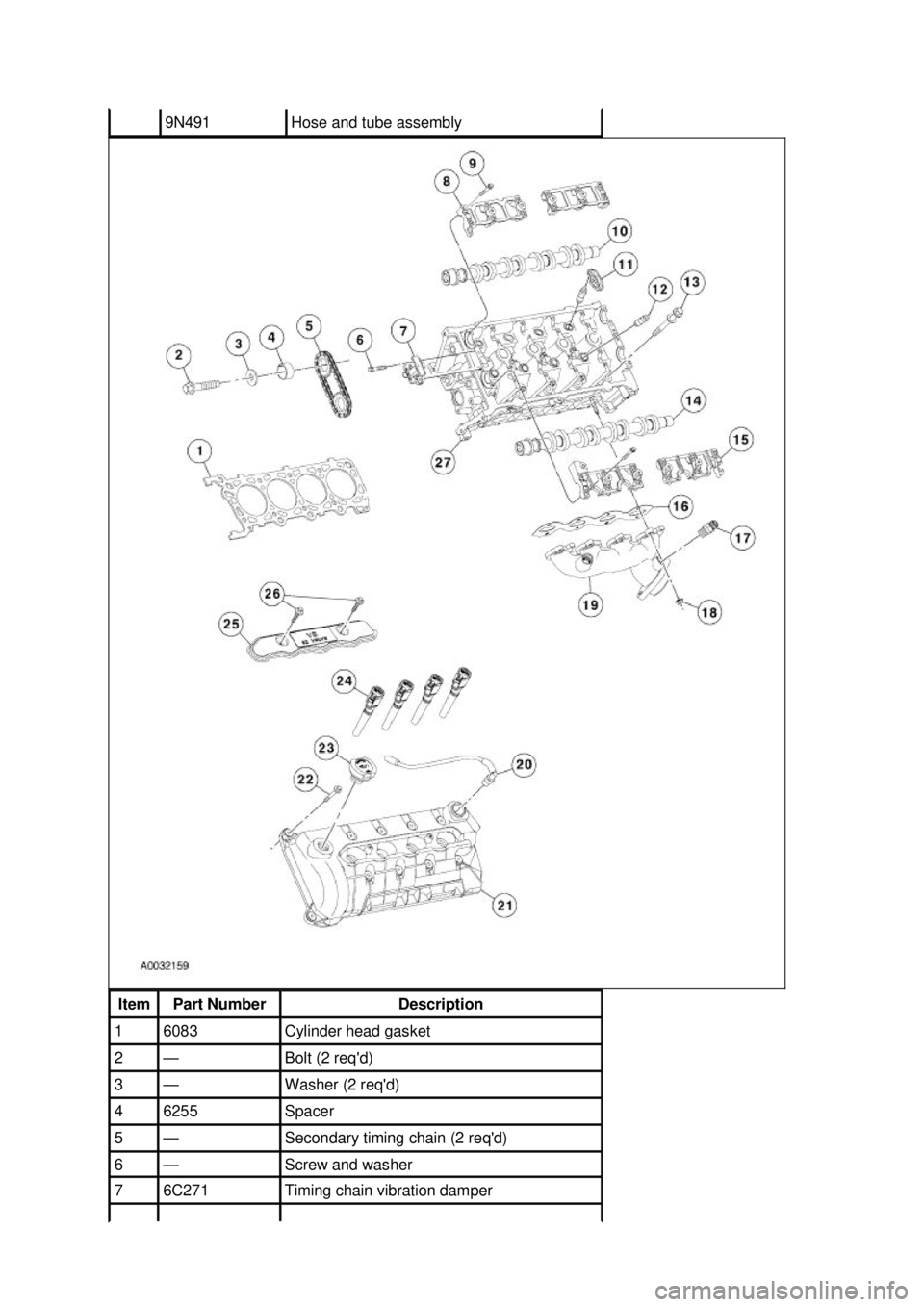

FORD MUSTANG 2003 Workshop Manual 9N491 Hose and tube assembly Item Part Number Description 1 6083 Cylinder head gasket 2 — Bolt (2 reqd) 3 — Washer (2 reqd) 4 6255 Spacer 5 — Secondary timing chain (2 reqd)

Page 1394 of 4378

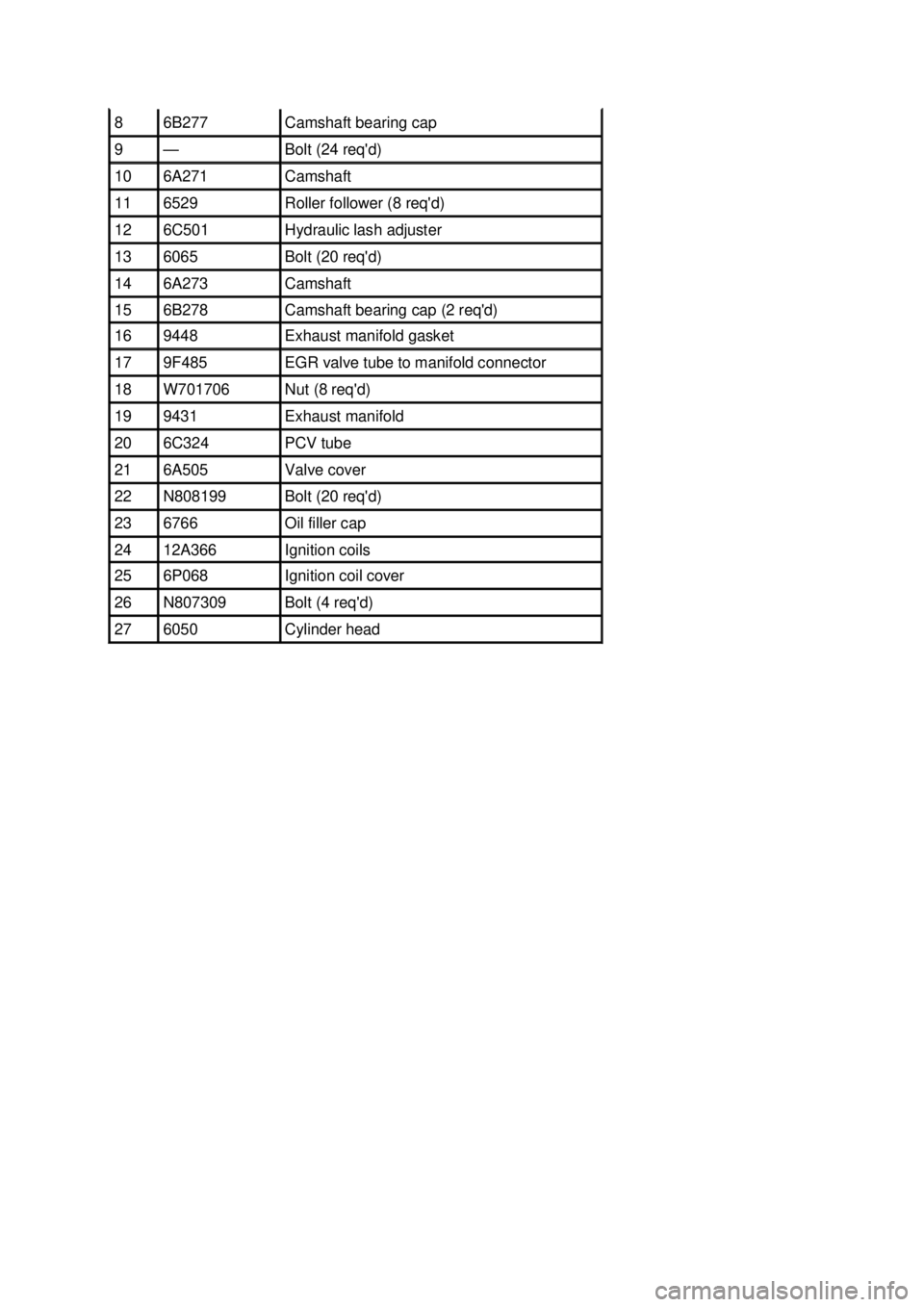

FORD MUSTANG 2003 Workshop Manual 8 6B277 Camshaft bearing cap 9 — Bolt (24 reqd) 10 6A271 Camshaft 11 6529 Roller follower (8 reqd) 12 6C501 Hydraulic lash adjuster 13 6065 Bolt (20 reqd) 14 6A273 Camshaft 15

Page 1395 of 4378

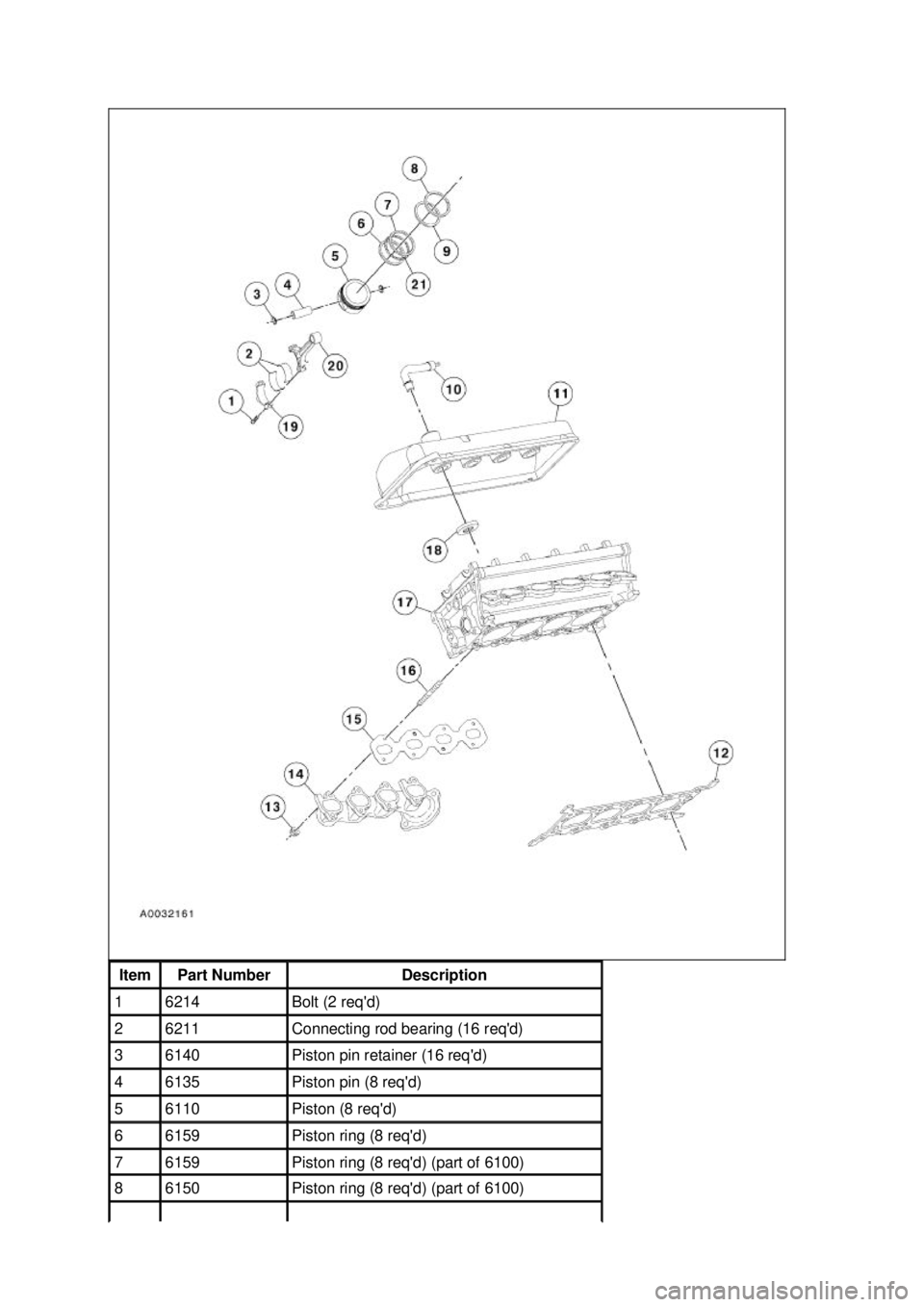

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 6214 Bolt (2 reqd) 2 6211 Connecting rod bearing (16 reqd) 3 6140 Piston pin retainer (16 reqd) 4 6135 Piston pin (8 reqd) 5 6110 Piston (8 reqd)

Page 1396 of 4378

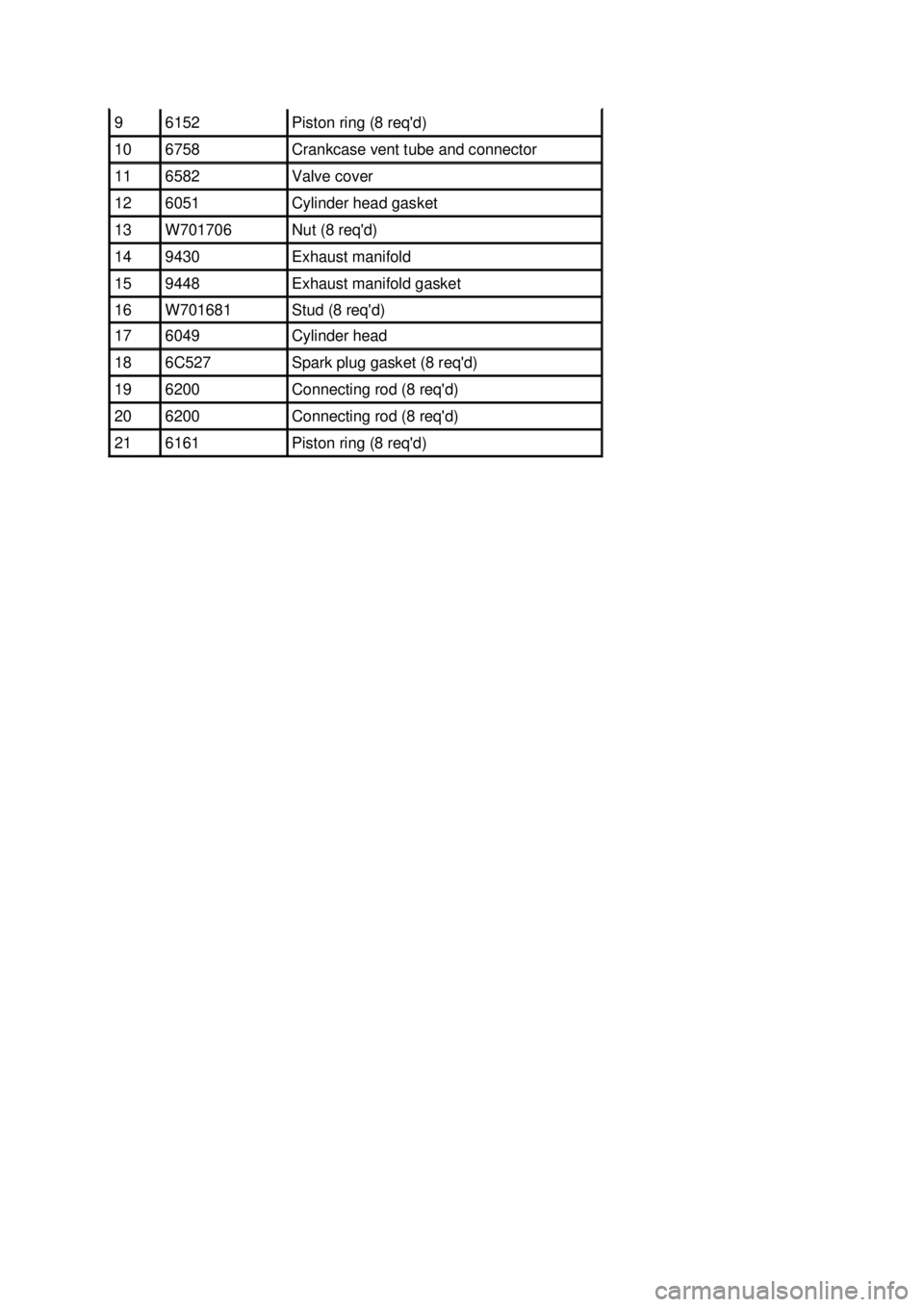

FORD MUSTANG 2003 Workshop Manual 9 6152 Piston ring (8 reqd) 10 6758 Crankcase vent tube and connector 11 6582 Valve cover 12 6051 Cylinder head gasket 13 W701706 Nut (8 reqd) 14 9430 Exhaust manifold 15 9448 Ex

Page 1397 of 4378

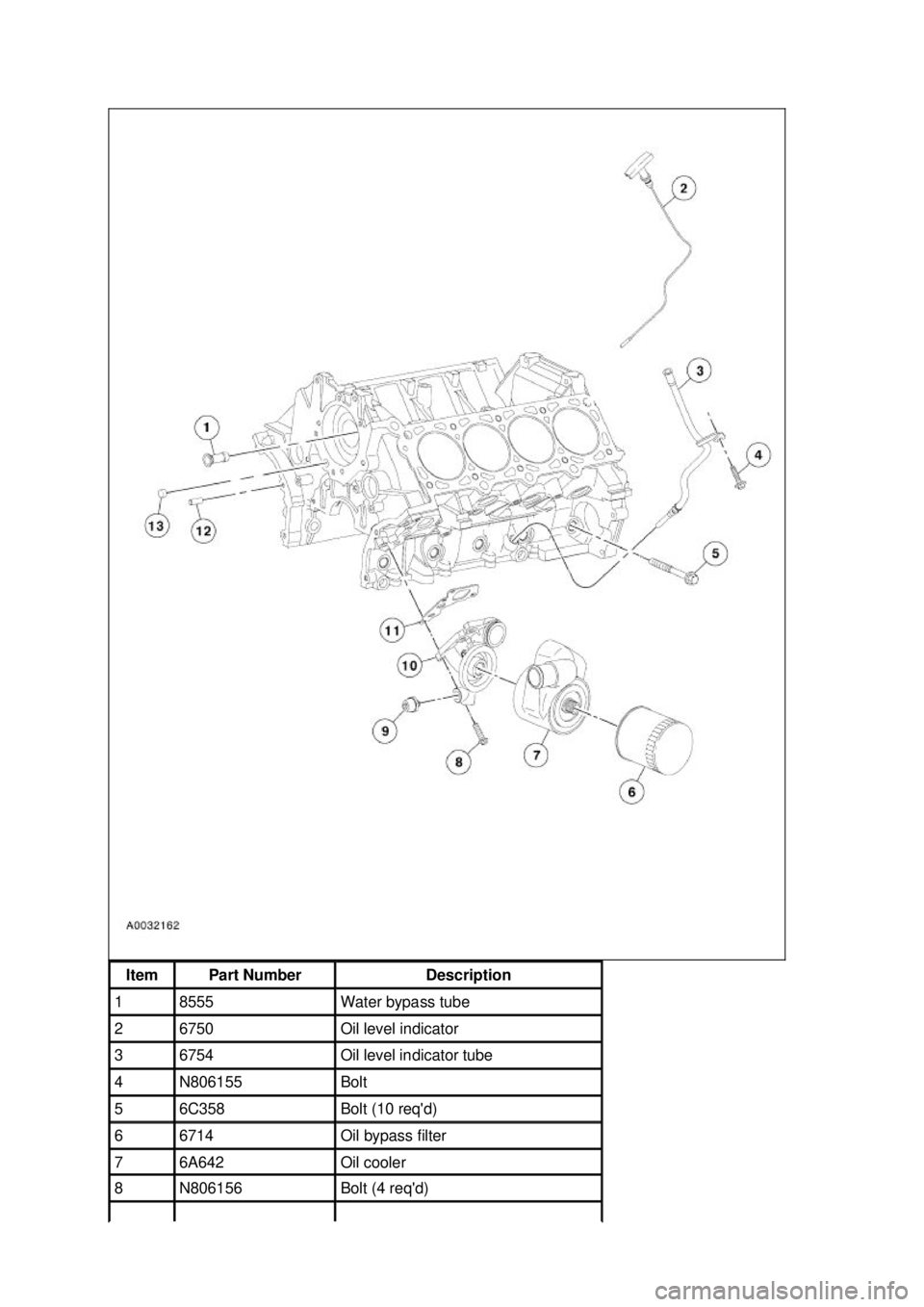

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 8555 Water bypass tube 2 6750 Oil level indicator 3 6754 Oil level indicator tube 4 N806155 Bolt 5 6C358 Bolt (10 reqd) 6 6714 Oil bypass filter 7

Page 1398 of 4378

FORD MUSTANG 2003 Workshop Manual 9 9278 Oil pressure sender 10 6884 Oil filter adapter 11 6A636 Oil filter adapter gasket 12 N620482 Dowel 13 87836 Plug Item Part Number Description 1 N807198 Dowel pin (2 reqd)

Page 1399 of 4378

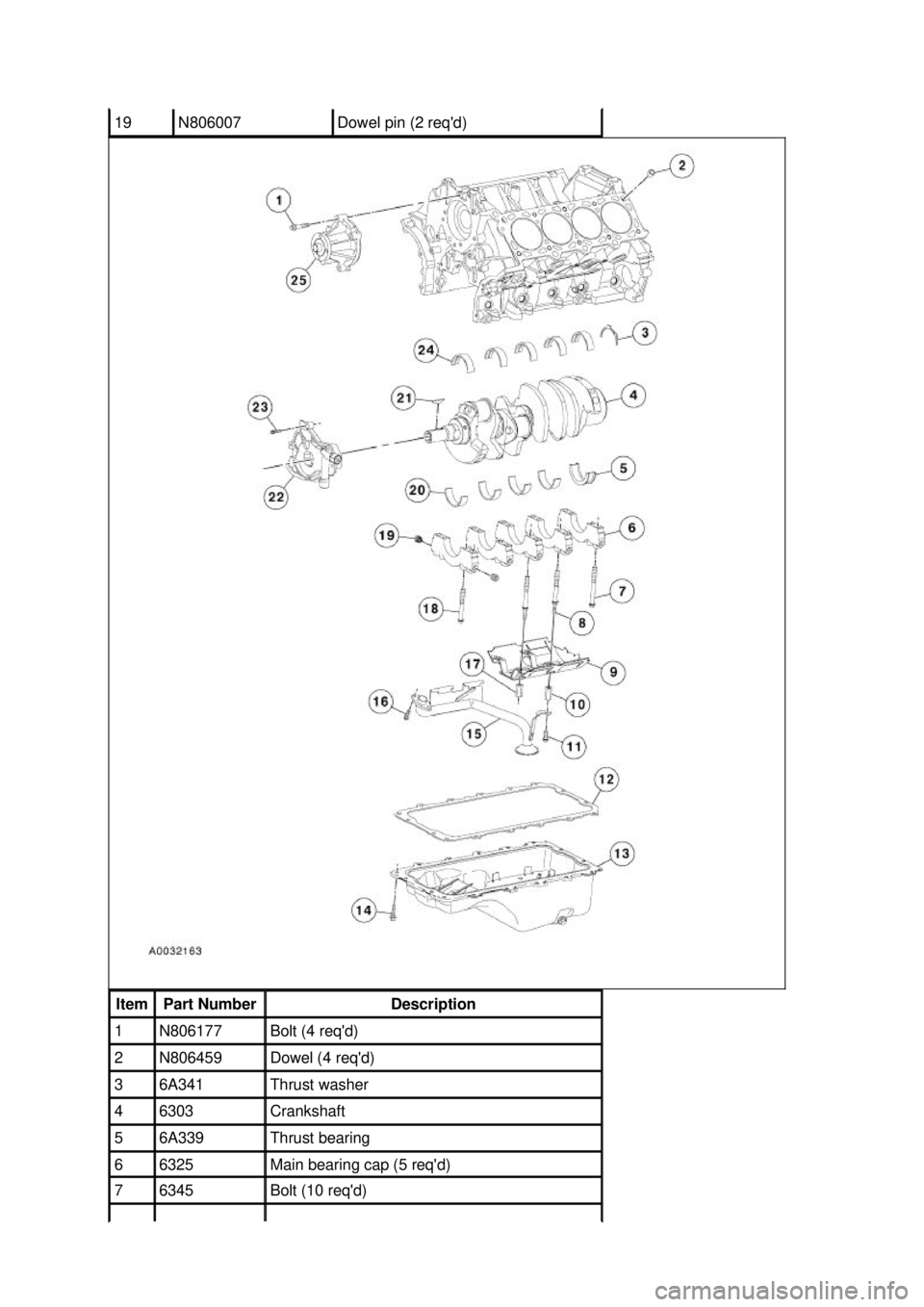

FORD MUSTANG 2003 Workshop Manual 19 N806007 Dowel pin (2 reqd) Item Part Number Description 1 N806177 Bolt (4 reqd) 2 N806459 Dowel (4 reqd) 3 6A341 Thrust washer 4 6303 Crankshaft 5 6A339 Thrust bearing 6 63

Page 1400 of 4378

FORD MUSTANG 2003 Workshop Manual 8 6K258 Stud (4 reqd) 9 6687 Oil pan baffle 10 N806180 Spacer 11 N605904 Bolt 12 6710 Oil pan gasket 13 6675 Oil pan 14 W701240 Bolt (16 reqd) 15 6622 Oil pump screen pickup a
