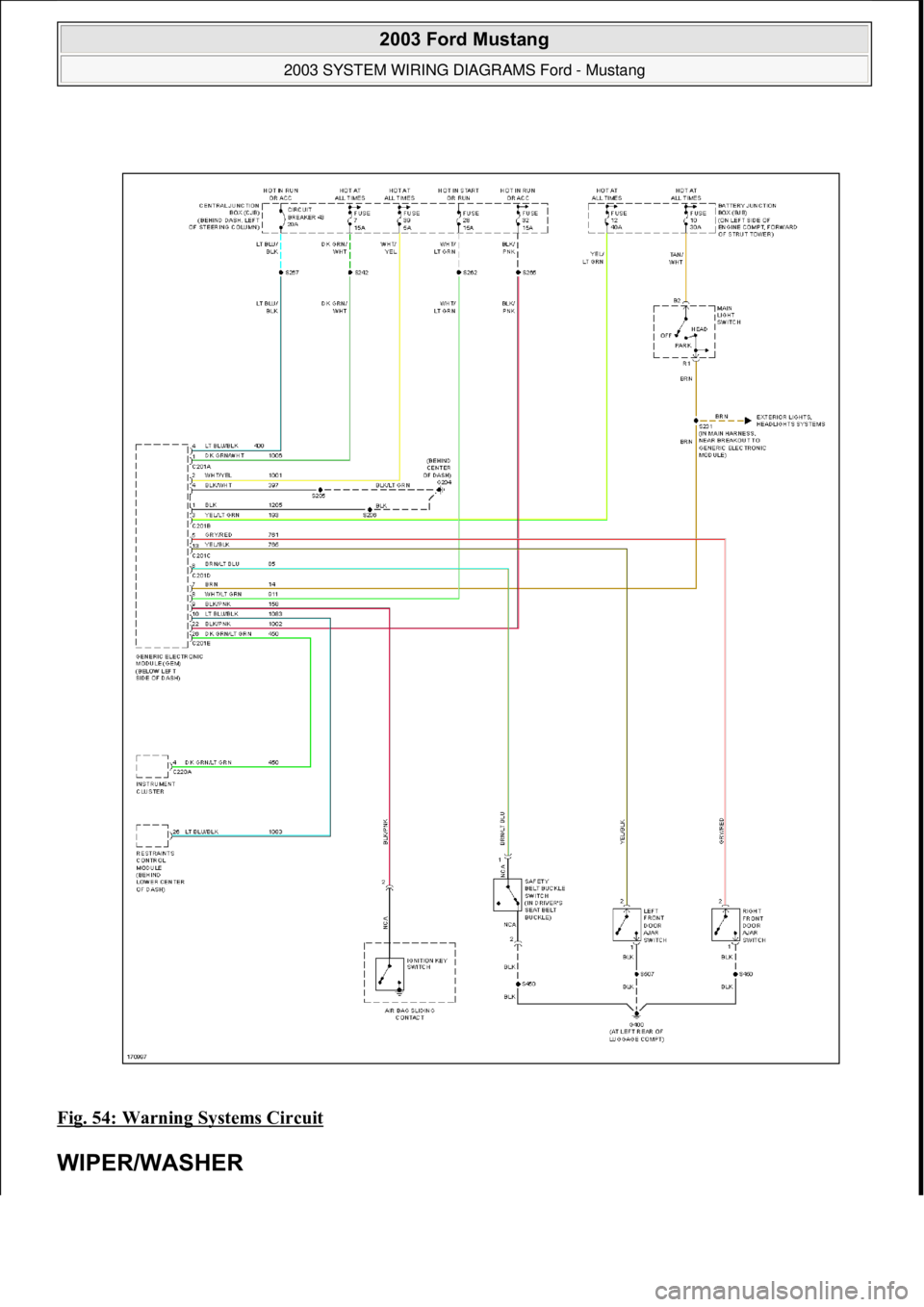

FORD MUSTANG 2003 Workshop Manual Fig. 54: Warning Systems Circuit WIPER/WASHER 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 55 © 2006 Mitchell Repair Information Co

Page 4210 of 4378

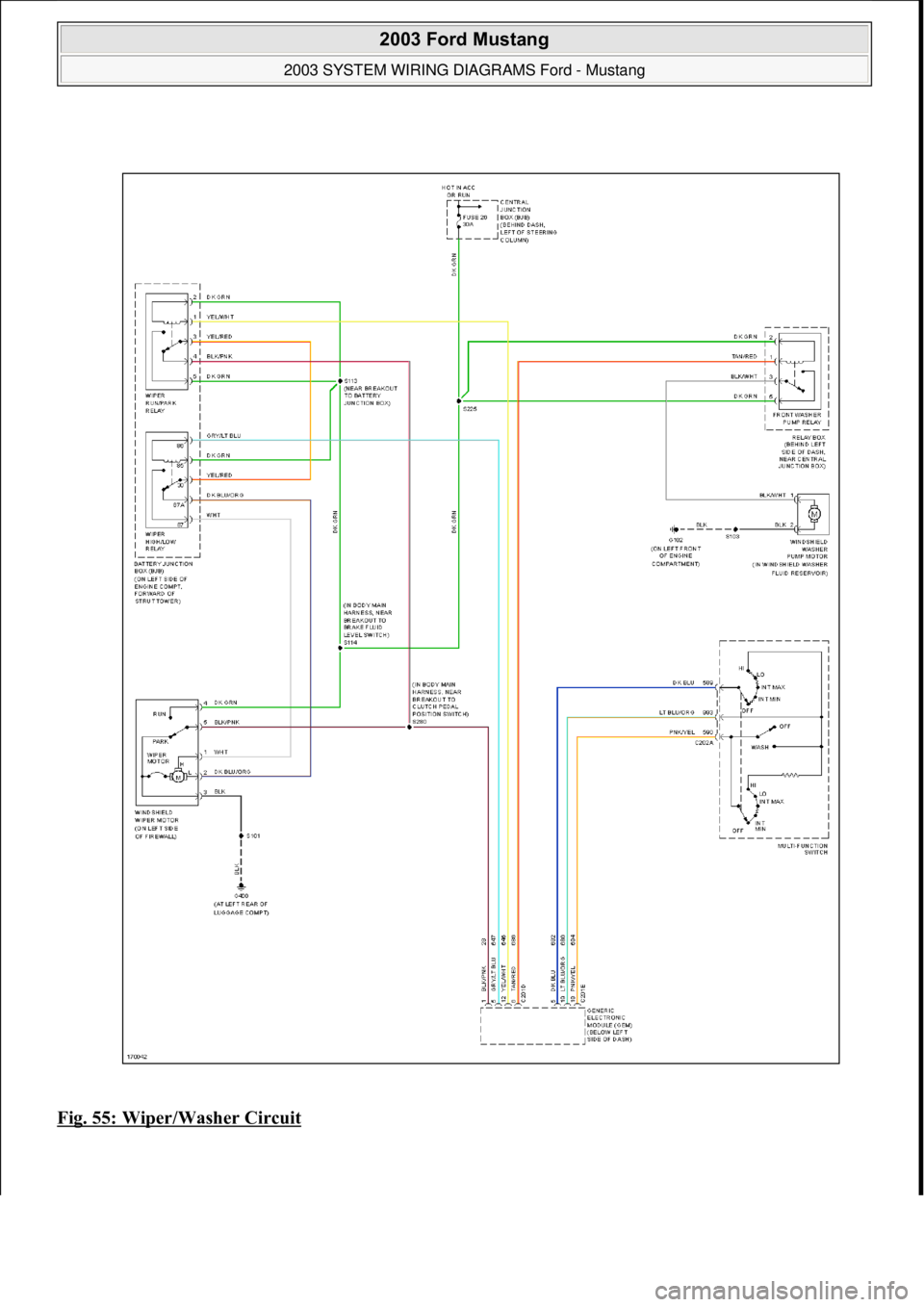

FORD MUSTANG 2003 Workshop Manual Fig. 55: Wiper/Washer Circuit 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 56 © 2006 Mitchell Repair Information Company, LLC.

Page 4211 of 4378

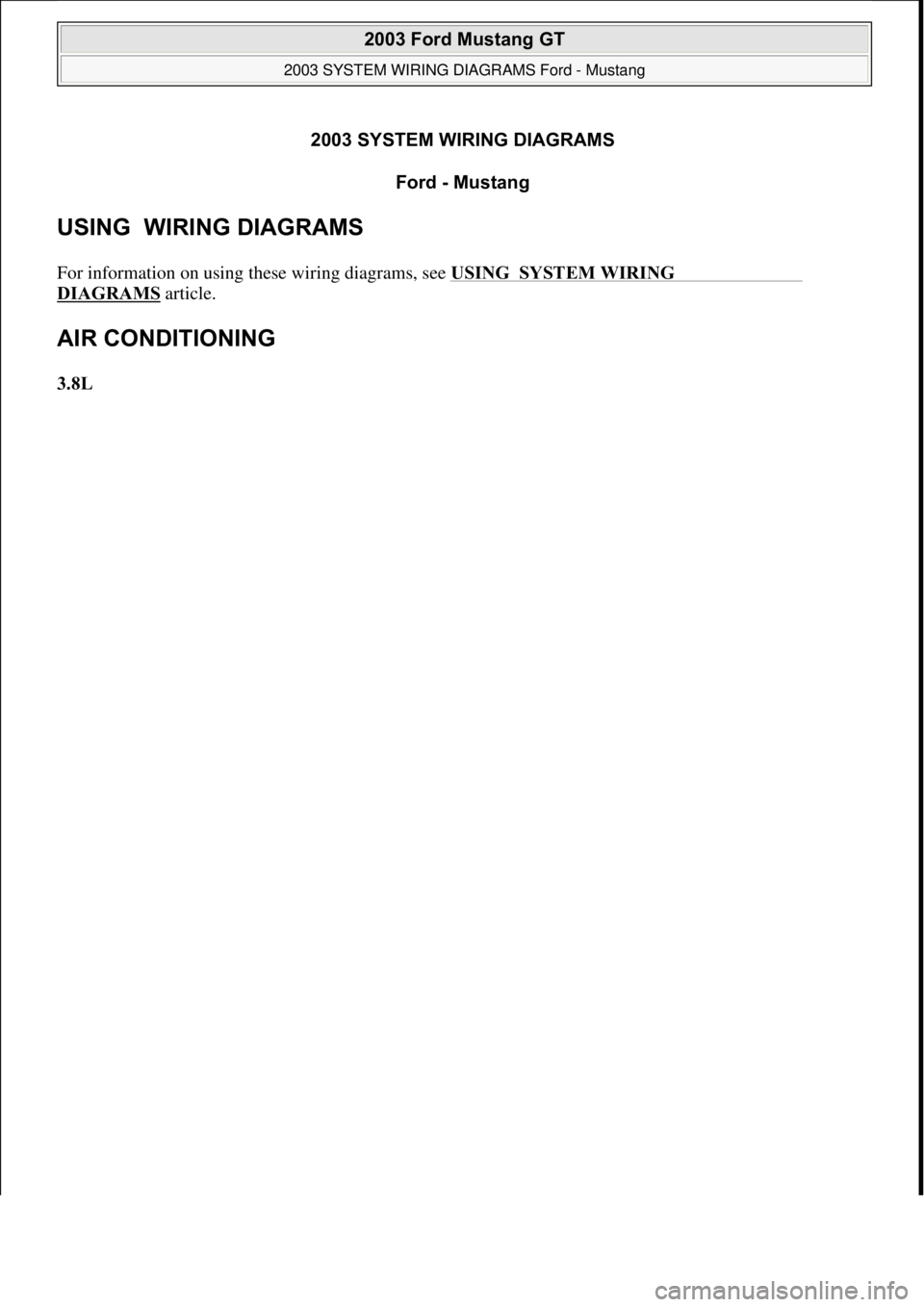

FORD MUSTANG 2003 Workshop Manual 2003 SYSTEM WIRING DIAGRAMSFord - Mustang USING WIRING DIAGRAMS For information on using these wiring diagrams, see USING SYSTEM WIRING DIAGRAMS article. AIR CONDITIONING 3.8L 2003 Ford Mus

Page 4212 of 4378

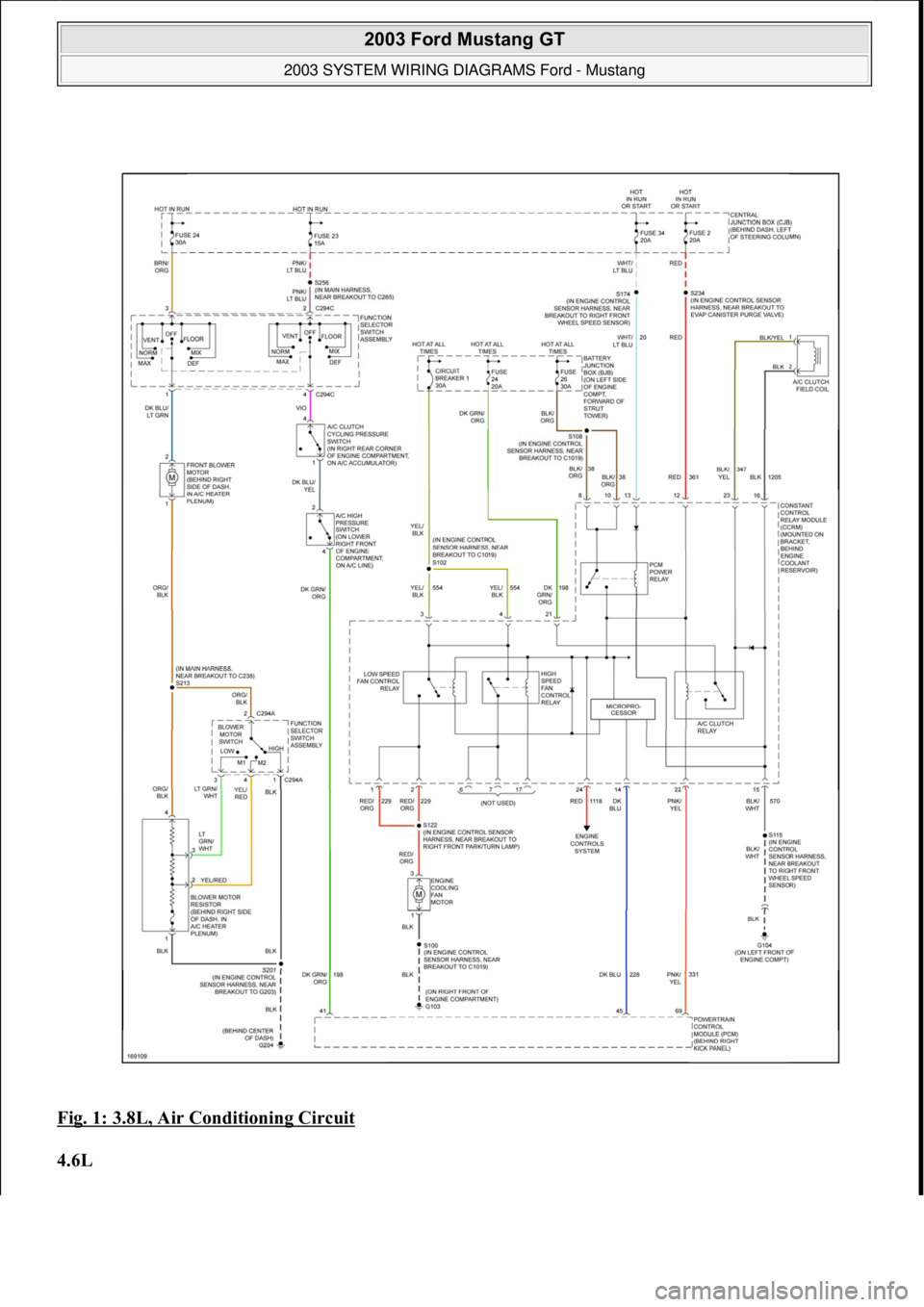

FORD MUSTANG 2003 Workshop Manual Fig. 1: 3.8L, Air Conditioning Circuit 4.6L 2003 Ford Mustang GT 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:50:34Page 2 © 2006 Mitchell Repair Information C

Page 4213 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 2: 4.6L, Air Conditioning Circuit ANTI-LOCK BRAKES 2003 Ford Mustang GT 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:50:34Page 3 © 2006 Mitchell Repair In

Page 4214 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 3: Anti-lock Brakes Circuit ANTI-THEFT 2003 Ford Mustang GT 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:50:34Page 4 © 2006 Mitchell Repair Information Co

Page 4215 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 4: Passive Anti-theft Circuit BODY CONTROL MODULES 2003 Ford Mustang GT 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:50:34Page 5 © 2006 Mitchell Repair In

Page 4216 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 5: Body Control Modules Circuit COMPUTER DATA LINES 2003 Ford Mustang GT 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:50:34Page 6 © 2006 Mitchell Repair I
