Page 497 of 4378

FORD MUSTANG 2003 Workshop Manual �z Do not drop assembled halfshafts. The impact will cut the boots from the inside without evidence of external damage. �z Inspect all machined surfaces and splines for damage. Wheel and Tire Balan

Page 498 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Halfshaft Removal NOTE: This procedure applies to both the LH and RH halfshafts. 1. CAUTION: The vehicle must be on level ground and at curb height. Mark the rear shock

Page 499 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 3. Remove the rear wheel and tire assembly. For additional information, refer to Section 204 - 04 . 4. R

Page 500 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Disconnect the shock absorber at the suspension lower arm and bushing. Discard the nut and the bolt. 9. Remove and discard the cotter pin and the nut. 10. Using the special tool, disconnect the

Page 501 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Using the special tool, press the outboard CV joint until it is loose in the hub. 13. CAUTION: Do not over- angulate the outboard CV joint or damage the boot. While lowering the knuckle, remove

Page 502 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: This procedure applies to both the LH and RH halfshafts. Install a new driveshaft bearing retainer circlip. 2. Remove the special tool. 3. CAUTION: Differential seal damage

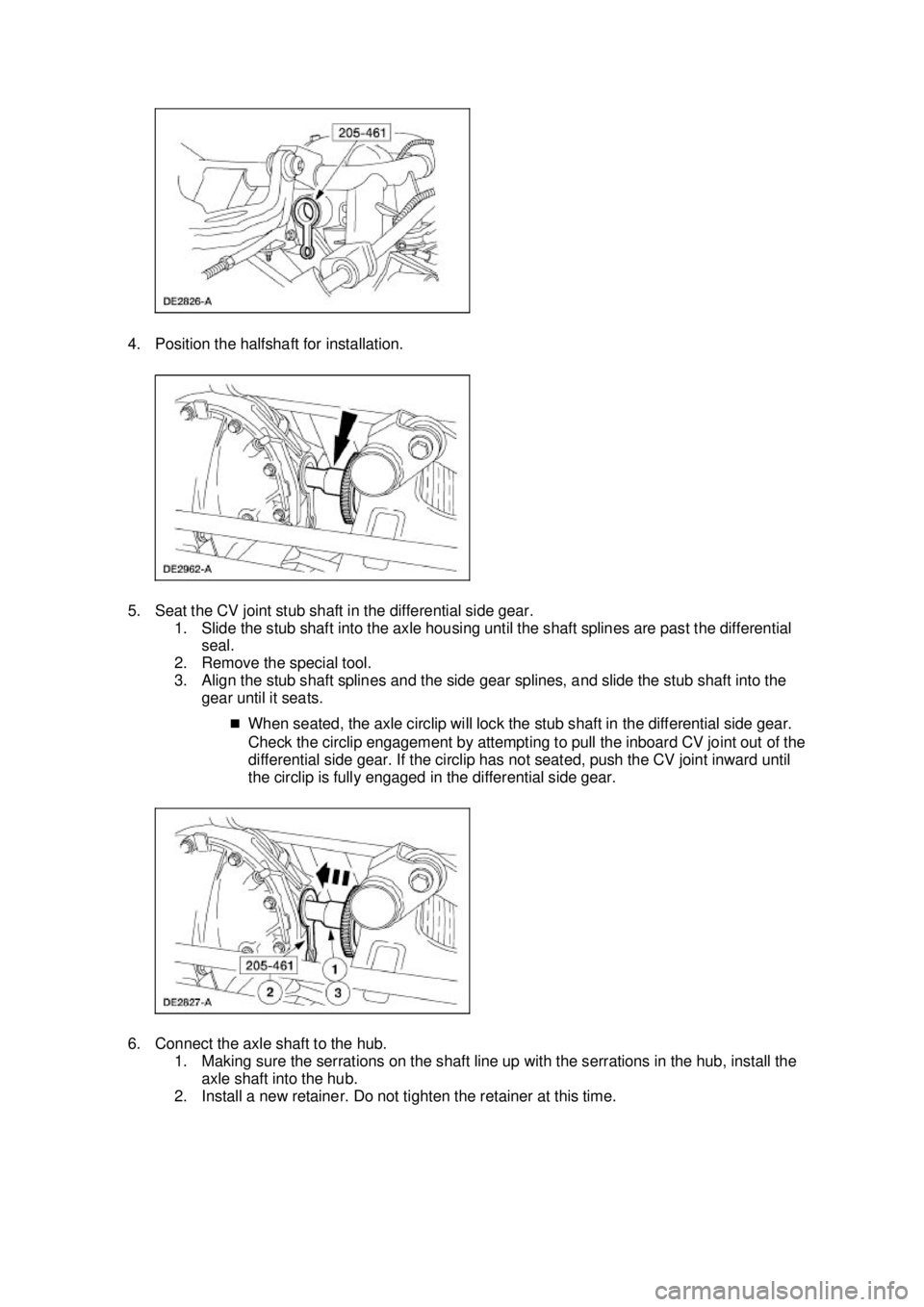

Page 503 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Position the halfshaft for installation. 5. Seat the CV joint stub shaft in the differential side gear. 1. Slide the stub shaft into the axle housing until the shaft splines are past the differen

Page 504 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Connect the suspension upper arm and bushing to the knuckle. 1. Position the suspension upper arm and bushing on the knuckle. 2. Install the new bolt and a new nut. Do not tighten the nut at this
