Page 2881 of 4378

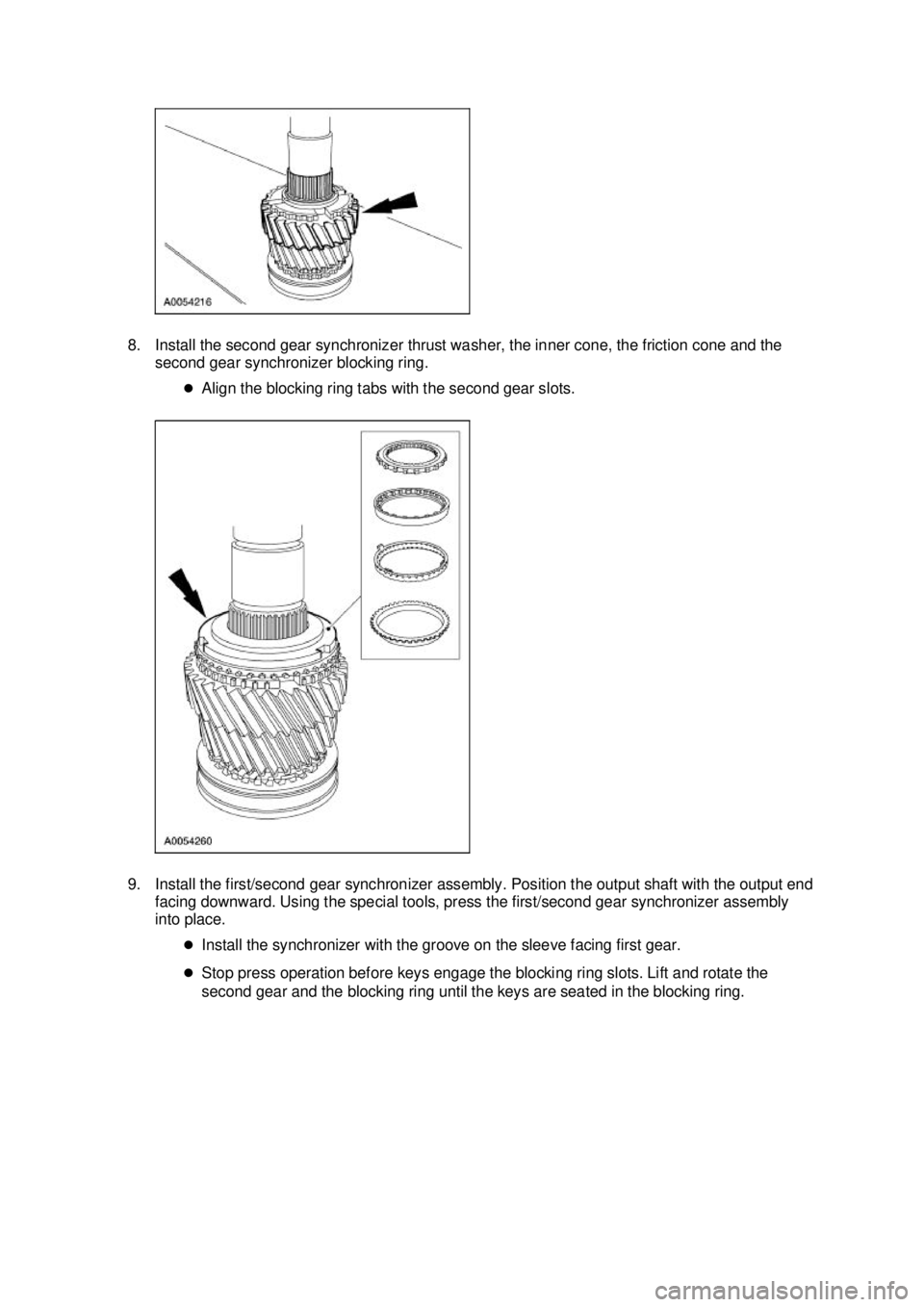

FORD MUSTANG 2003 Workshop Manual 8. Install the second gear synchronizer thrust washer, the inner cone, the friction cone and the second gear synchronizer blocking ring. �zAlign the blocking ring tabs with the second gear slots. 9

Page 2882 of 4378

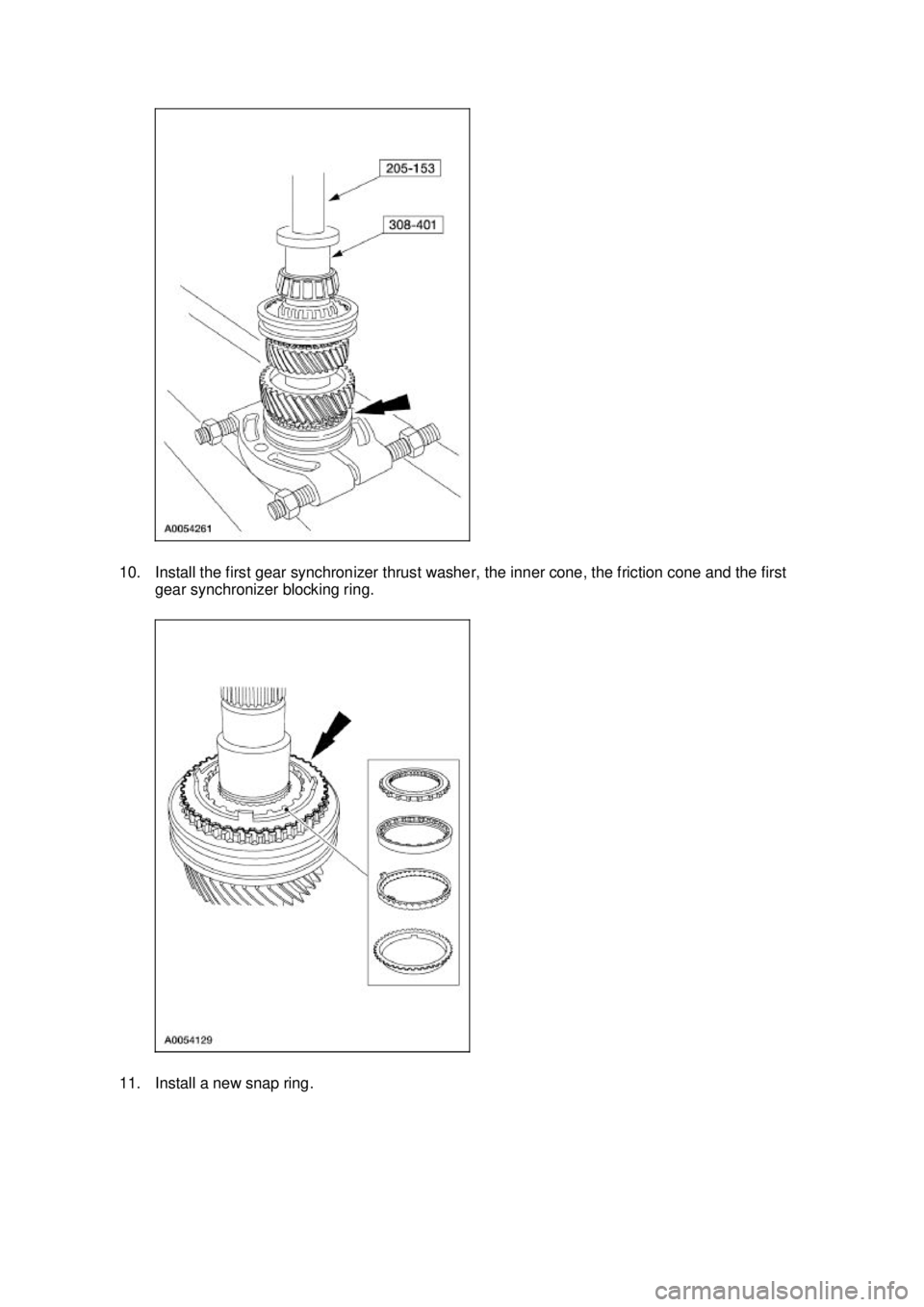

FORD MUSTANG 2003 Workshop Manual 10. Install the first gear synchronizer thrust washer, the inner cone, the friction cone and the first gear synchronizer blocking ring. 11. Install a new snap ring. Klj . 10 ba 122003 Musta

Page 2883 of 4378

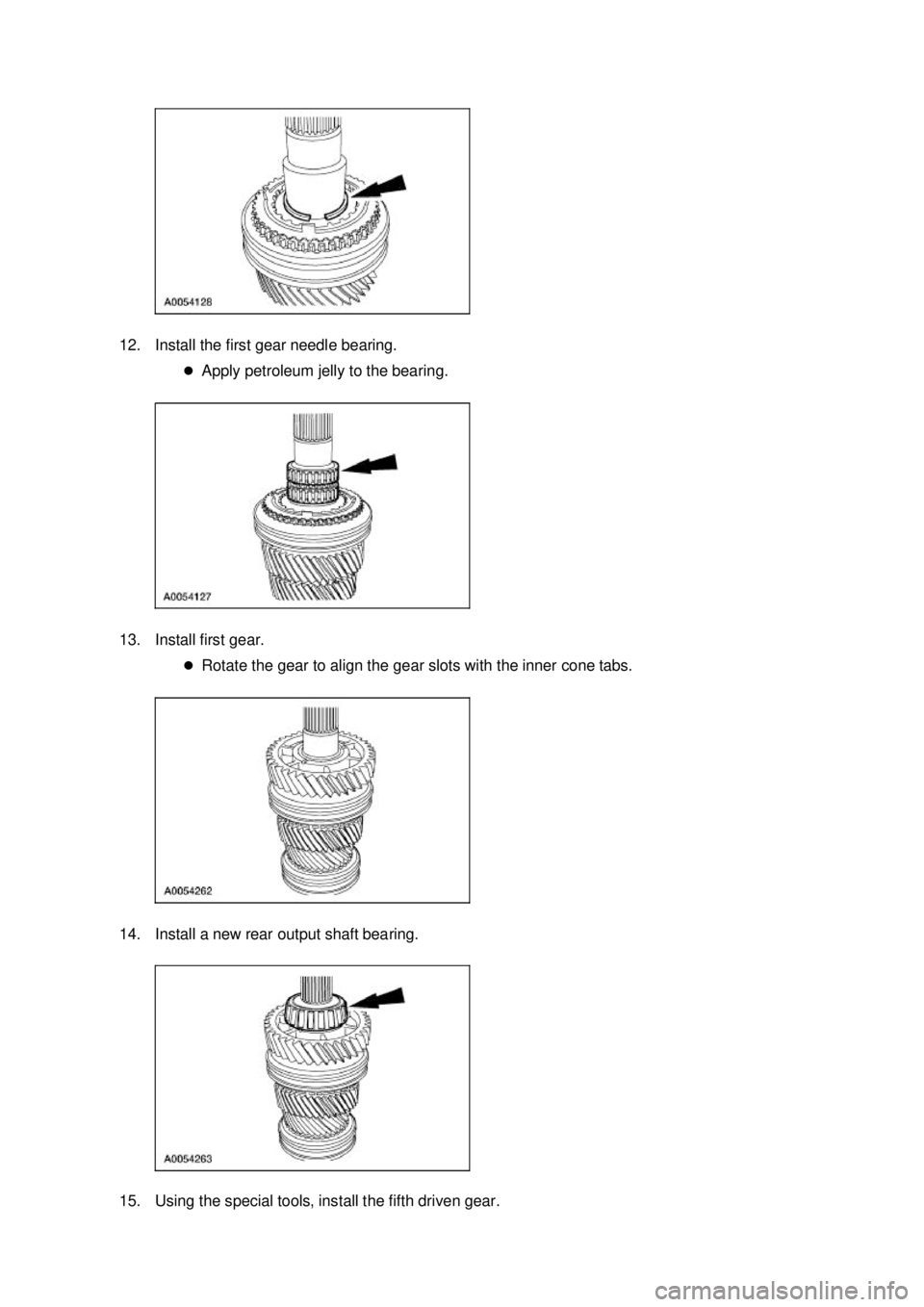

FORD MUSTANG 2003 Workshop Manual 12. Install the first gear needle bearing. �zApply petroleum jelly to the bearing. 13. Install first gear. �zRotate the gear to align the gear slots with the inner cone tabs. 14. Install a new rea

Page 2884 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 12 ba 122003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2885 of 4378

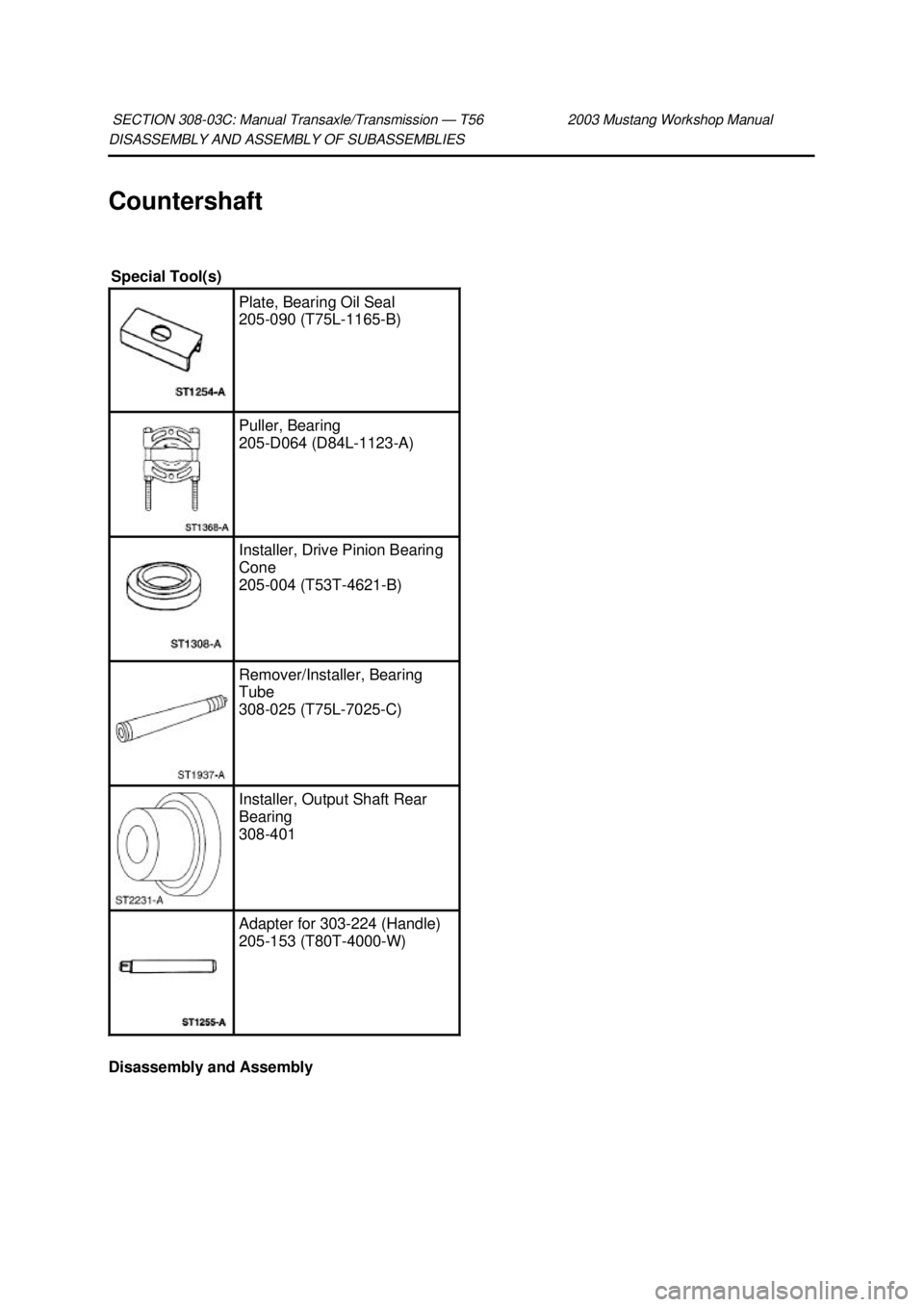

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Countershaft Disassembly and Assembly SECTION 308- 03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual Special Tool(s) Plate, Bearing

Page 2886 of 4378

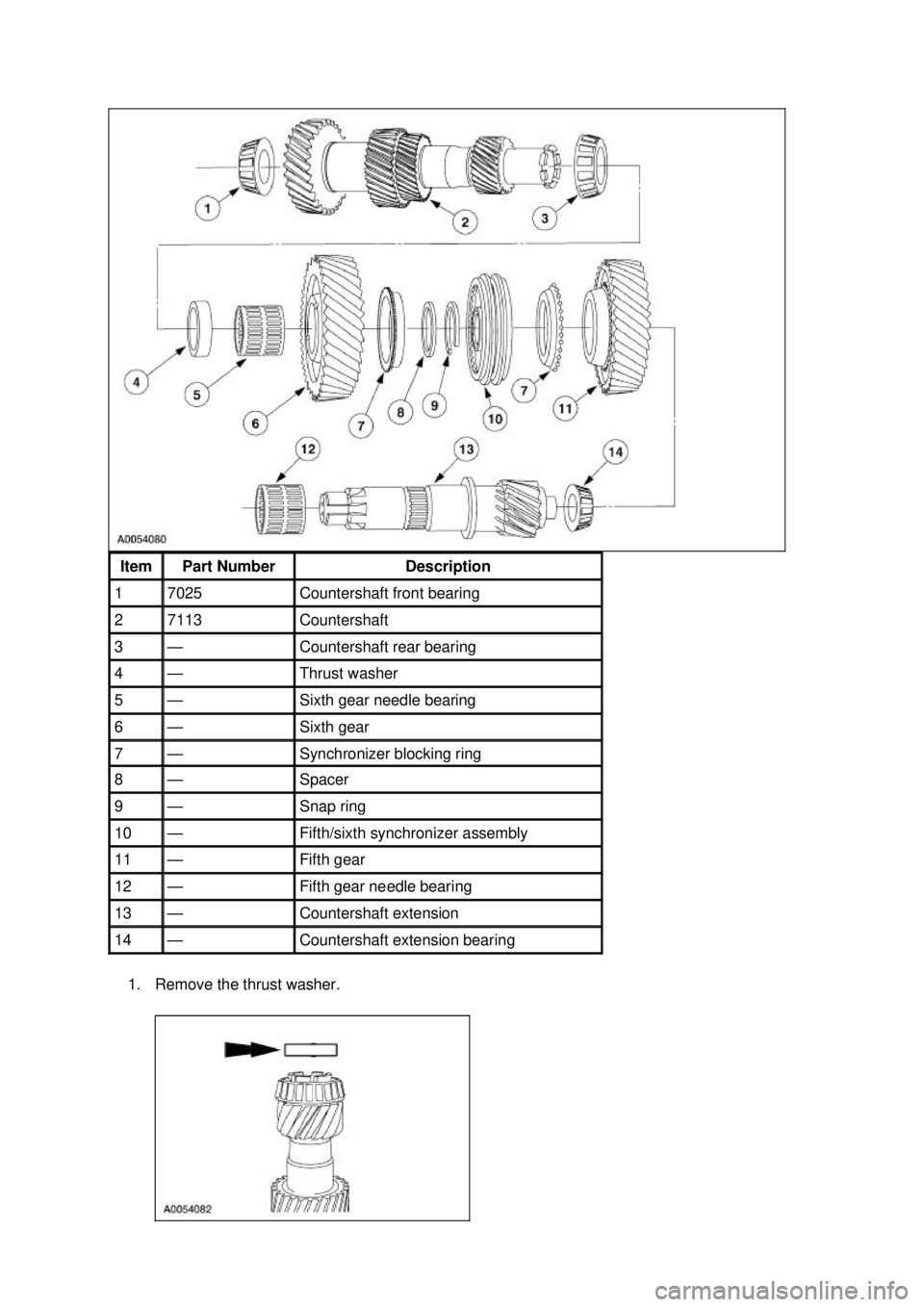

FORD MUSTANG 2003 Workshop Manual 1. Remove the thrust washer. Item Part Number Description 1 7025 Countershaft front bearing 2 7113 Countershaft 3 — Countershaft rear bearing 4 — Thrust washer 5 — Sixth gear needl

Page 2887 of 4378

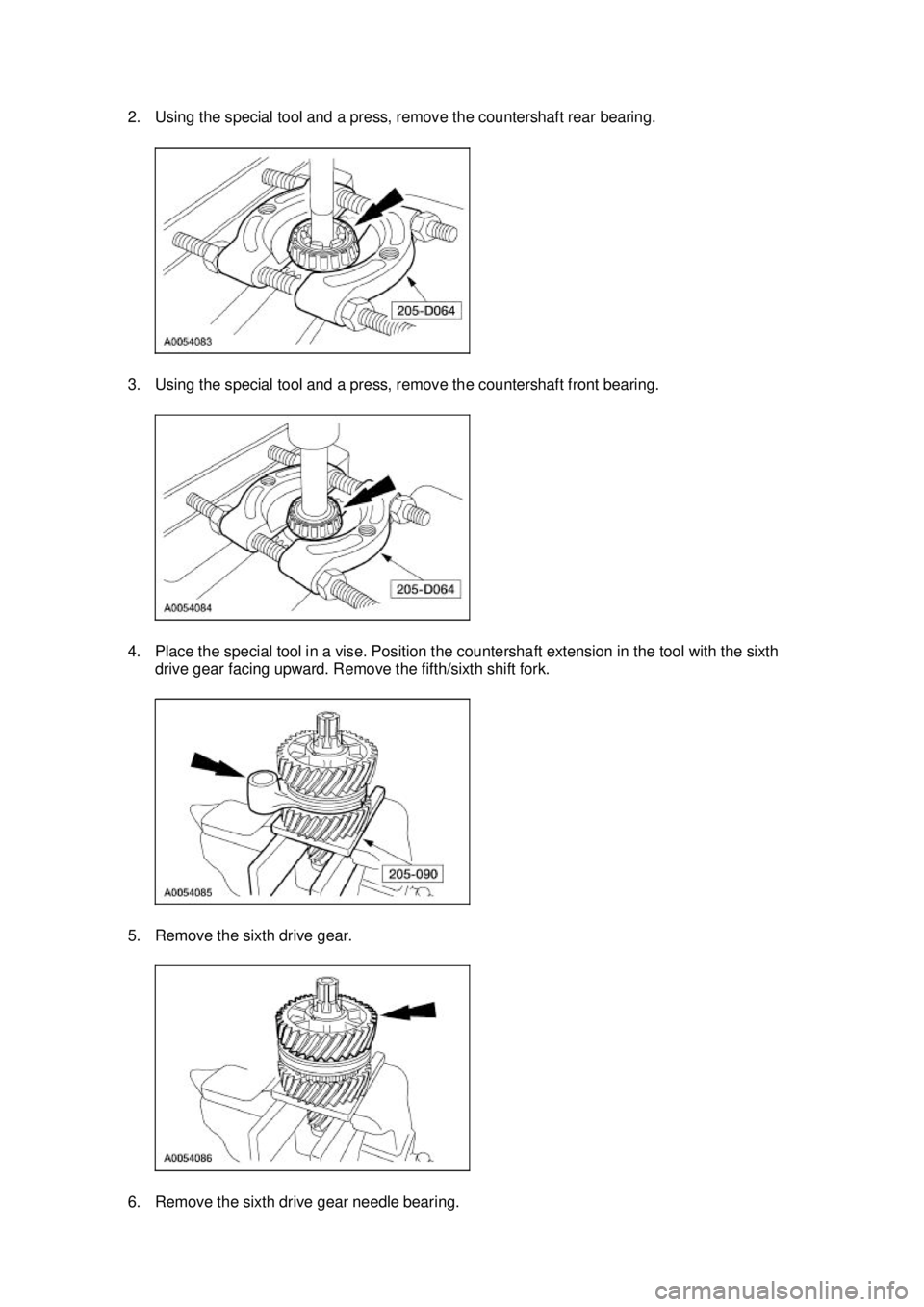

FORD MUSTANG 2003 Workshop Manual 2. Using the special tool and a press, remove the countershaft rear bearing. 3. Using the special tool and a press, remove the countershaft front bearing. 4. Place the special tool in a vise. Positi

Page 2888 of 4378

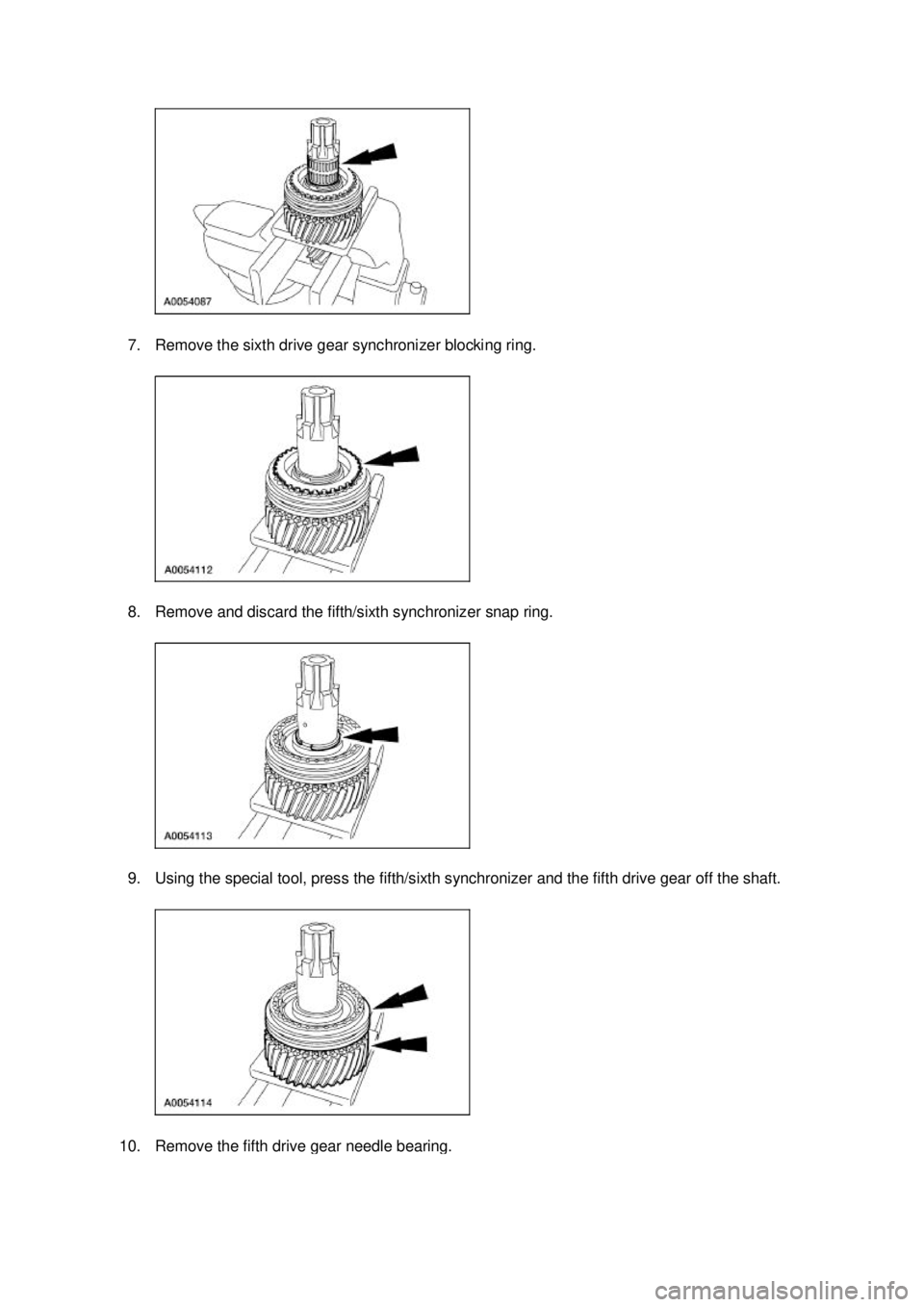

FORD MUSTANG 2003 Workshop Manual 7. Remove the sixth drive gear synchronizer blocking ring. 8. Remove and discard the fifth/sixth synchronizer snap ring. 9. Using the special tool, press the fifth/sixth synchronizer and the fifth d
