REMOVAL AND INSTALLATION

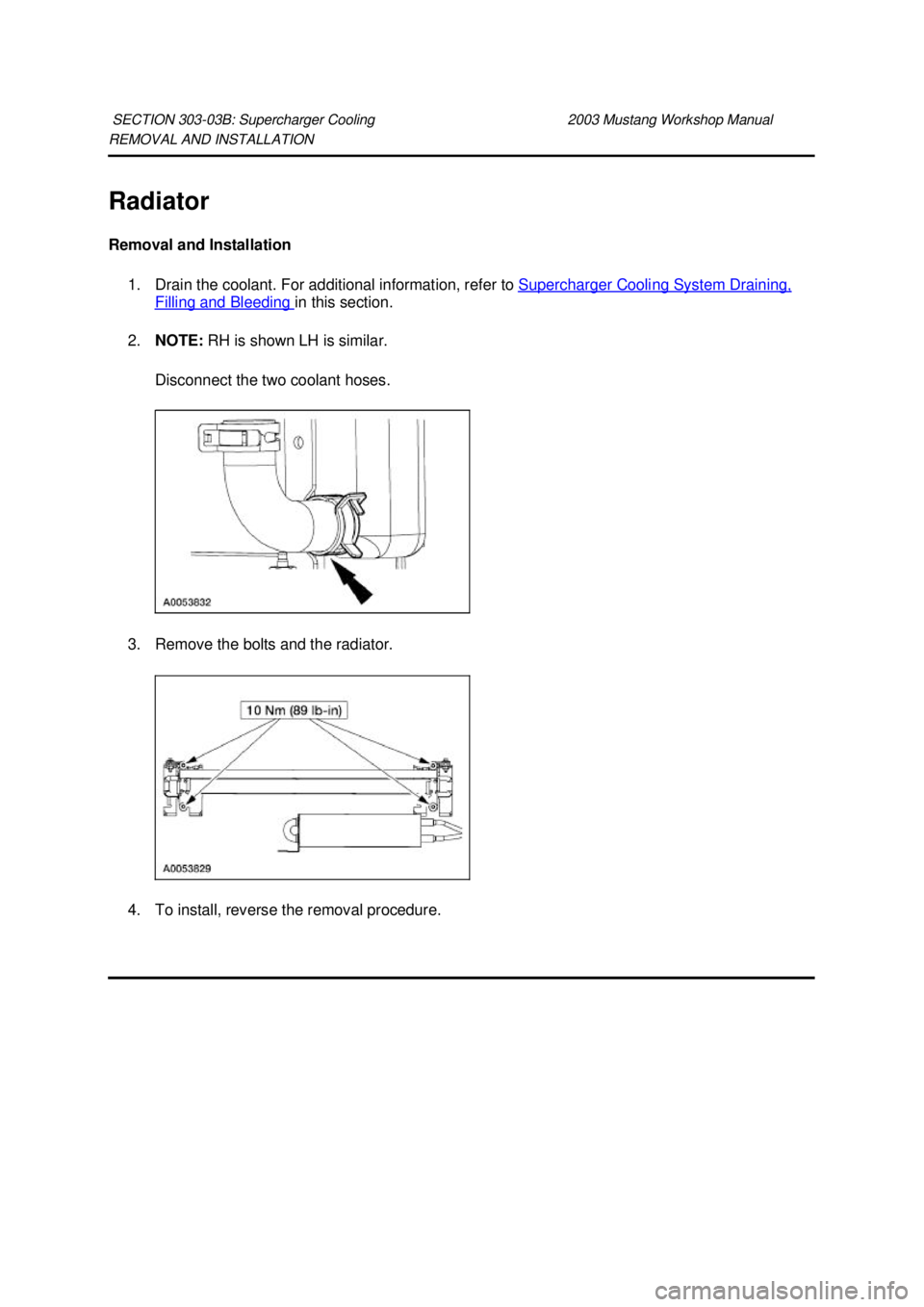

Radiator
Removal and Installation
1. Drain the coolant. For additional information, refer to Supercharger Cooling System Draining, Filling and Bleeding in this section.
2. NOTE: RH is shown LH is similar.
Disconnect the two coolant hoses.
3. Remove the bolts and the radiator.
4. To install, reverse the removal procedure.
SECTION 303-
03B: Supercharger Cooling 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1914 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1915 of 4378
REMOVAL AND INSTALLATION

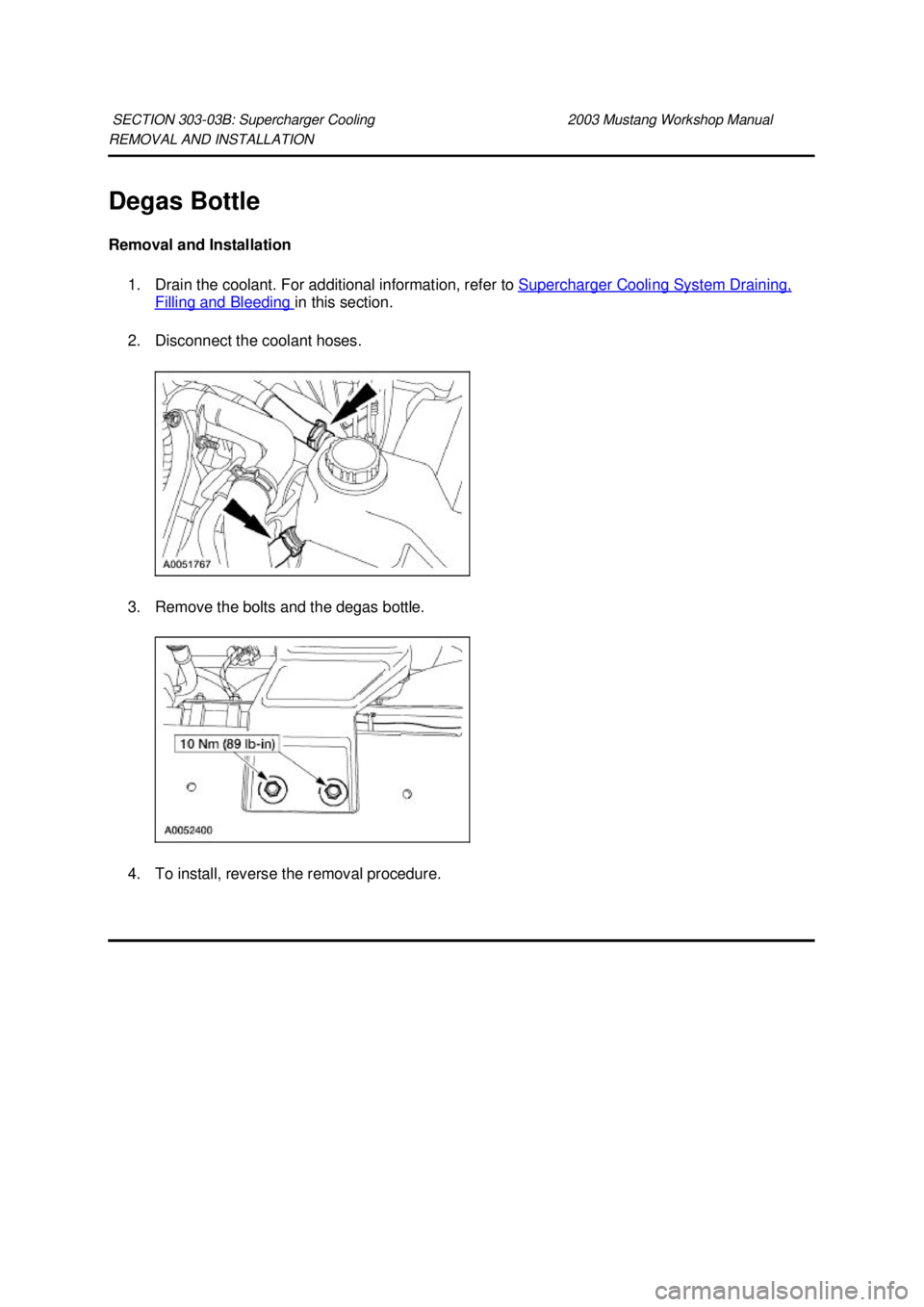

Degas Bottle
Removal and Installation
1. Drain the coolant. For additional information, refer to Supercharger Cooling System Draining, Filling and Bleeding in this section.
2. Disconnect the coolant hoses.
3. Remove the bolts and the degas bottle.
4. To install, reverse the removal procedure.
SECTION 303-
03B: Supercharger Cooling 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1916 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1917 of 4378
SPECIFICATIONS
SECTION 303-
04A: Fuel Charging and Controls — 3.8L 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants and Chemicals
SAE 5W-
20 Premium Synthetic Blend Motor Oil XO-5W20- QSP WSS-
M2C153- H
Torque Specifications Description Nm lb-
in Throttle body nuts and bolts 9 80
Fuel injection supply manifold bolts 10 89
42-
pin engine bulkhead electrical connector bolt 6 53 Klj . 1 ba
