Page 1057 of 4378

FORD MUSTANG 2003 Workshop Manual Disconnect the power steering pump (3A674). 10. Disconnect the lower radiator hose (8286). 11. Disconnect the upper radiator hose (8620). 12. Remove the radiator coolant recovery reservoir (8A080).

Page 1058 of 4378

FORD MUSTANG 2003 Workshop Manual 14. Position the accelerator cable bracket (9723) aside. �zRemove the bolts. 15. Remove the air cleaner outlet tube (9B659) and the air cleaner assembly. For additional information, refer to Secti

Page 1059 of 4378

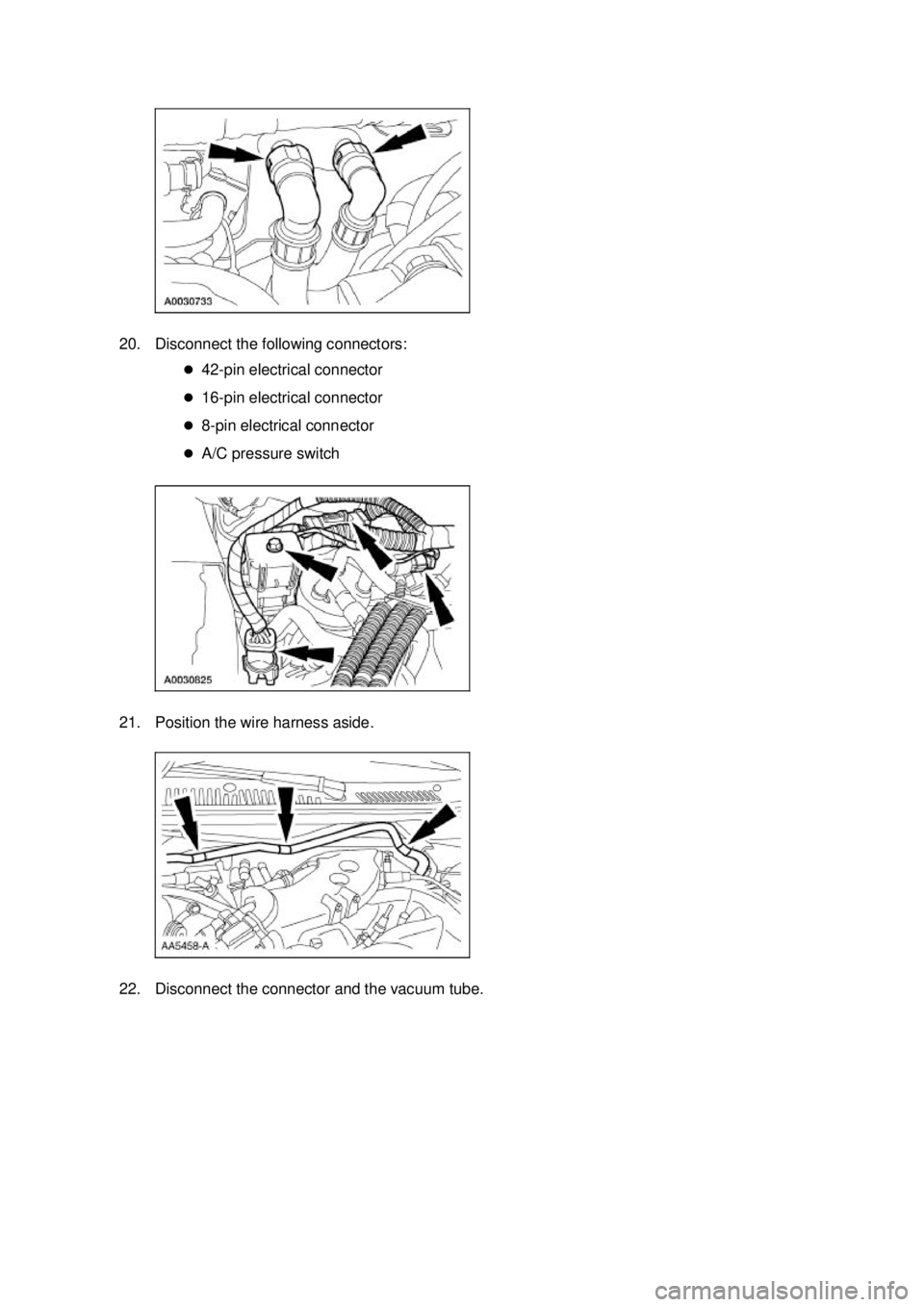

FORD MUSTANG 2003 Workshop Manual 20. Disconnect the following connectors: �z42- pin electrical connector �z 16-pin electrical connector �z 8-pin electrical connector �z A/C pressure switch 21. Position the wire harness aside. 2

Page 1060 of 4378

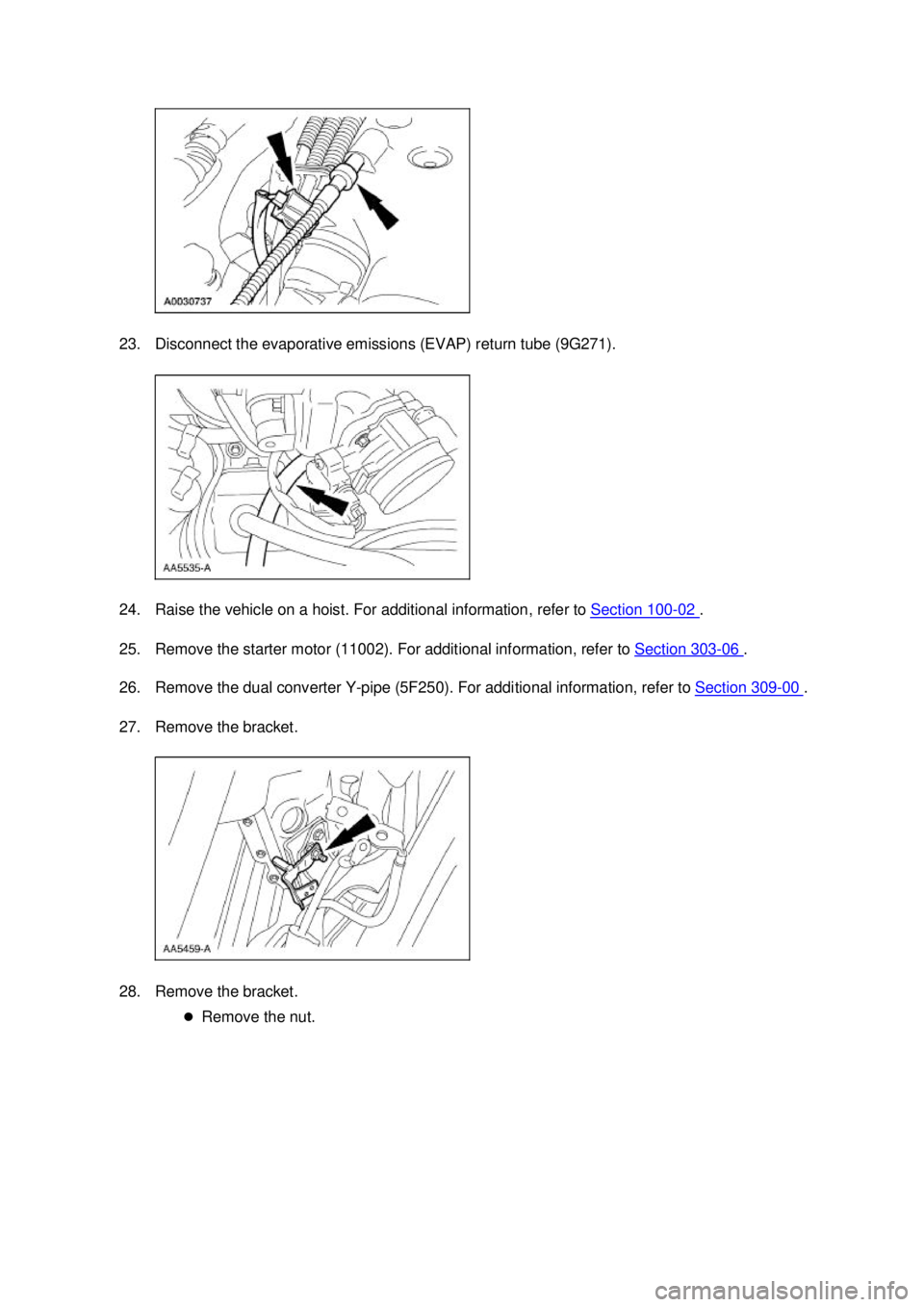

FORD MUSTANG 2003 Workshop Manual 23. Disconnect the evaporative emissions (EVAP) return tube (9G271). 24. Raise the vehicle on a hoist. For additional information, refer to Section 100 - 02 . 25. Remove the starter motor (11002).

Page 1061 of 4378

FORD MUSTANG 2003 Workshop Manual 29. Disconnect the engine ground strap. �zRemove the nut. 30. Remove the bracket. Vehicles equipped with manual transmission 31. Remove the transmission. For additional information refer to Secti

Page 1062 of 4378

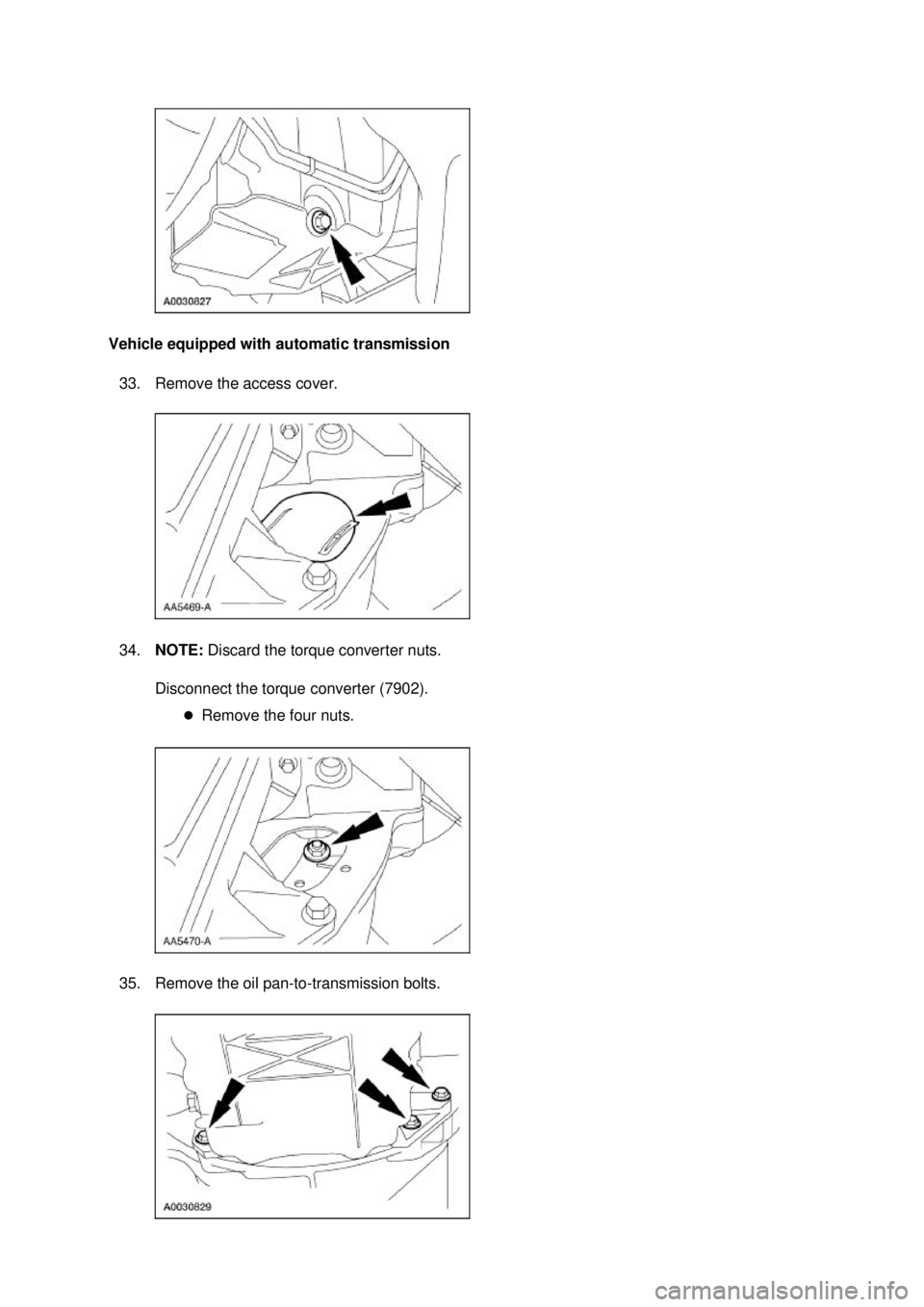

FORD MUSTANG 2003 Workshop Manual Vehicle equipped with automatic transmission 33. Remove the access cover. 34. NOTE: Discard the torque converter nuts. Disconnect the torque converter (7902). �zRemove the four nuts. 35. Remove

Page 1063 of 4378

FORD MUSTANG 2003 Workshop Manual 36. Remove the upper bell housing bolts. 37. Remove the transmission oil filler tube (7A228). All vehicles 38. Remove the RH engine mount nut. 39. Remove the LH engine mount nut. Klj . 9 ba

Page 1064 of 4378

FORD MUSTANG 2003 Workshop Manual 40. Lower the vehicle. 41. Support the transmission. 42. Install the special tool. 43. Install the special tools. 44. Using the special tool, remove the engine. 45. If necessary, remove the flywh
