Page 2753 of 4378

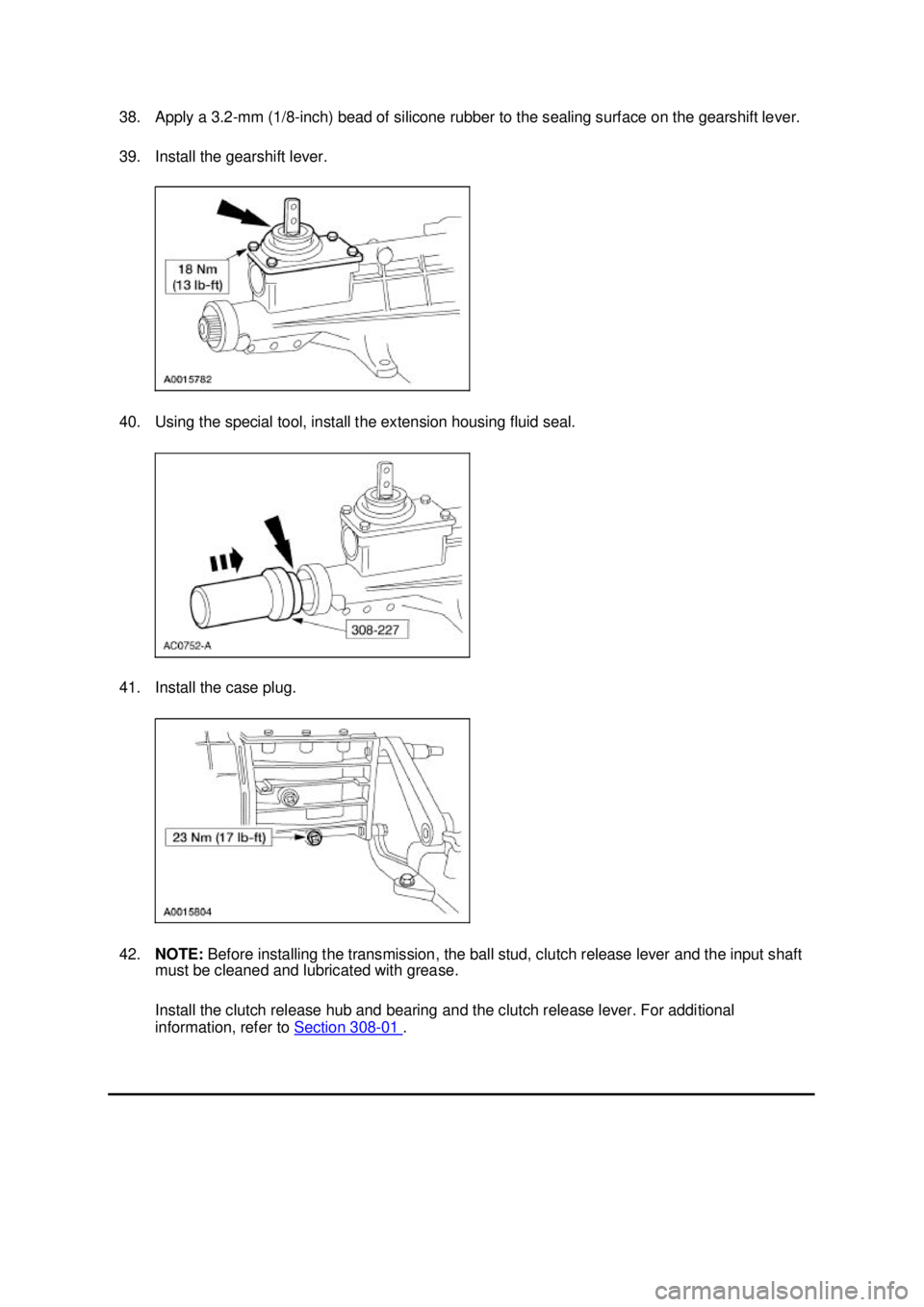

FORD MUSTANG 2003 Workshop Manual 38. Apply a 3.2- mm (1/8-inch) bead of silicone rubber to the sealing surface on the gearshift lever. 39. Install the gearshift lever. 40. Using the special tool, install the extension housing fluid

Page 2754 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 14 ba 142003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2755 of 4378

FORD MUSTANG 2003 Workshop Manual INSTALLATION Transmission 1. NOTE: Before installing the transmission, the ball stud, clutch release lever and the input shaft must be cleaned and lubricated. Use Motorcraft Premium Long-Life Grea

Page 2756 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 308- 03B: Manual Transaxle/Transmission — TR3650 2003 Mustang Workshop Manual General Specifications Item Specification Lubricants and Sealants Premium Long- Life Grease

Page 2757 of 4378

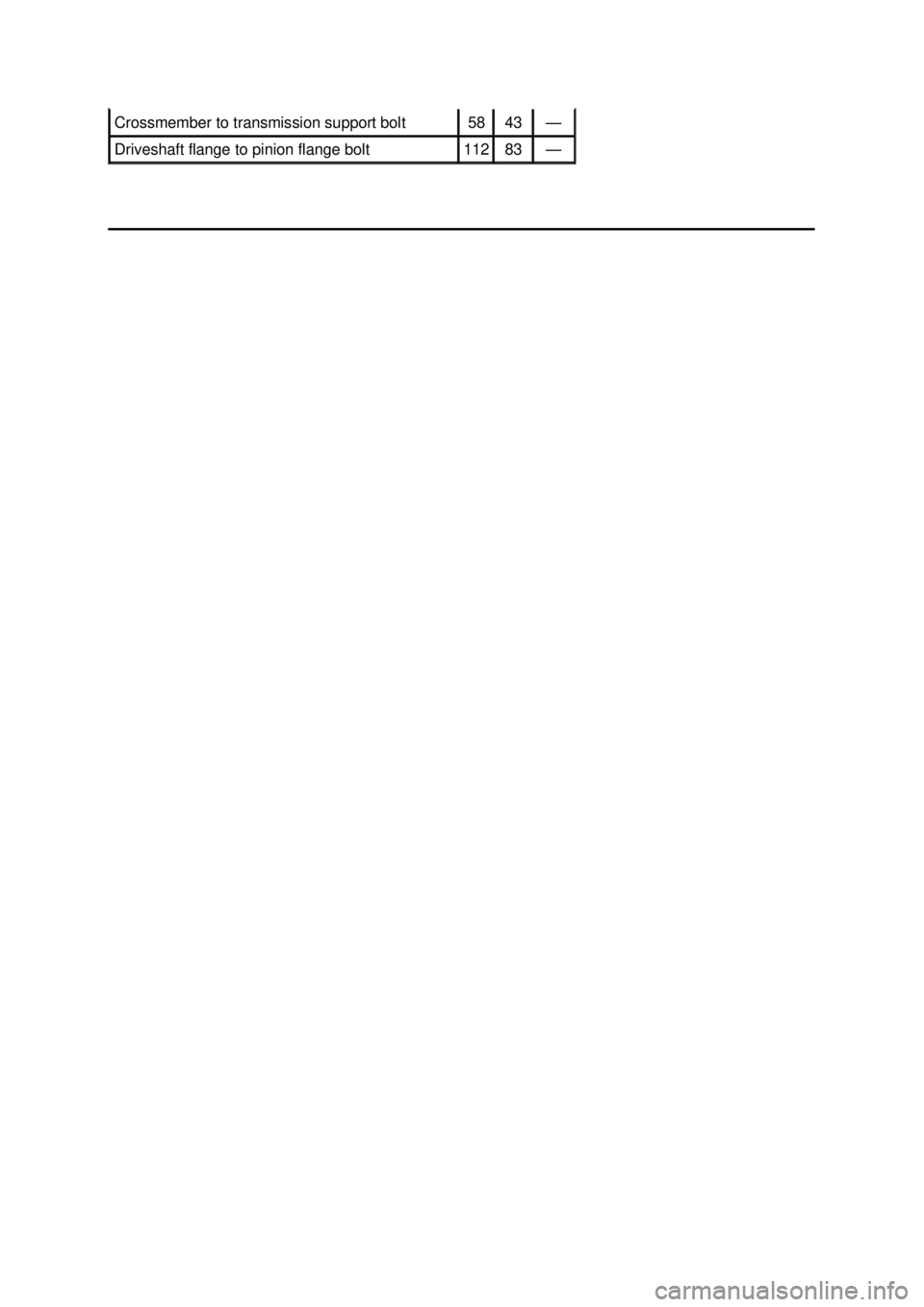

FORD MUSTANG 2003 Workshop Manual Crossmember to transmission support bolt 58 43 — Driveshaft flange to pinion flange bolt 112 83 — Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tso

Page 2758 of 4378

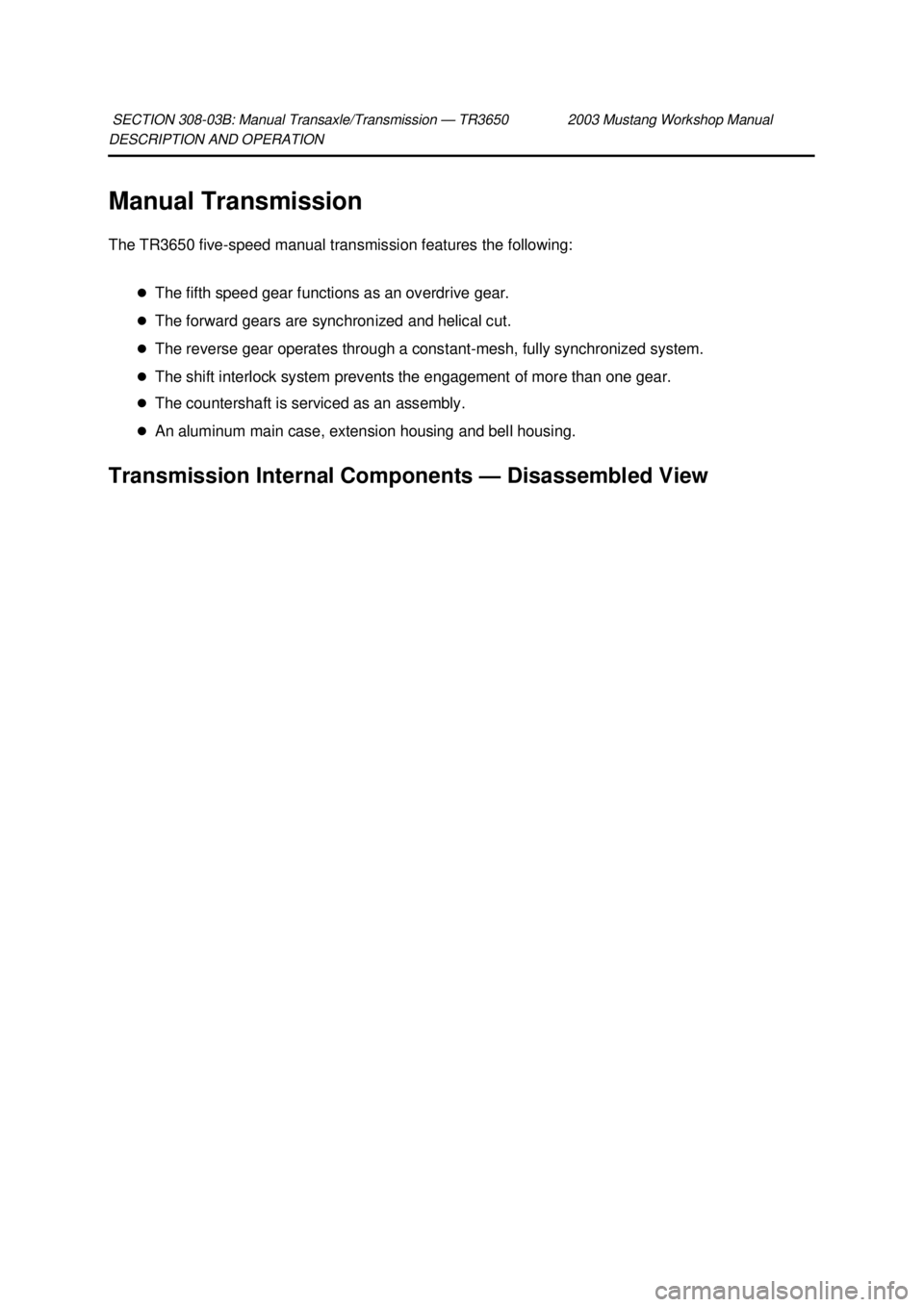

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Manual Transmission The TR3650 five- speed manual transmission features the following: �z The fifth speed gear functions as an overdrive gear. �z The forward gears are sy

Page 2759 of 4378

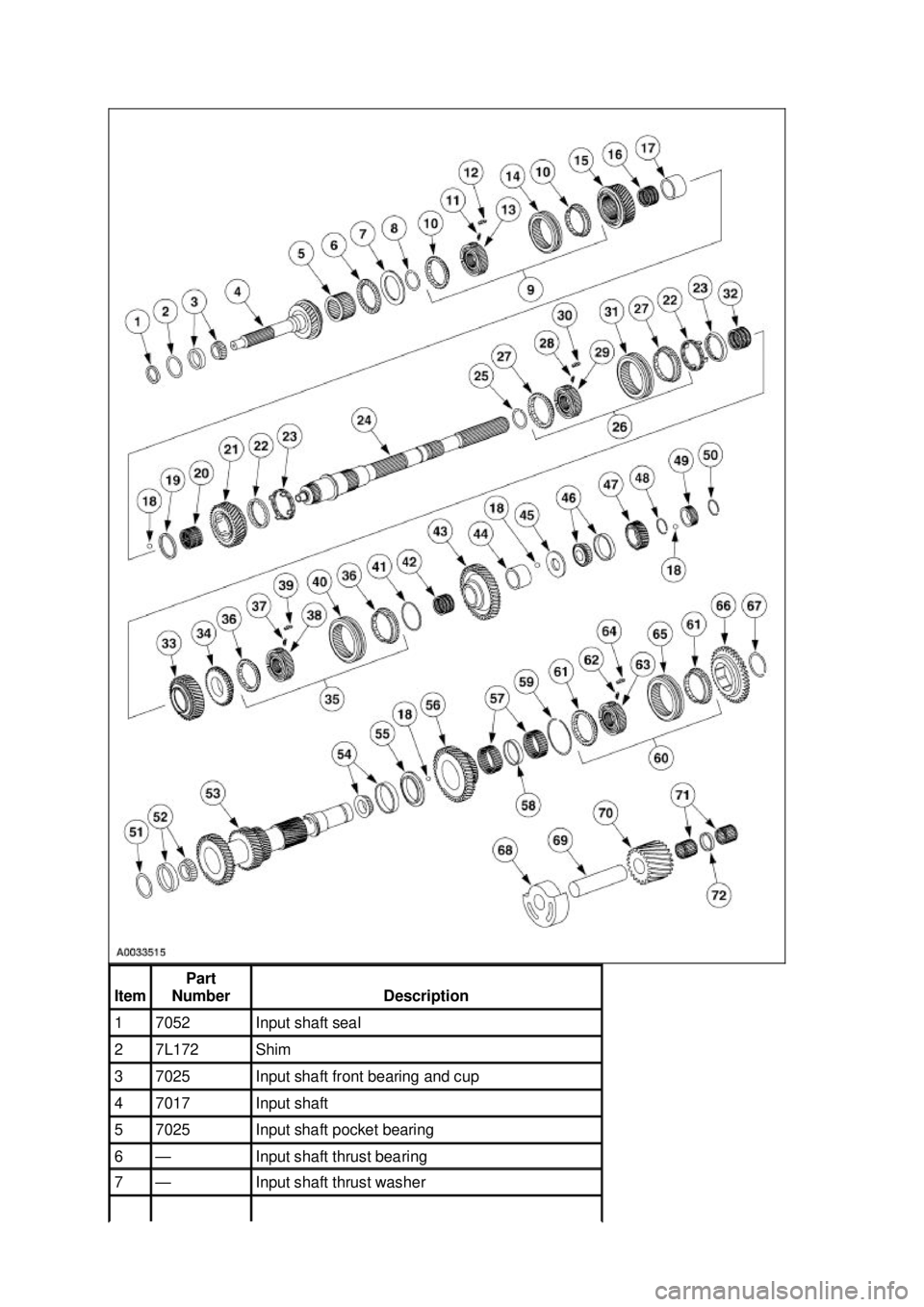

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 7052 Input shaft seal 2 7L172 Shim 3 7025 Input shaft front bearing and cup 4 7017 Input shaft 5 7025 Input shaft pocket bearing 6 — Input shaft th

Page 2760 of 4378

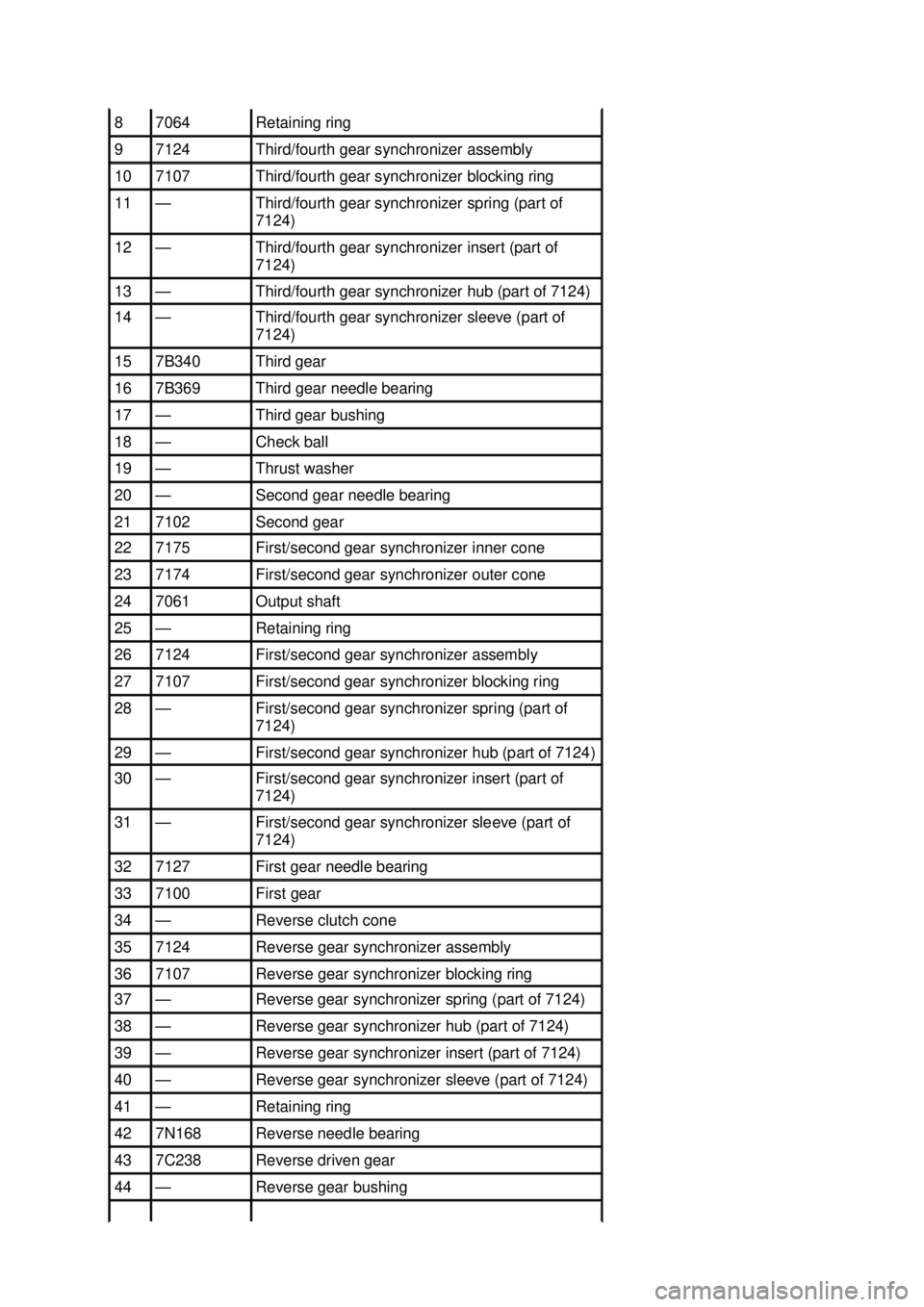

FORD MUSTANG 2003 Workshop Manual 8 7064 Retaining ring 9 7124 Third/fourth gear synchronizer assembly 10 7107 Third/fourth gear synchronizer blocking ring 11 — Third/fourth gear synchronizer spring (part of 7124) 12
