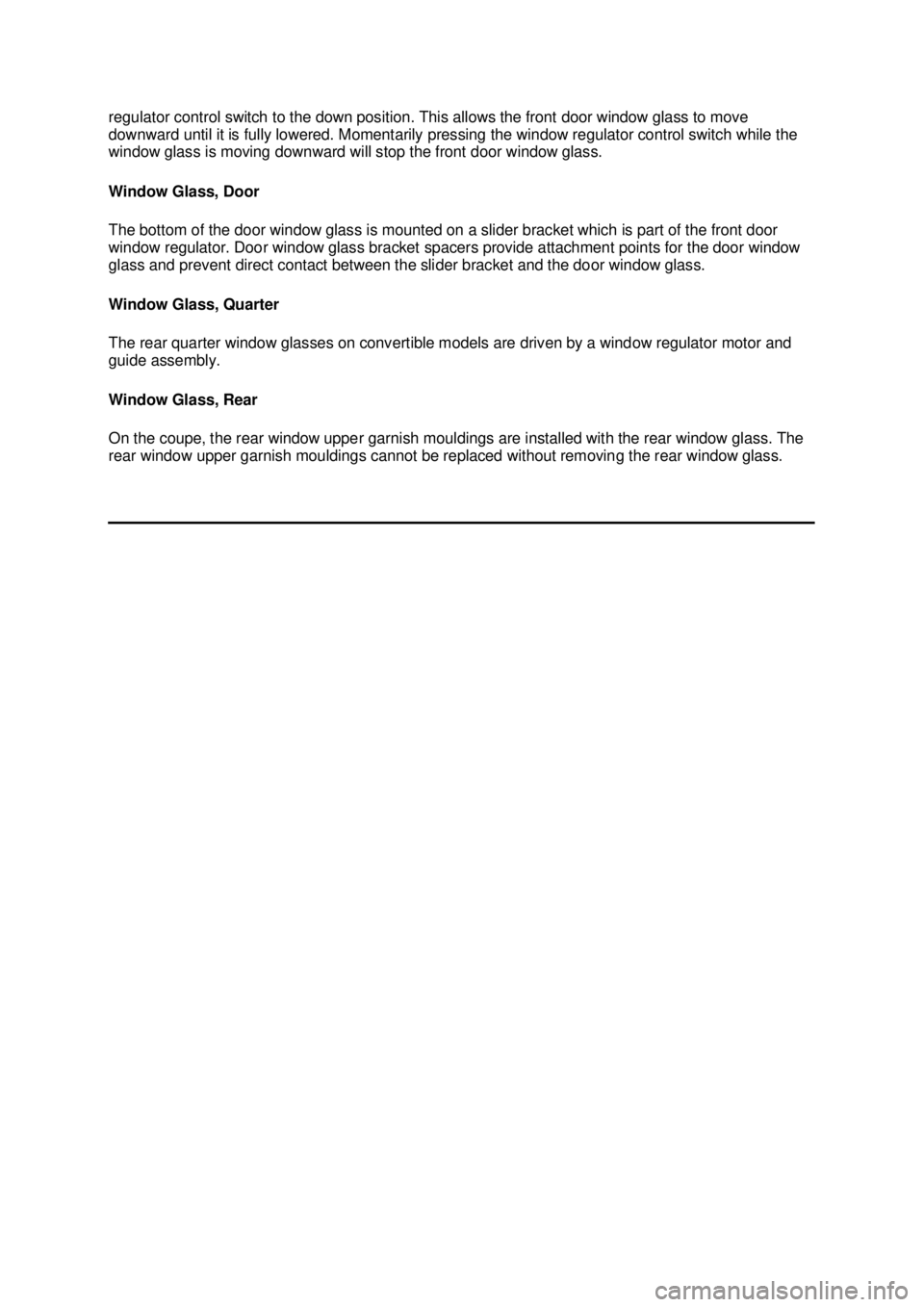

FORD MUSTANG 2003 Workshop Manual regulator control switch to the down position. This allows the front door window glass to move
downward until it is fully lowered. Momentarily pressing the window regulator control switch while the

Page 3714 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING
Glass, Frames and Mechanisms
Refer to Wiring Diagrams Cell
100 , Power Windows for schematic and connector information.
Refer to Wiring Diagrams Cell 56 , Rear Window Defr

DIAGNOSIS AND TESTING
Glass, Frames and Mechanisms
Refer to Wiring Diagrams Cell
100 , Power Windows for schematic and connector information.
Refer to Wiring Diagrams Cell 56 , Rear Window Defrost for schematic and connector information.
Principles of Operation
Power Window Control
NOTE: Battery power and ground must be removed before disconnecting the GEM connectors to
avoid setting false DTCs.
The driver power window one- touch down operation is controlled by the generic electronic module
(GEM). This feature functions only when the ignition switch is in the RUN or ACCY positions. The GEM
determines ignition switch position by monitoring the key- in ignition, RUN/ACCY and RUN/START
circuits. The one-touch down operation is requested of the GEM by momentarily pressing the driver
window regulator control switch DOWN for 62 ms to 320 ms. The GEM uses the initial voltage input
from the down switch to begin the one- touch down operation. If the voltage input was less than 320
ms, the GEM will maintain the voltage supply to the motor down circuit. The GEM will maintain the
operation until:
zseven seconds expires.
z motor stall is detected by monitoring the current draw.
z a voltage input is received by the GEM on either the up or down switch circuits.
The ground for one- touch down operation does not pass through the GEM. The ground is supplied
through the driver window regulator control switch as with normal operation. If the GEM continues to
see voltage on the down circuit for more than 320 ms after initial activation the GEM will not effect
operation. The down circuit through the GEM is a direct connection to the motor in its normal state.
This allows the driver window regulator control switch to control the motor for normal operation.
The passenger window motors are hardwired directly to the window regulator control switches. SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool 73III Automotive Meter
105-
R0057 or equivalent Klj . 1 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3715 of 4378

FORD MUSTANG 2003 Workshop Manual Inspection and Verification
1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed

Inspection and Verification
1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the diagnostic tool does not communicate with the vehicle, refer to the diagnostic tool manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If the diagnostic tool responds with: zCKT 914, CKT 915 or CKT70 - ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for the generic electronic module (GEM), go to Pinpoint Test A.
z NO RESP/NOT EQUIP for the instrument cluster module (ICM), refer to Section 413 - 01 .
z System passed, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM or ICM.
6. If the GEM or ICM DTCs retrieved are related to the concern, go to the GEM or ICM Diagnostic Trouble Code (DTC) Index.
7. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
GEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX Visual Inspection Chart Mechanical Electrical
z
Power window
regulator
z Window run
weatherstrip
z Door window glass z
Central junction box (CJB) circuit breaker 43 (20A), fuse 39
(5A) or 23 (15A)
z Battery junction box (BJB) fuse HTD BL (40A)
z Generic electronic module (GEM)
z Window regulator control switch
z Window regulator motor
z Instrument cluster module (ICM)
z Heated rear window relay
z Rear window defrost switch
z Heated rear window grid
z Circuitry DTC Description Source Action
B1217 Horn Relay Output Driver
Circuit Failure GEM GO to
Section 501 - 14B .
B1218 Horn Relay Output Driver
Short to Battery GEM GO to
Section 501 - 14B .
B1312 Lamp Headlamp Input Circuit GEM GO to
Section 413 - 09 . Klj . 2 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3716 of 4378

FORD MUSTANG 2003 Workshop Manual Short to Battery
B1317 Battery Voltage High GEM GO to
Section 414 - 00 .
B1318 Battery Voltage Low GEM GO to
Section 414 - 00 .
B1322 Door Ajar Driver Circuit Short
to Ground GEM GO t

Short to Battery
B1317 Battery Voltage High GEM GO to
Section 414 - 00 .
B1318 Battery Voltage Low GEM GO to
Section 414 - 00 .
B1322 Door Ajar Driver Circuit Short
to Ground GEM GO to
Section 417 - 02 .
B1330 Door Ajar Passenger Circuit
Short to Ground GEM GO to
Section 417 - 02 .
B1334 Decklid Ajar Rear Door
Circuit Short to Ground GEM GO to
Section 417 - 02 .
B1339 Chime Input Request Circuit
Short to Battery GEM GO to
Section 413 - 09 .
B1340 Chime Input Request Circuit
Short to Ground GEM GO to
Section 413 - 09 .
B1342 ECU is Defective GEM CLEAR the DTC. RETRIEVE the DTCs. If DTC
B1342 is retrieved, INSTALL a new GEM. REFER to
Section 419
- 10 .
B1353 Ignition Key-
in Circuit Open GEM GO to
Section 413 - 09 .
B1359 Ignition RUN/ACC Circuit
Failure GEM GO to
Section 211 - 05 .
B1396 Power Door Lock Circuit
Short to Battery GEM GO to
Section 501 - 14B .
B1397 Power Door Unlock Circuit
Short to Battery GEM GO to
Section 501 - 14B .
B1405 Power Window Driver Down
Circuit Short to Battery GEM GO to
Pinpoint Test D for convertible or
Pinpoint Test E for coupe.
B1408 Power Window Driver Up
Circuit Short to Battery GEM GO to
Pinpoint Test D for convertible or
Pinpoint Test E for coupe.
B1410 Power Window Driver Motor
Circuit Failure GEM GO to
Pinpoint Test D for convertible or
Pinpoint Test E for coupe.
B1426 Lamp Safety Belt Circuit
Short to Battery GEM REFER to
Section 413 - 01 .
B1428 Lamp Safety Belt Circuit
Failure GEM REFER to
Section 413 - 01 .
B1431 Wiper Brake/run Relay Circuit
Failure GEM GO to
Section 501 - 16 .
B1432 Wiper Brake/run Relay Circuit
Short to Battery GEM GO to
Section 501 - 16 .
B1434 Wiper High/low Speed Relay
Coil Circuit Failure GEM GO to
Section 501 - 16 .
B1436 Wiper High/low Speed Relay
Coil Circuit Short to Battery GEM GO to
Section 501 - 16 .
B1438 Wiper Mode Select Switch
Circuit Failure GEM GO to
Section 501 - 16 .
B1441 Wiper Mode Select Switch
Circuit Short to Ground GEM GO to
Section 501 - 16 .
B1446 Wiper Park Sense Circuit
Failure GEM GO to
Section 501 - 16 .
B1448 Wiper Park Sense Circuit
Short to Battery GEM GO to
Section 501 - 16 . Klj . 3 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3717 of 4378

FORD MUSTANG 2003 Workshop Manual B1450 Wiper Wash/delay Switch
Circuit Failure GEM GO to
Section 501 - 16 .
B1453 Wiper Wash/delay Switch
Circuit Short to Ground GEM GO to
Section 501 - 16 .
B1458 Wiper Washer Pump Mot

B1450 Wiper Wash/delay Switch
Circuit Failure GEM GO to
Section 501 - 16 .
B1453 Wiper Wash/delay Switch
Circuit Short to Ground GEM GO to
Section 501 - 16 .
B1458 Wiper Washer Pump Motor
Relay Circuit Failure GEM GO to
Section 501 - 16 .
B1460 Wiper Washer Pump Motor
Relay Circuit Short to Battery GEM GO to
Section 501 - 16 .
B1462 Safety Belt Switch Circuit
Failure GEM GO to
Section 413 - 09 .
B1466 Wiper High/low Speed Not
Switching GEM GO to
Section 501 - 16 .
B1473 Wiper Low Speed Circuit
Motor Failure GEM GO to
Section 501 - 16 .
B1476 Wiper High Speed Circuit
Motor Failure GEM GO to
Section 501 - 16 .
B1498 Decklid Punch-
out Sensor
Ground Short GEM GO to
Section 419 - 01 .
B1551 Decklid Release Circuit
Failure GEM GO to
Section 501 - 14B .
B1553 Decklid Release Circuit Short
to Battery GEM GO to
Section 501 - 14B .
B1555 Ignition RUN/START Circuit
Failure GEM GO to
Section 211 - 05 .
B1603 Lamp Anti-
Theft Indicator
Circuit Failure GEM GO to
Section 419 - 01 .
B1605 Lamp Anti-
Theft Indicator
Circuit Short to Battery GEM GO to
Section 419 - 01 .
B1687 Lamp Dome Input Circuit
Short to Battery GEM GO to
Section 417 - 02 .
B1833 Door Unlock Disarm Switch
Circuit Short to Ground GEM GO to
Section 419 - 01 .
B2486 Parklamp Output Relay Driver
Circuit Failure GEM GO to
Section 419 - 01 .
B2488 Parklamp Output Relay Driver
Circuit Short to Battery GEM GO to
Section 419 - 01 .
C1189 Brake Fluid Level Sensor
Input Circuit Short to Ground GEM REFER to
Section 413 - 01 .
C1223 Lamp Brake Warning Output
Circuit Failure GEM REFER to
Section 413 - 01 .
C1225 Lamp Brake Warning Output
Circuit Short to Battery GEM REFER to
Section 413 - 01 .
ICM DIAGNOSTIC TROUBLE CODE (DTC) INDEX DTC Description Source Action
B1343 Heated Backlight Input Circuit Failure ICM GO to
Pinpoint Test H . Klj . 4 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3718 of 4378

FORD MUSTANG 2003 Workshop Manual Symptom Chart
Refer to the Wiring Diagrams for the connector numbers stated in pinpoint tests.
Symptom Chart Condition
Possible Sources Action
�z No communication with the
generic electronic mo

Page 3719 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Tests
PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC
ELECTRONIC MODULE (GEM) inoperative —
rear,
convertible only �z
Window regulator
motor.
�z Driver window
regulator control

Page 3720 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: ALL POWER WINDOWS ARE INOPERATIVE —
CONVERTIBLE �z
Is the resistance less than 5 ohms? REPAIR the circuit(s) in
question. TEST the system
for normal operation.
A3 CHECK CIRCUIT
