Page 4001 of 4378

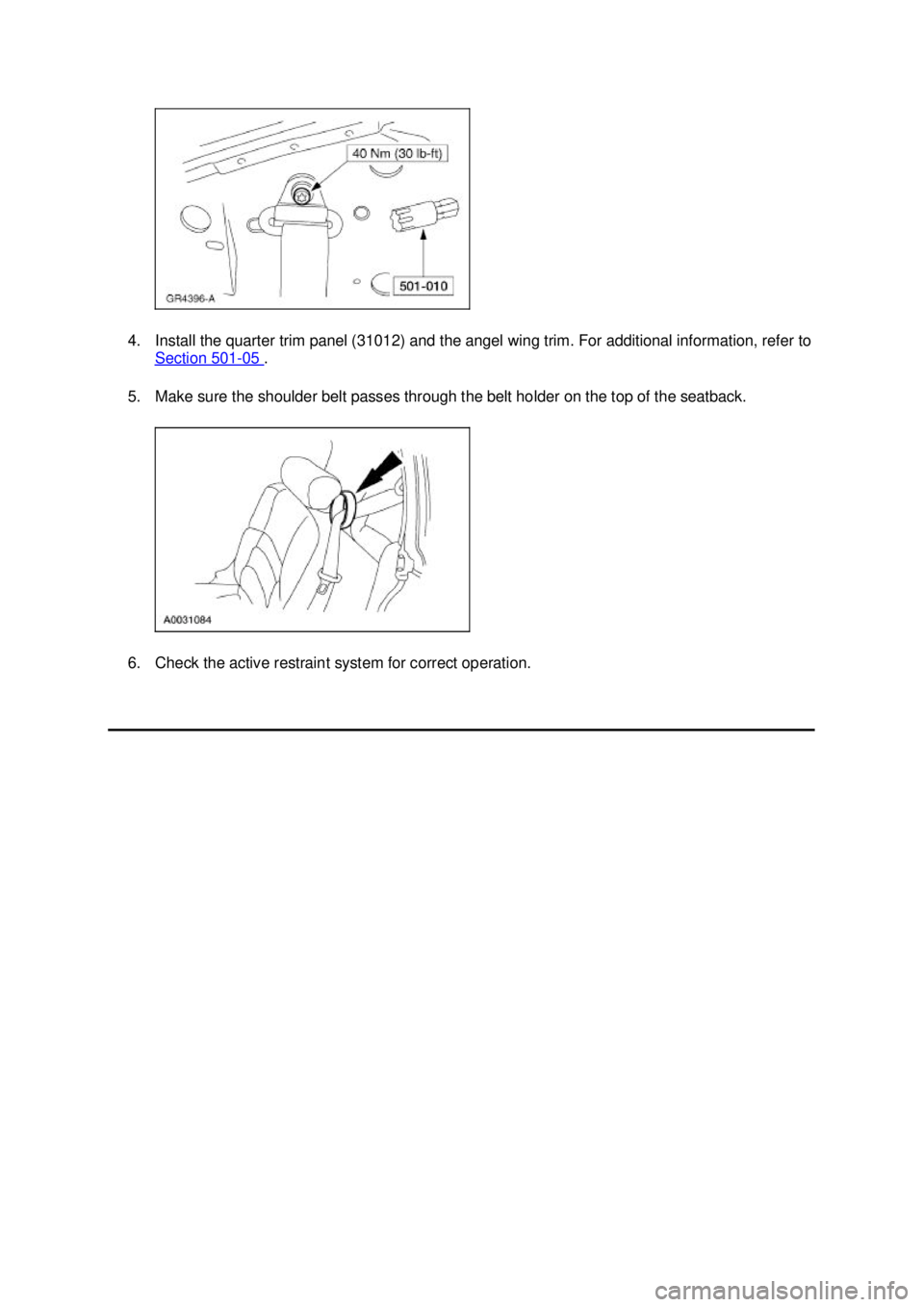

FORD MUSTANG 2003 Workshop Manual 4. Install the quarter trim panel (31012) and the angel wing trim. For additional information, refer to Section 501 - 05 . 5. Make sure the shoulder belt passes through the belt holder on the top o

Page 4002 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Retractor — Rear Seat Safety Belt, Convertible Removal 1. Remove the rear seat cushion. 2. Remove the luggage compartment front lining board (45444). 3. Release the saf

Page 4003 of 4378

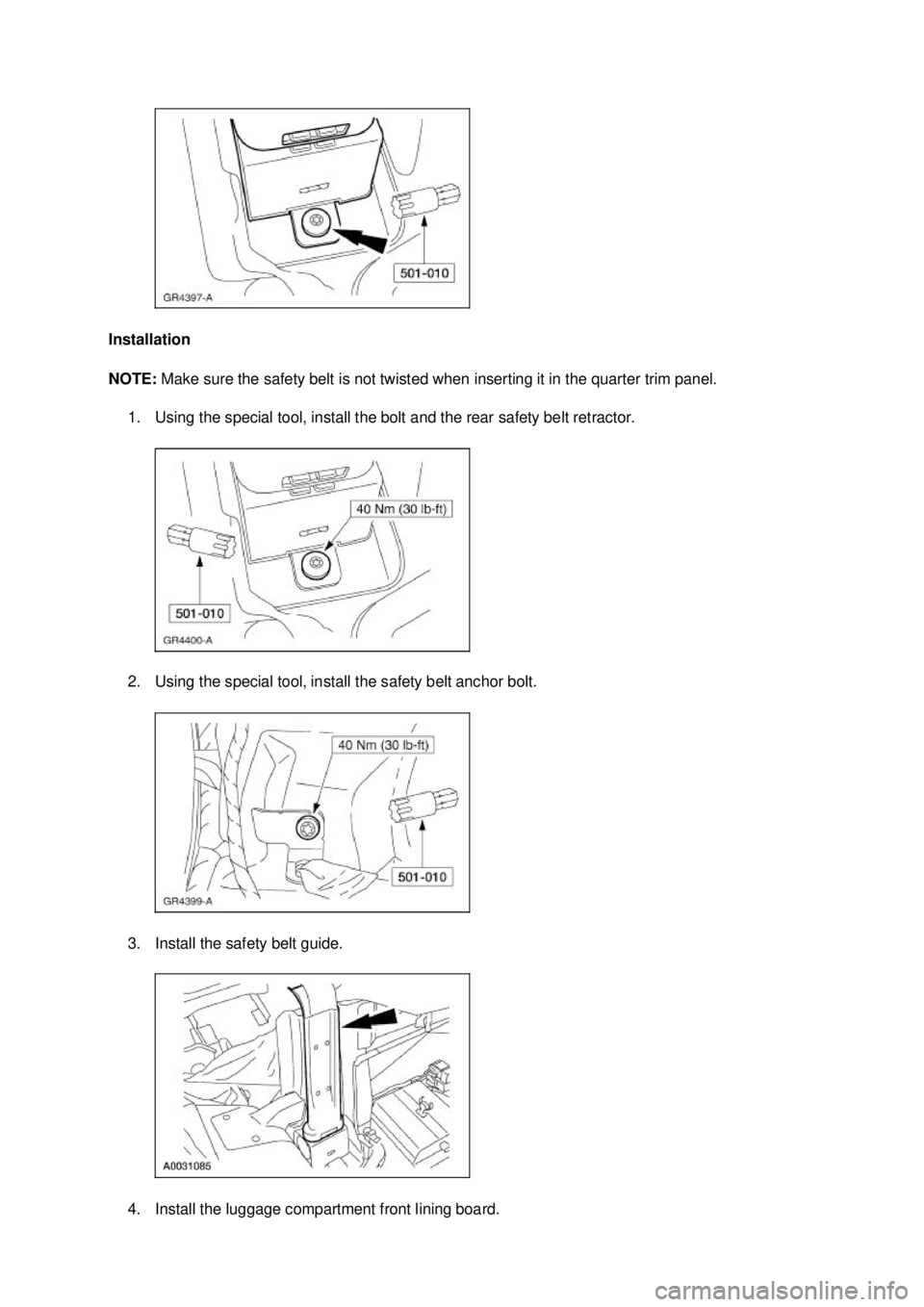

FORD MUSTANG 2003 Workshop Manual Installation NOTE: Make sure the safety belt is not twisted when inserting it in the quarter trim panel. 1. Using the special tool, install the bolt and the rear safety belt retractor. 2. Using th

Page 4004 of 4378

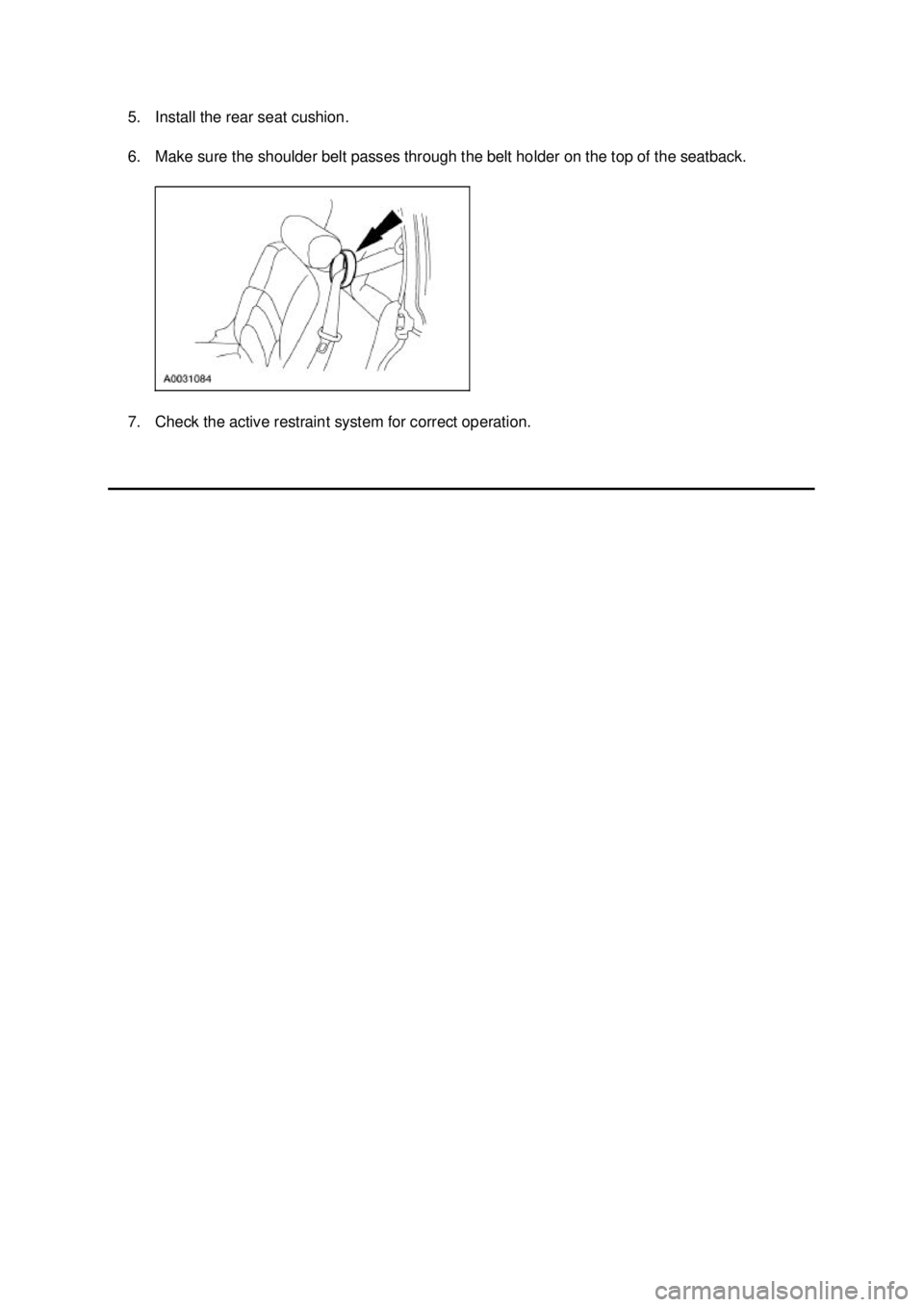

FORD MUSTANG 2003 Workshop Manual 5. Install the rear seat cushion. 6. Make sure the shoulder belt passes through the belt holder on the top of the seatback. 7. Check the active restraint system for correct operation. Klj . 3

Page 4005 of 4378

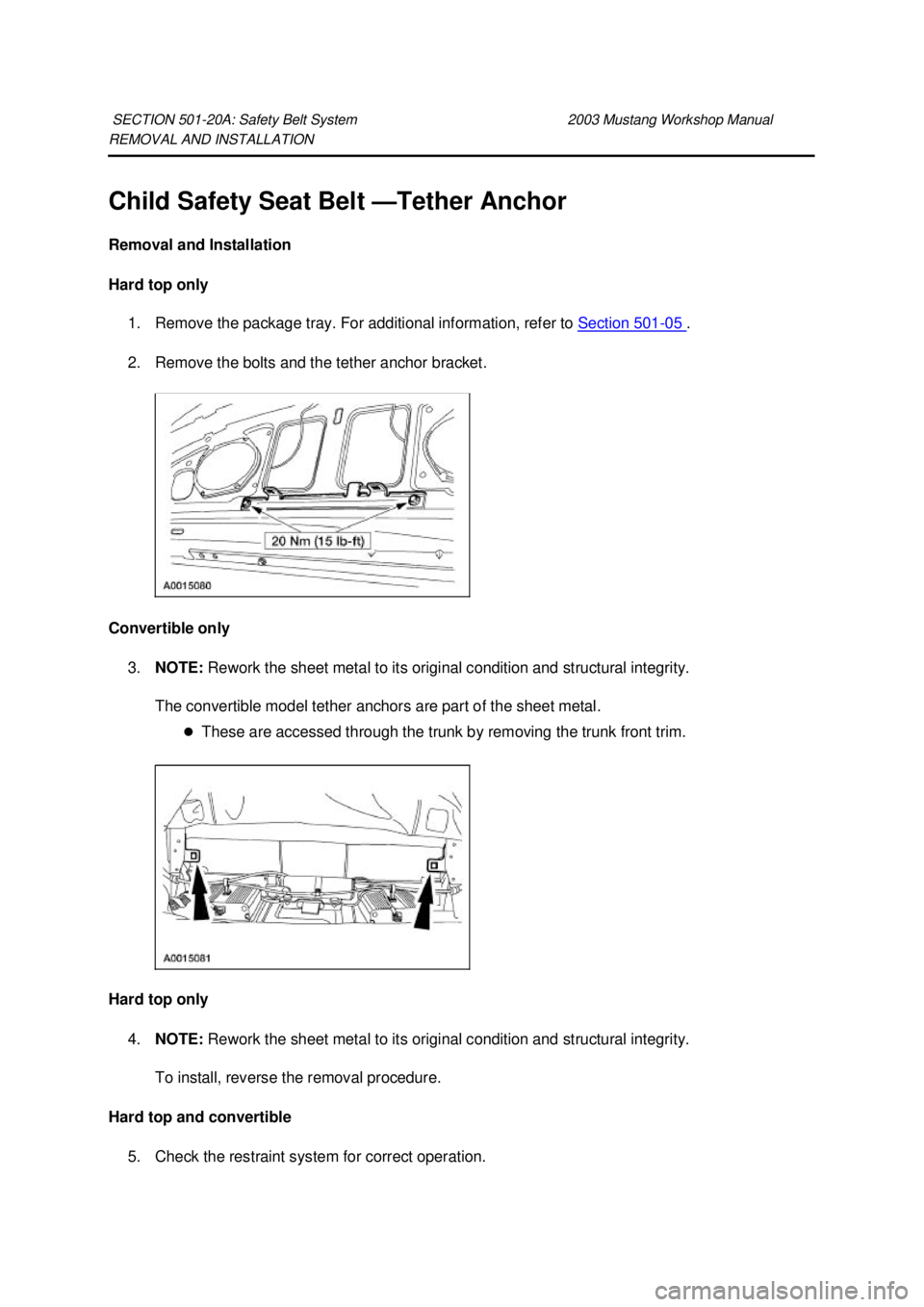

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Child Safety Seat Belt — Tether Anchor Removal and Installation Hard top only 1. Remove the package tray. For additional information, refer to Section 501 - 05 . 2. R

Page 4006 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4007 of 4378

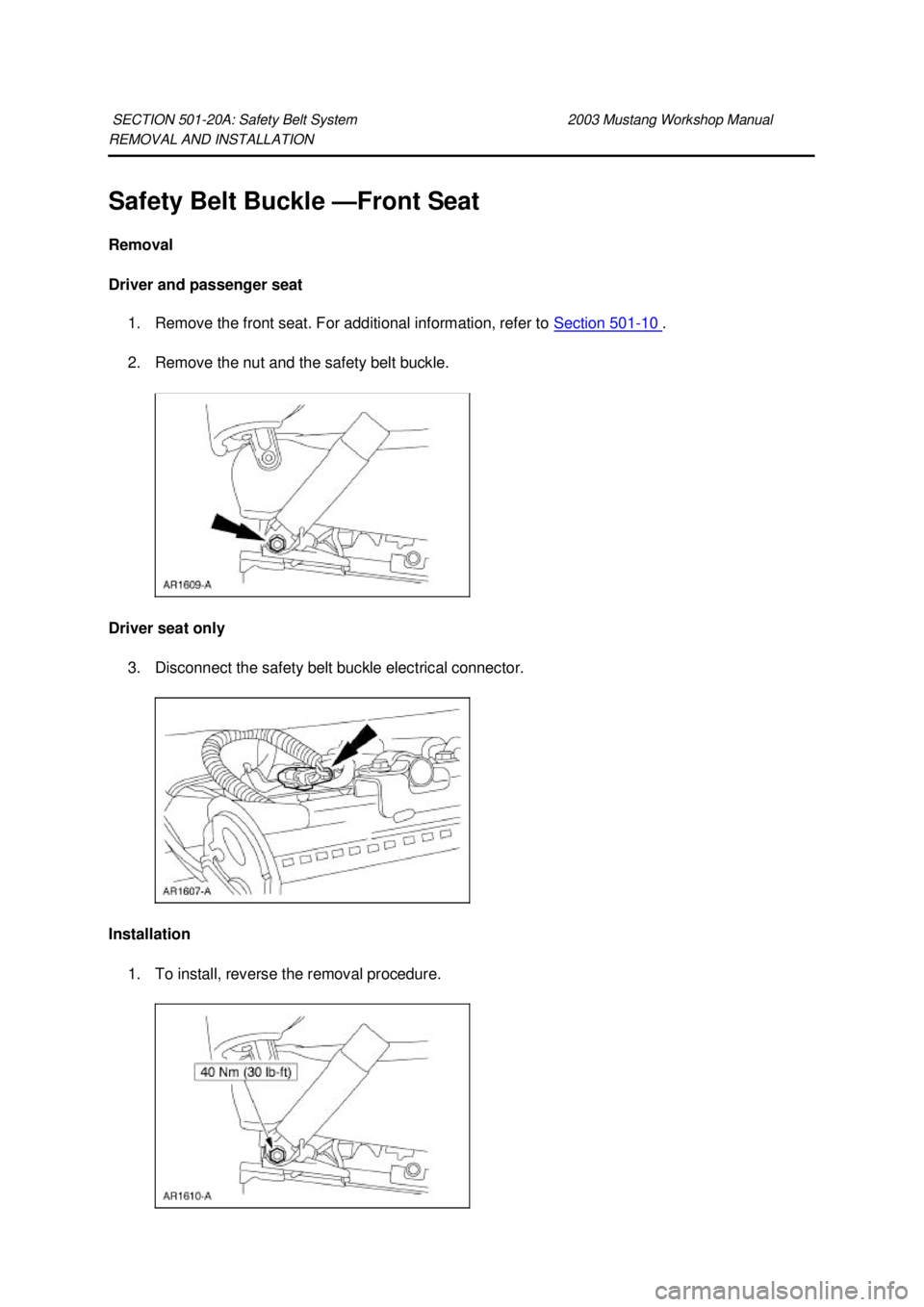

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Safety Belt Buckle — Front Seat Removal Driver and passenger seat 1. Remove the front seat. For additional information, refer to Section 501 - 10 . 2. Remove the nut

Page 4008 of 4378

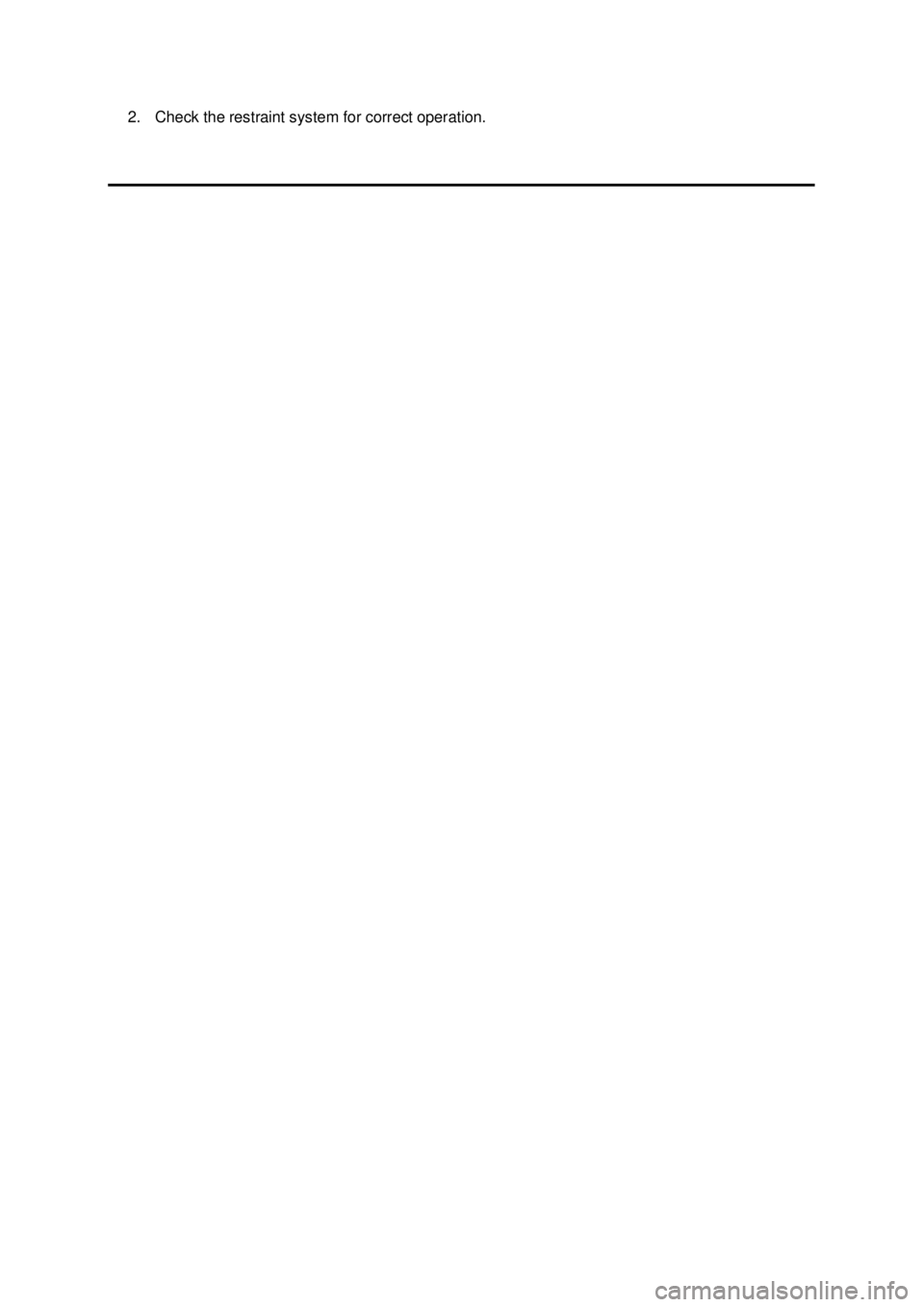

FORD MUSTANG 2003 Workshop Manual 2. Check the restraint system for correct operation. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
