Page 2777 of 4378

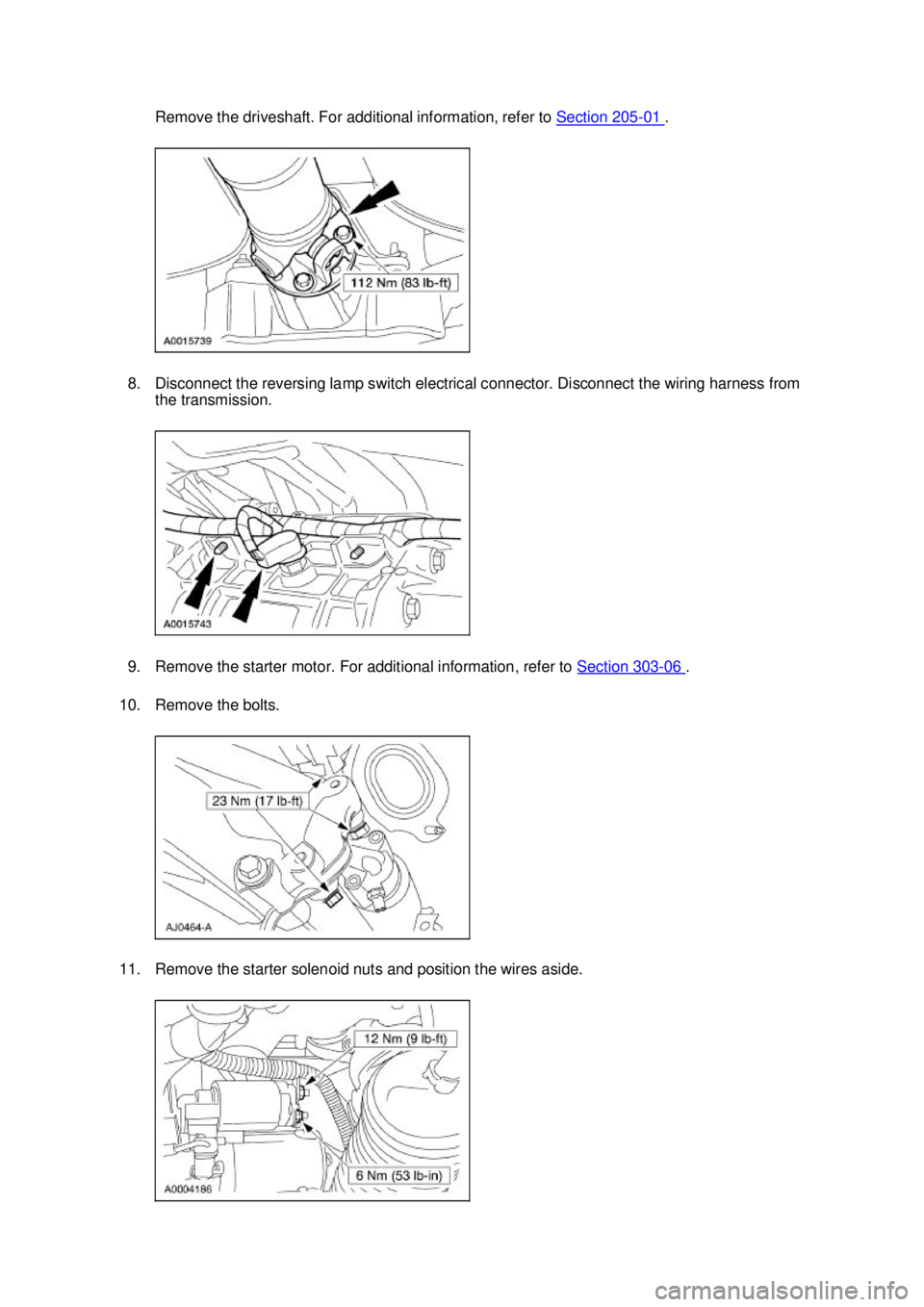

FORD MUSTANG 2003 Workshop Manual Remove the driveshaft. For additional information, refer to Section 205 - 01 . 8. Disconnect the reversing lamp switch electrical connector. Disconnect the wiring harness from the transmission. 9

Page 2778 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Remove the starter motor. 13. Disconnect the OSS sensor electrical connector. Disconnect the wiring harness from the transmission. 14. Remove the bolt and the clutch release lever cover. 15.

Page 2779 of 4378

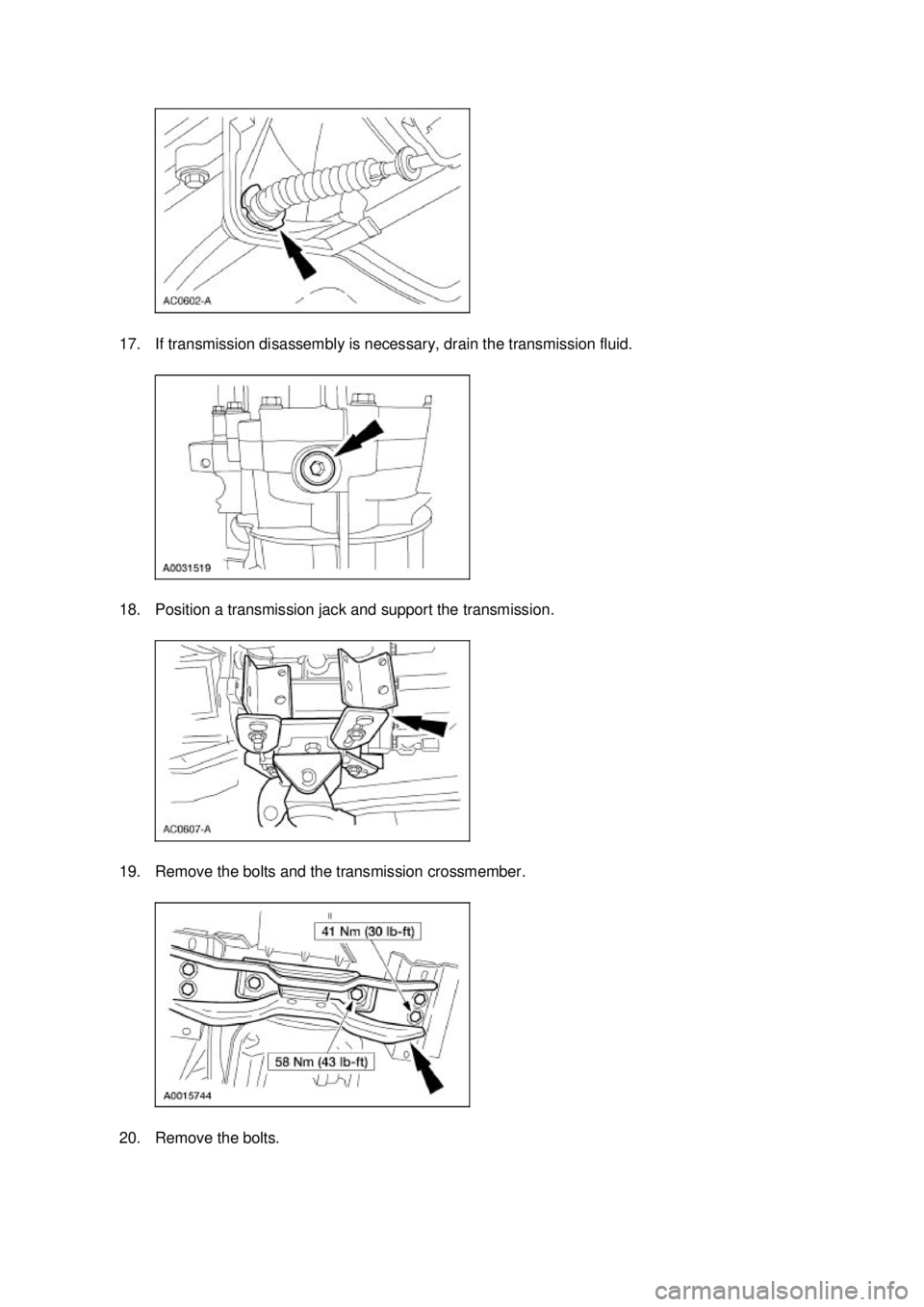

FORD MUSTANG 2003 Workshop Manual 17. If transmission disassembly is necessary, drain the transmission fluid. 18. Position a transmission jack and support the transmission. 19. Remove the bolts and the transmission crossmember. 20.

Page 2780 of 4378

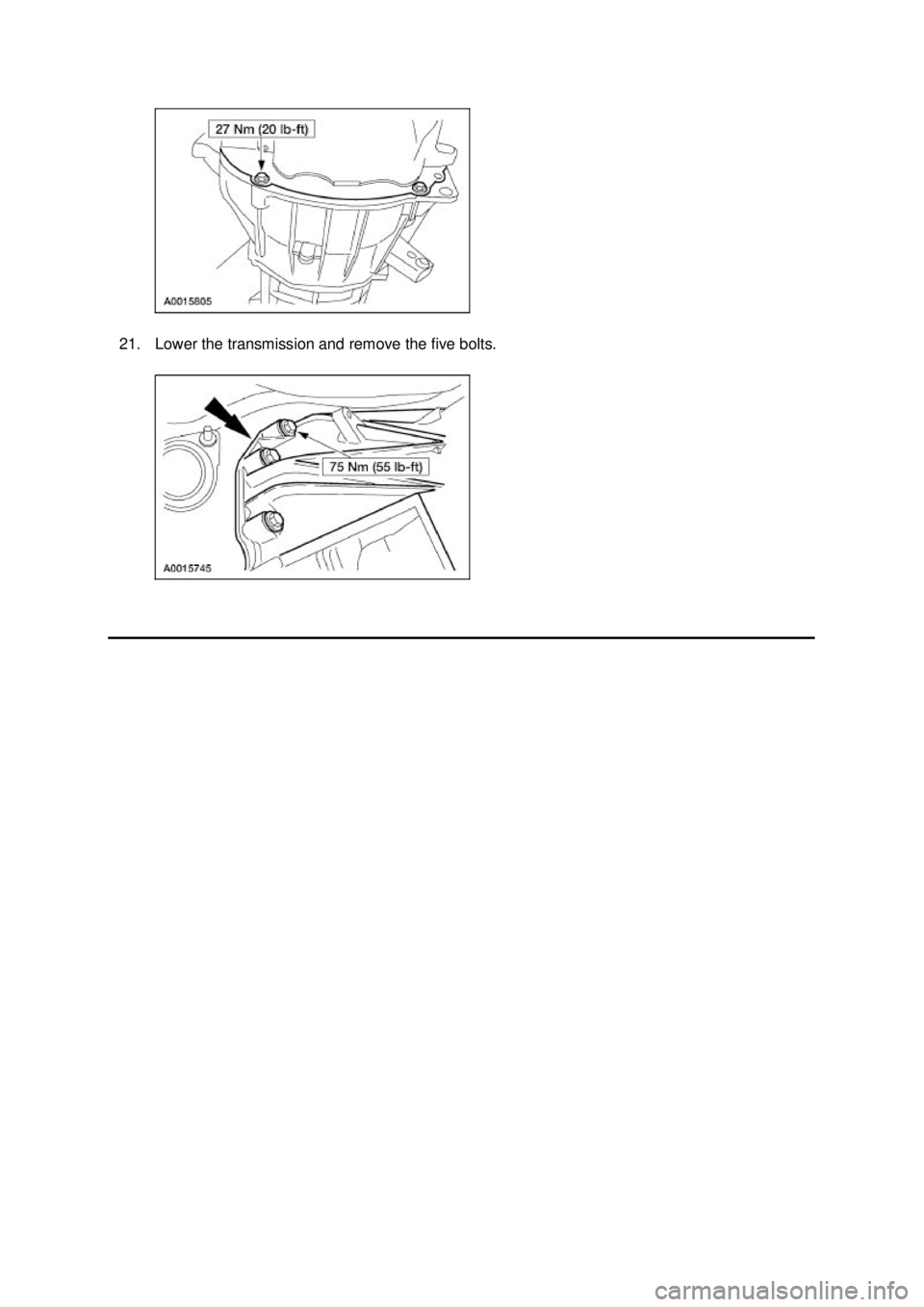

FORD MUSTANG 2003 Workshop Manual 21. Lower the transmission and remove the five bolts. Klj . 5 ba 52003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2781 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY Transmission Disassembly NOTE: During disassembly, if any roll pins, retaining rings or bearings are removed, install new components. Install bearings and bearing cups as a set. 1. R

Page 2782 of 4378

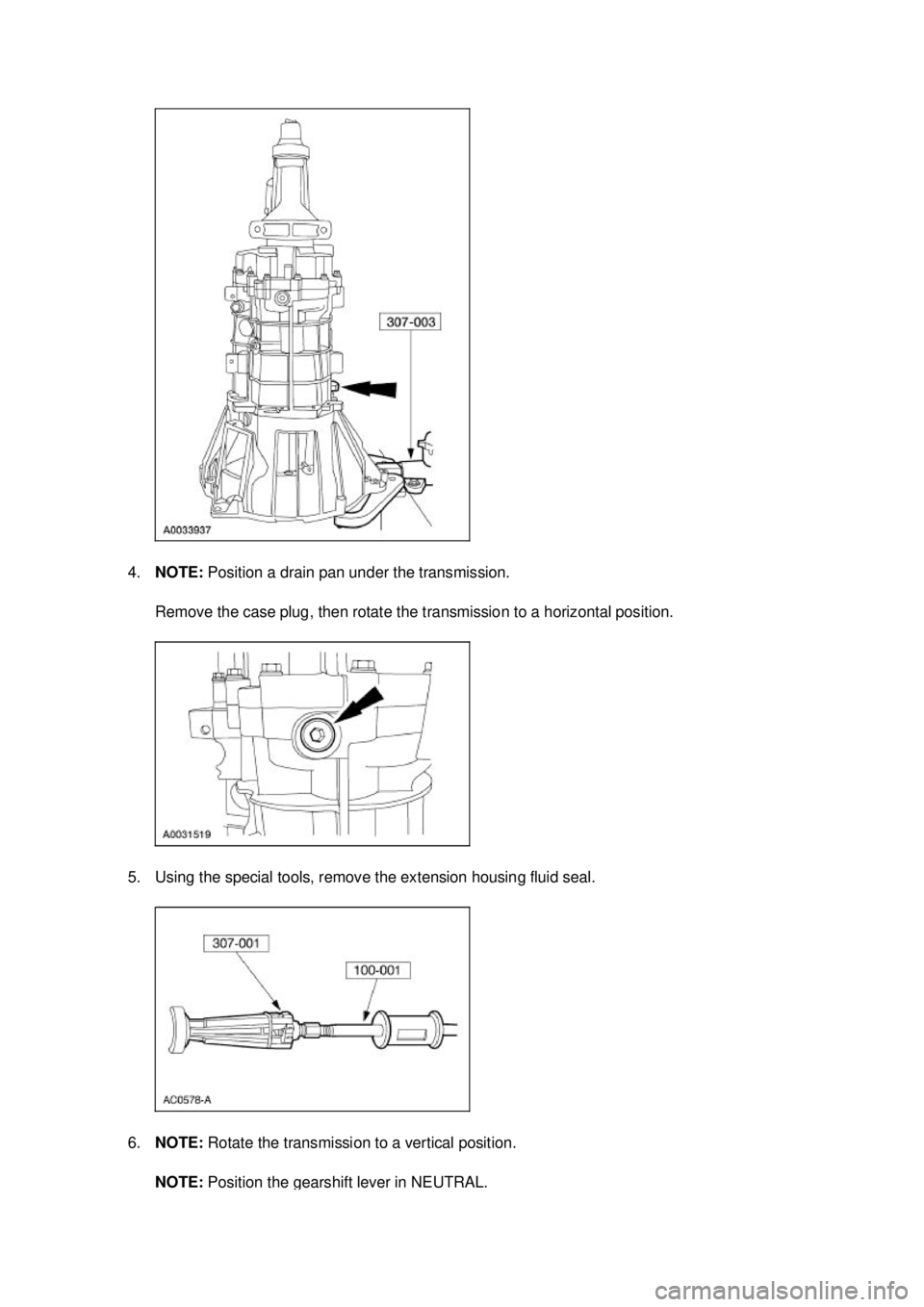

FORD MUSTANG 2003 Workshop Manual 4. NOTE: Position a drain pan under the transmission. Remove the case plug, then rotate the transmission to a horizontal position. 5. Using the special tools, remove the extension housing fluid sea

Page 2783 of 4378

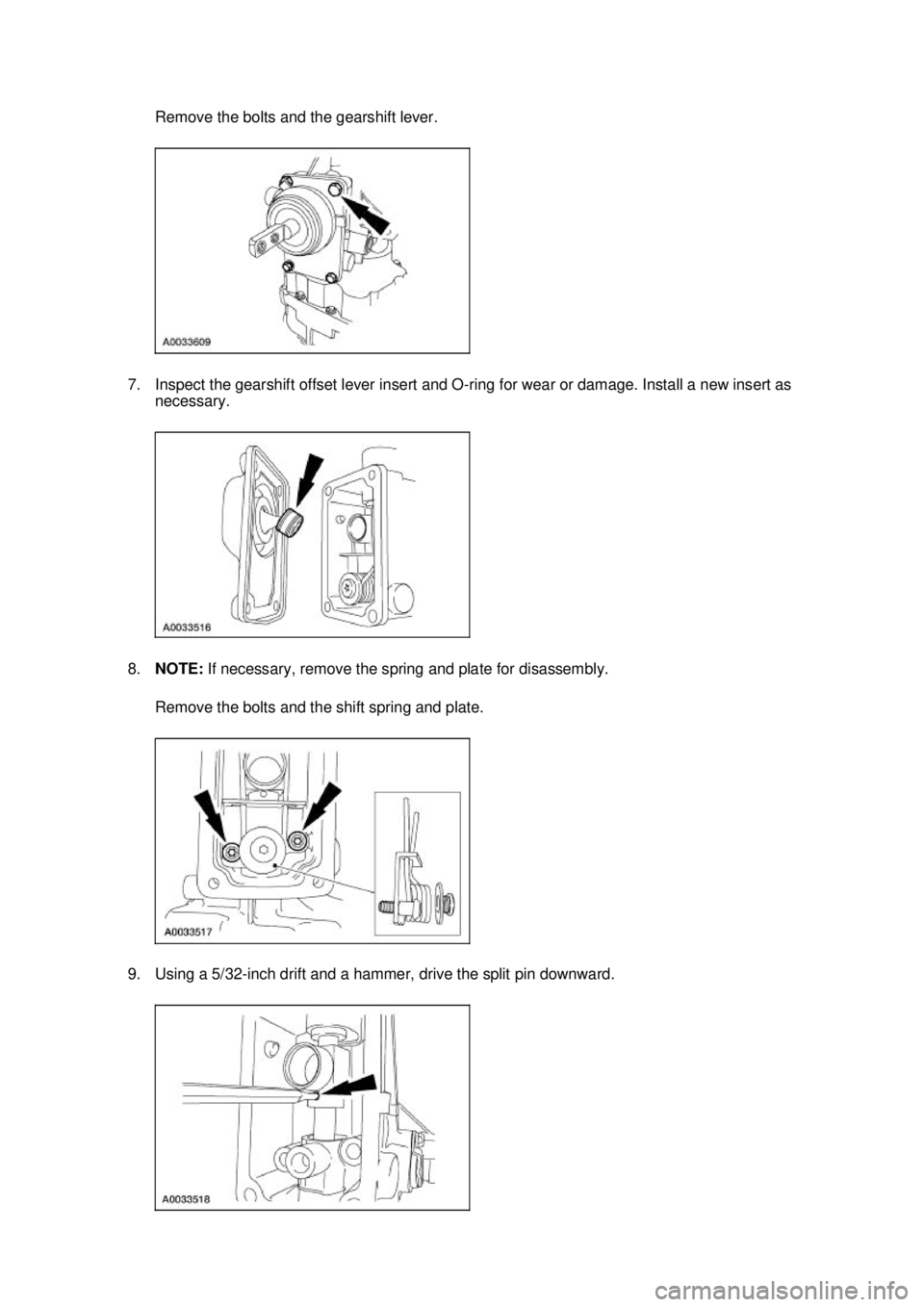

FORD MUSTANG 2003 Workshop Manual Remove the bolts and the gearshift lever. 7. Inspect the gearshift offset lever insert and O- ring for wear or damage. Install a new insert as necessary. 8. NOTE: If necessary, remove the spring a

Page 2784 of 4378

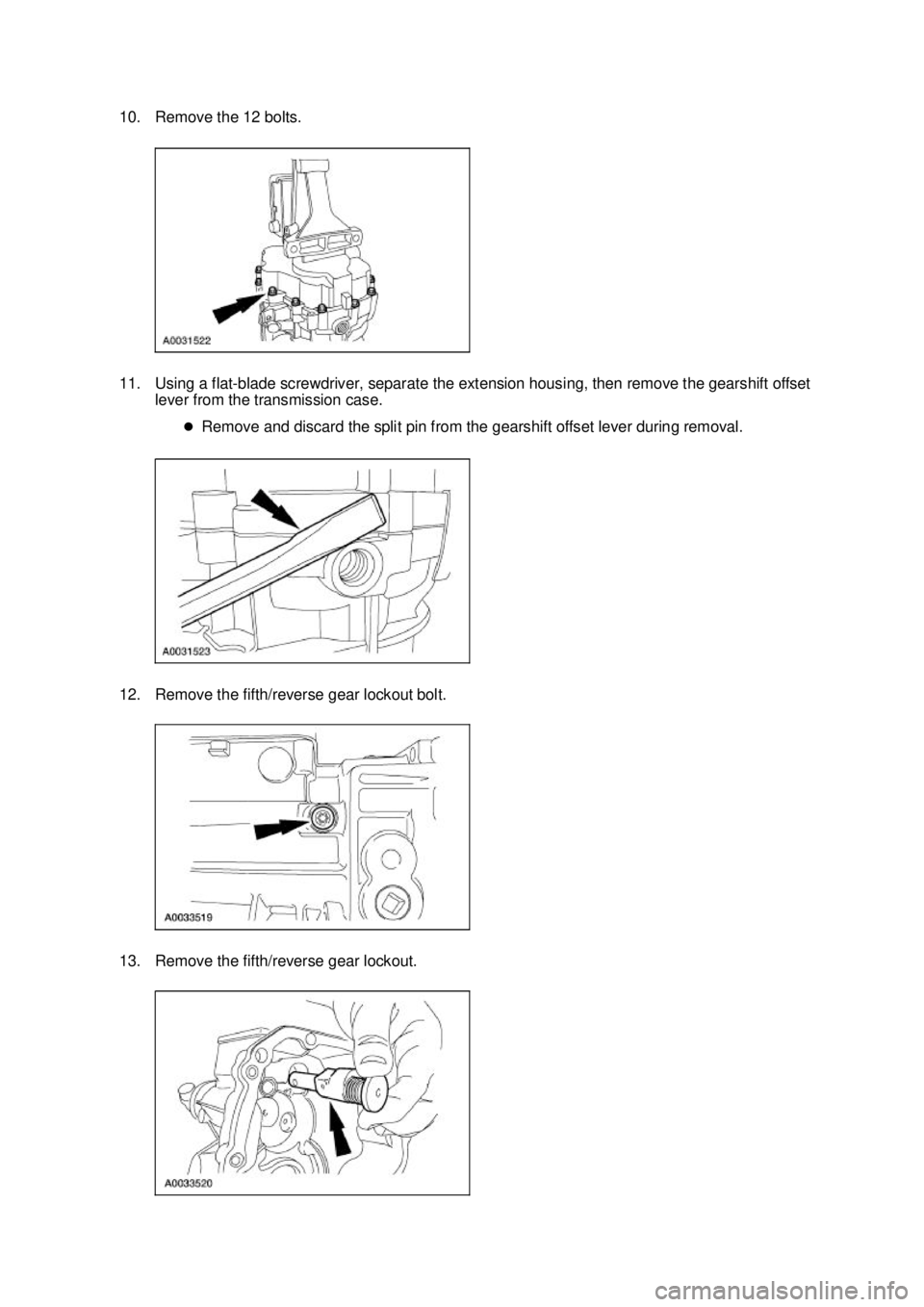

FORD MUSTANG 2003 Workshop Manual 10. Remove the 12 bolts. 11. Using a flat- blade screwdriver, separate the extension housing, then remove the gearshift offset lever from the transmission case. �zRemove and discard the split pin f
