Page 2577 of 4378

FORD MUSTANG 2003 Workshop Manual INSTALLATION Transmission 1. CAUTION: During this move, to avoid damage, do not allow the transmission to get into a nose- down position as this will cause the torque converter to move forward and

Page 2578 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Install the bolts. 5. Install the bolt. 6. Install the bolts. 7. Install the bolts. Klj . 2 ba 72003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S

Page 2579 of 4378

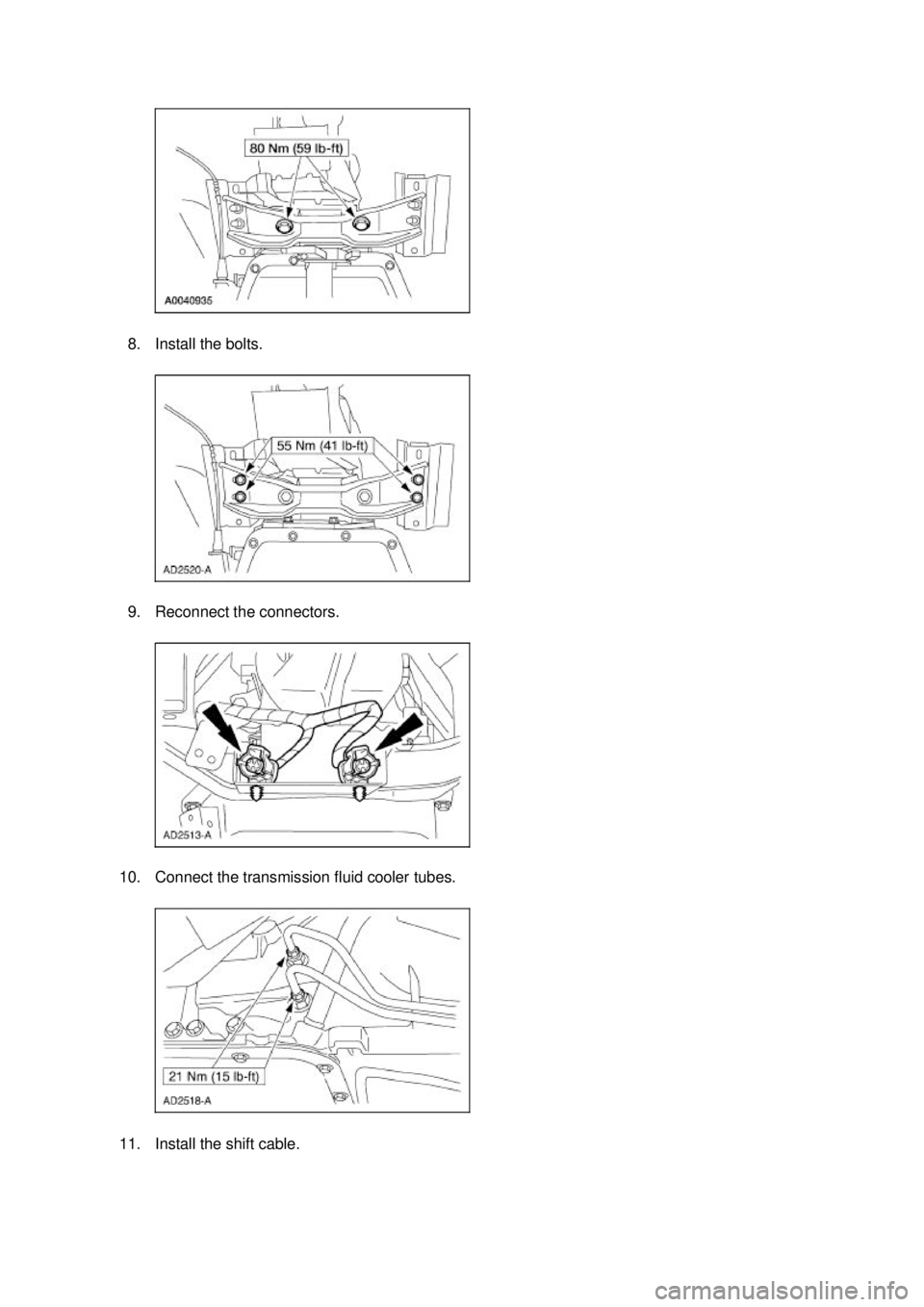

FORD MUSTANG 2003 Workshop Manual 8. Install the bolts. 9. Reconnect the connectors. 10. Connect the transmission fluid cooler tubes. 11. Install the shift cable. Klj . 3 ba 72003 Mustang Workshop Manual 18. 11. 2011file:/

Page 2580 of 4378

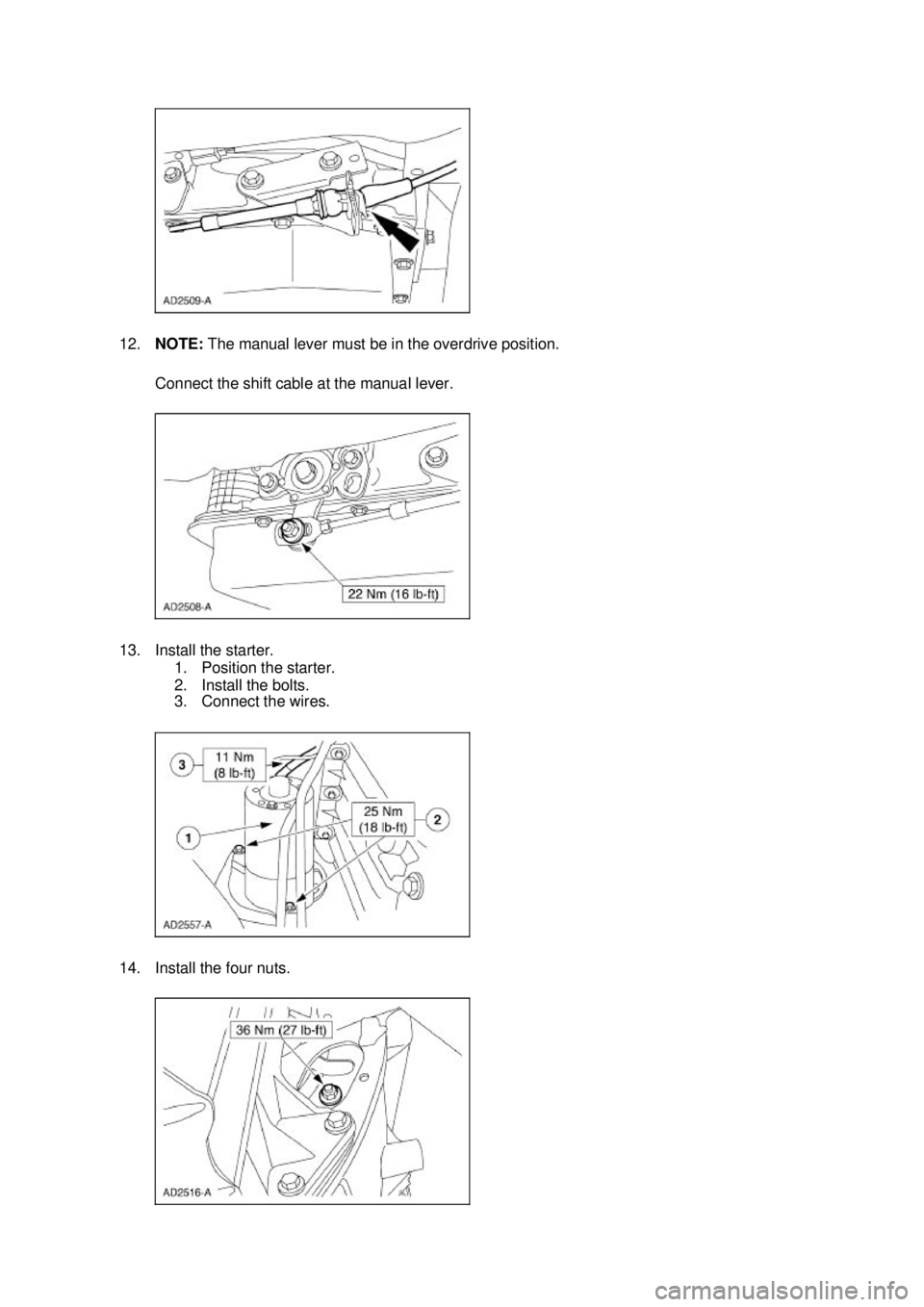

FORD MUSTANG 2003 Workshop Manual 12. NOTE: The manual lever must be in the overdrive position. Connect the shift cable at the manual lever. 13. Install the starter. 1. Position the starter. 2. Install the bolts. 3. Connect the

Page 2581 of 4378

FORD MUSTANG 2003 Workshop Manual 15. Install the cover. 16. Reconnect the connector. 17. Reconnect the connector. 18. Install the dual converter Y pipe. 19. NOTE: The output shaft and the drive shaft are a balanced assembly. In

Page 2582 of 4378

FORD MUSTANG 2003 Workshop Manual 20. Install the bolts. 21. Connect the connector. 22. Use the following guidelines for the in- line transmission fluid filter: �z If the transmission was overhauled and the vehicle was equipped wit

Page 2583 of 4378

FORD MUSTANG 2003 Workshop Manual 23. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mile

Page 2584 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 307- 02: Transaxle/Transmission Cooling 2003 Mustang Workshop Manual General Specifications Item Specification Fluid MERCON® V Automatic Transmission Fluid XT -5-QM MERC
