FORD MUSTANG 2003 Workshop Manual 27. Install a retaining clip on the tensioner to hold the plunger in during installation. 28. Remove the tensioner from the vise. 29. If the copper links are not visible, mark two links on one end a

Page 1802 of 4378

FORD MUSTANG 2003 Workshop Manual position. Rotate the RH camshaft timing sprocket until the timing mark is at approximately 11 oclock position. 32. CAUTION: Unless otherwise instructed, at no time when the timing chains are remo

Page 1803 of 4378

FORD MUSTANG 2003 Workshop Manual 35. NOTE: If necessary, adjust the camshaft sprocket slightly to obtain timing mark alignment. Position the RH timing chain on the camshaft sprocket. Make sure the two copper- colored links align w

Page 1804 of 4378

FORD MUSTANG 2003 Workshop Manual 39. Position the crankshaft sensor ring on the crankshaft. 40. Install the oil pan and gasket and loosely install the bolts. 41. Tighten the bolts in the sequence shown. �zTighten to 20 Nm (15 lb-

Page 1805 of 4378

FORD MUSTANG 2003 Workshop Manual 43. NOTE: If the engine front cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of w

Page 1806 of 4378

FORD MUSTANG 2003 Workshop Manual 45. Tighten the four oil pan bolts in the sequence shown. �zStage 1: Tighten to 2 Nm (18 lb- in). �z Stage 2: Tighten to 20 Nm (15 lb- ft). �z Stage 3: Tighten an additional 60 degrees. 46. Instal

Page 1807 of 4378

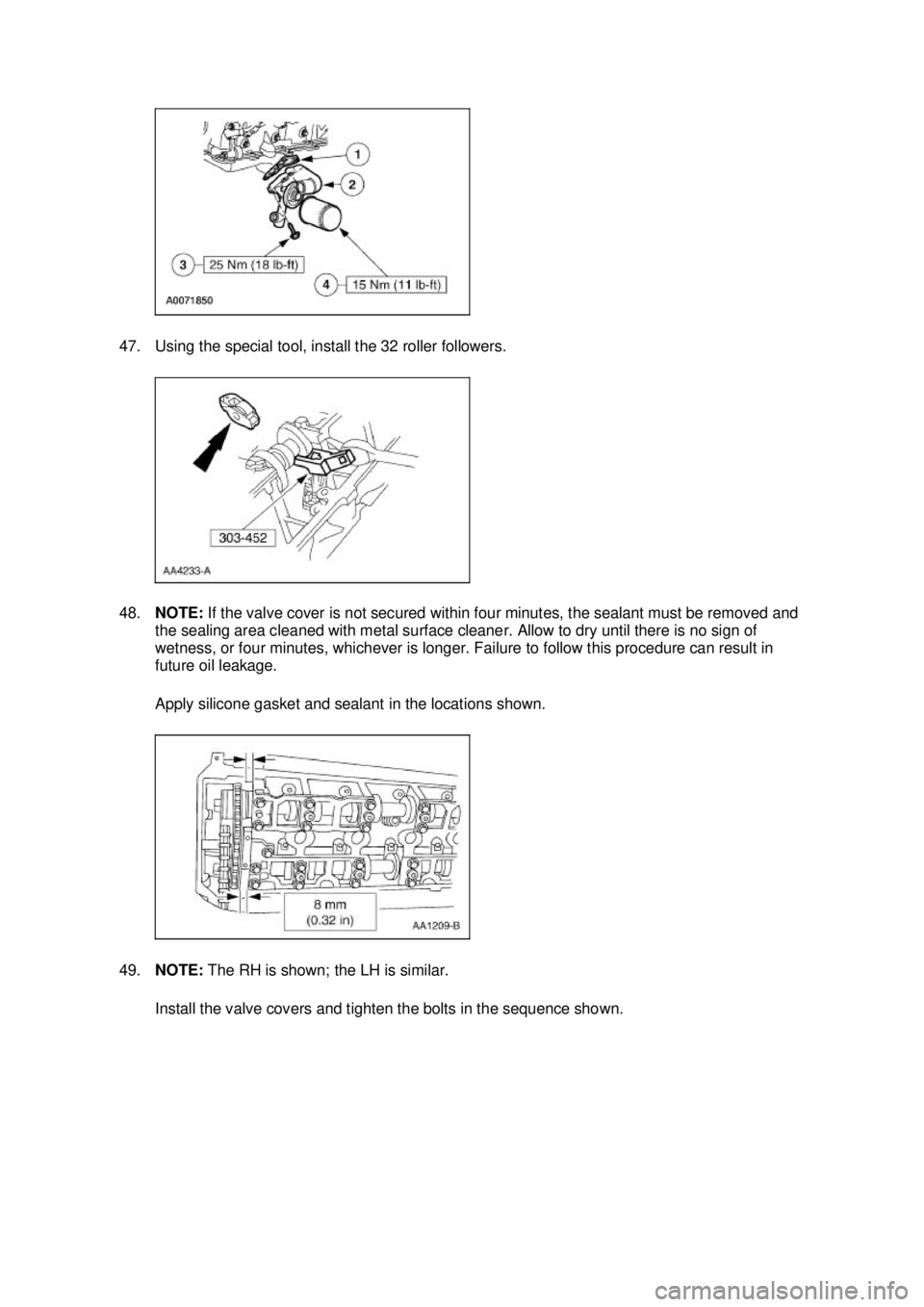

FORD MUSTANG 2003 Workshop Manual 47. Using the special tool, install the 32 roller followers. 48. NOTE: If the valve cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal sur

Page 1808 of 4378

FORD MUSTANG 2003 Workshop Manual 50. Install the belt idler pulleys. 51. Lubricate the front oil seal and the engine front cover with clean engine oil. 52. Using the special tool, install the front oil seal. Klj . 18 ba 30
