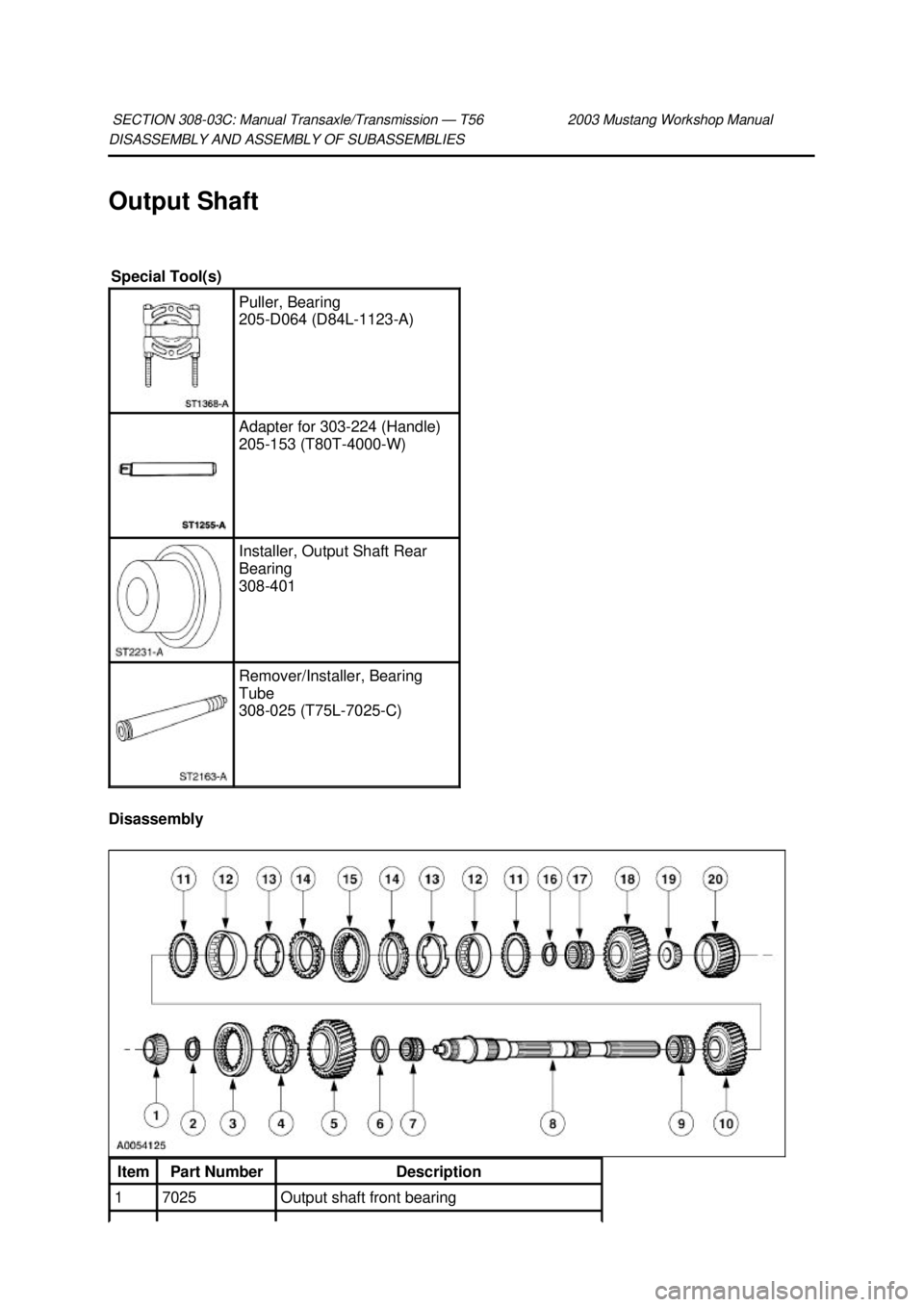

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Output Shaft Disassembly SECTION 308- 03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual Special Tool(s) Puller, Bearing 205- D064

Page 2874 of 4378

FORD MUSTANG 2003 Workshop Manual 1. CAUTION: Hand tighten the special tool to prevent gear damage. CAUTION: Support the output shaft while using the press to prevent damage to the shaft or gears. Using the special tool and a pre

Page 2875 of 4378

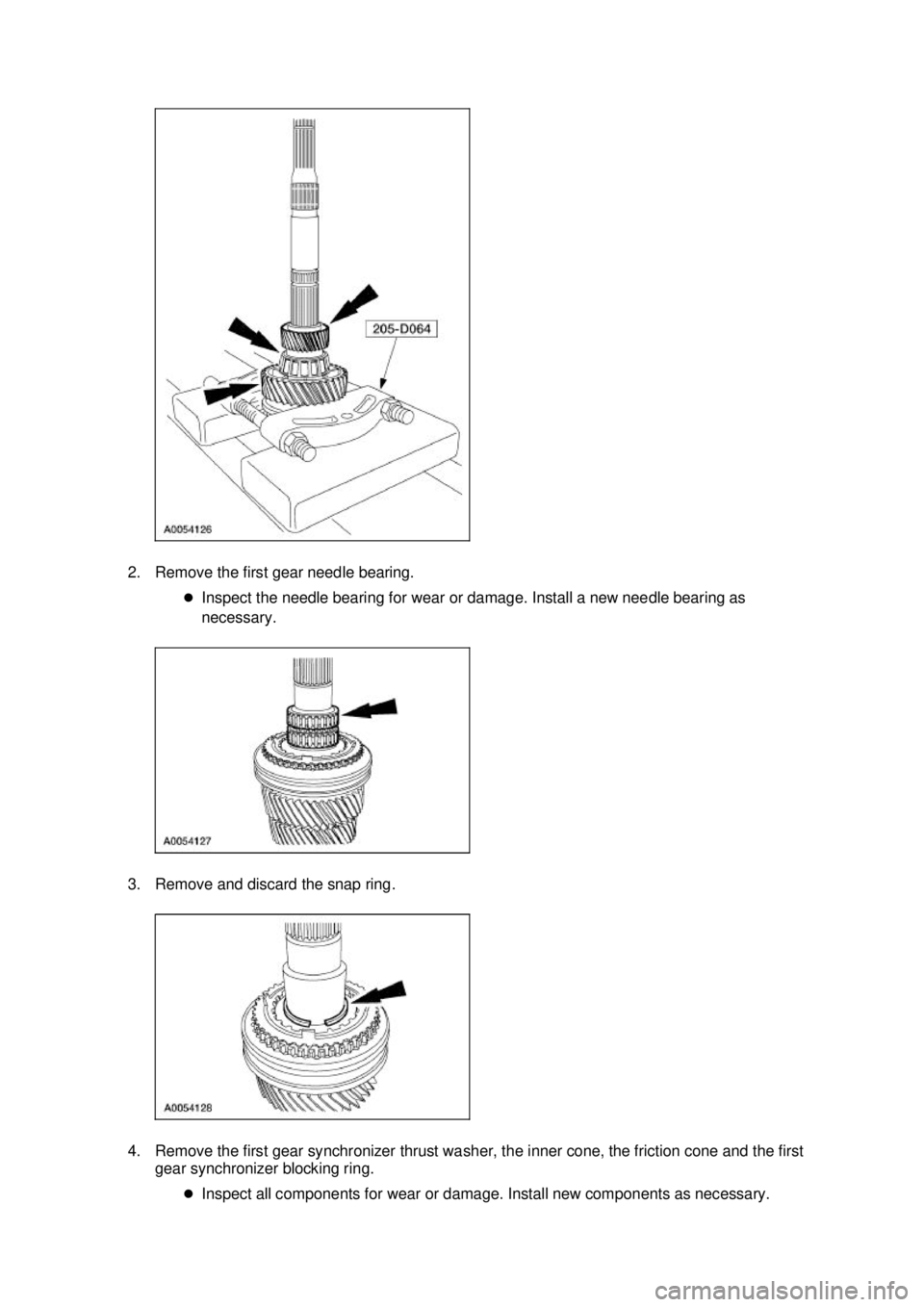

FORD MUSTANG 2003 Workshop Manual 2. Remove the first gear needle bearing. �zInspect the needle bearing for wear or damage. Install a new needle bearing as necessary. 3. Remove and discard the snap ring. 4. Remove the first gear s

Page 2876 of 4378

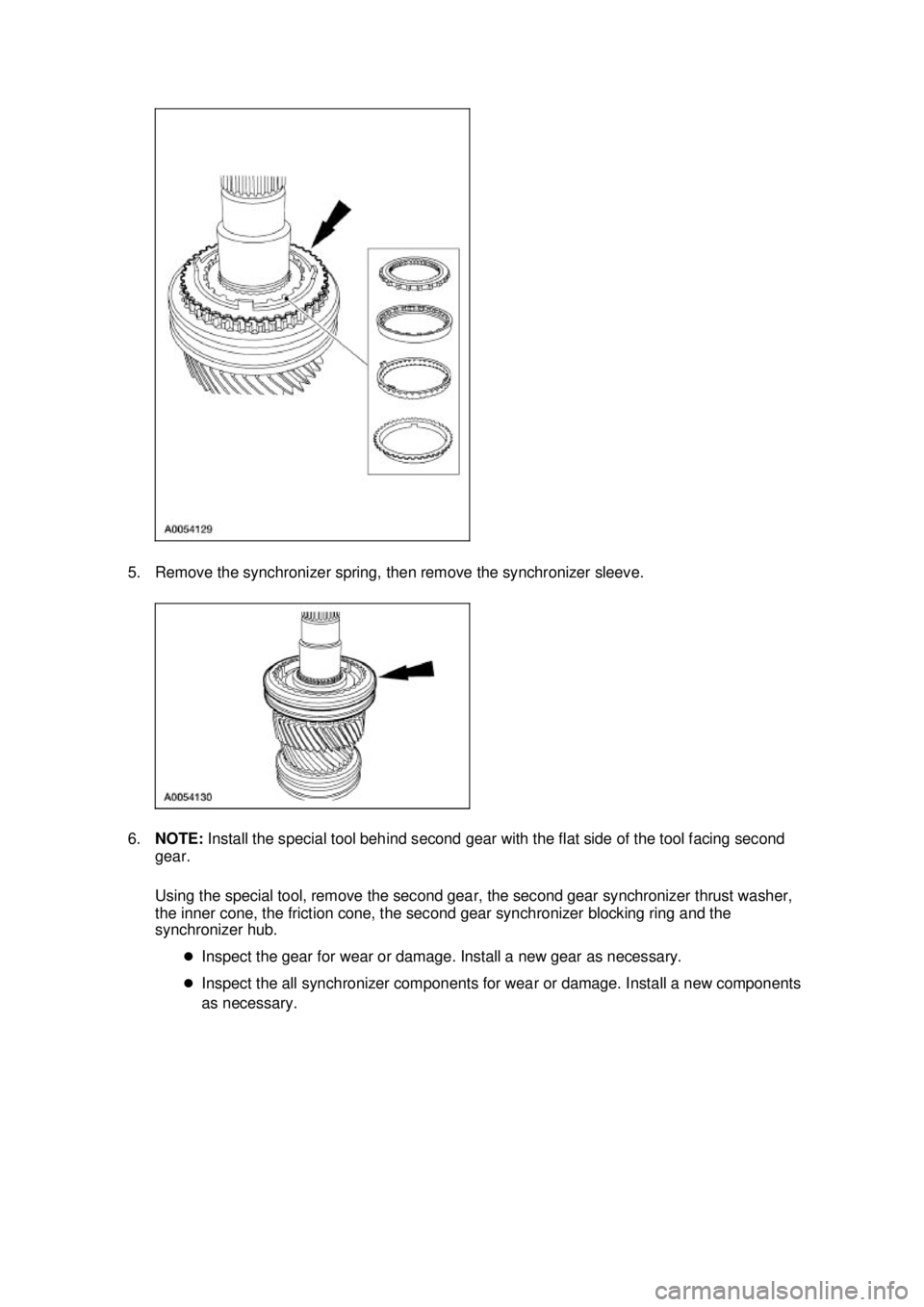

FORD MUSTANG 2003 Workshop Manual 5. Remove the synchronizer spring, then remove the synchronizer sleeve. 6. NOTE: Install the special tool behind second gear with the flat side of the tool facing second gear. Using the special to

Page 2877 of 4378

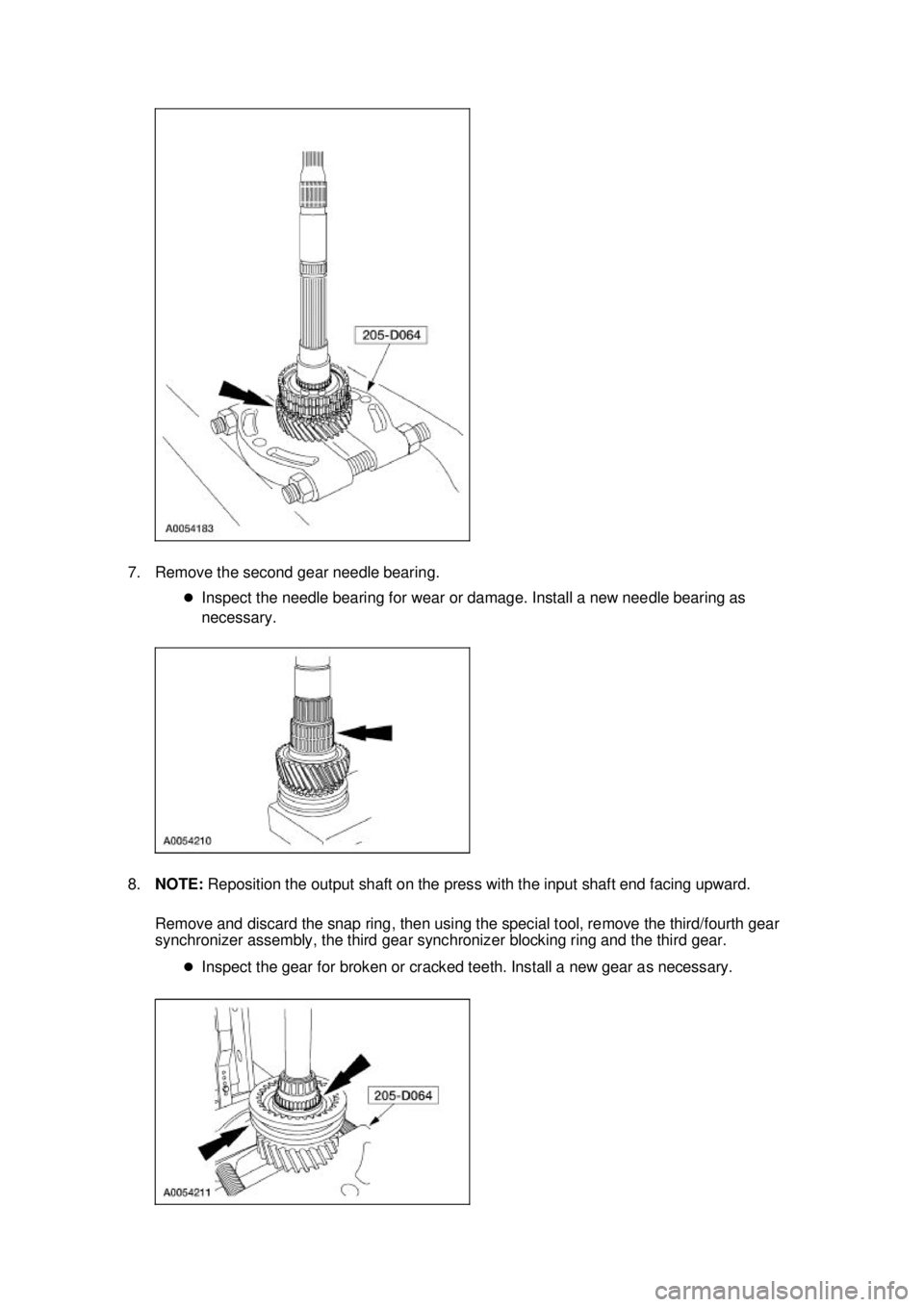

FORD MUSTANG 2003 Workshop Manual 7. Remove the second gear needle bearing. �zInspect the needle bearing for wear or damage. Install a new needle bearing as necessary. 8. NOTE: Reposition the output shaft on the press with the inp

Page 2878 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Remove the third gear needle bearing. �zInspect the needle bearing for wear or damage. Install a new needle bearing as necessary. 10. NOTE: Install the special tool with the flat side facing th

Page 2879 of 4378

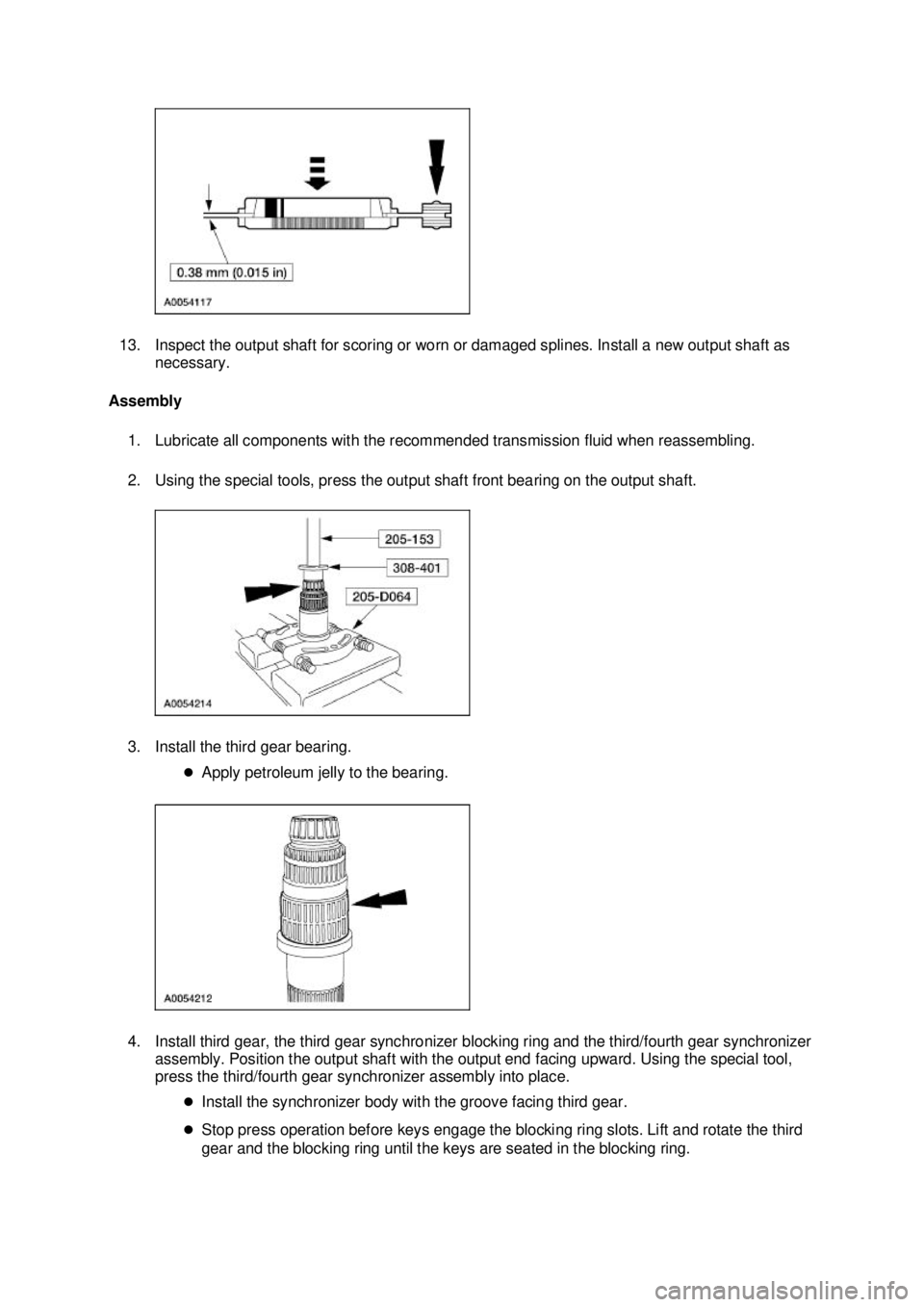

FORD MUSTANG 2003 Workshop Manual 13. Inspect the output shaft for scoring or worn or damaged splines. Install a new output shaft as necessary. Assembly 1. Lubricate all components with the recommended transmission fluid when reass

Page 2880 of 4378

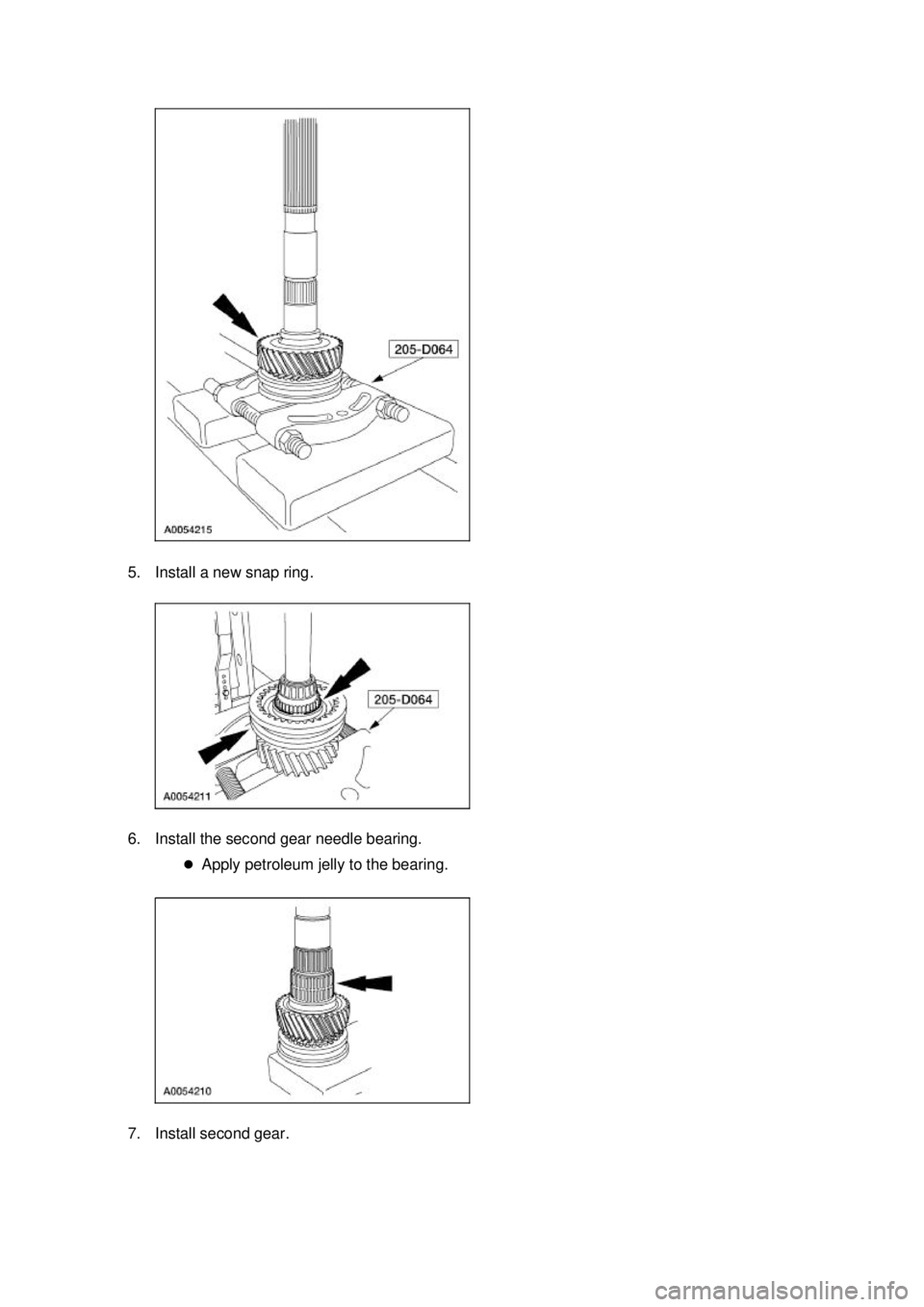

FORD MUSTANG 2003 Workshop Manual 5. Install a new snap ring. 6. Install the second gear needle bearing. �zApply petroleum jelly to the bearing. 7. Install second gear. Klj . 8 ba 122003 Mustang Workshop Manual 18. 11. 201
