Page 2761 of 4378

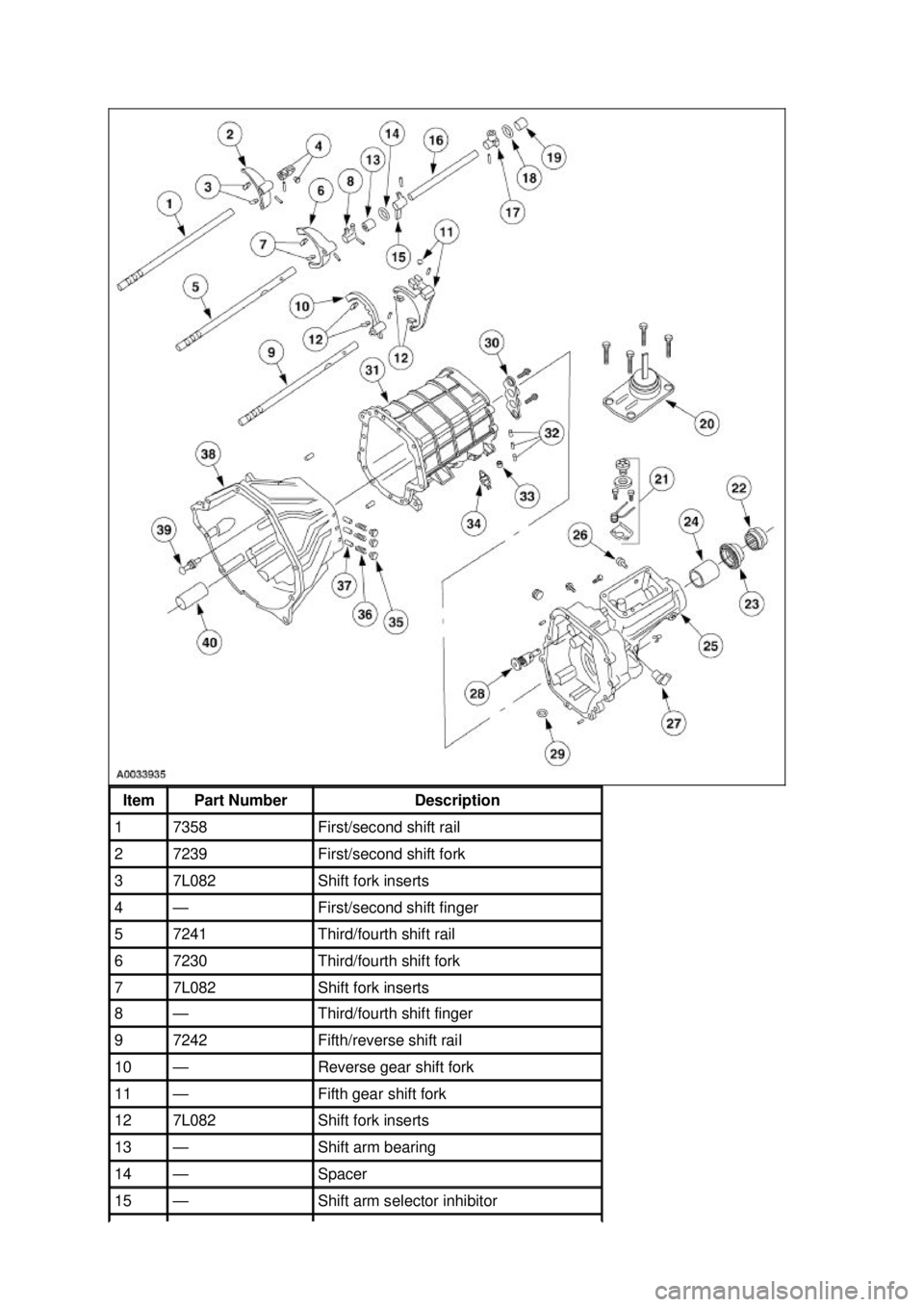

FORD MUSTANG 2003 Workshop Manual Transmission Case and Shift Components — Disassembled View 45 — Selector gate 46 7025 Mainshaft rear bearing and cup 47 7K316 Mainshaft fifth gear 48 — Retaining ring 49 7H150 Outpu

Page 2762 of 4378

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 7358 First/second shift rail 2 7239 First/second shift fork 3 7L082 Shift fork inserts 4 — First/second shift finger 5 7241 Third/fourth shift rail 6

Page 2763 of 4378

FORD MUSTANG 2003 Workshop Manual Transmission Identification The transmission identification tag is located under the lower bolt that retains the extension housing to the main case. The five speed overdrive (TR3650) transmission i

Page 2764 of 4378

FORD MUSTANG 2003 Workshop Manual Item Number Description 1 — Transmission assembly number 2 — Build date code— month 3 — Build date code— day 4 — Build date code— year 5 — Shift number 6 — Serial number

Page 2765 of 4378

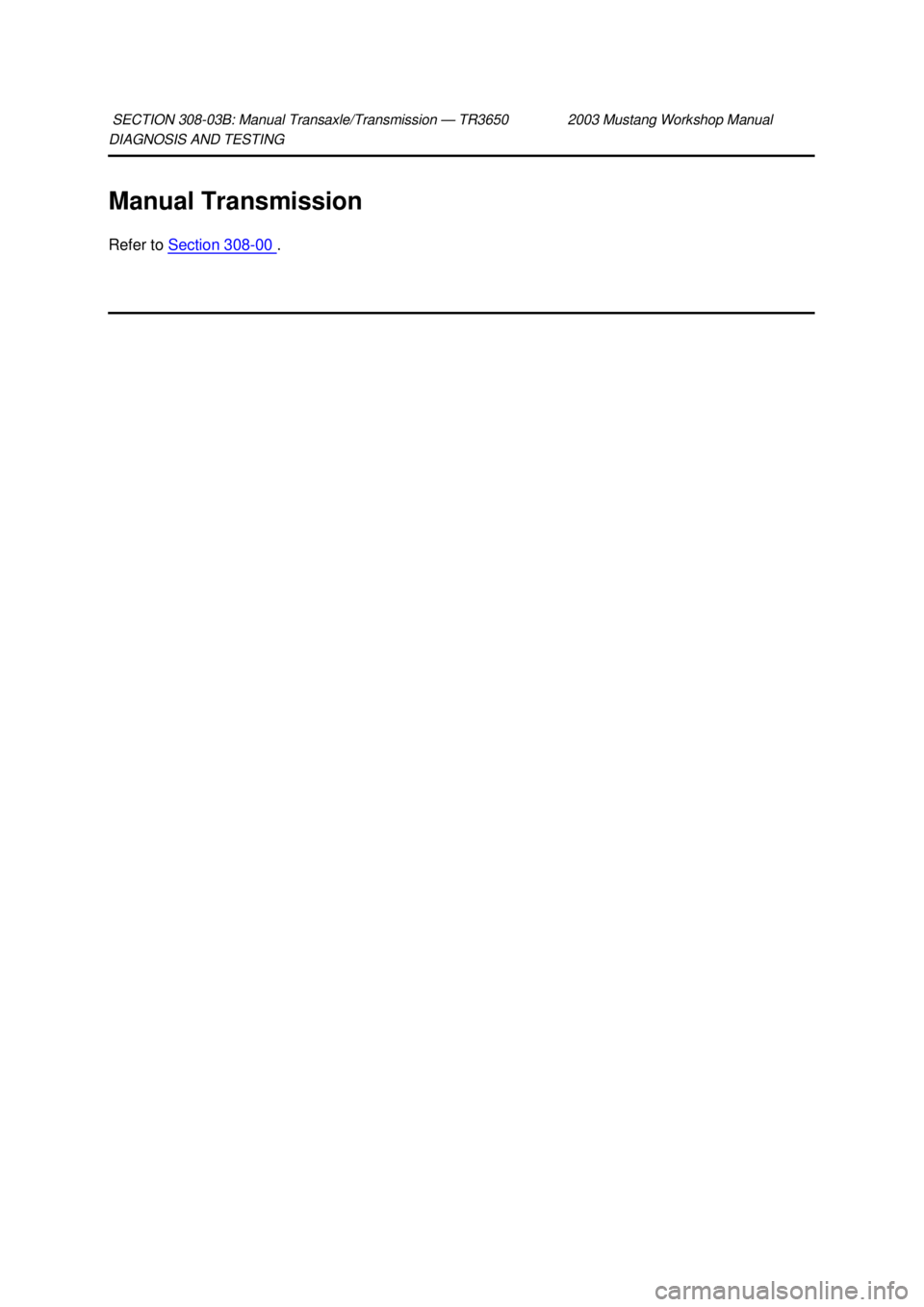

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Manual Transmission Refer to Section 308 - 00 . SECTION 308- 03B: Manual Transaxle/Transmission — TR3650 2003 Mustang Workshop Manual Klj . 1 ba 12003 Mustang Wor

Page 2766 of 4378

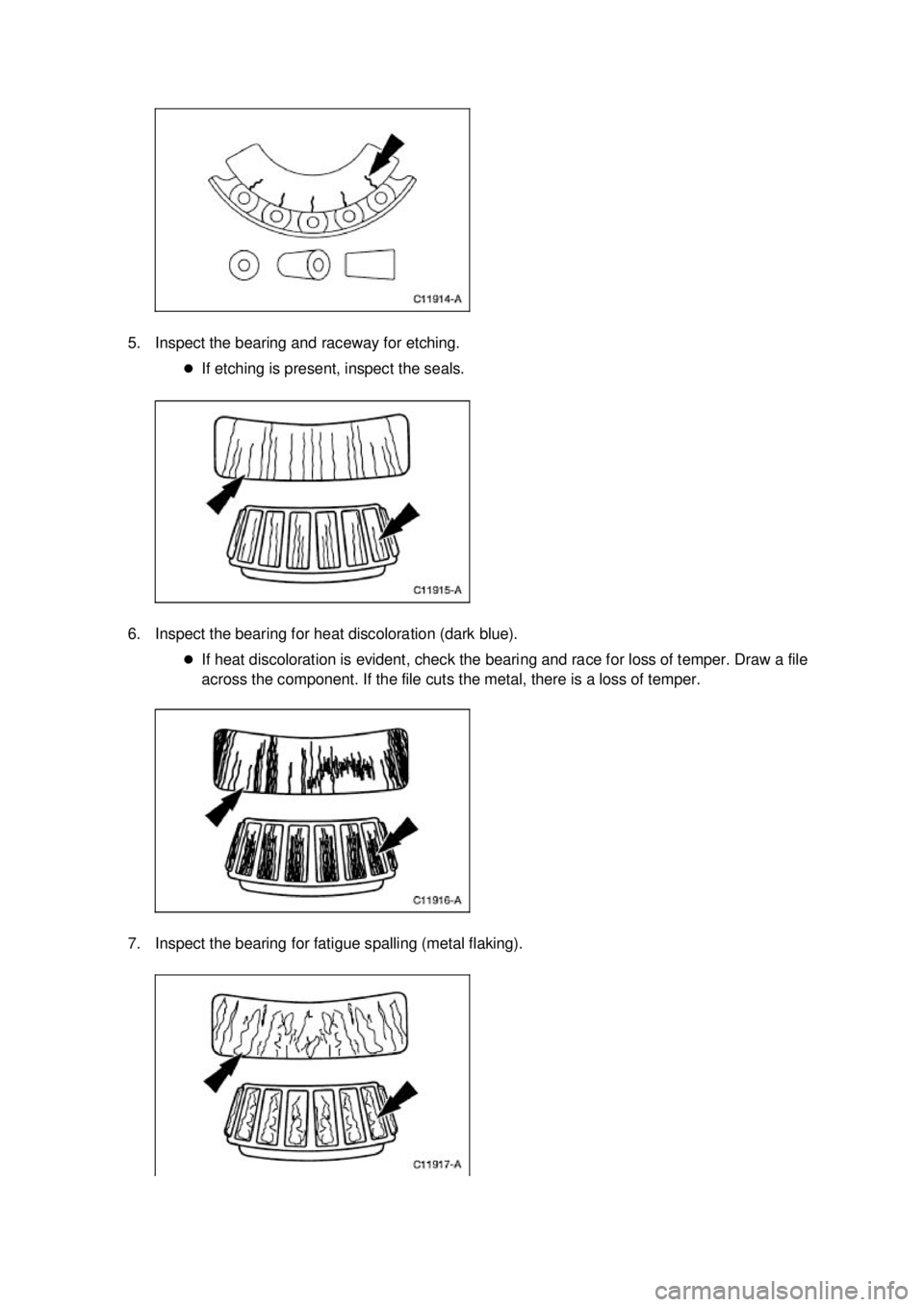

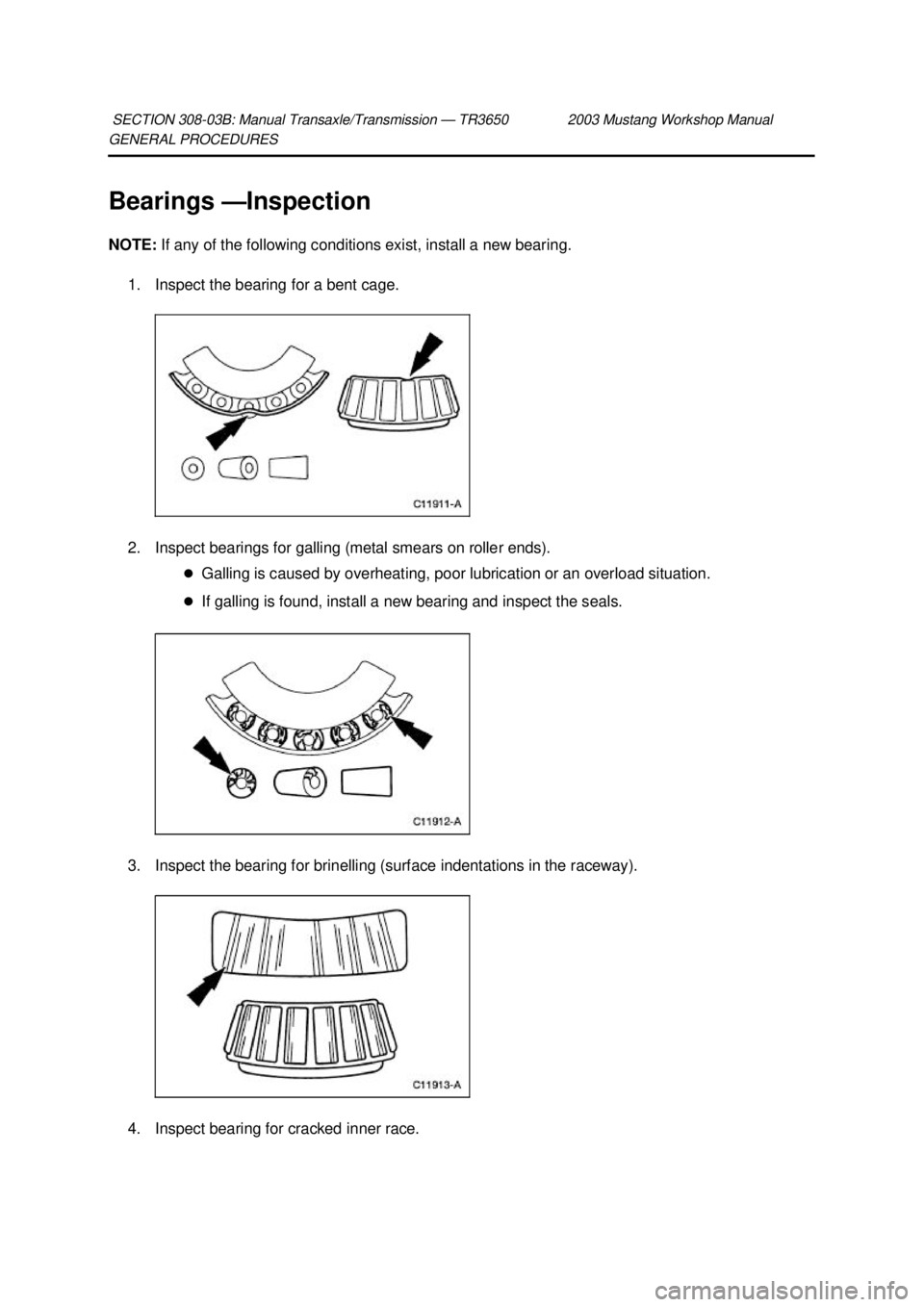

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Bearings — Inspection NOTE: If any of the following conditions exist, install a new bearing. 1. Inspect the bearing for a bent cage. 2. Inspect bearings for galling (metal sm

Page 2767 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Inspect the bearing and raceway for etching. �zIf etching is present, inspect the seals. 6. Inspect the bearing for heat discoloration (dark blue). �zIf heat discoloration is evident, check the

Page 2768 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
