GENERAL PROCEDURES

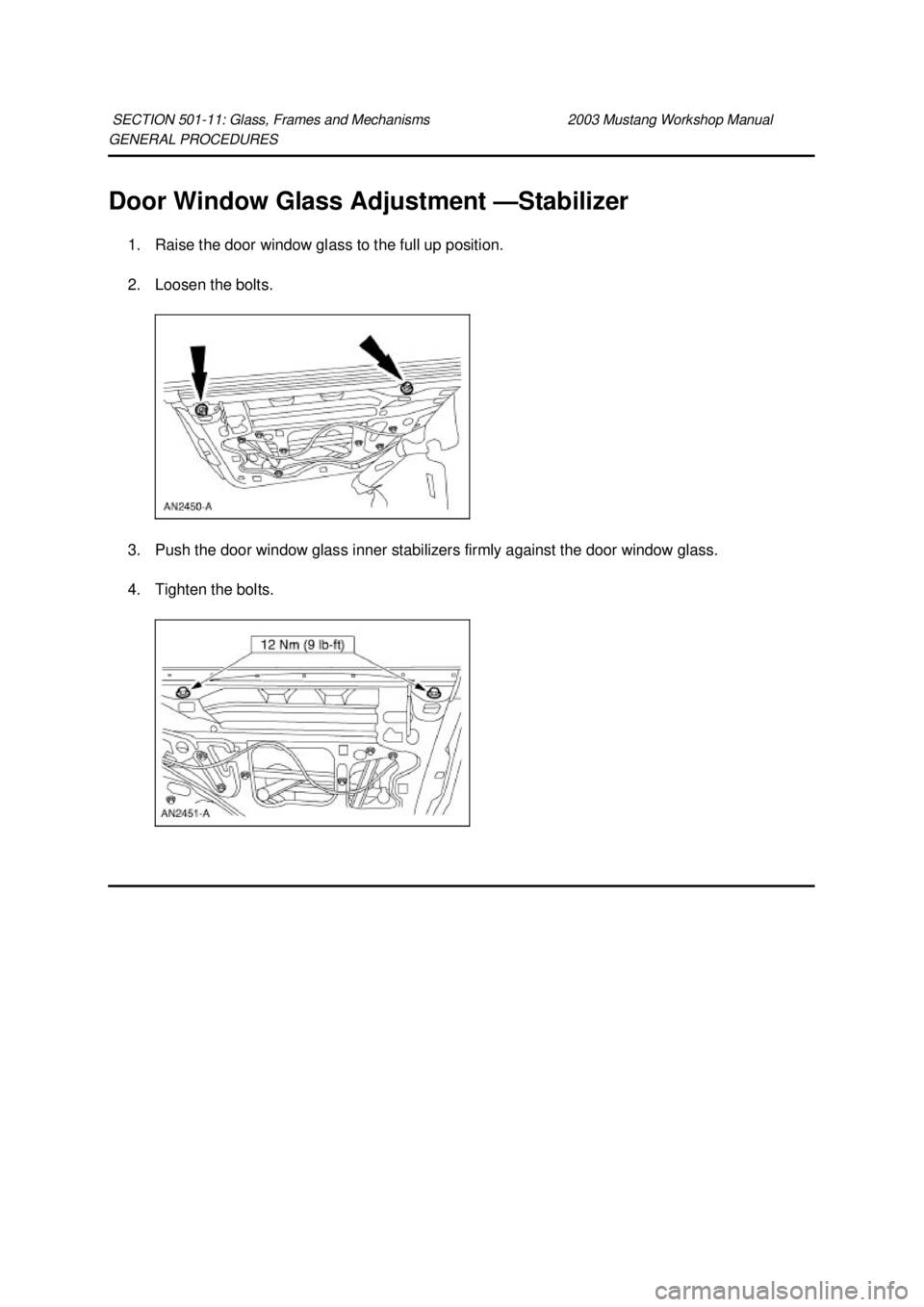

Door Window Glass Adjustment —
Stabilizer
1. Raise the door window glass to the full up position.
2. Loosen the bolts.
3. Push the door window glass inner stabilizers firmly against the door window glass.
4. Tighten the bolts.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3755 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3756 of 4378
GENERAL PROCEDURES

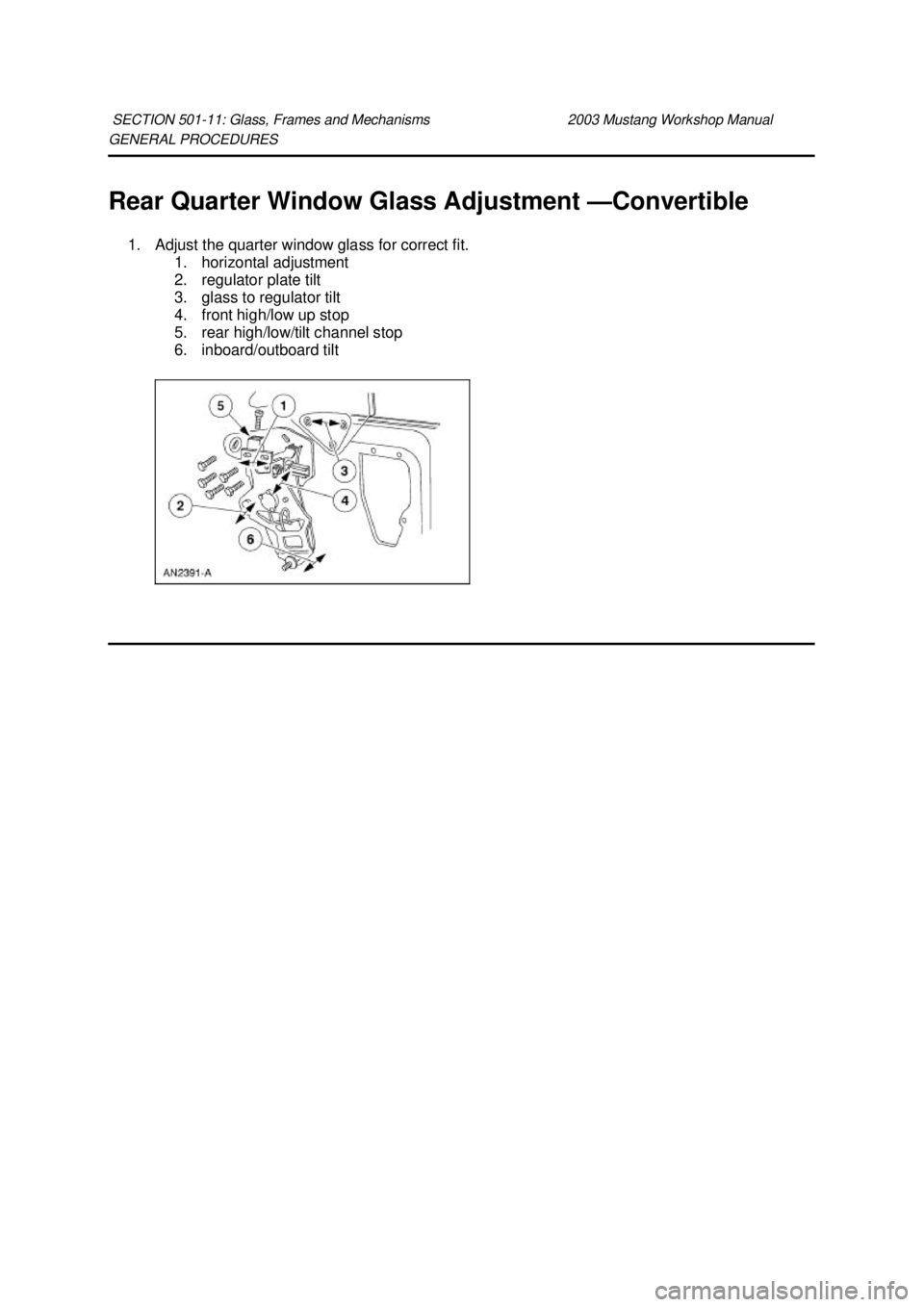

Rear Quarter Window Glass Adjustment —
Convertible
1. Adjust the quarter window glass for correct fit. 1. horizontal adjustment
2. regulator plate tilt
3. glass to regulator tilt
4. front high/low up stop
5. rear high/low/tilt channel stop
6. inboard/outboard tilt
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3757 of 4378
REMOVAL AND INSTALLATION
Switch —
Window Regulator Control
Removal
1. CAUTION: Use a shop towel or similar material between the tool and the door trim
panel or damage to the door trim panel may occur.
Position the window regulator switch plate aside. 1. Pull at the service notch.
2. Lift to release the clip at the rear edge.
2. Remove the window regulator control switch. 1. Remove the screws.
2. Disconnect the connectors.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3758 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3759 of 4378
REMOVAL AND INSTALLATION

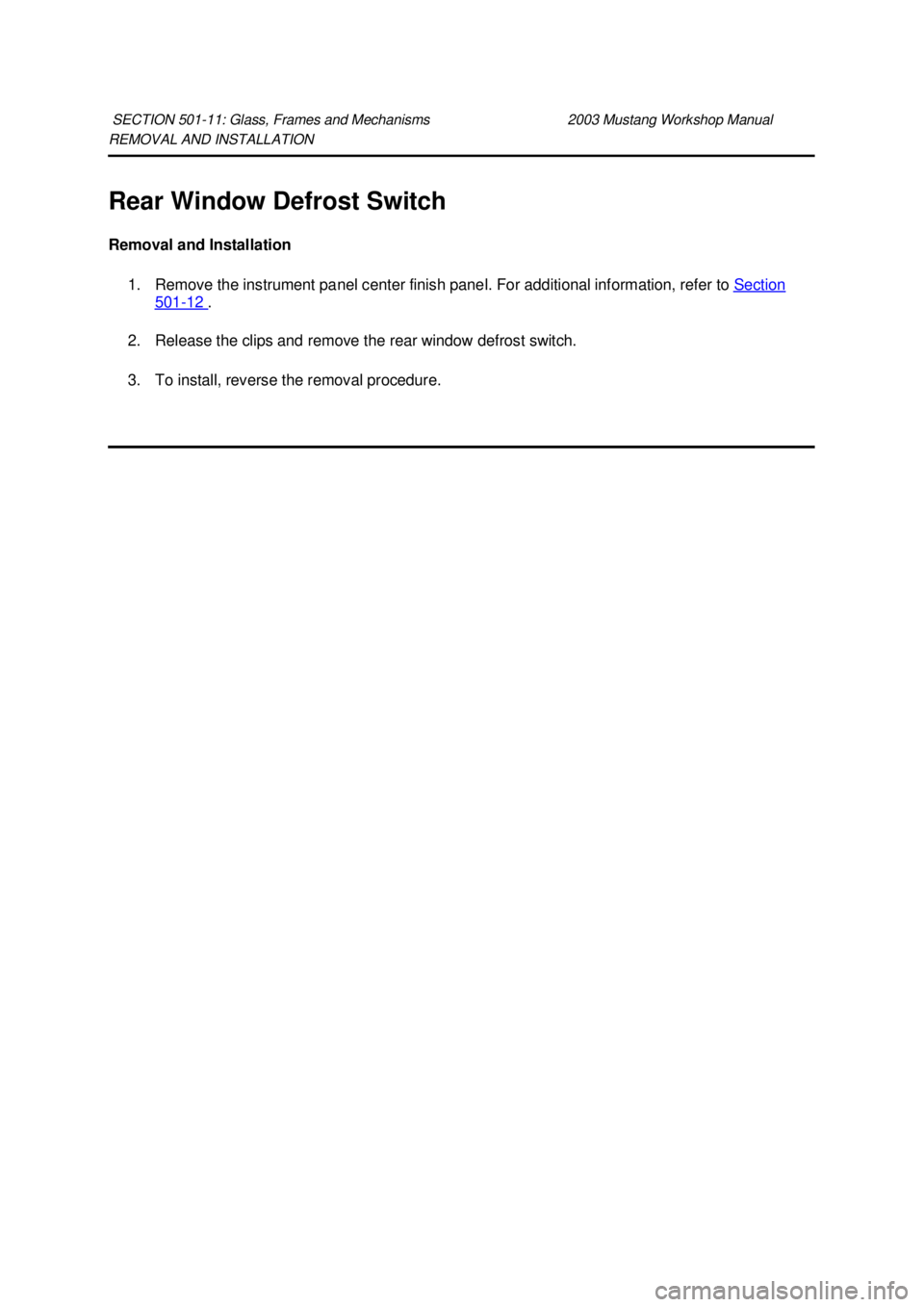

Rear Window Defrost Switch
Removal and Installation
1. Remove the instrument panel center finish panel. For additional information, refer to Section 501 - 12 .
2. Release the clips and remove the rear window defrost switch.
3. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3760 of 4378

REMOVAL AND INSTALLATION
Rear Window Glass
Removal
Convertible
1. For removal of the back window glass, refer to Section 501 - 18 .
Coupe
WARNING: To prevent glass splinters from entering eyes or cutting hands, wear safety
glasses and heavy gloves when cutting glass from the vehicle.
2. Remove the roof side trim moulding. For additional information, refer to Section 501 - 08 .
3. Lower the rear portion of the headliner.
4. Remove the outer lip of the moulding using a utility knife.
5. Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld.
6. CAUTION: Care must be taken to prevent scratching the pinch weld.
NOTE: Lubricate the existing urethane adhesive with water to aid the special tool while cutting.
Using the special tool, starting at the top center of the back window glass, cut the urethane
adhesive from the glass and work down the sides.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Special Tool(s)
Rotunda Pneumatic Knife with
Offset Blade
107-
R1511 or equivalent The Pumper
164-
R2459 or equivalent Rotunda Interior Auto Glass
Cut-
Out Knife Kit
164- R2450 or equivalent Klj . 1 ba
