Page 2169 of 4378

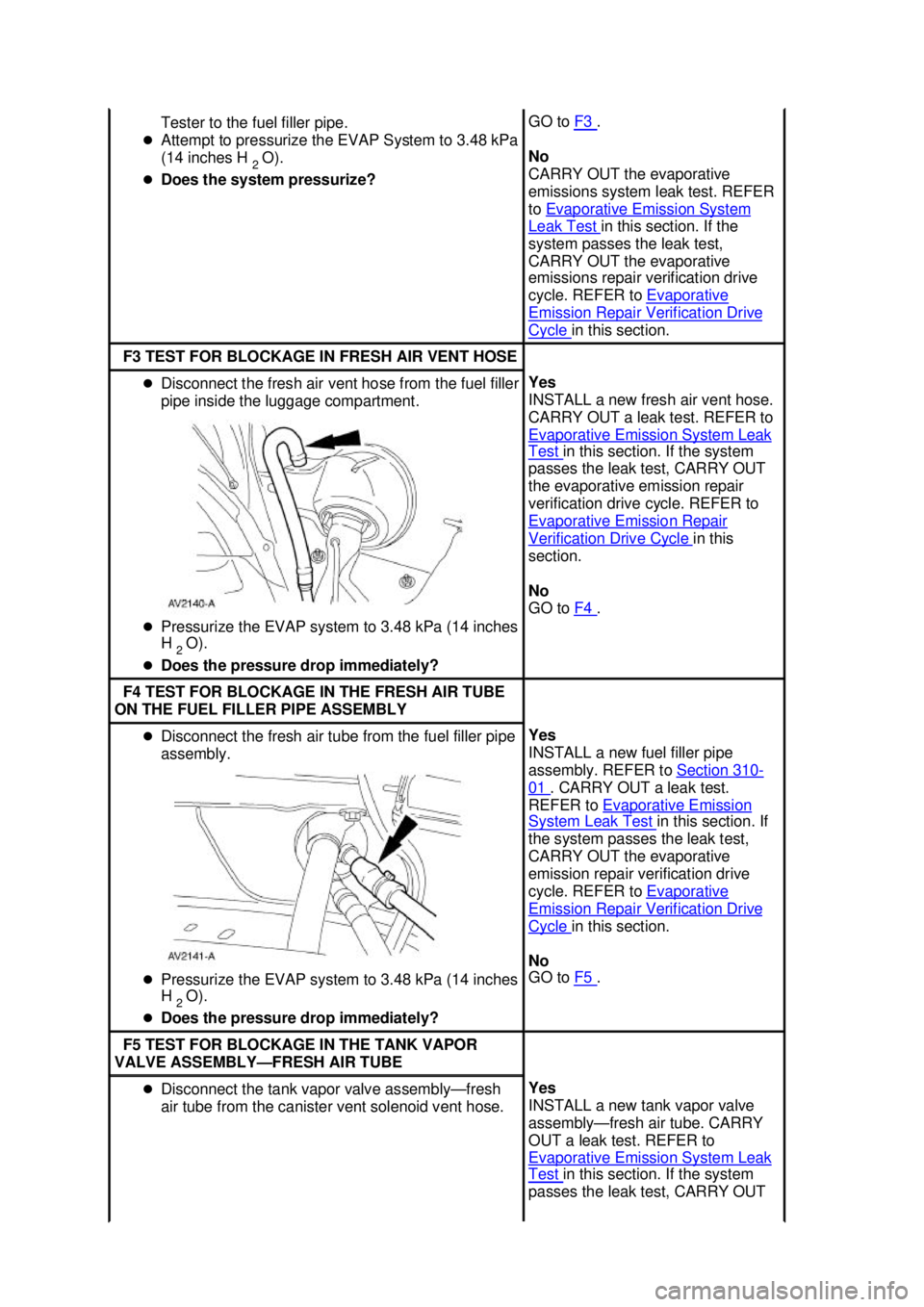

FORD MUSTANG 2003 Workshop Manual Tester to the fuel filler pipe.
�z Attempt to pressurize the EVAP System to 3.48 kPa
(14 inches H
2 O).
�z Does the system pressurize? GO to
F3 .
No
CARRY OUT the evaporative
emissions syste

Tester to the fuel filler pipe.
z Attempt to pressurize the EVAP System to 3.48 kPa
(14 inches H
2 O).
z Does the system pressurize? GO to
F3 .
No
CARRY OUT the evaporative
emissions system leak test. REFER
to Evaporative Emission System Leak Test in this section. If the
system passes the leak test,
CARRY OUT the evaporative
emissions repair verification drive
cycle. REFER to Evaporative Emission Repair Verification Drive
Cycle in this section.
F3 TEST FOR BLOCKAGE IN FRESH AIR VENT HOSE
z
Disconnect the fresh air vent hose from the fuel filler
pipe inside the luggage compartment.
z Pressurize the EVAP system to 3.48 kPa (14 inches
H
2 O).
z Does the pressure drop immediately? Yes
INSTALL a new fresh air vent hose.
CARRY OUT a leak test. REFER to
Evaporative Emission System Leak
Test in this section. If the system
passes the leak test, CARRY OUT
the evaporative emission repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this
section.
No
GO to F4 .
F4 TEST FOR BLOCKAGE IN THE FRESH AIR TUBE
ON THE FUEL FILLER PIPE ASSEMBLY z
Disconnect the fresh air tube from the fuel filler pipe
assembly.
z Pressurize the EVAP system to 3.48 kPa (14 inches
H
2 O).
z Does the pressure drop immediately? Yes
INSTALL a new fuel filler pipe
assembly. REFER to
Section 310 -
01 . CARRY OUT a leak test.
REFER to Evaporative Emission System Leak Test in this section. If
the system passes the leak test,
CARRY OUT the evaporative
emission repair verification drive
cycle. REFER to Evaporative Emission Repair Verification Drive
Cycle in this section.
No
GO to F5 .
F5 TEST FOR BLOCKAGE IN THE TANK VAPOR
VALVE ASSEMBLY— FRESH AIR TUBE z
Disconnect the tank vapor valve assembly— fresh
air tube from the canister vent solenoid vent hose. Yes
INSTALL a new tank vapor valve
assembly—
fresh air tube. CARRY
OUT a leak test. REFER to
Evaporative Emission System Leak Test in this section. If the system
passes the leak test, CARRY OUT Klj . 22 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

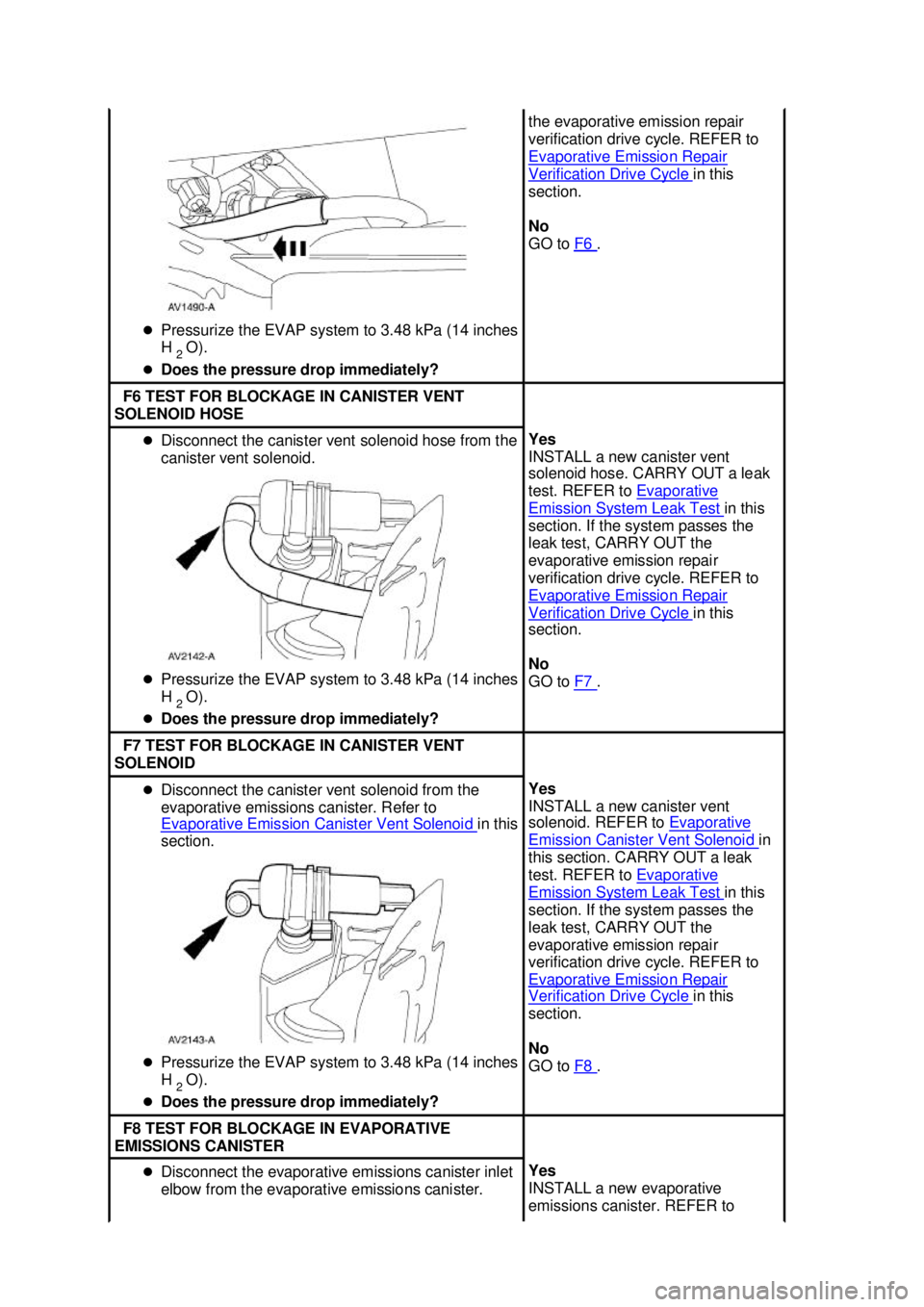

Page 2170 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Pressurize the EVAP system to 3.48 kPa (14 inches
H
2 O).
�z Does the pressure drop immediately? the evaporative emission repair
verification drive cycle. REFER to
Evaporative Emission Repair

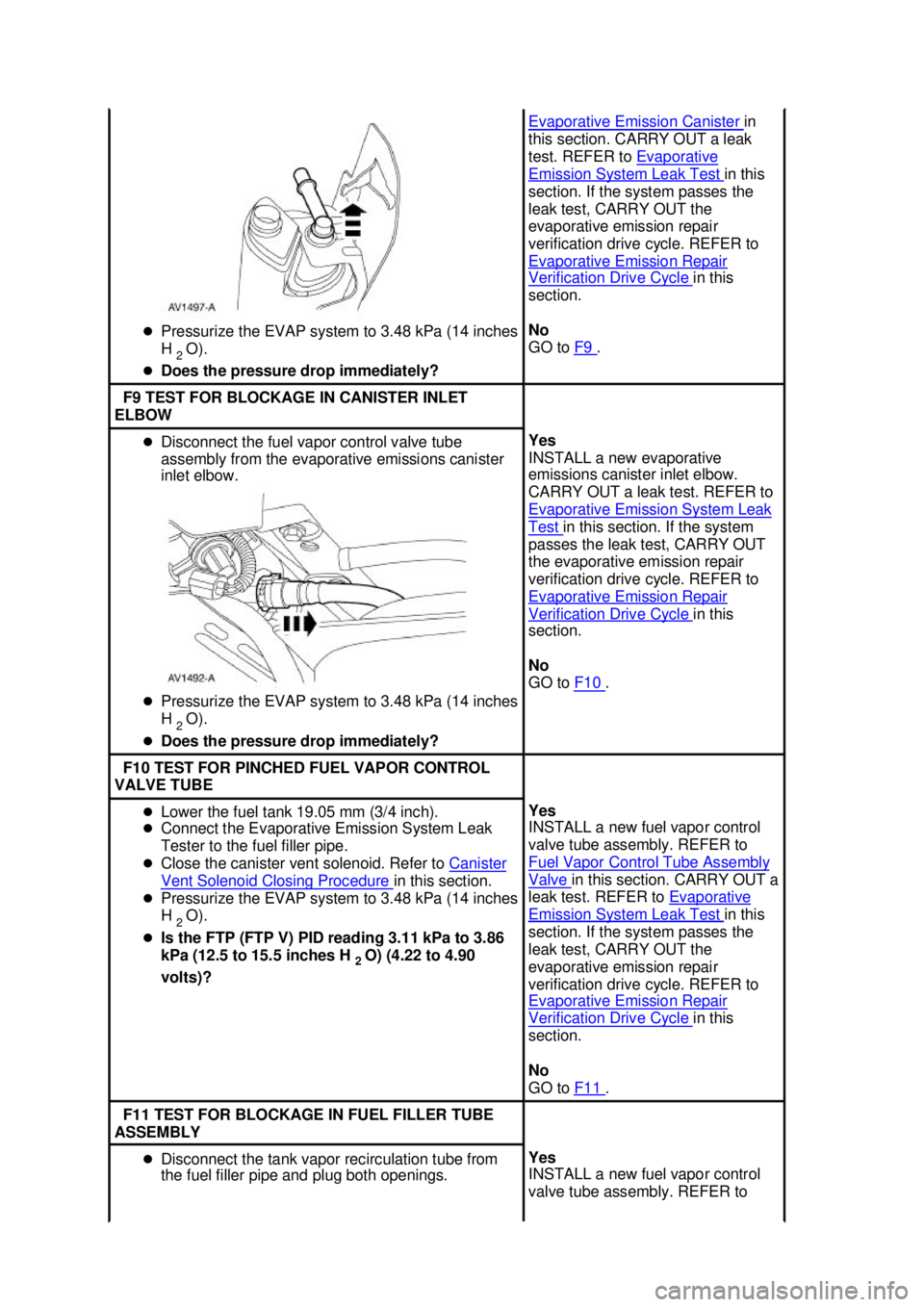

Page 2171 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Pressurize the EVAP system to 3.48 kPa (14 inches
H
2 O).
�z Does the pressure drop immediately? Evaporative Emission Canister in
this section. CARRY OUT a leak
test. REFER to Evaporative

z
Pressurize the EVAP system to 3.48 kPa (14 inches
H
2 O).
z Does the pressure drop immediately? Evaporative Emission Canister in
this section. CARRY OUT a leak
test. REFER to Evaporative Emission System Leak Test in this
section. If the system passes the
leak test, CARRY OUT the
evaporative emission repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this
section.
No
GO to F9 .
F9 TEST FOR BLOCKAGE IN CANISTER INLET
ELBOW z
Disconnect the fuel vapor control valve tube
assembly from the evaporative emissions canister
inlet elbow.
z Pressurize the EVAP system to 3.48 kPa (14 inches
H
2 O).
z Does the pressure drop immediately? Yes
INSTALL a new evaporative
emissions canister inlet elbow.
CARRY OUT a leak test. REFER to
Evaporative Emission System Leak
Test in this section. If the system
passes the leak test, CARRY OUT
the evaporative emission repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this
section.
No
GO to F10 .
F10 TEST FOR PINCHED FUEL VAPOR CONTROL
VALVE TUBE z
Lower the fuel tank 19.05 mm (3/4 inch).
z Connect the Evaporative Emission System Leak
Tester to the fuel filler pipe.
z Close the canister vent solenoid. Refer to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48 kPa (14 inches
H
2 O).
z Is the FTP (FTP V) PID reading 3.11 kPa to 3.86
kPa (12.5 to 15.5 inches H
2 O) (4.22 to 4.90
volts)? Yes
INSTALL a new fuel vapor control
valve tube assembly. REFER to
Fuel Vapor Control Tube Assembly
Valve in this section. CARRY OUT a
leak test. REFER to Evaporative Emission System Leak Test in this
section. If the system passes the
leak test, CARRY OUT the
evaporative emission repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this
section.
No
GO to F11 .
F11 TEST FOR BLOCKAGE IN FUEL FILLER TUBE
ASSEMBLY z
Disconnect the tank vapor recirculation tube from
the fuel filler pipe and plug both openings. Yes
INSTALL a new fuel vapor control
valve tube assembly. REFER to Klj . 24 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

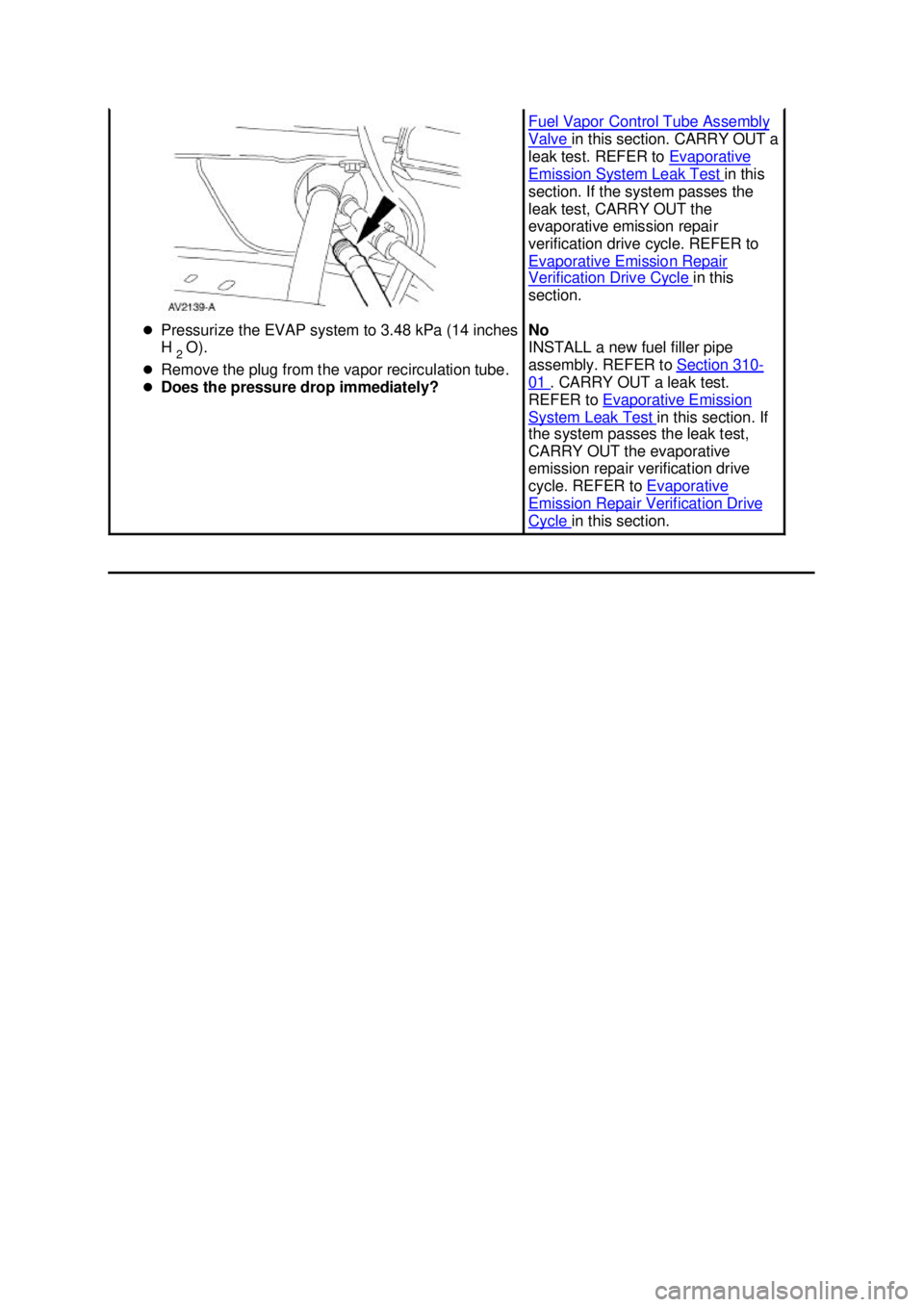

Page 2172 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Pressurize the EVAP system to 3.48 kPa (14 inches
H
2 O).
�z Remove the plug from the vapor recirculation tube.
�z Does the pressure drop immediately? Fuel Vapor Control Tube Assembly
Valve

Page 2173 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Canister Vent Solenoid Closing Procedure
CAUTION: The canister vent solenoid must not be energized for more than nine minutes
at one time. Once the canister vent solenoid is ene

Page 2174 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Evaporative Emission System Leak Test
CAUTION: The evaporative emission system must not be pressurized to more than 3.48
kPa (14 inches H 2 O) or damage to the evaporative emis

Page 2175 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2176 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Evaporative Emission Repair Verification Drive Cycle
Drive Cycle Recommendations
NOTE:
The following procedure is designed to execute and complete the evaporative emission repai

GENERAL PROCEDURES
Evaporative Emission Repair Verification Drive Cycle
Drive Cycle Recommendations
NOTE:
The following procedure is designed to execute and complete the evaporative emission repair
verification drive cycle and to clear the Ford P1000, inspection and maintenance (I/M) readiness code.
When the ambient air temperature is below 4.4°C (40°F) or above 37.8°C (100°F), or the altitude is
above 2,438 meters (8,000 feet), the EVAP monitor will not run. If the P1000 must be cleared in these
conditions, the powertrain control module (PCM) must detect them once (twice on some applications)
before the EVAP monitor can be bypassed and the P1000 cleared. The EVAP bypassing procedure is
described in the following drive cycle.
1. Most OBD II monitors will complete more readily using a steady foot driving style during cruise or acceleration modes. Operating the throttle in a smooth fashion will minimize the time
necessary for monitor completion.
2. Fuel tank level should be between one- half and three-quarters full with three- quarters full being
the most desirable.
3. The evaporative monitor can only operate during the first 30 minutes of engine operation. When executing the procedure for this monitor, stay in part throttle mode and drive in a smooth
fashion to minimize fuel slosh.
Drive Cycle Preparation
NOTE: For best results, follow each of the following steps as accurately as possible.
4. NOTE: This step bypasses the engine soak timer and resets OBD II monitor status.
Install the scan tool. Turn the key ON with the engine OFF. Cycle the key off, then on. Select
the appropriate vehicle and engine qualifier. Clear all diagnostic trouble codes (DTCs) and carry
out a PCM reset.
5. Begin to monitor the following PIDs: ECT, EVAPDC, FLI (if available) and TP MODE. Press Diagnostic Data Link, PCM, PID/Data monitor and record, press trigger to select each PID, then
start.
6. Start the engine without returning the key to the OFF position.
Preparation for Monitor Entry
WARNING: Strict observance of posted speed limits and attention to driving conditions
SECTION 303-
13: Evaporative Emissions 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
