Page 3689 of 4378

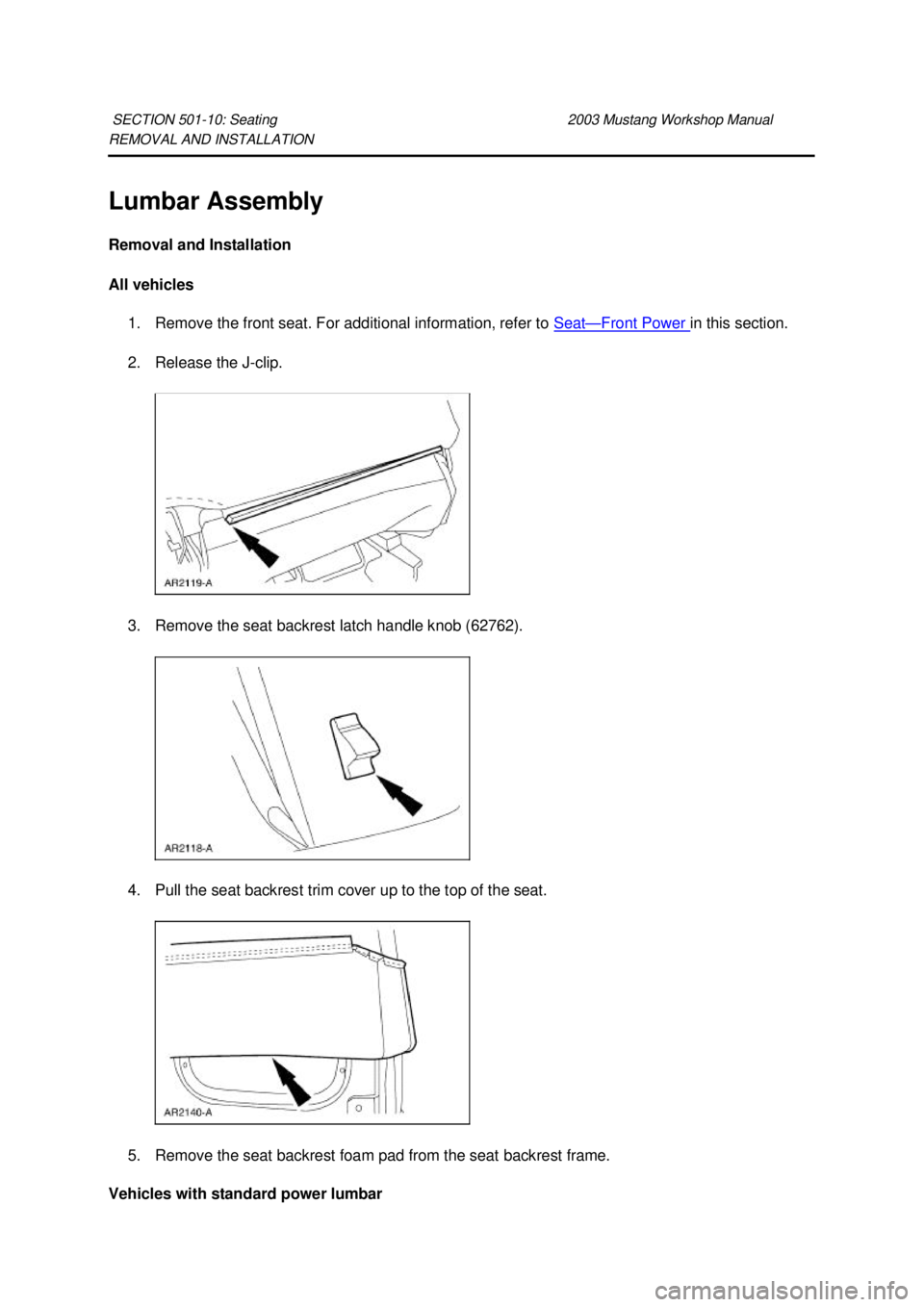

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Lumbar Assembly Removal and Installation All vehicles 1. Remove the front seat. For additional information, refer to Seat — Front Power in this section. 2. Release th

Page 3690 of 4378

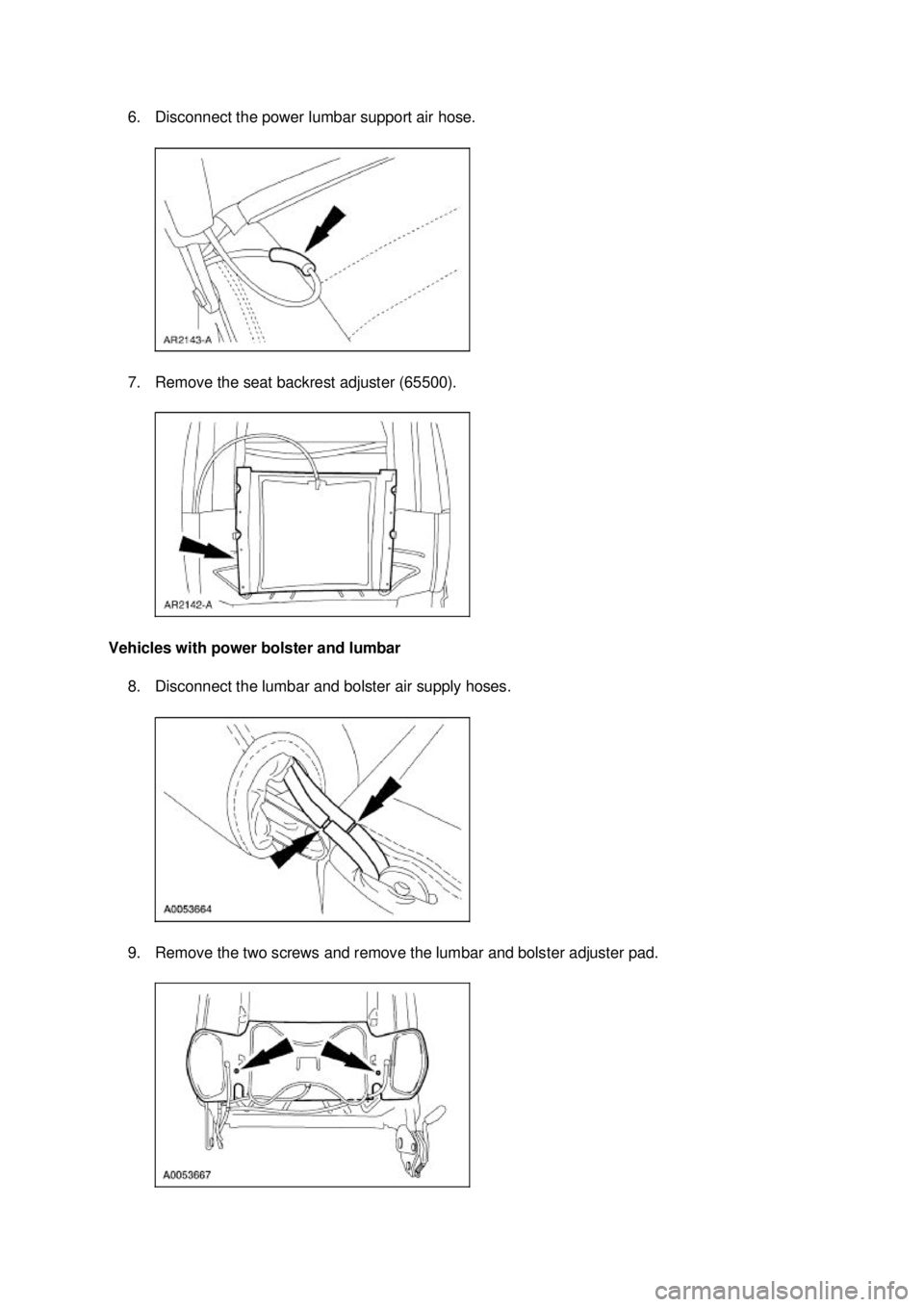

FORD MUSTANG 2003 Workshop Manual 6. Disconnect the power lumbar support air hose. 7. Remove the seat backrest adjuster (65500). Vehicles with power bolster and lumbar 8. Disconnect the lumbar and bolster air supply hoses. 9. Remo

Page 3691 of 4378

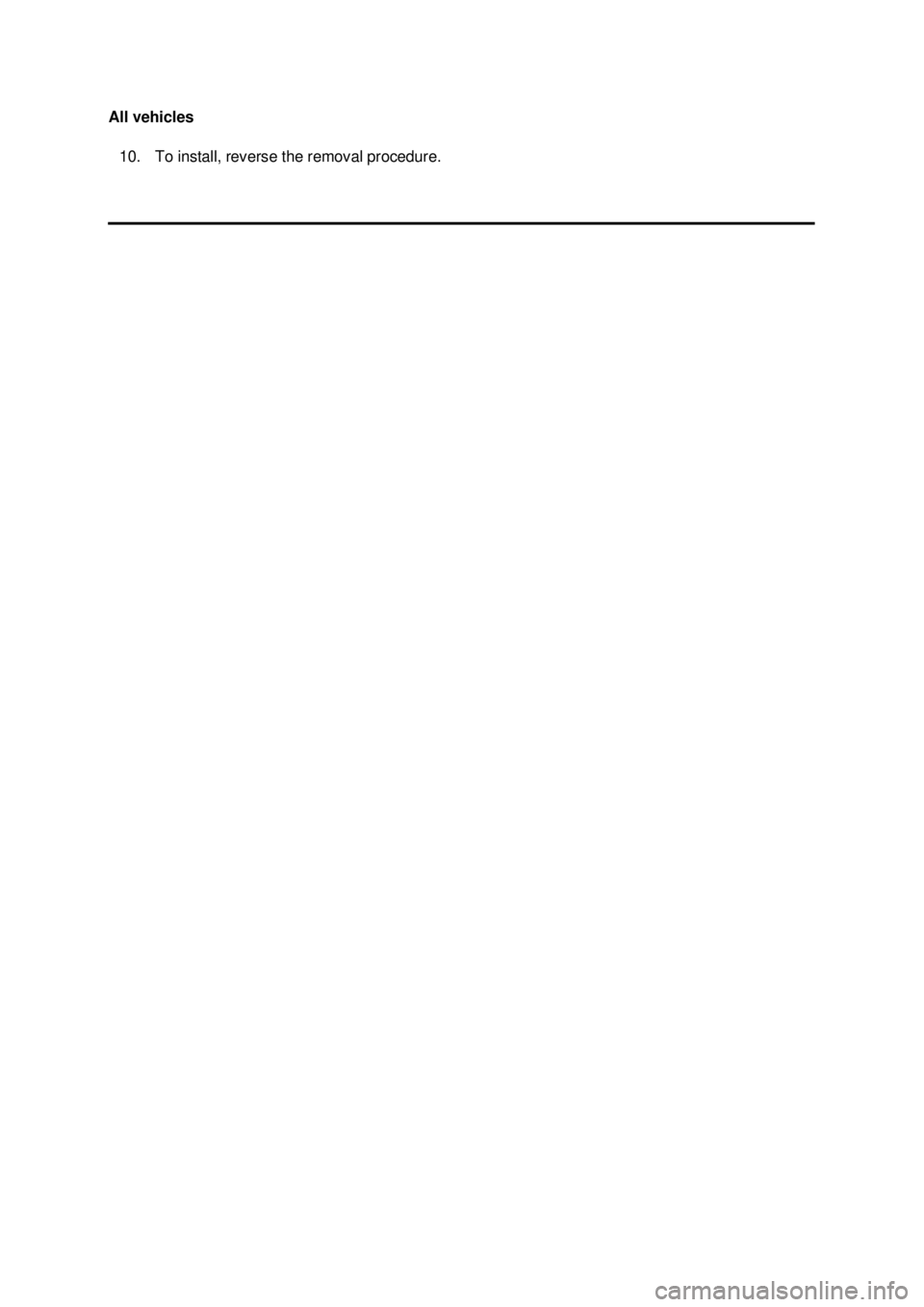

FORD MUSTANG 2003 Workshop Manual All vehicles 10. To install, reverse the removal procedure. Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3692 of 4378

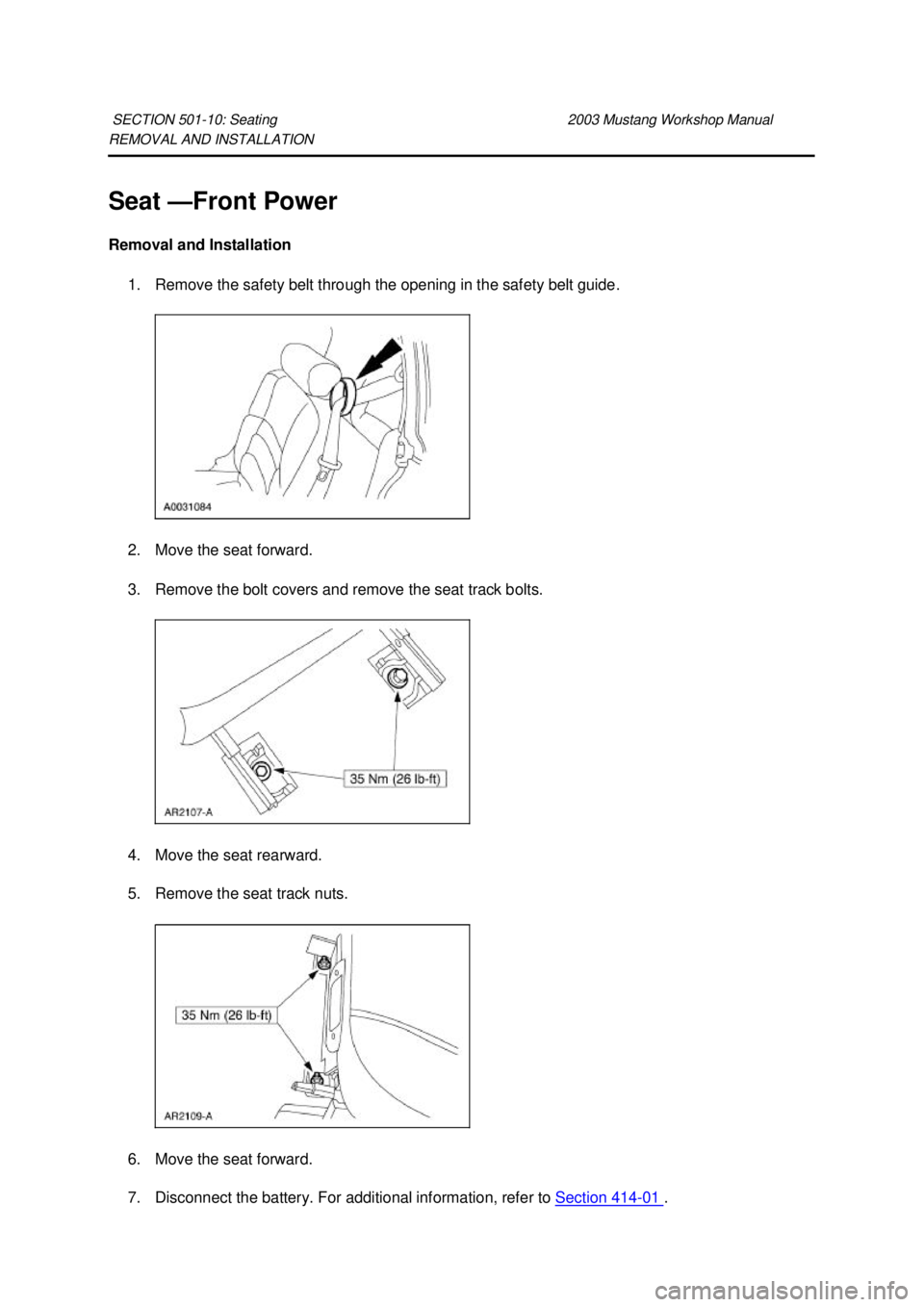

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Seat — Front Power Removal and Installation 1. Remove the safety belt through the opening in the safety belt guide. 2. Move the seat forward. 3. Remove the bolt covers

Page 3693 of 4378

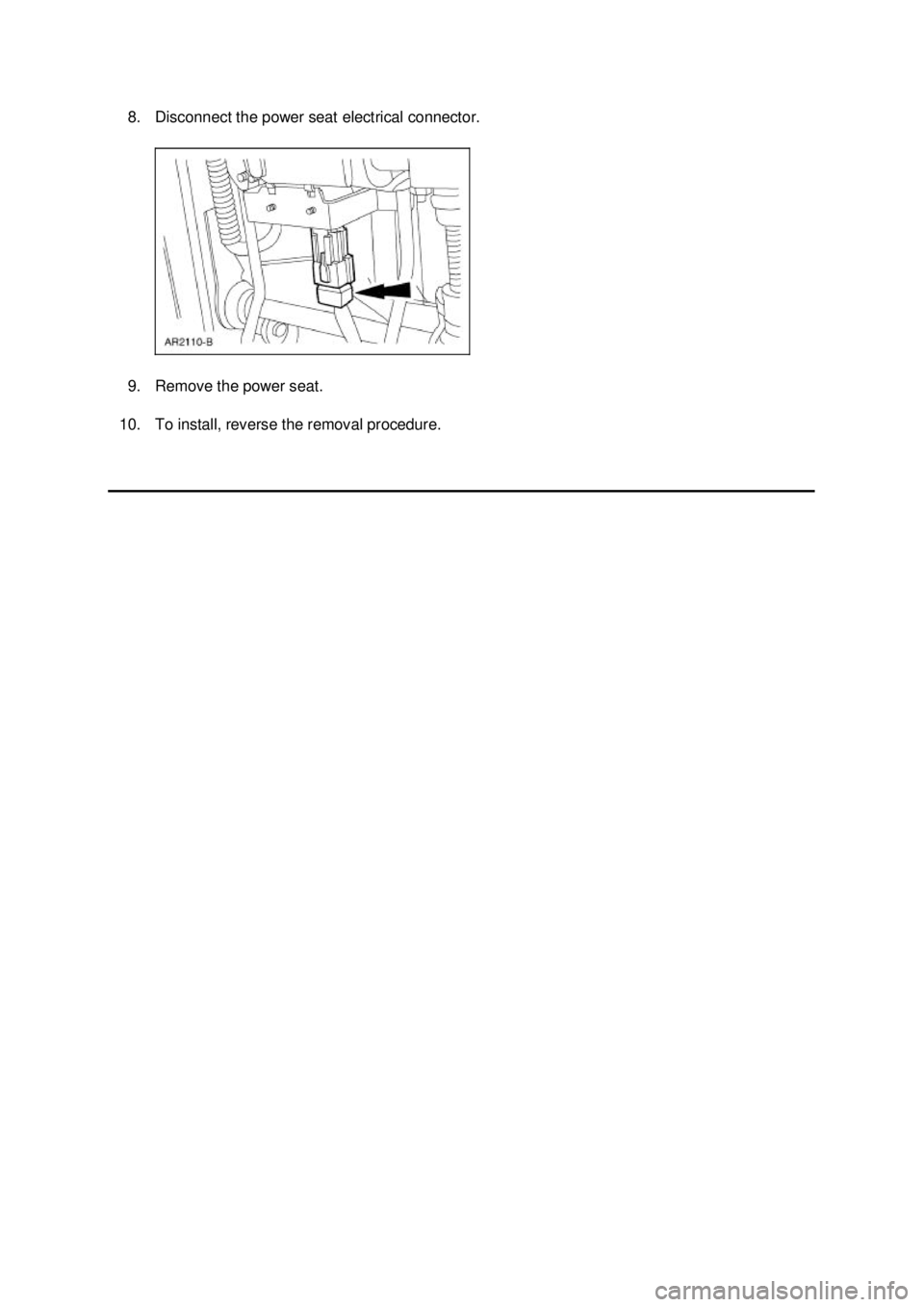

FORD MUSTANG 2003 Workshop Manual 8. Disconnect the power seat electrical connector. 9. Remove the power seat. 10. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/F

Page 3694 of 4378

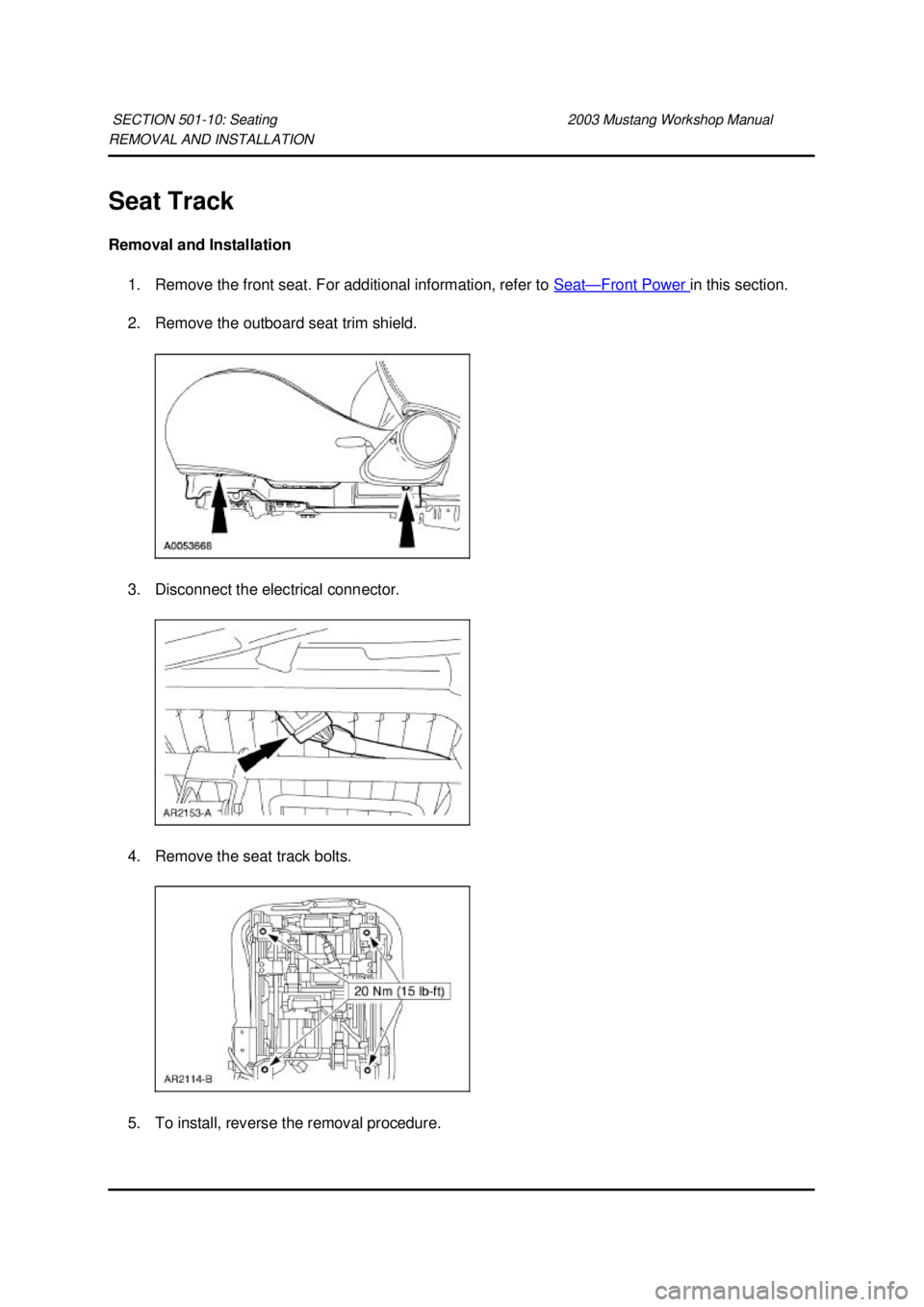

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Seat Track Removal and Installation 1. Remove the front seat. For additional information, refer to Seat — Front Power in this section. 2. Remove the outboard seat trim

Page 3695 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3696 of 4378

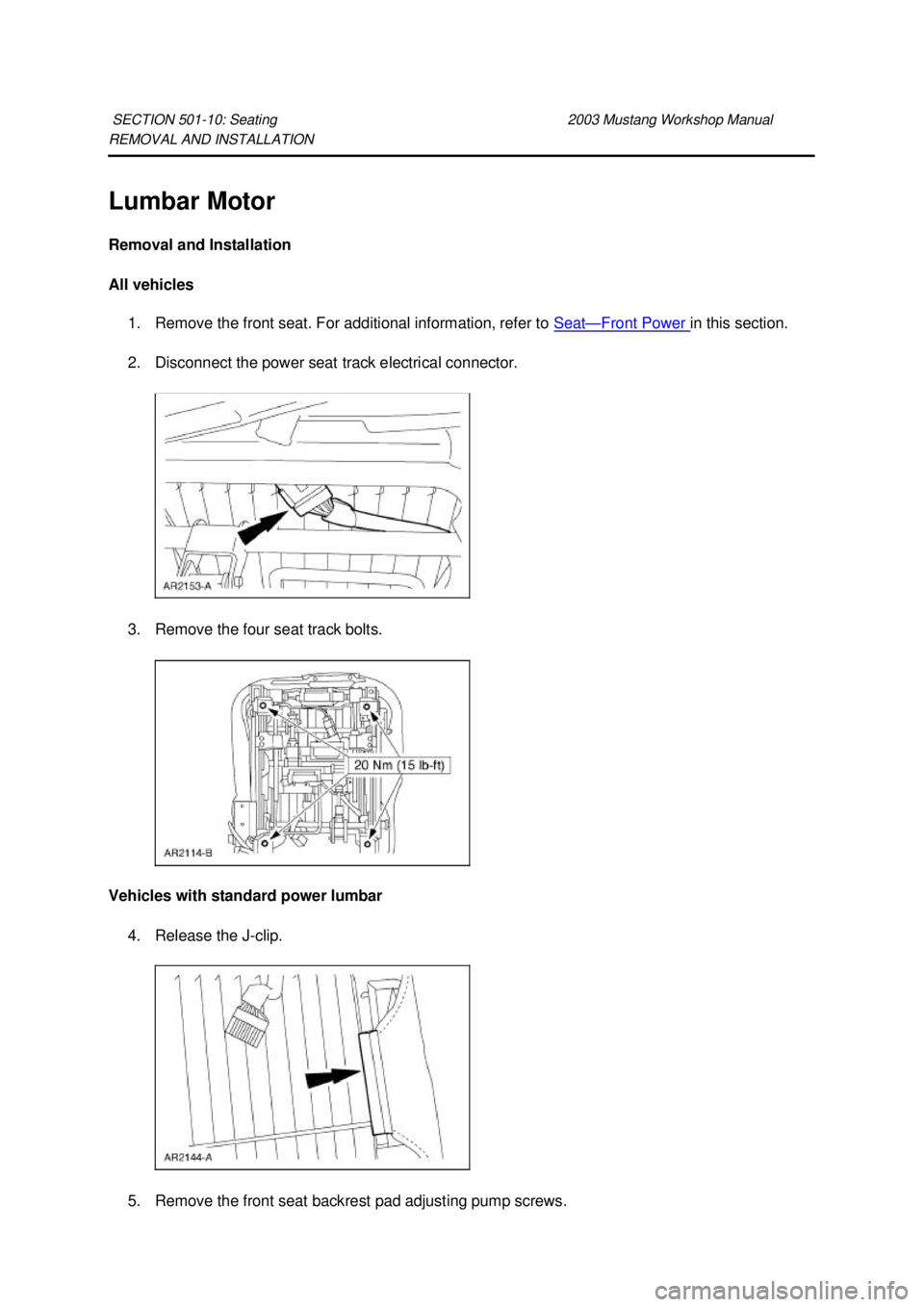

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Lumbar Motor Removal and Installation All vehicles 1. Remove the front seat. For additional information, refer to Seat — Front Power in this section. 2. Disconnect th
