REMOVAL AND INSTALLATION
Mass Air Flow (MAF) Sensor —
Mach I
Removal
CAUTION: The mass air flow (MAF) sensor hot wire sensing element and housing are
calibrated as a unit and must be repaired as a complete assembly. Do not damage the sensing
element (internal to housing) or possible failure to the mass air flow sensor may occur
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
3. Remove the mass air flow sensor (MAF). zDisconnect the connector.
z Remove the four nuts and the MAF sensor.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2242 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2243 of 4378

REMOVAL AND INSTALLATION
Heated Oxygen Sensor (HO2S)
Removal and Installation
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
3. NOTE: Two heated oxygen sensors (HO2S) are used for the engine control system. They are
located in the dual converter Y pipe. The left side (HO2S) is shown, the right side is similar.
Disconnect the HO2S electrical connector.
4. NOTE: If necessary, lubricate the heated oxygen sensors with penetrating and lock lubricant to
assist in removal.

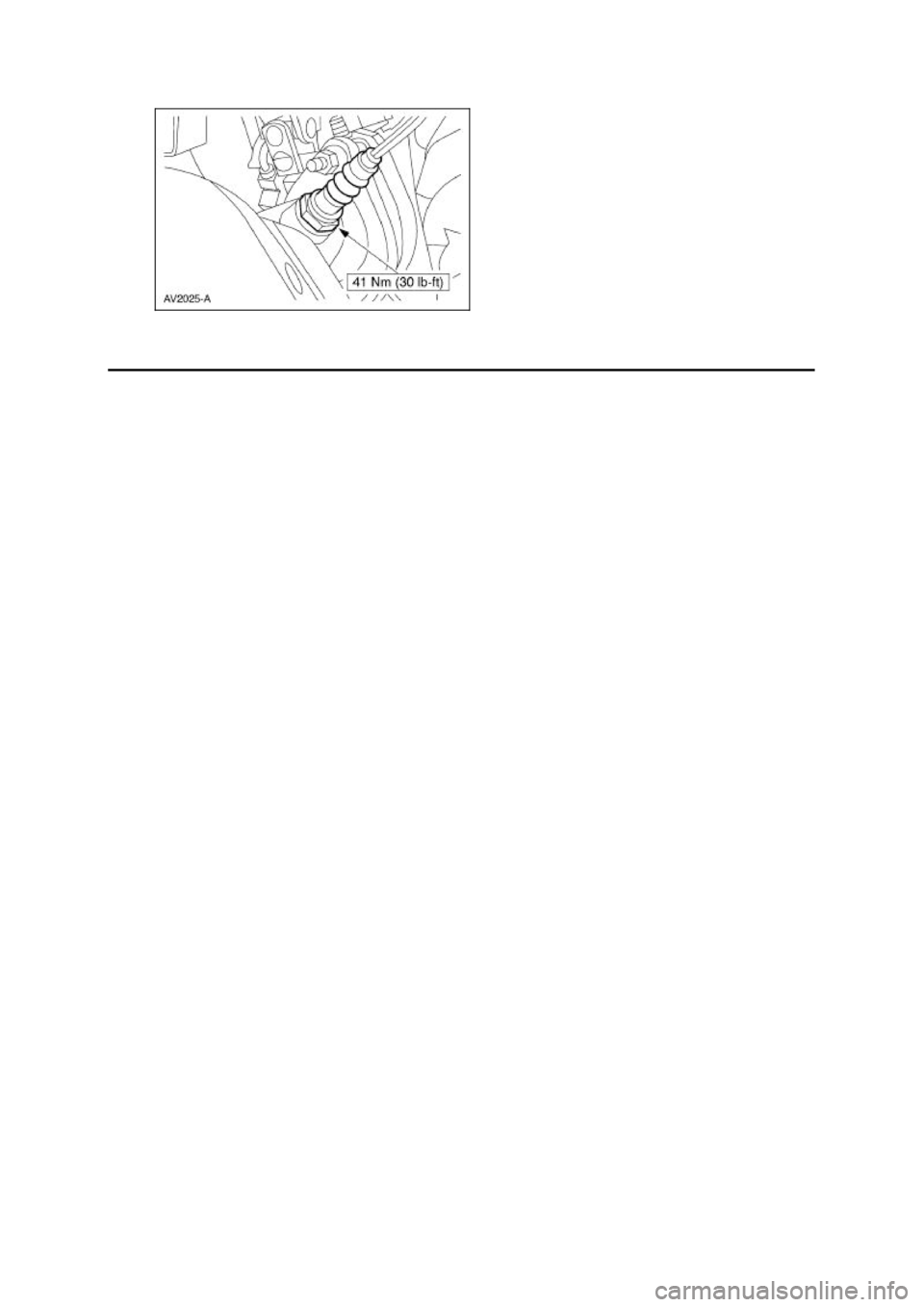

Using the special tool, remove the HO2S from the dual converter Y pipe.
5. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Special Tool(s)
Socket, Exhaust Gas Oxygen
Sensor
303-
476 (T94P-9472- A)
Material Item Specification
Penetrating and Lock Lubricant
or equivalent E8AZ-
19A501-
B Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2244 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2245 of 4378

REMOVAL AND INSTALLATION
Catalyst Monitor Sensor
Removal and Installation
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
3. NOTE: Two catalyst monitor sensors are used for the engine control system. They are located
in the dual converter Y pipe downstream from the catalyst. The left side catalyst monitor sensor
is shown, the right side is similar.
Disconnect the connector.
4. NOTE: If necessary, lubricate the sensors with penetrating and lock lubricant to assist in
removal.

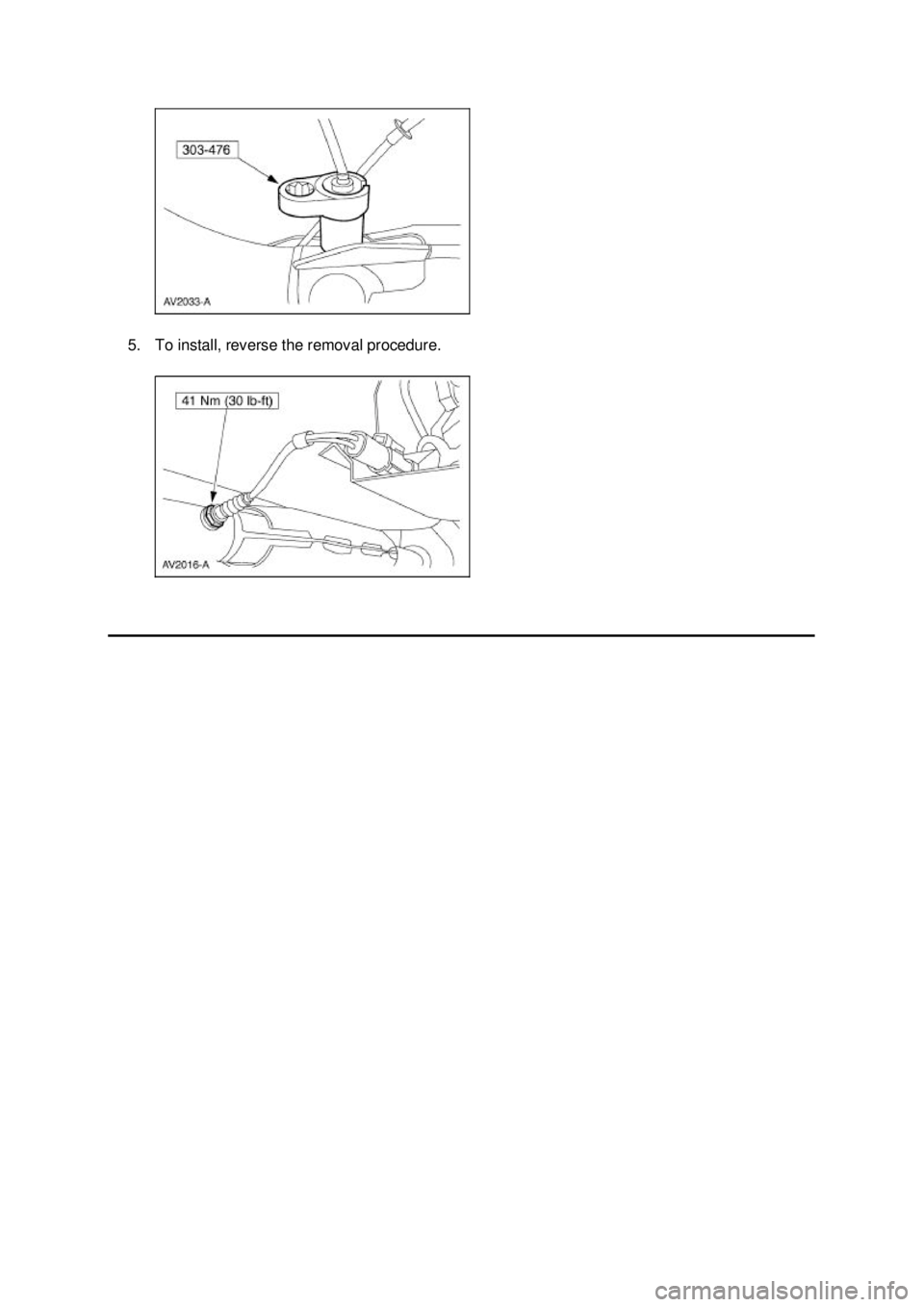

Using the special tool, remove the catalyst monitor sensors from the dual converter Y pipe.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Special Tool(s)
Socket, Exhaust Gas Oxygen
Sensor
303-
476 (T94P-9472- A)
Material Item Specification
Penetrating and Lock Lubricant
or equivalent E8AZ-
19A501-
B Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2246 of 4378
5. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2247 of 4378
REMOVAL AND INSTALLATION
Clutch Pedal Position (CPP) Switch
Removal
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Disconnect the connector.
3. Remove the bolt and the clutch pedal position (CPP) switch.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
