Page 2673 of 4378

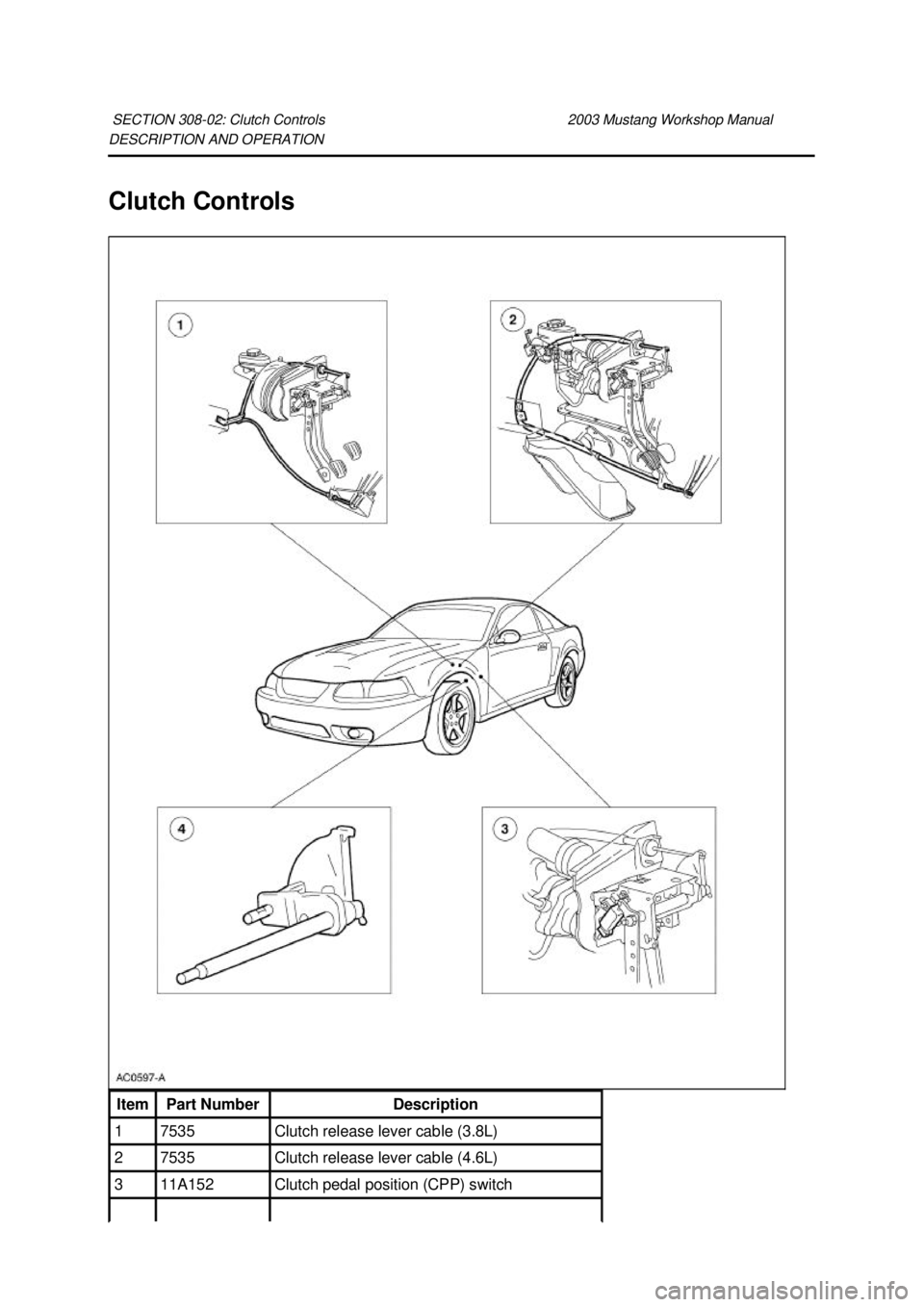

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Clutch Controls SECTION 308- 02: Clutch Controls 2003 Mustang Workshop Manual Item Part Number Description 1 7535 Clutch release lever cable (3.8L) 2 7535 Clutch r

Page 2674 of 4378

FORD MUSTANG 2003 Workshop Manual The clutch control system engages and disengages the clutch. The clutch control system disengages the clutch when the clutch pedal is depressed and engages the clutch when the clutch pedal is releas

Page 2675 of 4378

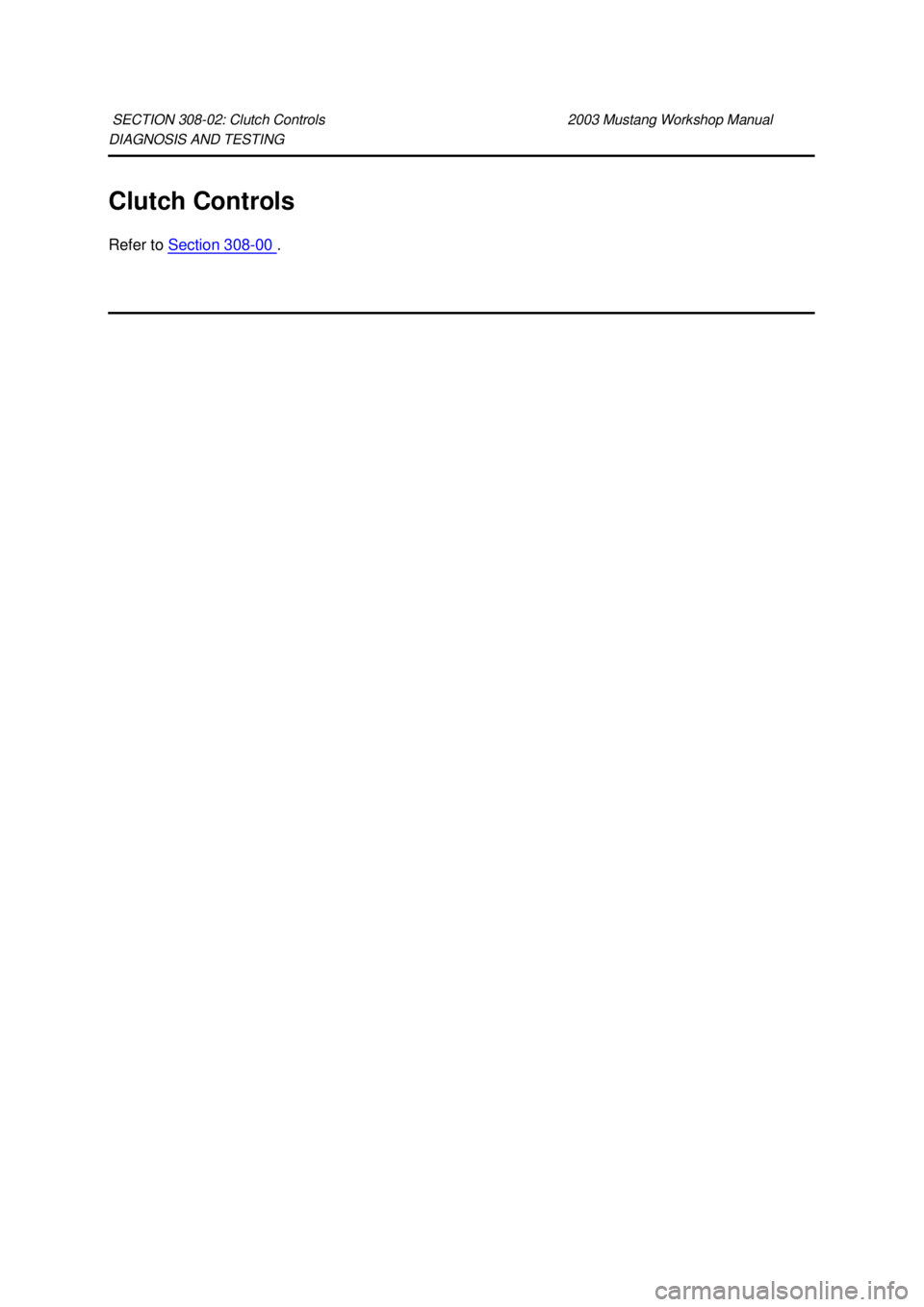

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Clutch Controls Refer to Section 308 - 00 . SECTION 308- 02: Clutch Controls 2003 Mustang Workshop Manual Klj . 1 ba 12003 Mustang Workshop Manual 18. 11. 2011file

Page 2676 of 4378

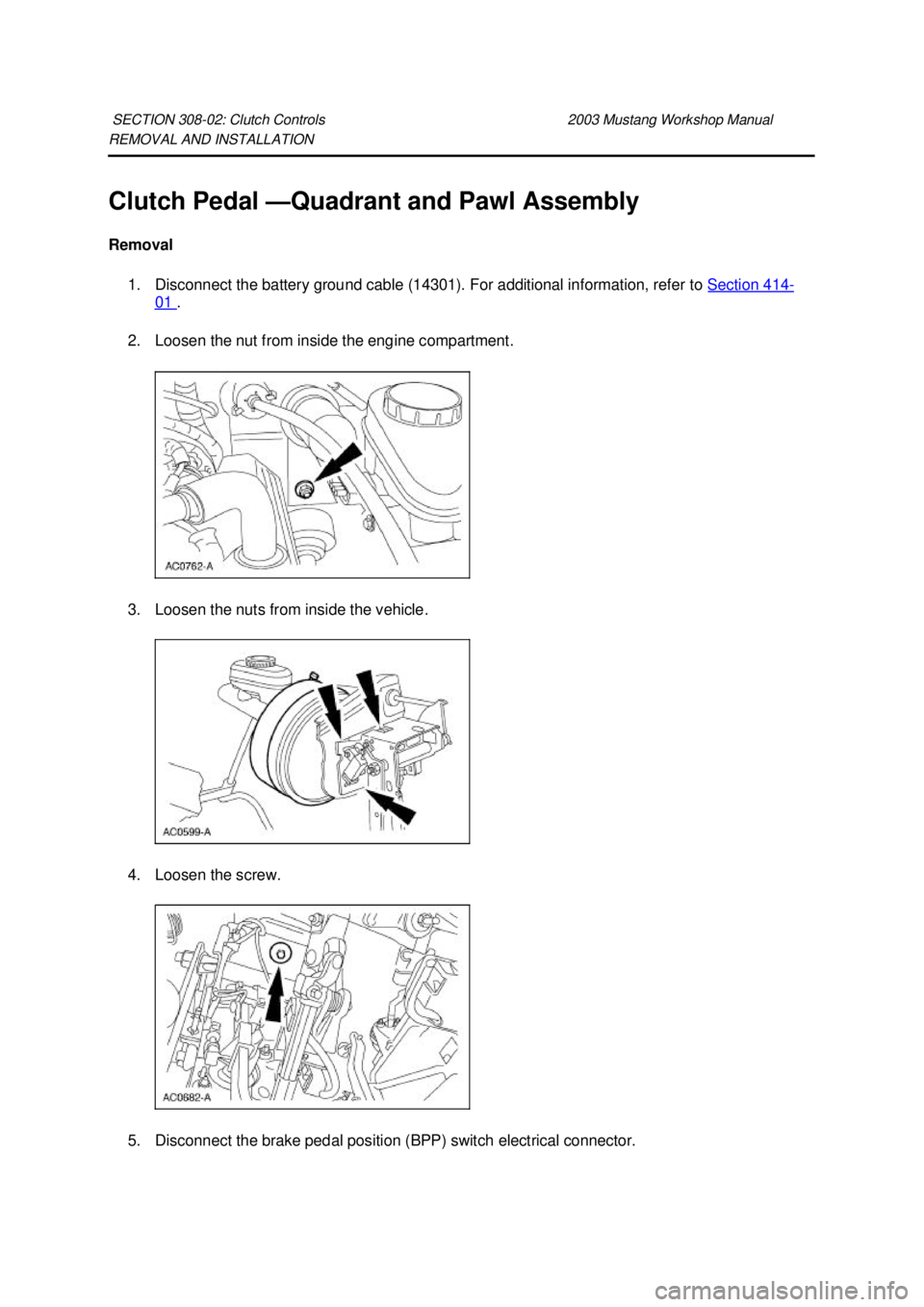

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Clutch Pedal — Quadrant and Pawl Assembly Removal 1. Disconnect the battery ground cable (14301). For additional information, refer to Section 414 - 01 . 2. Loosen the

Page 2677 of 4378

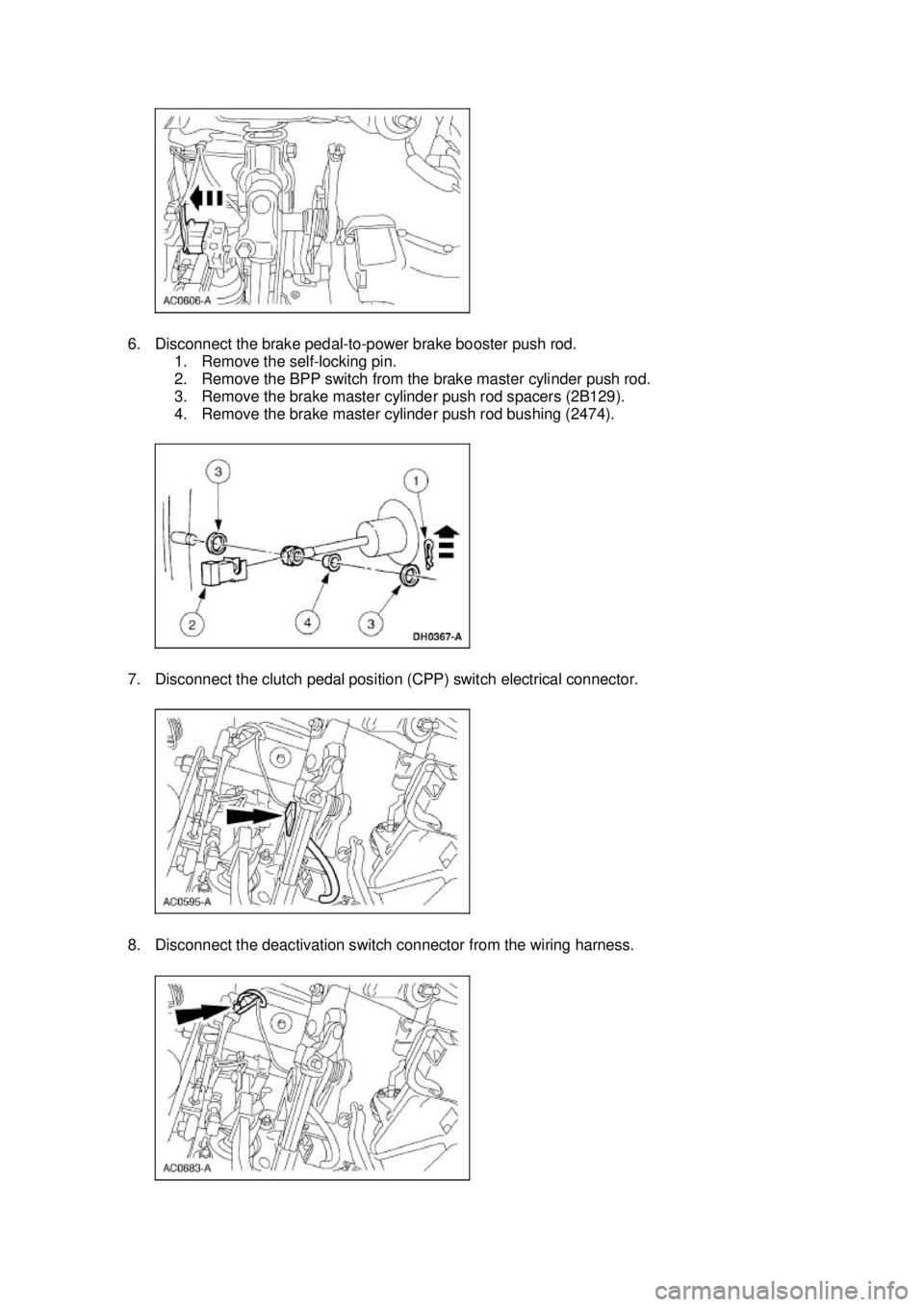

FORD MUSTANG 2003 Workshop Manual 6. Disconnect the brake pedal- to-power brake booster push rod. 1. Remove the self- locking pin. 2. Remove the BPP switch from the brake master cylinder push rod. 3. Remove the brake master cylinde

Page 2678 of 4378

FORD MUSTANG 2003 Workshop Manual 9. WARNING: Do not allow the quadrant to snap rearward. Failure to follow this instruction may result in personal injury. NOTE: Lift the clutch pedal all the way up to release the clutch release l

Page 2679 of 4378

FORD MUSTANG 2003 Workshop Manual 13. Remove the self- adjusting mechanism. 14. Remove the self- adjusting mechanism shaft bushings. Installation 1. NOTE: Before the installation of the clutch pedal shaft or clutch pedal, remove a

Page 2680 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 62003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
