Page 1777 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Cylinder Head Disassembly 1. CAUTION: Do not place the cylinder head flat on the bench; the valves will bend. CAUTION: Before disassembly begins, mark t

Page 1778 of 4378

FORD MUSTANG 2003 Workshop Manual Install the special tool. 2. Remove the exhaust camshaft sprocket and the intake camshaft bolt, washer and spacer. 3. Compress the tensioner and install a lock pin. 4. Remove the special tool. 5.

Page 1779 of 4378

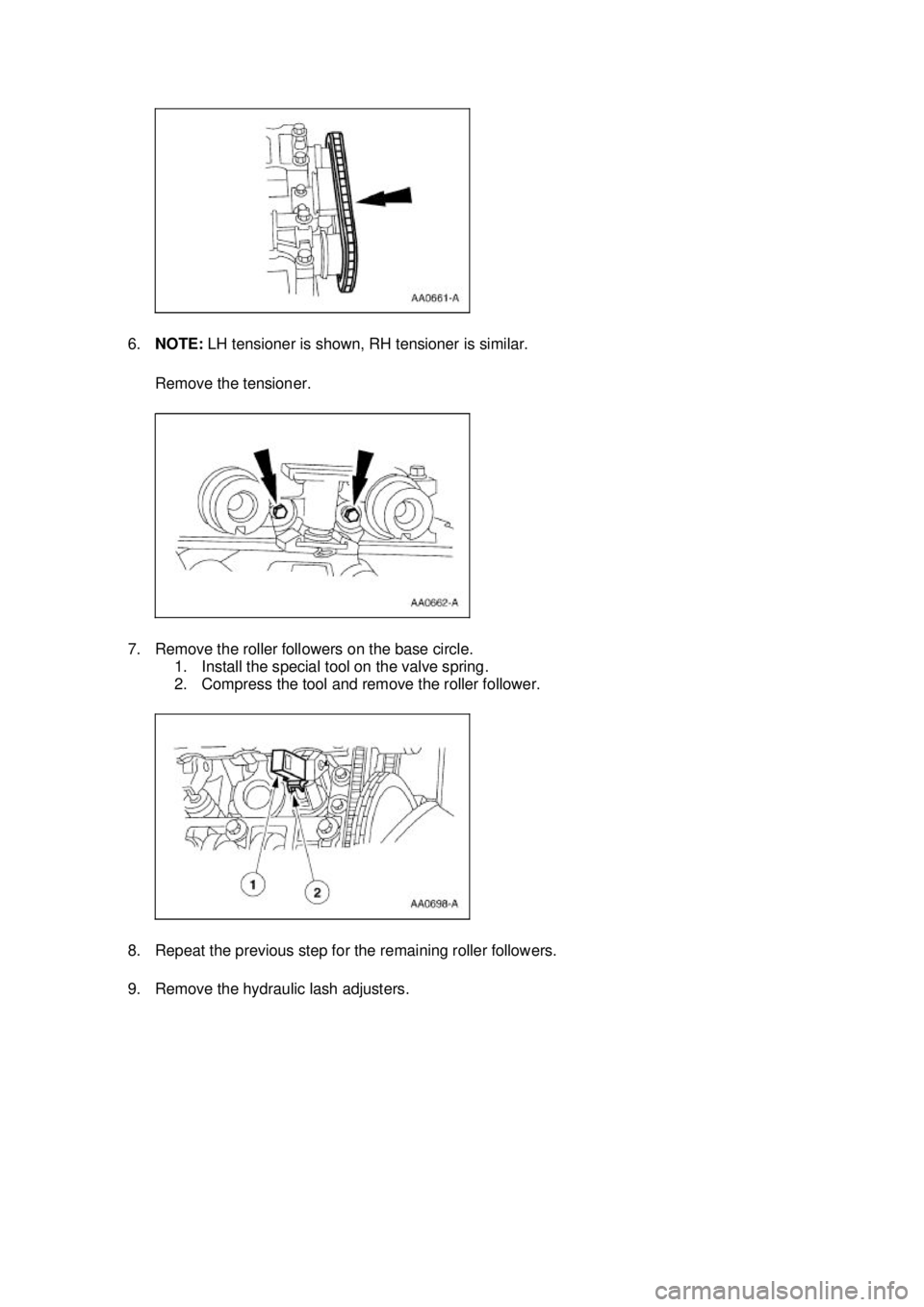

FORD MUSTANG 2003 Workshop Manual 6. NOTE: LH tensioner is shown, RH tensioner is similar. Remove the tensioner. 7. Remove the roller followers on the base circle. 1. Install the special tool on the valve spring. 2. Compress the

Page 1780 of 4378

FORD MUSTANG 2003 Workshop Manual 10. CAUTION: Make sure the tool is seated correctly on the valve spring. Apply a small amount of air at a time. This will prevent the tool from shifting and causing damage to the cylinder head. In

Page 1781 of 4378

FORD MUSTANG 2003 Workshop Manual 13. Remove the valve stem seals. 14. CAUTION: The outer bolts on the outer cam bearing cap (exhaust) are longer and must be returned to the same location or engine damage may occur. NOTE: Identif

Page 1782 of 4378

FORD MUSTANG 2003 Workshop Manual 15. Remove the camshafts. Assembly 1. Install the valve stem seals. 2. Install the valves and the valve springs. 3. CAUTION: Make sure the tool is seated correctly on the valve spring. Apply a sm

Page 1783 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Compress the valve spring compressor and install the key on the valves. 5. NOTE: LH is shown, RH is similar. Install the camshafts. �zLubricate the camshafts with clean engine oil. 6. Install

Page 1784 of 4378

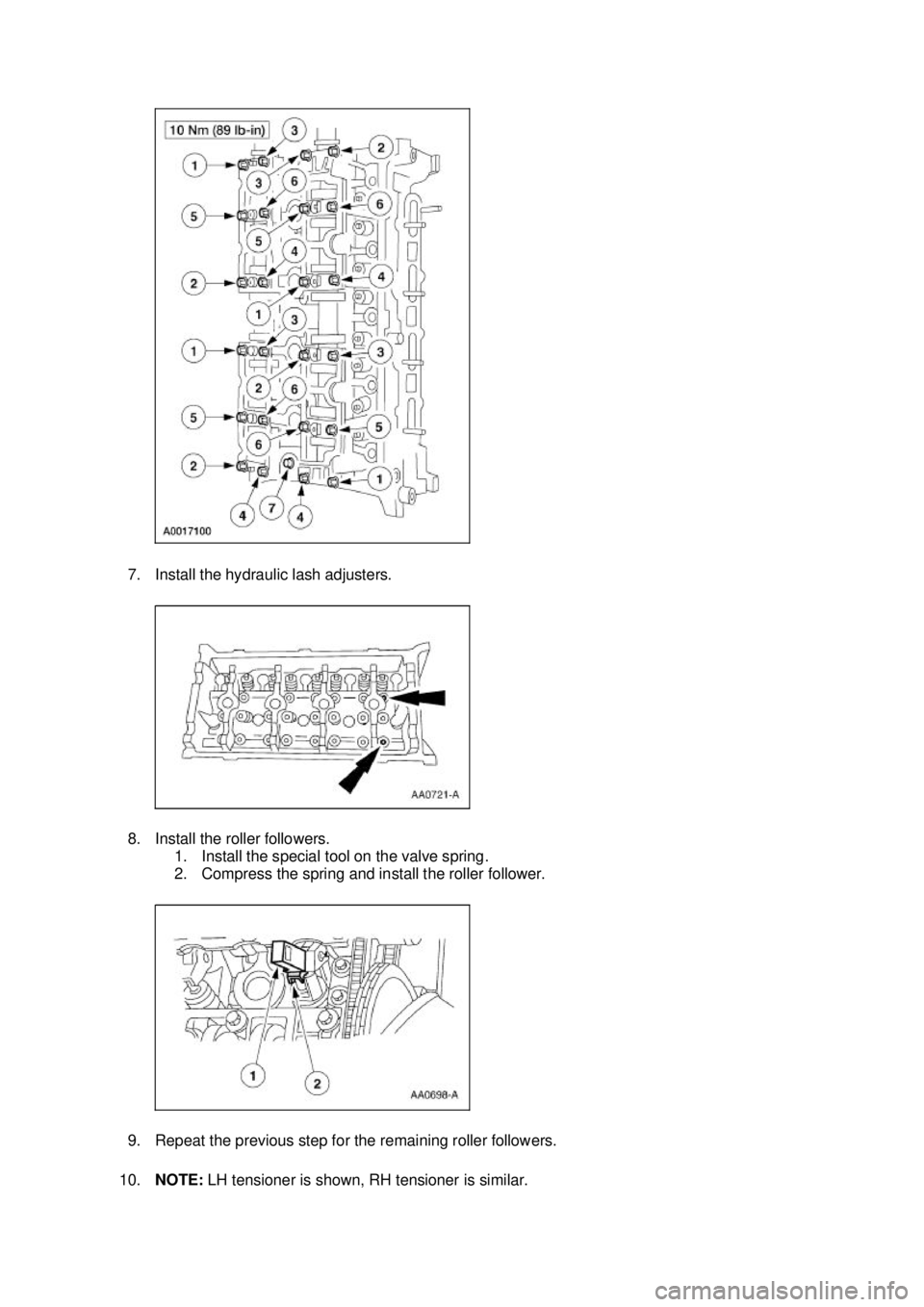

FORD MUSTANG 2003 Workshop Manual 7. Install the hydraulic lash adjusters. 8. Install the roller followers. 1. Install the special tool on the valve spring. 2. Compress the spring and install the roller follower. 9. Repeat the pre
