Page 1889 of 4378

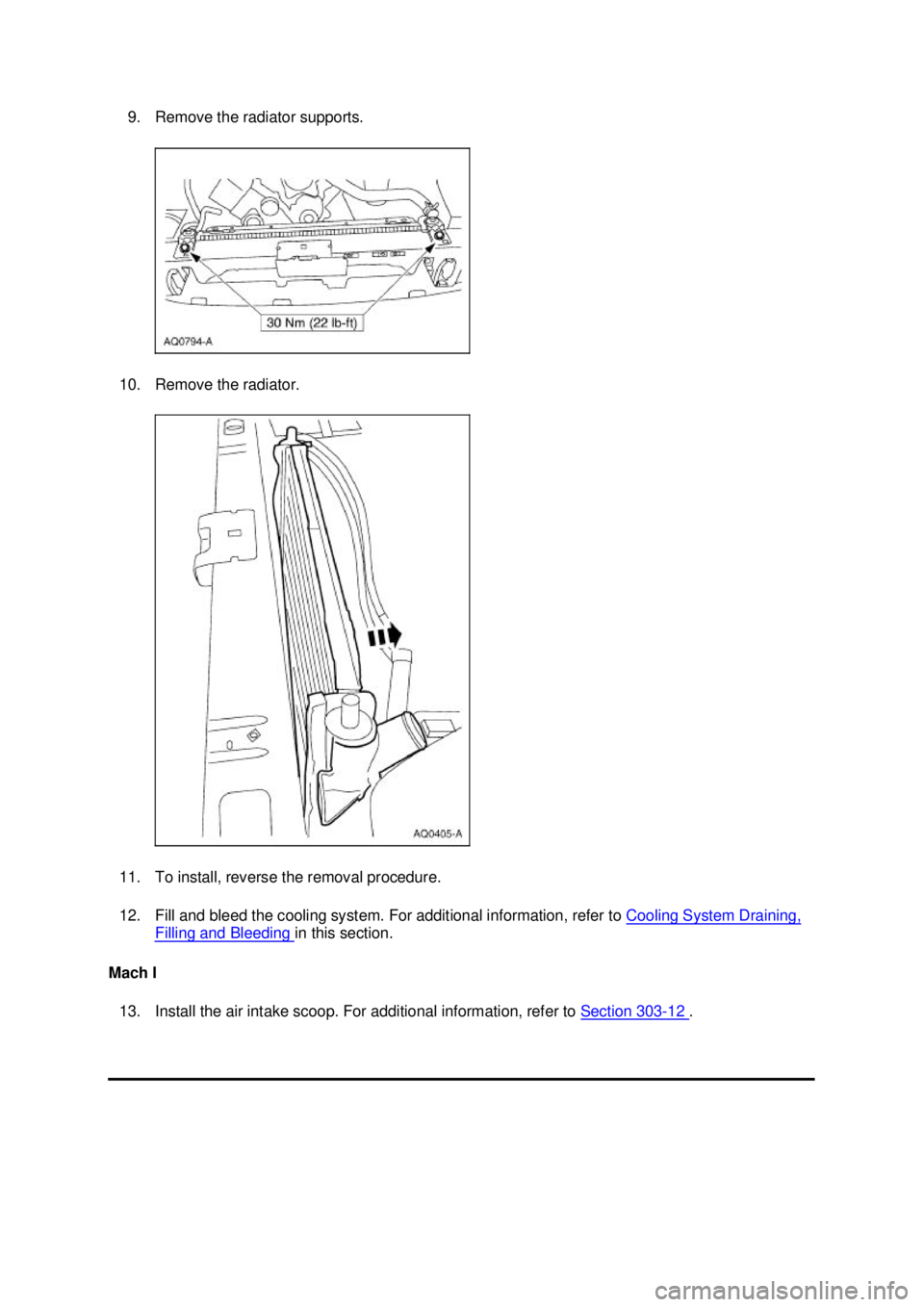

FORD MUSTANG 2003 Workshop Manual 9. Remove the radiator supports. 10. Remove the radiator. 11. To install, reverse the removal procedure. 12. Fill and bleed the cooling system. For additional information, refer to Cooling System

Page 1890 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1891 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Cooling Fan Motor and Shroud Removal and Installation 1. Disconnect the battery ground cable. 2. Remove the degas bottle or coolant expansion tank. For additional informat

Page 1892 of 4378

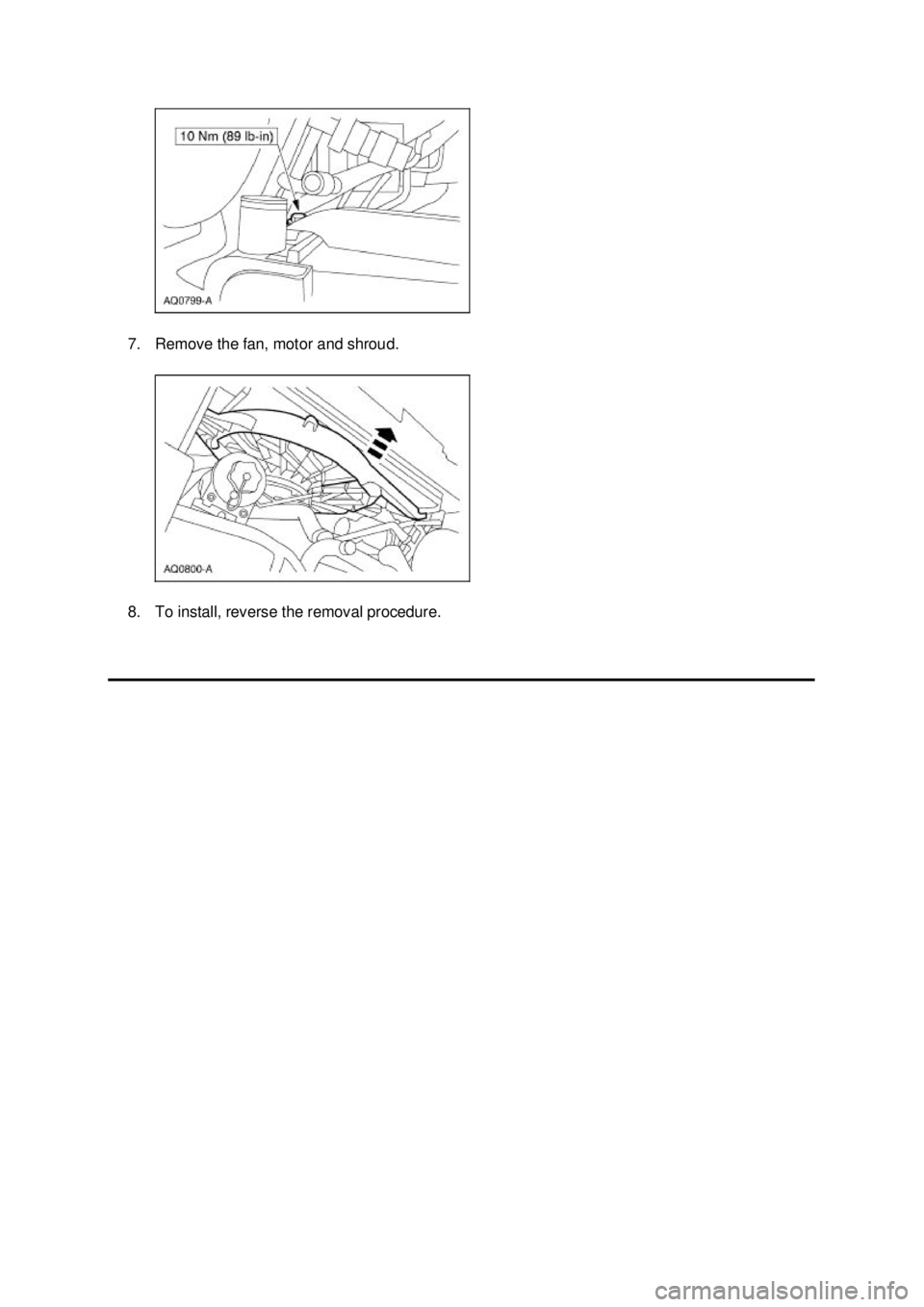

FORD MUSTANG 2003 Workshop Manual 7. Remove the fan, motor and shroud. 8. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~

Page 1893 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Water Bypass Hose — 3.8L Removal and Installation 1. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in thi

Page 1894 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Degas Bottle — 4.6L(2V) and 4.6L(4V) Removal and Installation 1. Drain the engine coolant from the degas bottle only. For additional information, refer to Cooling System

Page 1895 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1896 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS a Use the same type coolant that was drained from the cooling system. Do not mix coolant types. b The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcr
