Page 3057 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST A: INCORRECT/ERRATIC DIRECTION OF AIRFLOW FROM OUTLET �z Is there voltage present? Test Step Result / Action to Take A1 CHECK AIRFLOW FROM DEFROSTER OUTLETS �z Key in START positi

Page 3058 of 4378

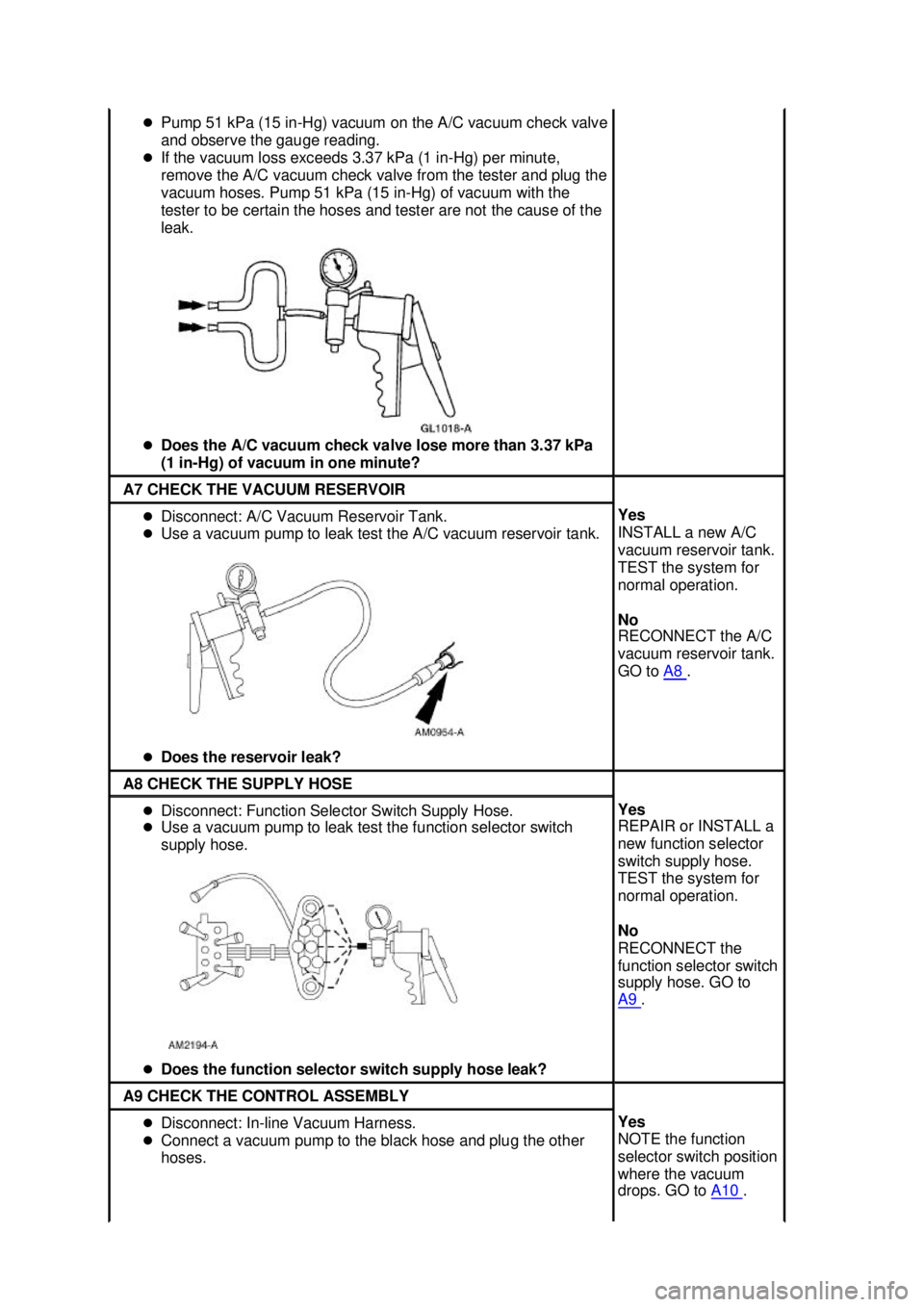

FORD MUSTANG 2003 Workshop Manual �z Disconnect: Vacuum Supply Hose. �z Connect one end of the vacuum supply hose to a vacuum pump and test for leaks. �z Does the hose leak? Yes REPAIR or INSTALL a new vacuum hose. TEST the sys

Page 3059 of 4378

FORD MUSTANG 2003 Workshop Manual �z Pump 51 kPa (15 in- Hg) vacuum on the A/C vacuum check valve and observe the gauge reading. �z If the vacuum loss exceeds 3.37 kPa (1 in- Hg) per minute, remove the A/C vacuum check valve from t

Page 3060 of 4378

FORD MUSTANG 2003 Workshop Manual �z At each function selector switch position, apply 51 kPa (15 in- Hg) of vacuum and check for vacuum drop. �z Does the vacuum drop exceed 3.37 kPa (1 in- Hg) per minute? No RECONNECT the in- lin

Page 3061 of 4378

FORD MUSTANG 2003 Workshop Manual �z Does the vacuum drop? system for normal operation. No REPAIR or INSTALL a new function selector switch. TEST the system for normal operation. A13 REVIEW THE VEHICLES HISTORY �z Key in OF

Page 3062 of 4378

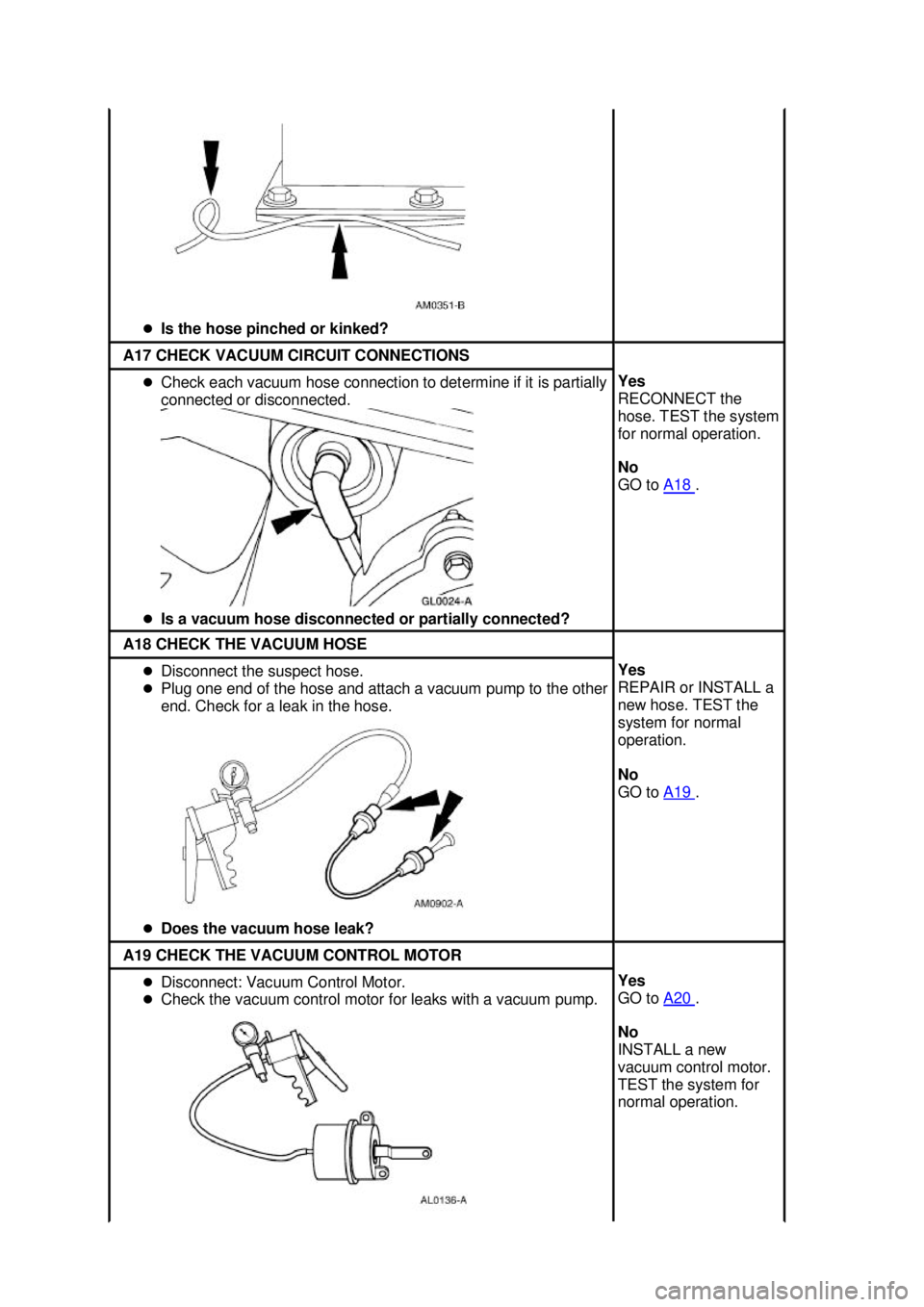

FORD MUSTANG 2003 Workshop Manual �z Is the hose pinched or kinked? A17 CHECK VACUUM CIRCUIT CONNECTIONS �z Check each vacuum hose connection to determine if it is partially connected or disconnected. �z Is a vacuum hose disconnec

Page 3063 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: INSUFFICIENT, ERRATIC, OR NO HEAT �z Does the vacuum control motor hold a vacuum? A20 CHECK THE VACUUM CONTROL MOTOR INSTALLATION �z Key in OFF position. �z Check the attachment o

Page 3064 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: THE A/C DOES NOT OPERATE/DOES NOT OPERATE CORRECTLY �z Is the heater core inlet hose too hot to handle? B3 CHECK THE ENGINE COOLING SYSTEM INCLUDING RADIATOR CAP FOR LEAKS �z Fil
