Page 2129 of 4378

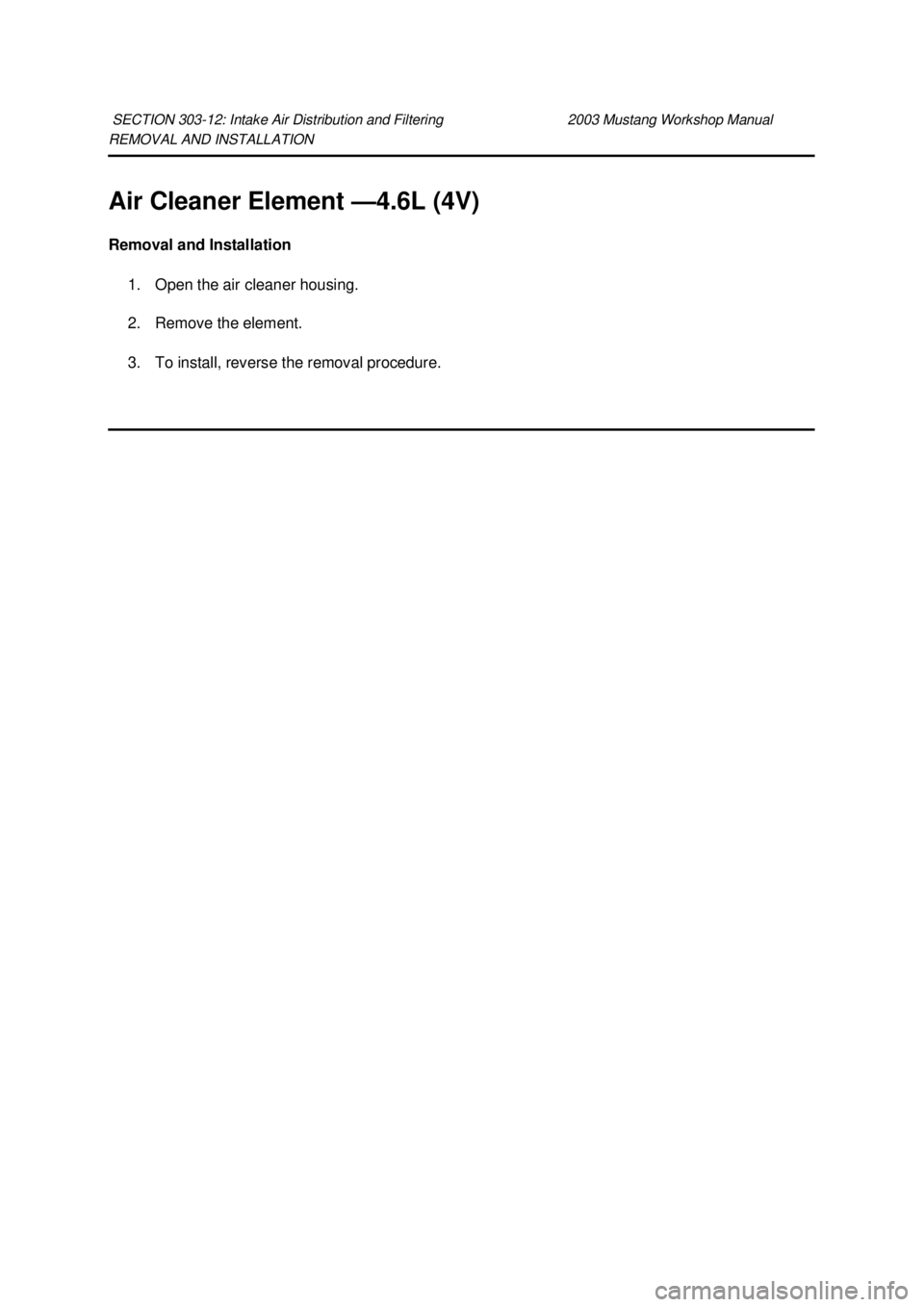

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Cleaner Element — 4.6L (4V) Removal and Installation 1. Open the air cleaner housing. 2. Remove the element. 3. To install, reverse the removal procedure. SECTION

Page 2130 of 4378

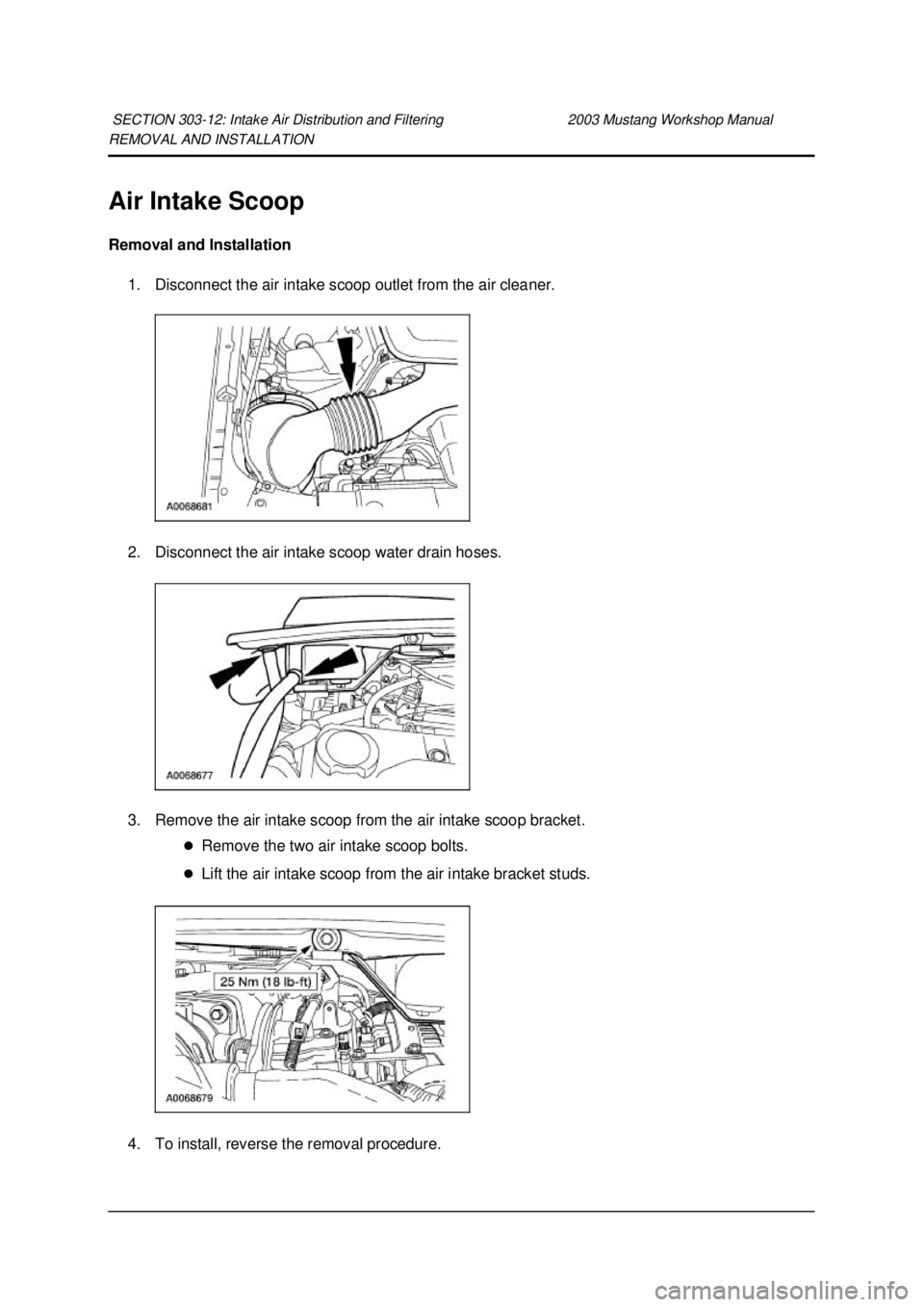

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Intake Scoop Removal and Installation 1. Disconnect the air intake scoop outlet from the air cleaner. 2. Disconnect the air intake scoop water drain hoses. 3. Remove

Page 2131 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2132 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Intake Scoop Bracket Removal and Installation 1. Remove the air intake scoop. For additional information, refer to Air Intake Scoop in this section. 2. Remove the ai

Page 2133 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2134 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Charge Air Cooler Removal and Installation 1. Drain the supercharger coolant. For additional information, refer to Section 303 - 03B . 2. Release the fuel pressure. For

Page 2135 of 4378

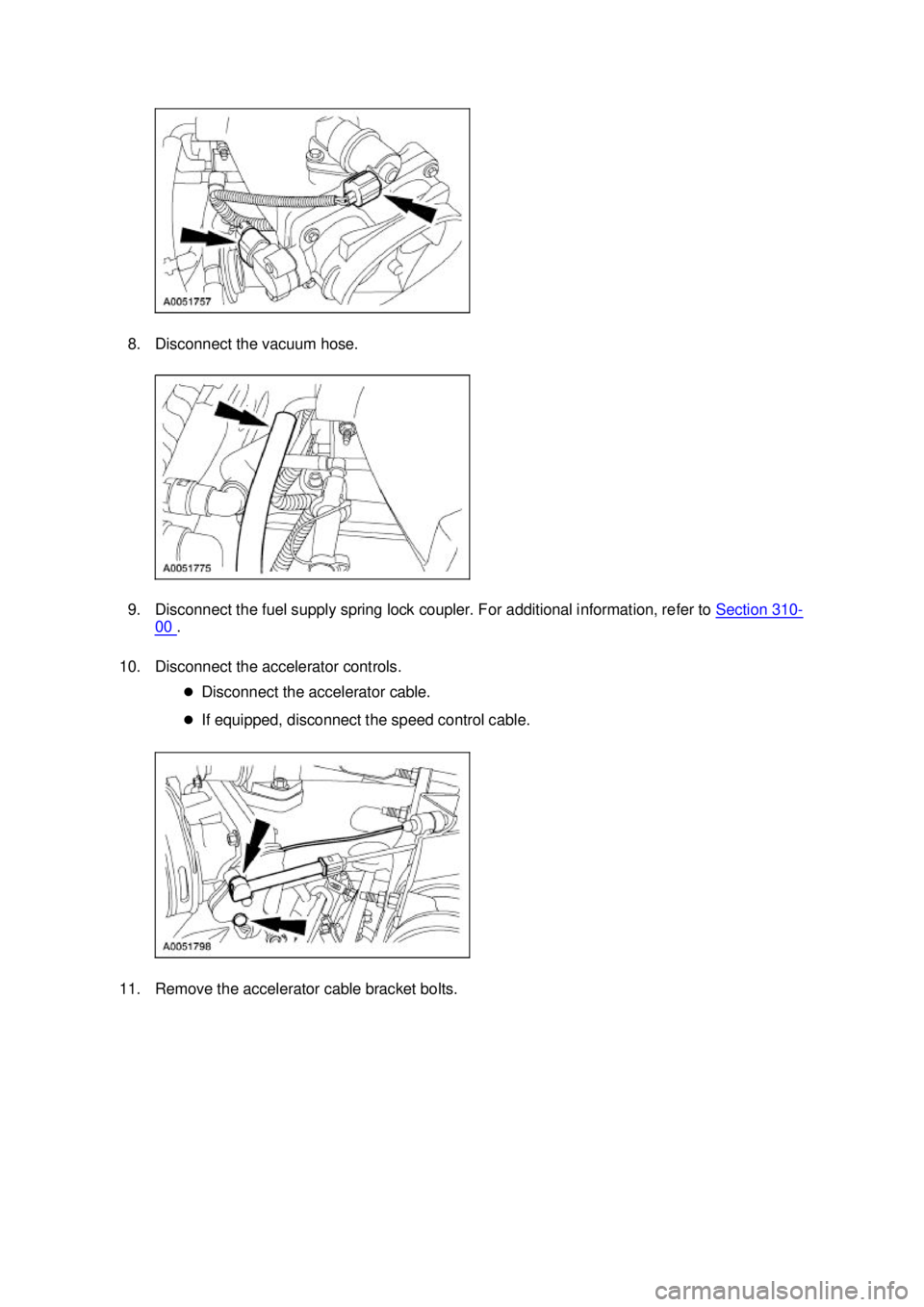

FORD MUSTANG 2003 Workshop Manual 8. Disconnect the vacuum hose. 9. Disconnect the fuel supply spring lock coupler. For additional information, refer to Section 310 - 00 . 10. Disconnect the accelerator controls. �zDisconnect the

Page 2136 of 4378

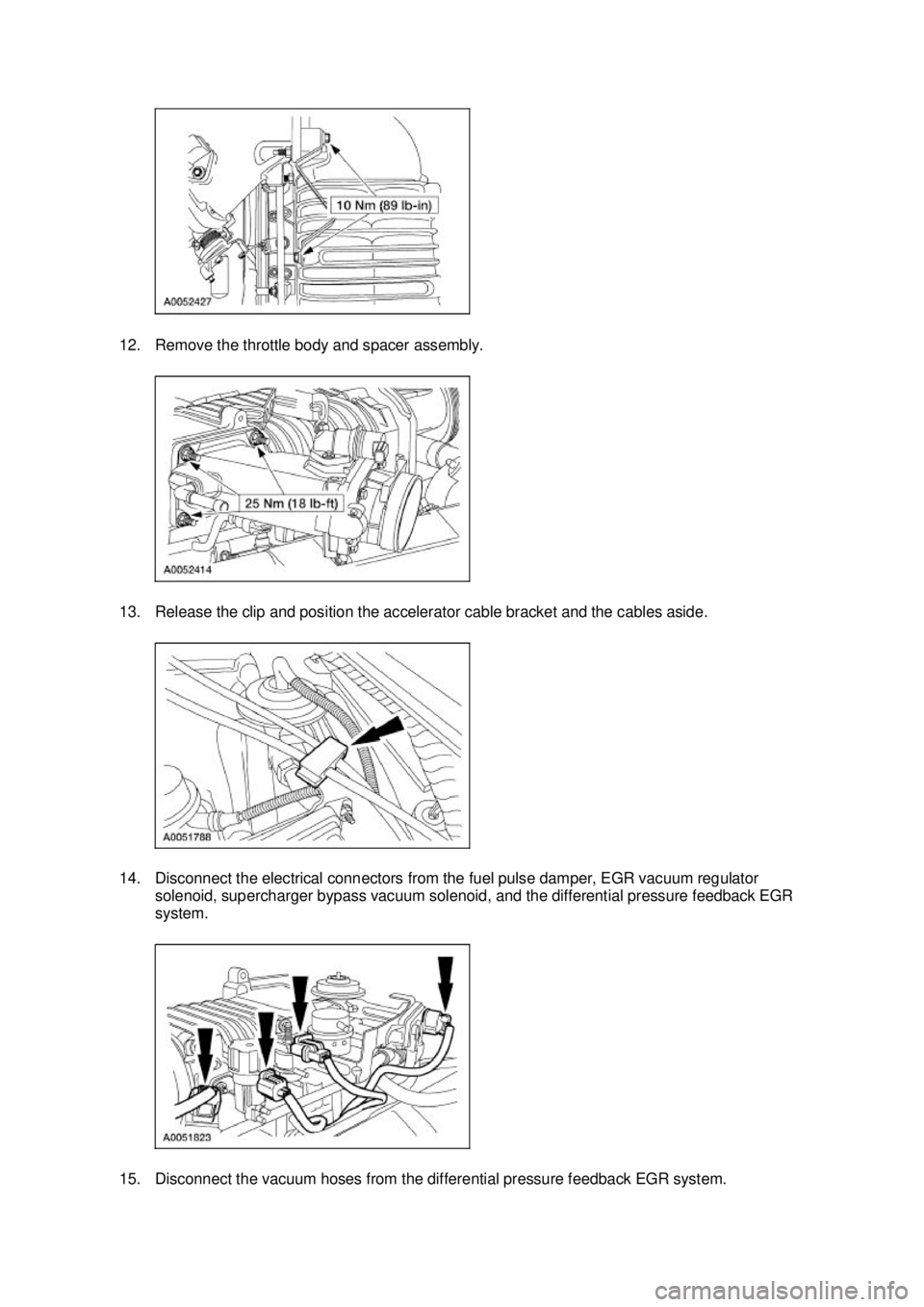

FORD MUSTANG 2003 Workshop Manual 12. Remove the throttle body and spacer assembly. 13. Release the clip and position the accelerator cable bracket and the cables aside. 14. Disconnect the electrical connectors from the fuel pulse d
