Page 105 of 4378

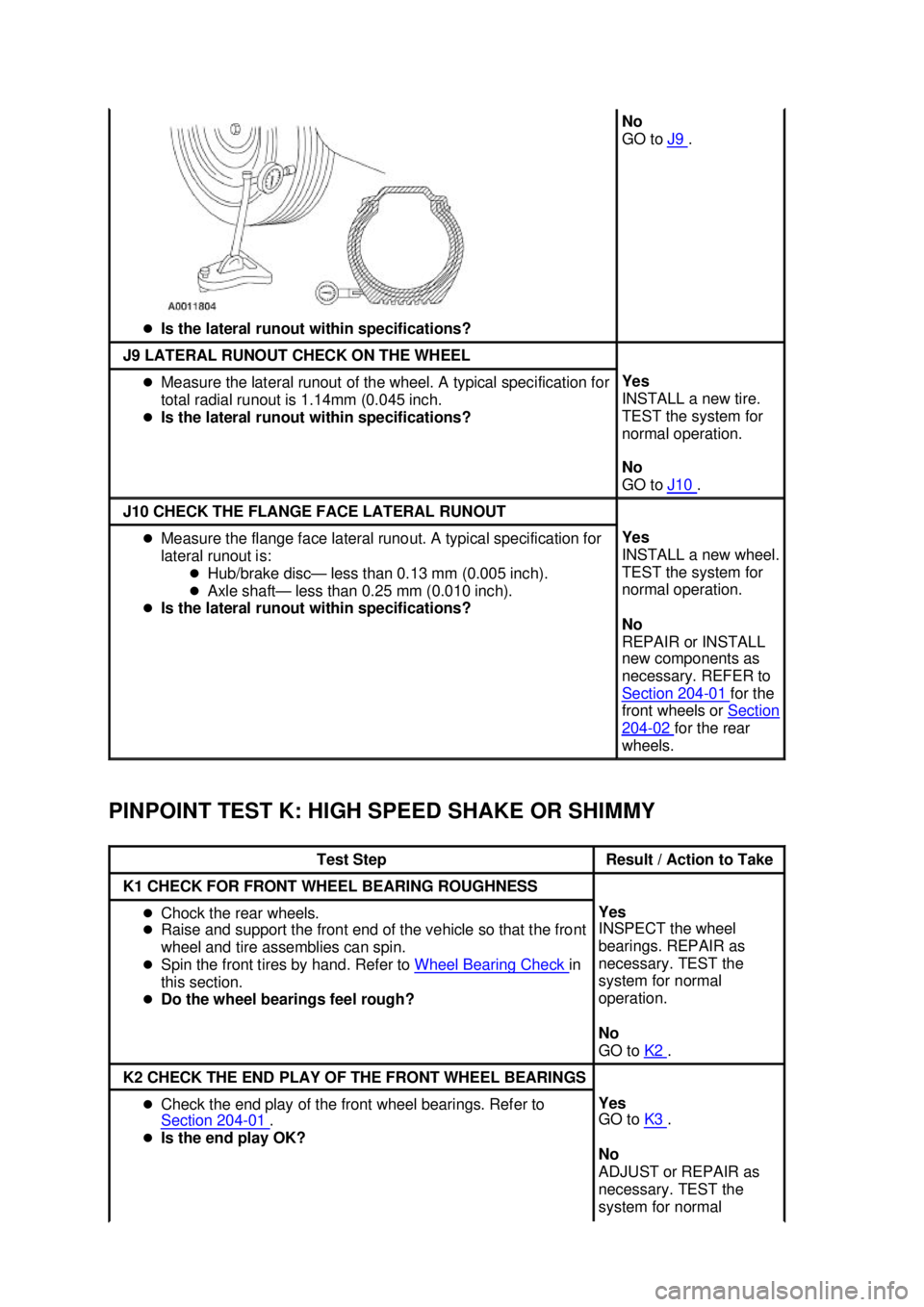

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST K: HIGH SPEED SHAKE OR SHIMMY �z
Is the lateral runout within specifications? No
GO to
J9 .
J9 LATERAL RUNOUT CHECK ON THE WHEEL
�z
Measure the lateral runout of the wheel. A typi

Page 106 of 4378

FORD MUSTANG 2003 Workshop Manual operation.
K3 MEASURE THE LATERAL RUNOUT AND THE RADIAL
RUNOUT OF THE FRONT WHEELS ON THE VEHICLE �z
Measure the lateral runout and the radial runout of the front
wheels on the vehicle. Refer to

operation.
K3 MEASURE THE LATERAL RUNOUT AND THE RADIAL
RUNOUT OF THE FRONT WHEELS ON THE VEHICLE z
Measure the lateral runout and the radial runout of the front
wheels on the vehicle. Refer to Go To Pinpoint Test J .
z Are the measurements within specifications? Yes
GO to
K4 .
No
INSTALL new wheels as
necessary and BALANCE
the assembly. TEST the
system for normal
operation. K4 MEASURE THE LATERAL RUNOUT OF THE FRONT TIRES
ON THE VEHICLE z
Measure the lateral runout of the front tires on the vehicle. Go To Pinpoint Test J .
z Is the runout within specifications? Yes
GO to
K5 .
No
INSTALL new tires as
necessary and BALANCE
the assembly. TEST the
system for normal
operation. K5 MEASURE THE RADIAL RUNOUT OF THE FRONT TIRES
ON THE VEHICLE z
Measure the radial runout of the front tires on the vehicle. Go To Pinpoint Test J .
z Is the runout within specifications? Yes
BALANCE the front wheel
and tire assemblies. If any
tire cannot be balanced,
INSTALL a new tire.
TEST the system for
normal operation.
No
GO to
K6 .
K6 MATCH MOUNT THE TIRE AND WHEEL ASSEMBLY
z
Mark the high runout location on the tire and also on the
wheel. Break the assembly down and rotate the tire 180
degrees (halfway around) on the wheel. Inflate the tire and
measure the radial runout.
z Is the runout within specifications? Yes
BALANCE the assembly.
TEST the system for
normal operation.
No
If the high spot is not
within 101.6 mm (4
inches) of the first high
spot on the tire, GO to
K7
.
K7 MEASURE THE WHEEL FLANGE RUNOUT
z
Dismount the tire and mount the wheel on a wheel balancer.
Measure the runout on both wheel flanges. Go To Pinpoint Test J . Yes
LOCATE and MARK the
low spot on the wheel.
INSTALL the tire,
matching the high spot on
the tire with the low spot
on the wheel. BALANCE
the assembly. TEST the
system for normal
operation. If the condition Klj . 59 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 107 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Is the runout within specifications? persists,GO to
K8 .
No
INSTALL a new wheel.
CHECK the runout on the
new wheel. If the new
wheel is within limits,
LOCATE and MARK the
low spot. INSTAL

z
Is the runout within specifications? persists,GO to
K8 .
No
INSTALL a new wheel.
CHECK the runout on the
new wheel. If the new
wheel is within limits,
LOCATE and MARK the
low spot. INSTALL the
tire, matching the high
spot on the tire with the
low spot on the wheel.
BALANCE the assembly.
TEST the system for
normal operation. If the
condition persists, GO to
K8 .
K8 CHECK FOR VIBRATION FROM THE FRONT OF THE
VEHICLE WARNING: If only one drive wheel is allowed to
rotate, speed must be limited to 55 km/h (34 mph) using
the speedometer reading, since actual wheel speed will
be twice that indicated on the speedometer. Exceeding a
speed of 55 km/h (34 mph) or allowing the drive wheel to
hang unsupported can result in tire disintegration or
differential failure, which can cause serious personal
injury and extensive vehicle damage.
z Spin the front wheel and tire assemblies with a wheel
balancer while the vehicle is raised on a hoist. Feel for
vibration in the front fender or while seated in the vehicle.
z Is the vibration present? Yes
SUBSTITUTE known
good wheel and tire
assemblies as necessary.
TEST the system for
normal operation.
No
GO to
K9 .
K9 CHECK FOR VIBRATION FROM THE REAR OF THE
VEHICLE WARNING: If only one drive wheel is allowed to
rotate, speed must be limited to 55 km/h (34 mph) using
the speedometer reading, since actual wheel speed will
be twice that indicated on the speedometer. Exceeding a
speed of 55 km/h (34 mph) or allowing the drive wheel to
hang unsupported can result in tire disintegration or
differential failure, which can cause serious personal
injury and extensive vehicle damage.
z Chock the front wheels.
z Raise and support the rear end of the vehicle so that the rear
wheel and tire assemblies can spin.
z Engage the drivetrain and carefully accelerate the drive
wheels while checking for vibration.
z Is the vibration present? Yes
GO to
K10 .
No
TEST the system for
normal operation. K10 CHECK THE DRIVETRAIN
WARNING: If only one drive wheel is allowed to
rotate, speed must be limited to 55 km/h (34 mph) using
the speedometer reading, since actual wheel speed will
be twice that indicated on the speedometer. Exceeding a
speed of 55 km/h (34 mph) or allowing the drive wheel to
hang unsupported can result in tire disintegration or
differential failure, which can cause serious personal
injury and extensive vehicle damage.
z Remove the rear wheel and tire assemblies. Refer to the Yes
CHECK/TEST the
drivetrain and driveline
components. TEST the
system for normal
operation.
No
SUBSTITUTE known
good wheel and tire Klj . 60 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 108 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST L: CLUTCH VIBRATION appropriate workshop manual for the service procedures.
�z Secure the brake drums (if so equipped), by installing wheel
hub bolt nuts, reversed.
�z Carefully acce

PINPOINT TEST L: CLUTCH VIBRATION appropriate workshop manual for the service procedures.
z Secure the brake drums (if so equipped), by installing wheel
hub bolt nuts, reversed.
z Carefully accelerate the drivetrain while checking for vibration.
z Is the vibration present? assemblies as necessary.
TEST the system for
normal operation.
Test Step Result / Action to Take
L1 CHECK ENGINE COMPONENTS FOR GROUNDING
z
NOTE: Make sure the clutch is the cause of the
vibration concern. The vibration should occur during
clutch operation. The clutch can also be difficult to
engage or disengage. Eliminate all related systems
before checking the clutch components.
z NOTE: Check the driveline angles and driveshaft
runout before disassembling the clutch system. Refer
to Section 205 - 00 for the correct driveline angle
specifications.
z Check the powertrain/drivetrain mounts, exhaust
manifolds or other engine components for grounding
on the chassis.
z Are any mounts or engine components
grounded? Yes
REPAIR as necessary. TEST the
system for normal operation.
No
GO to
L2 .
L2 CHECK THE ACCESSORY DRIVE
z
Remove the accessory drive belt.
z Does the vibration stop with the accessory drive
belt removed? Yes
DIAGNOSE the accessory drive
components.
No
GO to
L3 .
L3 CHECK FOR LOOSE CLUTCH PRESSURE PLATE
BOLTS z
Check for loose clutch pressure plate bolts. Inspect
the clutch pressure plate for damage or for material
between the pressure plate and flywheel.
z Are there any loose bolts or damage? Yes
TIGHTEN the bolts to
specifications or if damaged,
INSTALL a new clutch pressure
plate. REFER to
Section 308 - 01 .
TEST the system for normal
operation.
No
GO to L4 .
L4 CHECK THE CLUTCH DISC SPRINGS
z
Check for worn, broken or loose clutch disc springs.
z Are the clutch springs worn, broken or loose? Yes
INSTALL a new clutch disc.
REFER to
Section 308 - 01 . TEST
the system for normal operation.
No
GO to L5 .
L5 CHECK THE CLUTCH DISC SPLINES
z
Inspect the clutch disc splines for damage or wear.
z Is there damage or wear? Yes
INSTALL a new clutch disc.
REFER to
Section 308 - 01 . TEST Klj . 61 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 109 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST M: TRANSFER CASE VIBRATION the system for normal operation.
No
GO to
L6 .
L6 CHECK THE FLYWHEEL BOLTS
�z
Check for loose flywheel bolts.
�z Are the bolts loose? Yes
TIGHTEN the

PINPOINT TEST M: TRANSFER CASE VIBRATION the system for normal operation.
No
GO to
L6 .
L6 CHECK THE FLYWHEEL BOLTS
z
Check for loose flywheel bolts.
z Are the bolts loose? Yes
TIGHTEN the bolts to
specifications. REFER to
Section 308 - 01 . TEST the system for
normal operation.
No
GO to L7 .
L7 CHECK THE FLYWHEEL SURFACE
z
Inspect the flywheel surface for wear or damage.
Check the flywheel runout.
z Is there any damage or excessive wear? Yes
INSTALL a new flywheel. TEST
the system for normal operation.
No
Clutch system normal. CONDUCT
a diagnosis on other suspect
systems.
Test Step Result / Action to Take
M1 INSPECT THE TRANSFER CASE
z
WARNING: The electrical power to the air suspension
system must be shut off prior to hoisting, jacking or towing
an air suspension vehicle. This can be accomplished by
turning off the air suspension switch. Failure to do so can
result in unexpected inflation or deflation of the air springs,
which can result in shifting of the vehicle during these
operations.
z Inspect the transfer case for loose or missing mounting bolts.
Check for fluid seepage between the transfer case and the
transmission.
z Are the mounting bolts missing or loose? Yes
TIGHTEN to
specifications or
INSTALL new bolts as
necessary. TEST the
system for normal
operation.
No
GO to
M2 .
M2 INSPECT THE REAR DRIVESHAFT
z
NOTE: Verify that the driveshaft and pinion flange index marks
are aligned.
z Inspect the driveshaft for missing weights, damage or
undercoating.
z Inspect the U- joints for freedom of movement.
z Check driveshaft runout and, if necessary, check the pinion
flange runout.
z Is the driveshaft or U- joints worn or damaged or
misaligned? Yes
REPAIR or INSTALL a
new driveshaft as
necessary. TEST the
system for normal
operation.
No
GO to
M3 .
M3 CHECK THE DRIVELINE ANGLES
z
Measure the rear driveshaft and pinion angles. Refer to Section 205 - 00 .
z Measure the front driveshaft and pinion angles. Refer to Section 205 - 00 .
z Are the driveline angles incorrect? Yes
REPAIR as necessary.
TEST the system for
normal operation.
No Klj . 62 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 110 of 4378

FORD MUSTANG 2003 Workshop Manual Component Tests
Idle Air Control (IAC) Valve
1. Open the hood.
2. NOTE: Key symptom is elevated idle speed while noise is occurring.
NOTE: "Snapping" the throttle can induce the noise.
Verify t

Component Tests
Idle Air Control (IAC) Valve
1. Open the hood.
2. NOTE: Key symptom is elevated idle speed while noise is occurring.
NOTE: "Snapping" the throttle can induce the noise.
Verify the condition by operating the vehicle for a short time.
3. Inspect the IAC valve. If physical evidence of contamination exists, install a new IAC valve. GO to
M4 .
M4 INSPECT THE FRONT DRIVESHAFT
z
NOTE: Verify that the driveshaft and pinion flange index marks
are aligned.
z Inspect the front driveshaft for missing weights, damage or
undercoating.
z Inspect the U- joints and slip yoke for freedom of movement.
z Check driveshaft runout and, if necessary, check the pinion
flange runout.
z Is the driveshaft or U- joints worn or damaged? Yes
REPAIR or INSTALL a
new driveshaft as
necessary. TEST the
system for normal
operation.
No
GO to
M5 .
M5 ROAD TEST WITH THE FRONT DRIVESHAFT ONLY
z
NOTE: Index mark the driveshaft to the pinion flange and to the
output shaft before removal.
z Remove the rear driveshaft.
z Plug the transfer case with an output shaft seal plug.
z NOTE: Shift the transfer case into 4WD high so the vehicle is
driven by the front driveshaft only.
z Test drive the vehicle.
z Is the vibration gone? Yes
INSTALL and BALANCE
the rear driveshaft.
TEST the system for
normal operation.
No
GO to
M6 .
M6 ROAD TEST WITH THE REAR DRIVESHAFT ONLY
z
NOTE: Index mark the front driveshaft to the pinion flange.
z Remove the front driveshaft.
z Test drive the vehicle.
z Is the vibration gone? Yes
INSTALL and BALANCE
the front driveshaft.
TEST the system for
normal operation.
No
GO to
M7 .
M7 TRANSFER CASE TAIL SHAFT INSPECTION
z
Inspect the splines of the output shaft for wear or damage.
z Inspect the splines of the driveshaft slip yoke for wear or
damage.
z Are the splines worn or damaged? Yes
REPAIR or INSTALL
new components as
necessary. TEST the
system for normal
operation.
No
The transfer case is OK.
CONDUCT a diagnosis
on other suspect
systems. Klj . 63 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 111 of 4378

FORD MUSTANG 2003 Workshop Manual 4. While the noise is occurring, either place an EngineEAR probe near the IAC valve and the inlet
tube, or create a 6.35 mm (0.25 in)- 12.7 mm (0.50 in) air gap between the inlet tube and the
clean

4. While the noise is occurring, either place an EngineEAR probe near the IAC valve and the inlet
tube, or create a 6.35 mm (0.25 in)- 12.7 mm (0.50 in) air gap between the inlet tube and the
clean air tube. If the IAC valve is making the noise, install a new IAC valve.
5. Test the vehicle for normal operation.
Steering Gear Grunt/Shudder Test
1. Start and run the vehicle to operating temperature.
2. Set engine idle speed to 1200 rpm.
3. CAUTION: Do not hold the steering wheel against the stops for more than three to
five seconds at a time. Damage to the power steering pump will occur.
Rotate the steering wheel to the RH stop, then turn the steering wheel 90° back from that
position. Turn the steering wheel slowly in a 15° to 30° arc.
4. Turn the steering wheel another 90°. Turn the steering wheel slowly in a 15° to 30° arc.
5. Repeat the test with power steering fluid at different temperatures.
6. If a light grunt is heard or a low (50- 200 Hz) shudder is present, this is a normal steering system
condition.
7. If a loud grunt is heard, or a strong shudder is felt, fill and purge the power steering system.
Checking Tooth Contact Pattern and Condition of the Ring and Pinion
There are two basic types of conditions that will produce ring and pinion noise. The first type is a howl
or chuckle produced by broken, cracked, chipped, scored or forcibly damaged gear teeth and is
usually quite audible over the entire speed range. The second type of ring and pinion noise pertains to
the mesh pattern of the gear pattern. This gear noise can be recognized as it produces a cycling pitch
or whine. Ring and pinion noise tends to peak in a narrow speed range or ranges, and will tend to
remain constant in pitch.
1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
2. Drain the axle lubricant. Refer to Section 205 - 02A for Ford 7.5 rear axles or
Section 205 - 02B for
Ford 8.8 integral axles.
3. Remove the carrier assembly or the axle housing cover depending on the axle type. Refer to Section 205 - 02A for Ford 7.5 rear axles or
Section 205 - 02B for Ford 8.8 integral axles.
4. Inspect the gear set for scoring or damage. Klj . 64 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 112 of 4378

FORD MUSTANG 2003 Workshop Manual 5. In the following steps, the movement of the contact pattern along the length is indicated as
toward the" heel" or "toe" of the differential ring gear.
6. Apply a marking compound to a third of th

Load next 8 pages

Page: < prev 1-10 ... 73-80 81-88 89-96 97-104 105-112 113-120 121-128 129-136 137-144 ... 4384 next >

oil dipstick navigation update service schedule suspension 4WD transmission
