Page 3105 of 4378

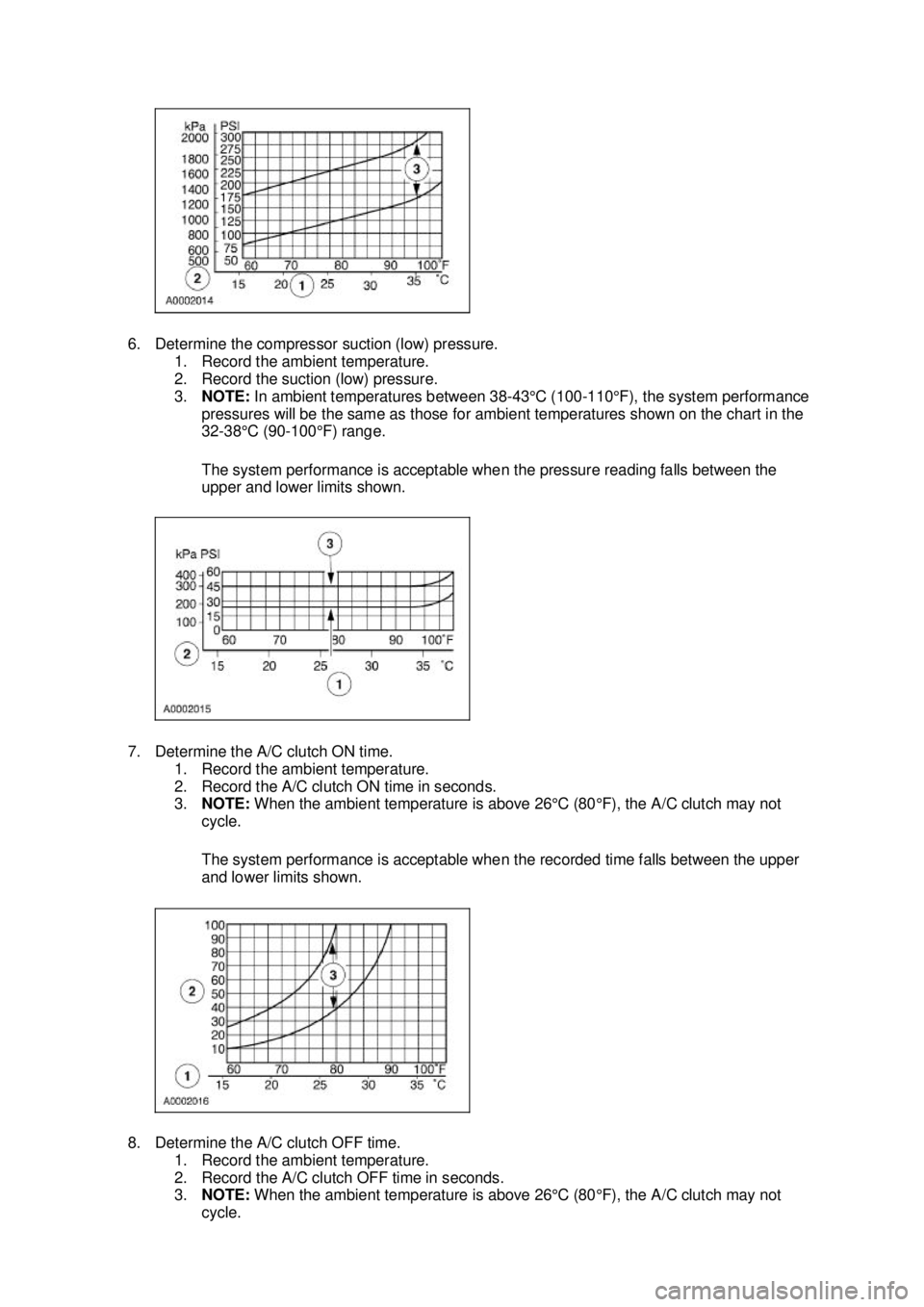

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Refrigerant System Tests 1. Connect the R- 134a Manifold Gauge Set. For additional information, refer to Manifold Gauge Set Connection in this section. 2. Adjust the climate co

Page 3106 of 4378

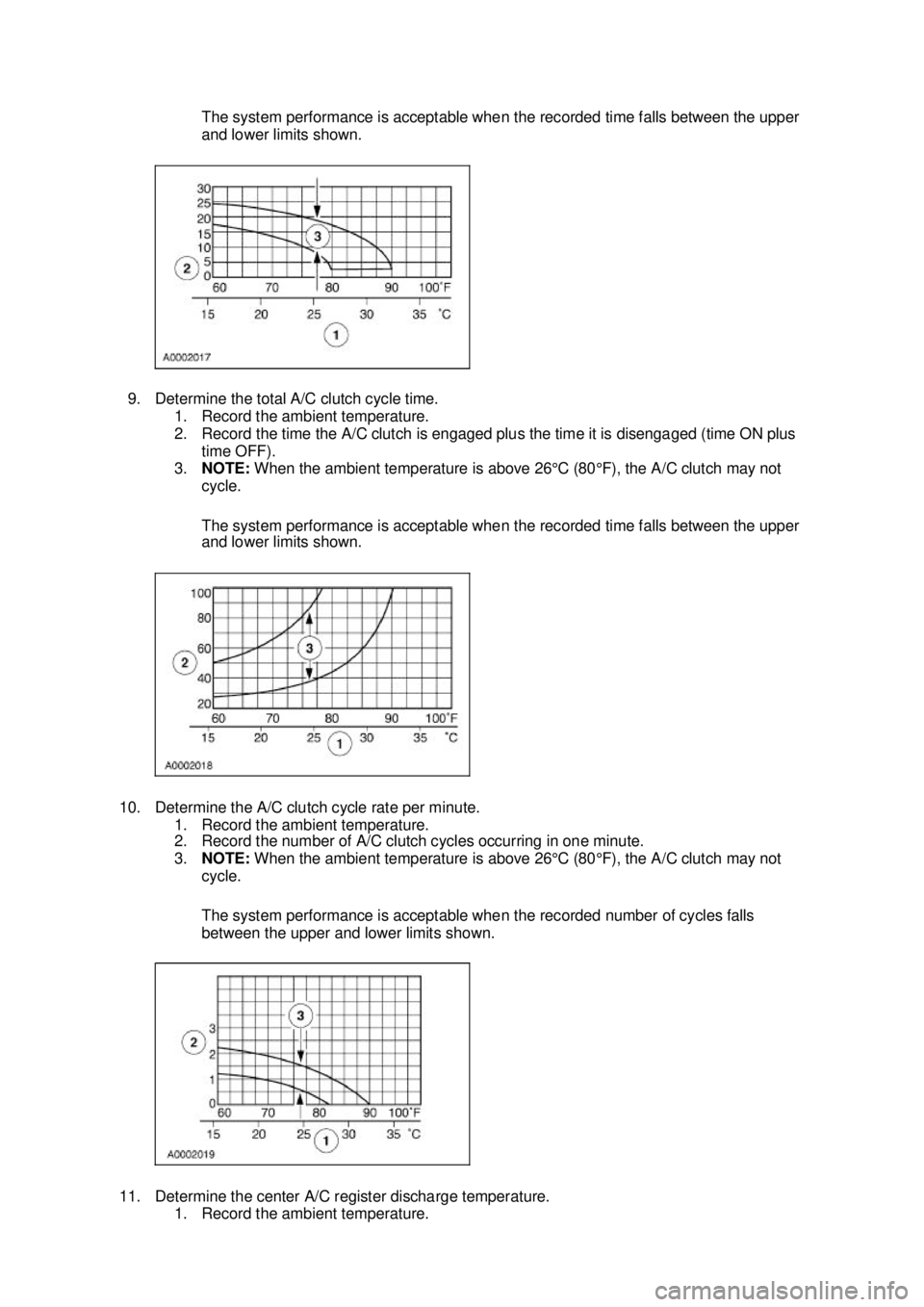

FORD MUSTANG 2003 Workshop Manual 6. Determine the compressor suction (low) pressure. 1. Record the ambient temperature. 2. Record the suction (low) pressure. 3.NOTE: In ambient temperatures between 38- 43°C (100-110°F), the sys

Page 3107 of 4378

FORD MUSTANG 2003 Workshop Manual The system performance is acceptable when the recorded time falls between the upper and lower limits shown. 9. Determine the total A/C clutch cycle time. 1. Record the ambient temperature. 2. Reco

Page 3108 of 4378

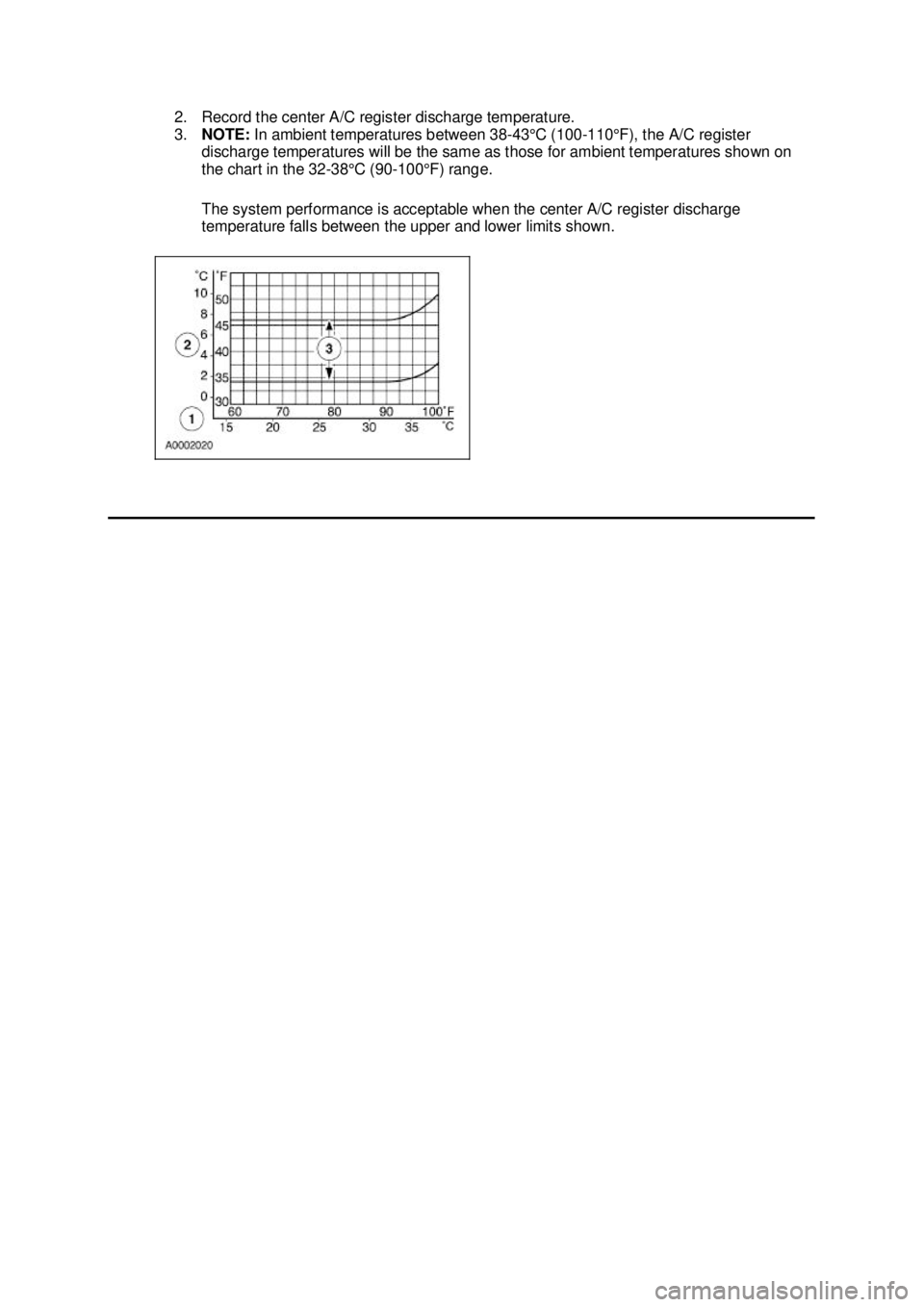

FORD MUSTANG 2003 Workshop Manual 2. Record the center A/C register discharge temperature. 3. NOTE: In ambient temperatures between 38- 43°C (100-110°F), the A/C register discharge temperatures will be the same as those for ambie

Page 3109 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Air Conditioning (A/C) Clutch Air Gap Adjustment 1. Check the A/C clutch air gap at three equally- spaced places between the A/C clutch hub (2884) and the A/C clutch pulley (2E88

Page 3110 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Manifold Gauge Set Connection 1. Turn both valves on the R- 134a Manifold Gauge Set clockwise to close the low- and high- pressure hoses to the center manifold and center hose.

Page 3111 of 4378

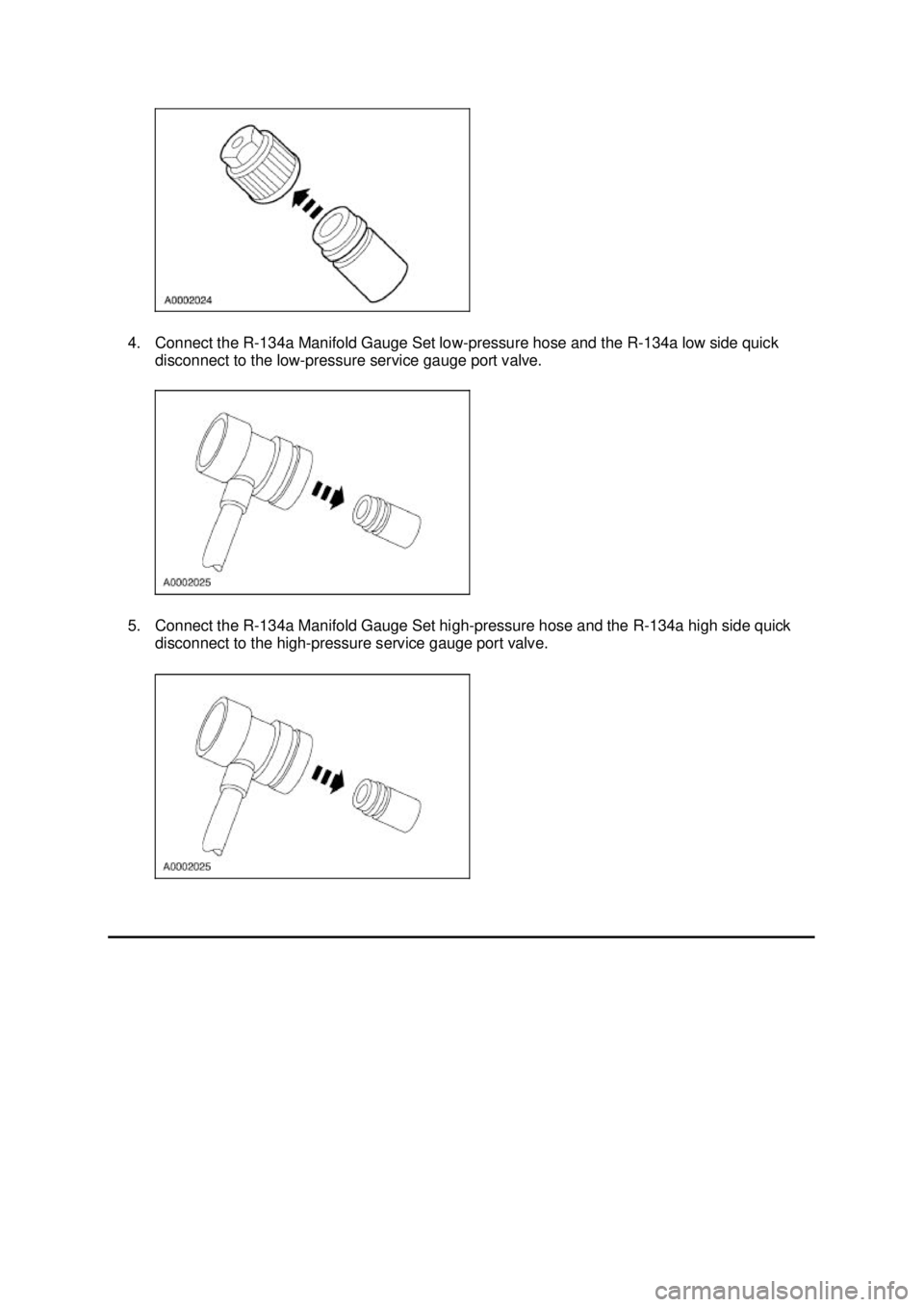

FORD MUSTANG 2003 Workshop Manual 4. Connect the R-134a Manifold Gauge Set low- pressure hose and the R-134a low side quick disconnect to the low- pressure service gauge port valve. 5. Connect the R-134a Manifold Gauge Set high- pre

Page 3112 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
