FORD MUSTANG 2003 Workshop Manual DTCs. B24 CHECK CIRCUIT 56 (DB/OG) FOR AN OPEN CIRCUIT BETWEEN THE WIPER HIGH/LOW RELAY AND THE WIPER MOTOR �z Disconnect: Wiper Motor C125. �z Measure the resistance between wiper HIGH/LOW relay

Page 3882 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: WINDSHIELD WASHERS DO NOT OPERATE / OPERATE CORRECTLY �z Disconnect: Wiper Motor C125. �z Disconnect: GEM C201d. �z Measure the resistance between wiper motor C125 Pin 1, Circuit

Page 3883 of 4378

FORD MUSTANG 2003 Workshop Manual test. �z Disconnect: Washer ON/OFF Relay. �z Measure the voltage between washer ON/OFF relay Pin 2, Circuit 65 (DG), harness side and ground; and washer ON/OFF relay Pin 3, Circuit 65 (DG), harnes

Page 3884 of 4378

FORD MUSTANG 2003 Workshop Manual �z Is the voltage greater than 10 volts? C8 CHECK CIRCUIT 686 (TN/RD) FOR SHORT TO GROUND BETWEEN GEM AND BJB �z Measure the resistance between GEM C201d Pin 6, Circuit 686 (TN/RD), harness side a

Page 3885 of 4378

FORD MUSTANG 2003 Workshop Manual Component Test Windshield Wiper Motor CAUTION: Do not handle the wiper motor abusively when diagnosing the wiper operations. Failure to follow this caution may result in damage to the motor magnet

Page 3886 of 4378

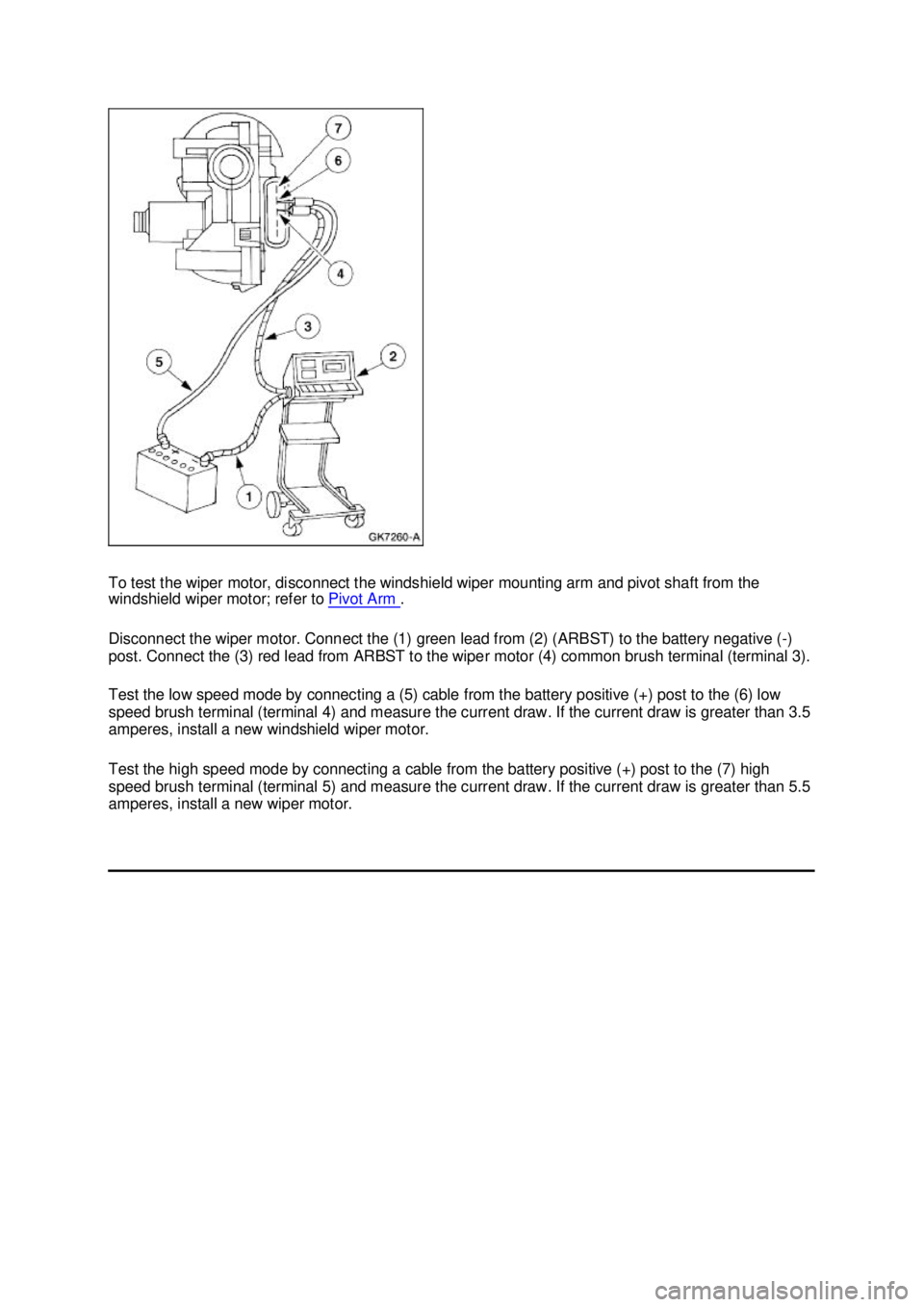

FORD MUSTANG 2003 Workshop Manual To test the wiper motor, disconnect the windshield wiper mounting arm and pivot shaft from the windshield wiper motor; refer to Pivot Arm . Disconnect the wiper motor. Connect the (1) green lead f

Page 3887 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 20 ba 202003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3888 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Wiper Blade and Pivot Arm Adjustment 1. Cycle and park the windshield wipers. 2. Verify that the distance between the center of the RH windshield wiper blade and the top edge of
