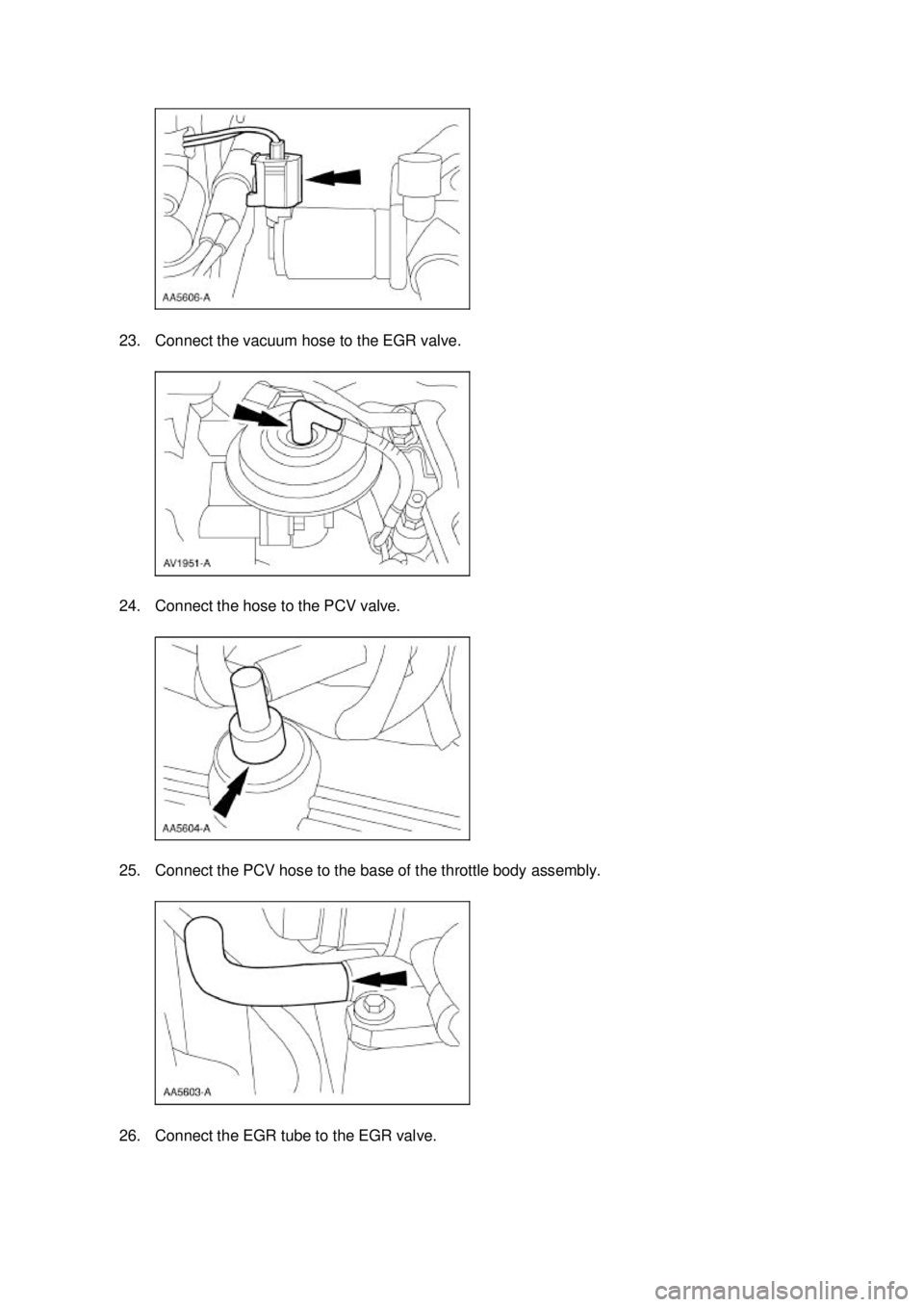

Page 1161 of 4378

FORD MUSTANG 2003 Workshop Manual 23. Connect the vacuum hose to the EGR valve. 24. Connect the hose to the PCV valve. 25. Connect the PCV hose to the base of the throttle body assembly. 26. Connect the EGR tube to the EGR valve.

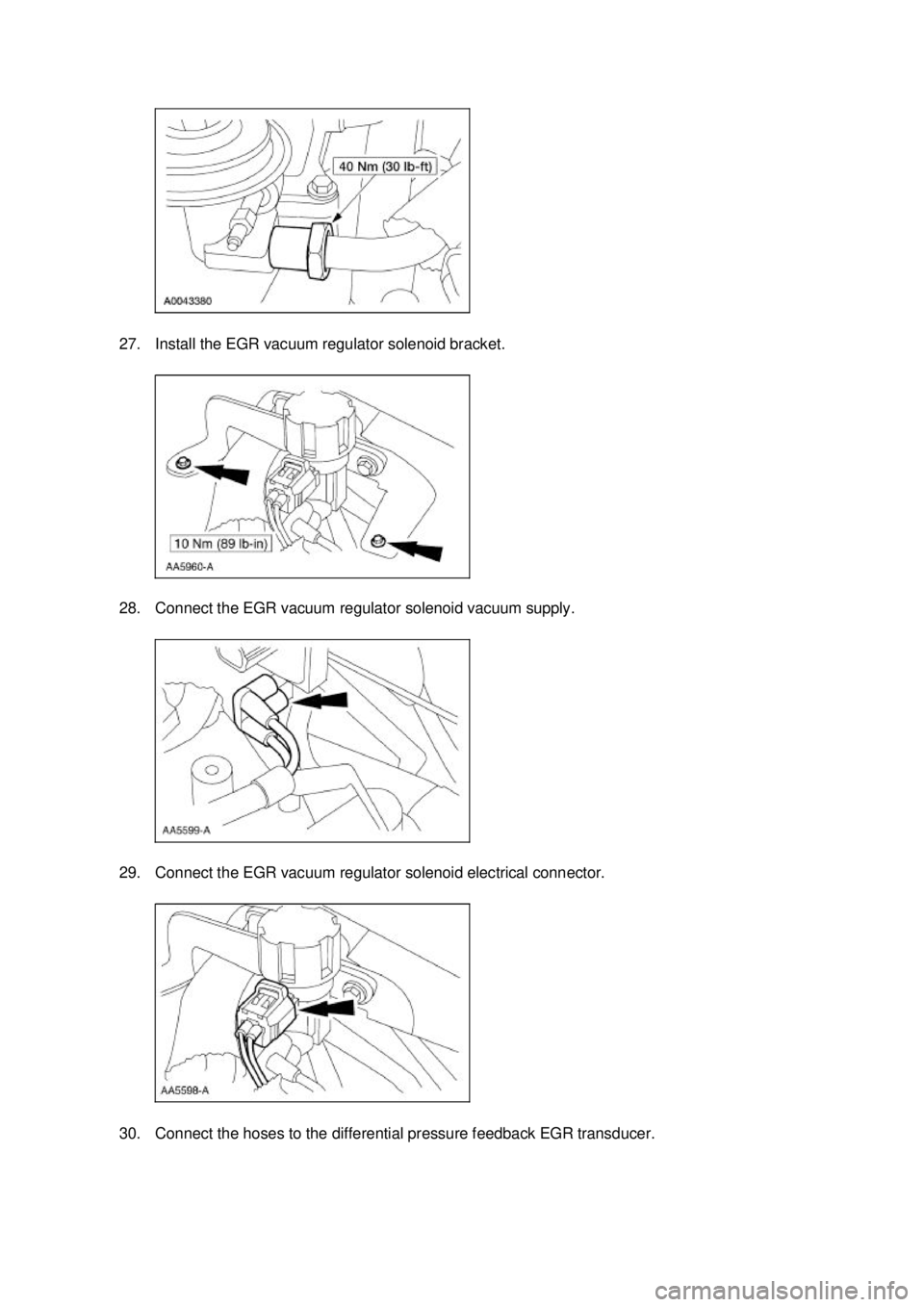

Page 1162 of 4378

FORD MUSTANG 2003 Workshop Manual 27. Install the EGR vacuum regulator solenoid bracket. 28. Connect the EGR vacuum regulator solenoid vacuum supply. 29. Connect the EGR vacuum regulator solenoid electrical connector. 30. Connect t

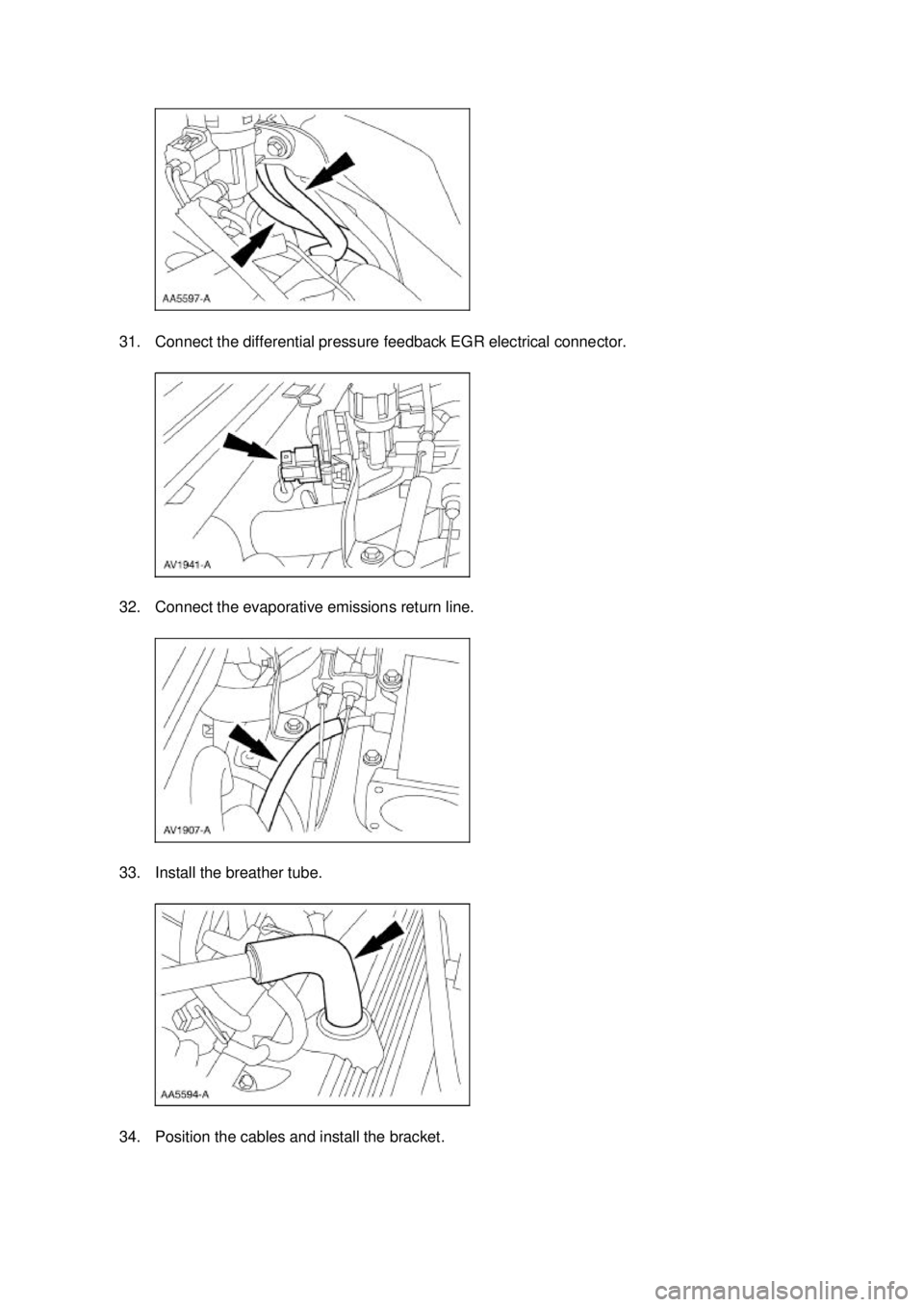

Page 1163 of 4378

FORD MUSTANG 2003 Workshop Manual 31. Connect the differential pressure feedback EGR electrical connector. 32. Connect the evaporative emissions return line. 33. Install the breather tube. 34. Position the cables and install the br

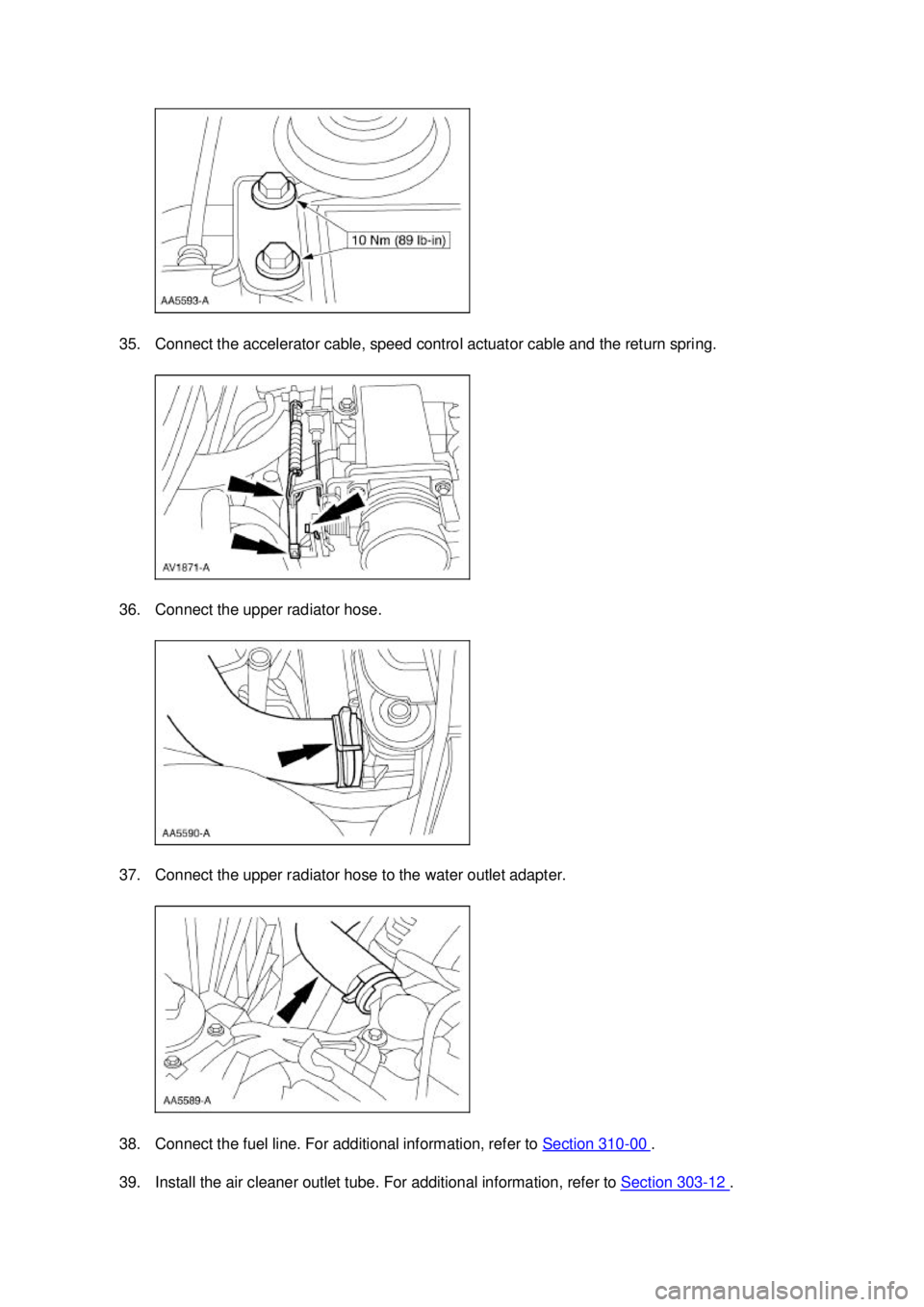

Page 1164 of 4378

FORD MUSTANG 2003 Workshop Manual 35. Connect the accelerator cable, speed control actuator cable and the return spring. 36. Connect the upper radiator hose. 37. Connect the upper radiator hose to the water outlet adapter. 38. Conn

Page 1165 of 4378

FORD MUSTANG 2003 Workshop Manual 40. Refill the engine cooling system. For additional information, refer to Section 303 - 03A or Section 303 - 03B . Klj . 20 ba 202003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford

Page 1166 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Valve Cover RH Removal and Installation 1. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 . 2. Disconnect the fuel line. For additio

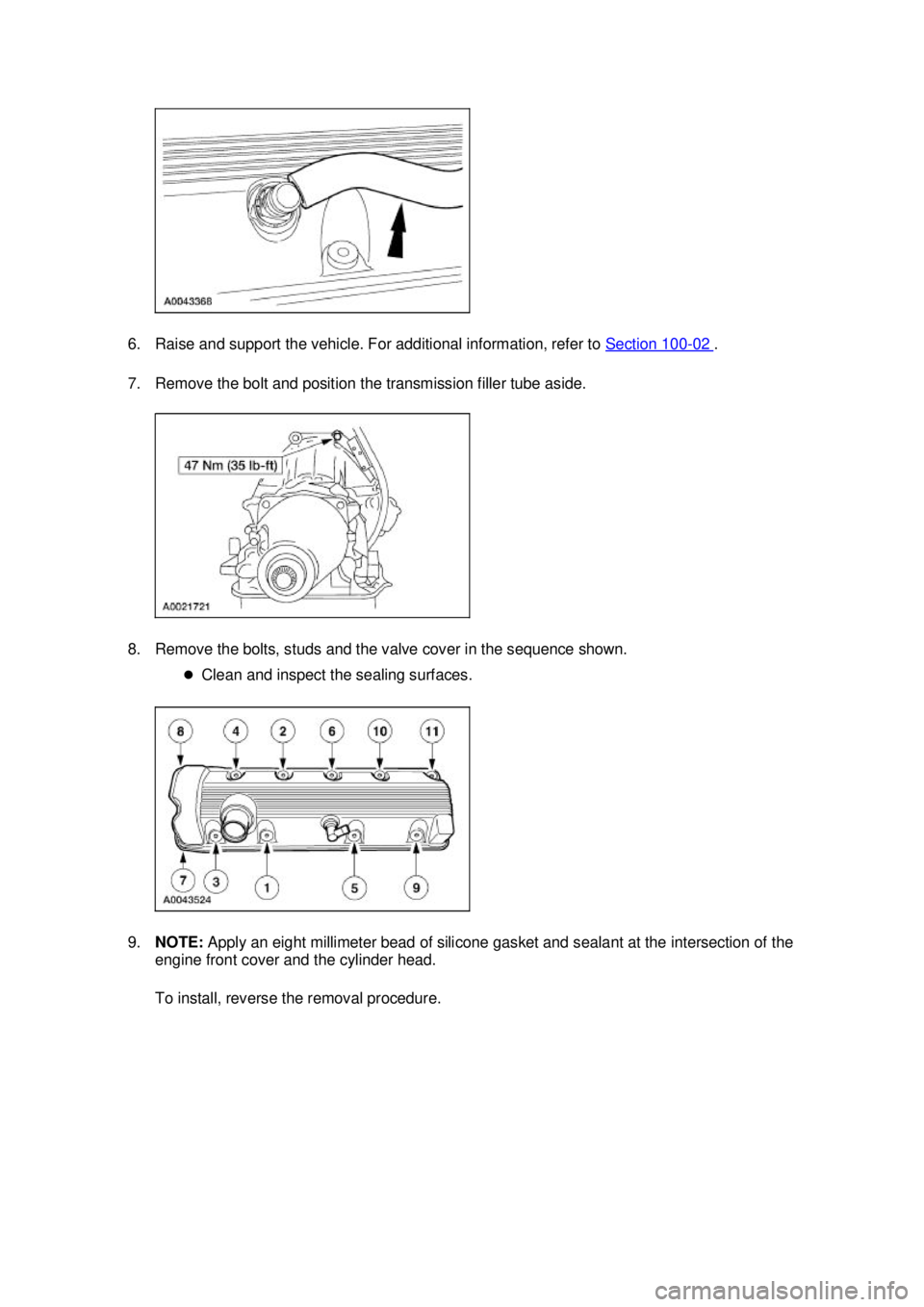

Page 1167 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 7. Remove the bolt and position the transmission filler tube aside. 8. Remove the bolts, studs and the val

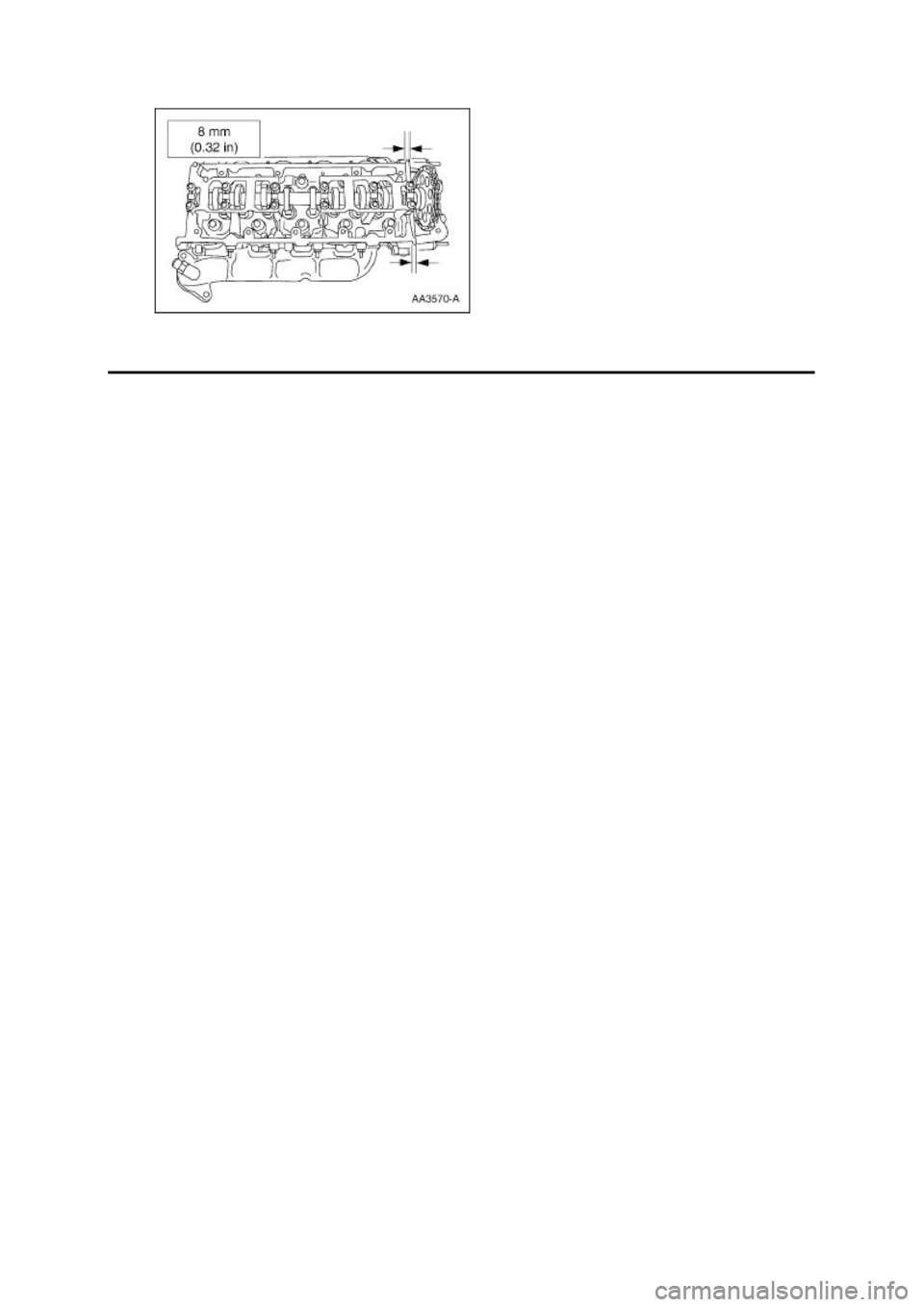

Page 1168 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
