FORD MUSTANG 2003 Workshop Manual manifold.
�z Complete the evaporative emission
system leak test. Refer to Evaporative Emission System Leak Test in this
section.
�z Does the system pass the leak test? No
GO to
A4 .
A3 VISU

manifold.
z Complete the evaporative emission
system leak test. Refer to Evaporative Emission System Leak Test in this
section.
z Does the system pass the leak test? No
GO to
A4 .
A3 VISUALLY INSPECT THE FUEL
FILLER CAP z
Visually inspect the fuel filler cap for
damage.
z Is the fuel filler cap damaged? Yes
INSTALL a new fuel filler cap. GO to
A4 .
No
GO to A4 .
A4 CHECK FOR SMALL LEAKS AT THE
FUEL FILLER CAP AND EVAP TEST PORT z
Connect the Evaporative Emission
System Leak Tester to the fuel filler
pipe.
z Key in ON position.
z Close the canister vent solenoid. Refer
to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Using the ultrasonic leak detector,
check the fuel filler cap and EVAP test
port for leaks.
z Is a leak detected? Yes
REPAIR or INSTALL new components as
necessary. GO to
A5 .
No
INSTALL the fuel filler cap. CARRY OUT the
evaporative emission system leak test. REFER
to Evaporative Emission System Leak Test in
this section. If the system passes the leak test,
CARRY OUT the evaporative emissions repair
verification drive cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this
section. A5 CHECK FOR CONCERN OTHER THAN
THE FUEL FILLER CAP z
Refer to previous test results.
z Did the system pass the evaporative
emission system leak test carried
out in pinpoint test Step A2? Yes
CARRY OUT the evaporative emission system
leak test. REFER to
Evaporative Emission System Leak Test in this section. If the system
passes the leak test, CARRY OUT the
evaporative emission repair verification drive
cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this section.
No
INSTALL the fuel filler cap. GO to A6 .
A6 CHECK FOR SMALL LEAK WITH
TESTER SET AT FILL POSITION z
Connect the Evaporative Emission
System Leak Tester to the EVAP test
port.
z Key in ON position.
z Close the canister vent solenoid. Refer
to Canister Vent Solenoid Closing Procedure in this section.
z Turn the selector on the Evaporative
Emission System Leak Tester to the
FILL position.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Does the pressure on the EVAP
system hold between 3.43 kPa and
3.53 kPa (13.80 inches and 14.20 Yes
GO to
A7 .
No
DISCONTINUE pressurizing the system. GO to
A8 . Klj . 6 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2154 of 4378

FORD MUSTANG 2003 Workshop Manual inches H
2 O)? A7 CHECK FOR LEAKS IN THE
COMPLETE EVAP SYSTEM �z
Connect the Evaporative Emission
System Leak Tester to the EVAP test
port.
�z Key in ON position.
�z Close the canister vent so

inches H
2 O)? A7 CHECK FOR LEAKS IN THE
COMPLETE EVAP SYSTEM z
Connect the Evaporative Emission
System Leak Tester to the EVAP test
port.
z Key in ON position.
z Close the canister vent solenoid. Refer
to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Using the ultrasonic leak detector,
check the following EVAP system
locations:
„EVAP return tube to EVAP
canister purge valve
„ EVAP canister purge valve to
EVAP canister— canister vent
solenoid assembly
„ EVAP canister — canister vent
solenoid assembly to fuel tank
„ fuel filler cap and fuel filler tube
z Is a leak detected at EVAP return
tube, EVAP canister purge outlet
tube or EVAP canister tube or
associated hose? Yes
REPAIR or INSTALL new components as
necessary. CARRY OUT the evaporative
emission system leak test. REFER to
Evaporative Emission System Leak Test
in this
section. If the system passes the leak test,
CARRY OUT the evaporative emissions repair
verification drive cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this
section.
No
DISCONTINUE pressurizing the system. GO to
A8 .
A8 CHECK FOR SMALL LEAK FROM THE
EVAP RETURN TUBE TO THE FUEL
VAPOR TEE z
Disconnect the EVAP canister purge
outlet tube at the fuel vapor tee. Plug
the opening in the EVAP canister
purge outlet tube.
z Connect the Evaporative Emission
System Leak Tester to the EVAP test
port.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Using the ultrasonic leak detector,
check the EVAP system from the
intake manifold to the EVAP canister
purge outlet tube.
z Is a leak detected? Yes
REPAIR or INSTALL new components as
necessary. REPEAT Step A6 to verify the repair.
GO to
A9 .
No
GO to A9 .
A9 CHECK FOR SMALL LEAK BETWEEN
EVAP CANISTER AND FUEL TANK FILLER
PIPE z
Connect the Evaporative Emission
System Leak Tester to the fuel filler
pipe.
z Transfer the plug from the EVAP
canister purge outlet tube to the fuel
vapor tee.
z Turn the Evaporative Emission System
Leak Tester selector to the FILL
position.
z Key in ON position.
z Close the canister vent solenoid. Refer
to Canister Vent Solenoid Closing Yes
REPAIR or INSTALL new components as
necessary.
GO to
A10 .
No
GO to A10 . Klj . 7 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2155 of 4378

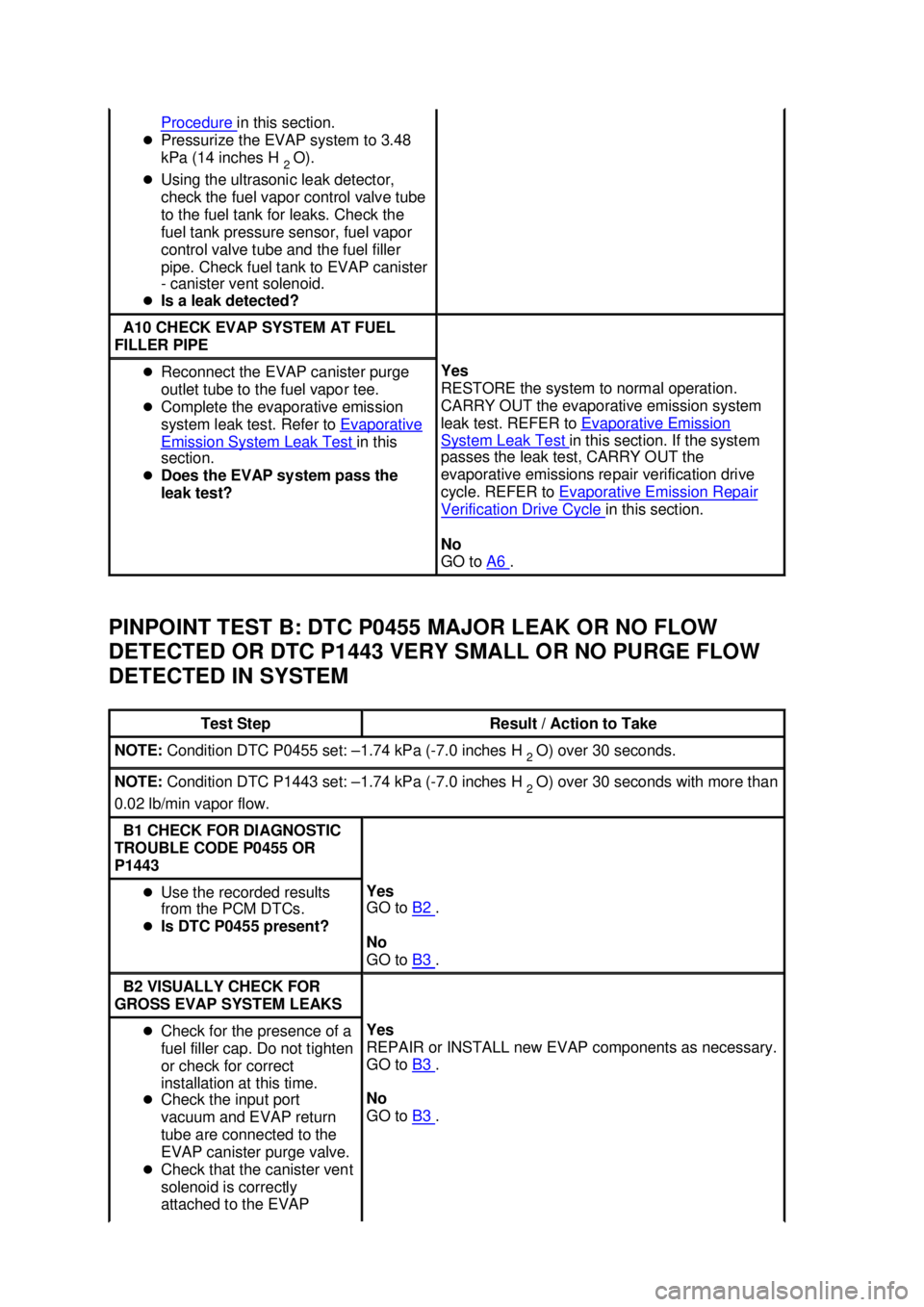

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: DTC P0455 MAJOR LEAK OR NO FLOW
DETECTED OR DTC P1443 VERY SMALL OR NO PURGE FLOW
DETECTED IN SYSTEM Procedure in this section.
�z Pressurize the EVAP system to 3.48
kPa (14 inc

PINPOINT TEST B: DTC P0455 MAJOR LEAK OR NO FLOW
DETECTED OR DTC P1443 VERY SMALL OR NO PURGE FLOW
DETECTED IN SYSTEM Procedure in this section.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Using the ultrasonic leak detector,
check the fuel vapor control valve tube
to the fuel tank for leaks. Check the
fuel tank pressure sensor, fuel vapor
control valve tube and the fuel filler
pipe. Check fuel tank to EVAP canister
-canister vent solenoid.
z Is a leak detected? A10 CHECK EVAP SYSTEM AT FUEL
FILLER PIPE z
Reconnect the EVAP canister purge
outlet tube to the fuel vapor tee.
z Complete the evaporative emission
system leak test. Refer to Evaporative Emission System Leak Test in this
section.
z Does the EVAP system pass the
leak test? Yes
RESTORE the system to normal operation.
CARRY OUT the evaporative emission system
leak test. REFER to
Evaporative Emission System Leak Test in this section. If the system
passes the leak test, CARRY OUT the
evaporative emissions repair verification drive
cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this section.
No
GO to A6 .
Test Step Result / Action to Take
NOTE:
Condition DTC P0455 set: – 1.74 kPa (-7.0 inches H
2 O) over 30 seconds. NOTE:
Condition DTC P1443 set: – 1.74 kPa (-7.0 inches H
2 O) over 30 seconds with more than
0.02 lb/min vapor flow. B1 CHECK FOR DIAGNOSTIC
TROUBLE CODE P0455 OR
P1443 z
Use the recorded results
from the PCM DTCs.
z Is DTC P0455 present? Yes
GO to
B2 .
No
GO to B3 .
B2 VISUALLY CHECK FOR
GROSS EVAP SYSTEM LEAKS z
Check for the presence of a
fuel filler cap. Do not tighten
or check for correct
installation at this time.
z Check the input port
vacuum and EVAP return
tube are connected to the
EVAP canister purge valve.
z Check that the canister vent
solenoid is correctly
attached to the EVAP Yes
REPAIR or INSTALL new EVAP components as necessary.
GO to
B3 .
No
GO to B3 . Klj . 8 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2156 of 4378

FORD MUSTANG 2003 Workshop Manual canister.
�z Check for disconnected or
cracked fuel vapor hoses or
tubes between the intake
manifold and following
components:
�„EVAP canister purge
valve
�„ EVAP canister
�„ fuel vapor

canister.
z Check for disconnected or
cracked fuel vapor hoses or
tubes between the intake
manifold and following
components:
„EVAP canister purge
valve
„ EVAP canister
„ fuel vapor vent valve
assembly
„ fuel vapor control
valve tube assembly
z Check for damaged fuel
tank or fuel filler pipe.
z Is a concern with a hose,
tube, connection or valve
visually evident? B3 CHECK FOR EVAP SYSTEM
LEAKS z
Disconnect the EVAP return
tube from the intake
manifold and plug the EVAP
return tube.
z Connect the Evaporative
Emissions System Leak
Tester to the EVAP test
port.
z Carry out the evaporative
emissions system leak test.
Refer to Evaporative Emission System Leak Test
in this section.
z Does the system pressure
stay above 1.99 kPa (8
inches H
2 O)? Yes
GO to
B4 .
No
VERIFY that the fuel filler cap is installed correctly. REPAIR
or INSTALL new components as necessary. CARRY OUT
the evaporative emission system leak test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test, CARRY OUT the
evaporative emission repair verification drive cycle. REFER
to Evaporative Emission Repair Verification Drive Cycle in
this section. B4 CHECK FOR BLOCKAGE
BETWEEN THE EVAP
CANISTER PURGE VALVE AND
FUEL VAPOR TEE z
Key in ON position.
z Close the canister vent
solenoid. Refer to Canister Vent Solenoid Closing
Procedure in this section.
z Pressurize the EVAP
system to 3.48 kPa (14
inches H
2 O).
z Open the canister vent
solenoid. Refer to Canister Vent Solenoid Closing
Procedure in this section.
z Does the pressure drop
immediately? Yes
GO to
B5 .
No
INSTALL a new vapor line between the EVAP canister
purge valve and the fuel vapor tee. CARRY OUT the
evaporative emission system leak test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test, CARRY OUT the
evaporative emission repair verification drive cycle. REFER
to Evaporative Emission Repair Verification Drive Cycle in
this section. B5 CHECK FOR BLOCKAGE
BETWEEN FUEL FILLER PIPE
AND THE FUEL VAPOR TEE z
Connect the Evaporative
Emissions System Leak Yes
GO to
B6 . Klj . 9 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2157 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: DTC P1450 EXCESSIVE VACUUM DETECTED IN
THE FUEL TANK Tester to the fuel filler pipe.
�z Pressurize the EVAP
system to 6.47 to 6.97 kPa
(26 to 28 inches H
2 O).
�z Does the pres

PINPOINT TEST C: DTC P1450 EXCESSIVE VACUUM DETECTED IN
THE FUEL TANK Tester to the fuel filler pipe.
z Pressurize the EVAP
system to 6.47 to 6.97 kPa
(26 to 28 inches H
2 O).
z Does the pressure drop
immediately? No
INSTALL new fuel tank vapor line(s). REPEAT pinpoint test
Step B5 to verify the repair. CARRY OUT the evaporative
emission system leak test. REFER to
Evaporative Emission System Leak Test in this section. If the system passes the
leak test, CARRY OUT the evaporative emission repair
verification drive cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this section.
B6 CHECK FOR FAILED EVAP
CANISTER PURGE VALVE OR
FUEL TANK PRESSURE
SENSOR z
Use the recorded results
from the PCM DTCs.
z Are DTC codes P0455 and
P1443 present? Yes
INSTALL a new EVAP canister purge valve. REFER to
Evaporative Emission Canister Purge Valve
in this section.
CARRY OUT the evaporative emission system leak test.
REFER to Evaporative Emission System Leak Test in this
section. If no leak is detected, CARRY OUT the evaporative
emissions repair verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this
section.
No
INSTALL a new fuel tank pressure sensor. REFER to Fuel Tank Pressure Sensor in this section. CARRY OUT the
evaporative emission system leak test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test, CARRY out the
evaporative emission repair verification drive cycle. REFER
to Evaporative Emission Repair Verification Drive Cycle in
this section. Test Step Result / Action to Take
NOTE:
Condition P1450 DTC set: more than - 1.79 kPa (-7.2 inches H
2 O) over 30 seconds. C1 CHECK FOR VISUAL CAUSES OF EXCESSIVE
FUEL TANK VACUUM z
Check for kinks or bends in the fuel vapor hoses
and tubes.
z Visually check the EVAP canister inlet port,
canister vent solenoid filter or outlet hose for
contamination or foreign material.
z Check the canister vent solenoid for blockage or
contamination.
z Is a concern with a hose, tube, connection or
component visually evident? Yes
REMOVE any contamination or foreign
material around fuel vapor hoses and
tubes. REPAIR the hoses, tubes or
components as necessary. After all
visual concerns are repaired, GO to
C2
.
No
GO to C2 .
C2 CHECK FOR BLOCKAGE BETWEEN EVAP
TEST PORT AND CANISTER VENT SOLENOID z
Disconnect and plug the EVAP return tube at the
intake manifold.
z Connect the Evaporative Emissions System Leak
Tester to the EVAP test port. Yes
GO to
C3 .
No Klj . 10 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2158 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST D: HISSING SOUND WHEN REMOVING FUEL CAP �z
Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
�z Does the pressure drop immediately? GO to
Pinpoint Test D .
C3 CHECK FOR B

PINPOINT TEST D: HISSING SOUND WHEN REMOVING FUEL CAP z
Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Does the pressure drop immediately? GO to
Pinpoint Test D .
C3 CHECK FOR BLOCKAGE BETWEEN THE FUEL
FILLER PIPE AND THE FUEL VAPOR TEE z
Connect the Evaporative Emission System Leak
Tester to the fuel filler pipe.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Does the pressure drop immediately? Yes
GO to
C4 .
No
GO to Pinpoint Test D .
C4 CHECK FOR FUEL TANK PRESSURE SENSOR
PID WITHOUT PRESSURE APPLIED z
Disconnect the EVAP canister outlet tube at the
EVAP canister.
z Key in ON position.
z Access PCM PID FTP V.
z Record the reading.
z Is PID FTP V reading between 2.40 and 2.80
volts? Yes
GO to
C5 .
No
REFER to Powertrain
Control/Emissions Diagnosis (PC/ED)
manual to continue diagnosis. C5 CHECK FOR STUCK OPEN EVAP CANISTER
PURGE VALVE CONDITION AT IDLE z
Connect the EVAP canister outlet tube.
z Remove the plug from the EVAP return tube and
reconnect the tube to the intake manifold.
z Verify that the fuel filler cap is correctly installed.
z Key in ON position.
z Access PCM PIDs FTP V and EVAPPDC.
z Start the engine and allow to idle.
z Monitor the FTP V and EVAPPDC PIDs.
z When PID EVAPPDC is zero, is PID FTP V
reading below 2.40 volts? Yes
INSTALL a new EVAP canister purge
valve. REFER to
Evaporative Emission Canister Purge Valve in this section.
CARRY OUT an EVAP system leak
test. REFER to Evaporative Emission System Leak Test in this section. If the
system passes the leak test, CARRY
OUT an evaporative emissions repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this section.
No
CARRY OUT the EVAP system leak
test. REFER to Evaporative Emission System Leak Test in this section. If the
system passes the leak test, CARRY
OUT the evaporative emissions repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this section. Klj . 11 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2159 of 4378

FORD MUSTANG 2003 Workshop Manual Test Step Result / Action to Take
D1 TEST FOR FUEL TANK PRESSURE SENSOR
OPERATION �z
Key in OFF position.
�z Connect the Evaporative Emission System Leak
Tester to the fuel filler pipe.
�z Clos

Test Step Result / Action to Take
D1 TEST FOR FUEL TANK PRESSURE SENSOR
OPERATION z
Key in OFF position.
z Connect the Evaporative Emission System Leak
Tester to the fuel filler pipe.
z Close the canister vent solenoid. Refer to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Is the FTP (FTP V) PID reading 3.11 kPa to 3.86
kPa (12.5 to 15.5 inches H
2 O) (4.22 to 4.90
volts)? Yes
GO to
D2 .
No
GO to D3 .
D2 TEST FOR BLOCKAGE IN VENTING PORTION
OF EVAP SYSTEM z
Open the canister vent solenoid by selecting the
STOP button on the scan tool.
z Does the pressure drop immediately? Yes
CARRY OUT the evaporative
emission repair verification drive
cycle. REFER to
Evaporative Emission Repair Verification Drive
Cycle in this section.
No
GO to D7 .
D3 TEST FOR FUEL TANK PRESSURE SENSOR
OPERATION z
Connect the Evaporative Emission System Leak
Tester to the evaporative emission test port.
z Close the canister vent solenoid. Refer to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Is the FTP (FTP V) PID reading 3.11 kPa to 3.86
kPa (12.5 to 15.5 inches H
2 O) (4.22 to 4.90
volts)? Yes
GO to
D4 .
No
REFER to the Powertrain
Control/Emissions Diagnosis (PC/ED)
manual. D4 TEST TO DETERMINE BLOCKAGE LOCATION
z
Open the canister vent solenoid.
z Does the pressure drop immediately? Yes
GO to
D5 .
No
GO to D7 .
D5 TEST FOR PINCHED FUEL VAPOR CONTROL
VALVE TUBE z
Lower the fuel tank 19.05 mm (3/4 inch).
z Connect the Evaporative Emission System Leak
Tester to the fuel filler pipe.
z Close the canister vent solenoid. Refer to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Is the FTP (FTP V) PID reading 3.11 kPa to 3.86
kPa (12.5 to 15.5 inches H
2 O) (4.22 to 4.90
volts)? Yes
INSTALL a new fuel vapor control
valve tube assembly. REFER to
Fuel Vapor Control Tube Assembly Valve
in this section. CARRY OUT a leak
test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test,
CARRY OUT the evaporative
emission repair verification drive
cycle. REFER to Evaporative Emission Repair Verification Drive
Cycle in this section. Klj . 12 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2160 of 4378

FORD MUSTANG 2003 Workshop Manual No
GO to
D6 .
D6 TEST FOR BLOCKAGE IN FUEL FILLER TUBE
ASSEMBLY �z
Disconnect the tank vapor recirculation tube from
the fuel filler pipe and plug both openings.
�z Pressurize the EVAP system

No
GO to
D6 .

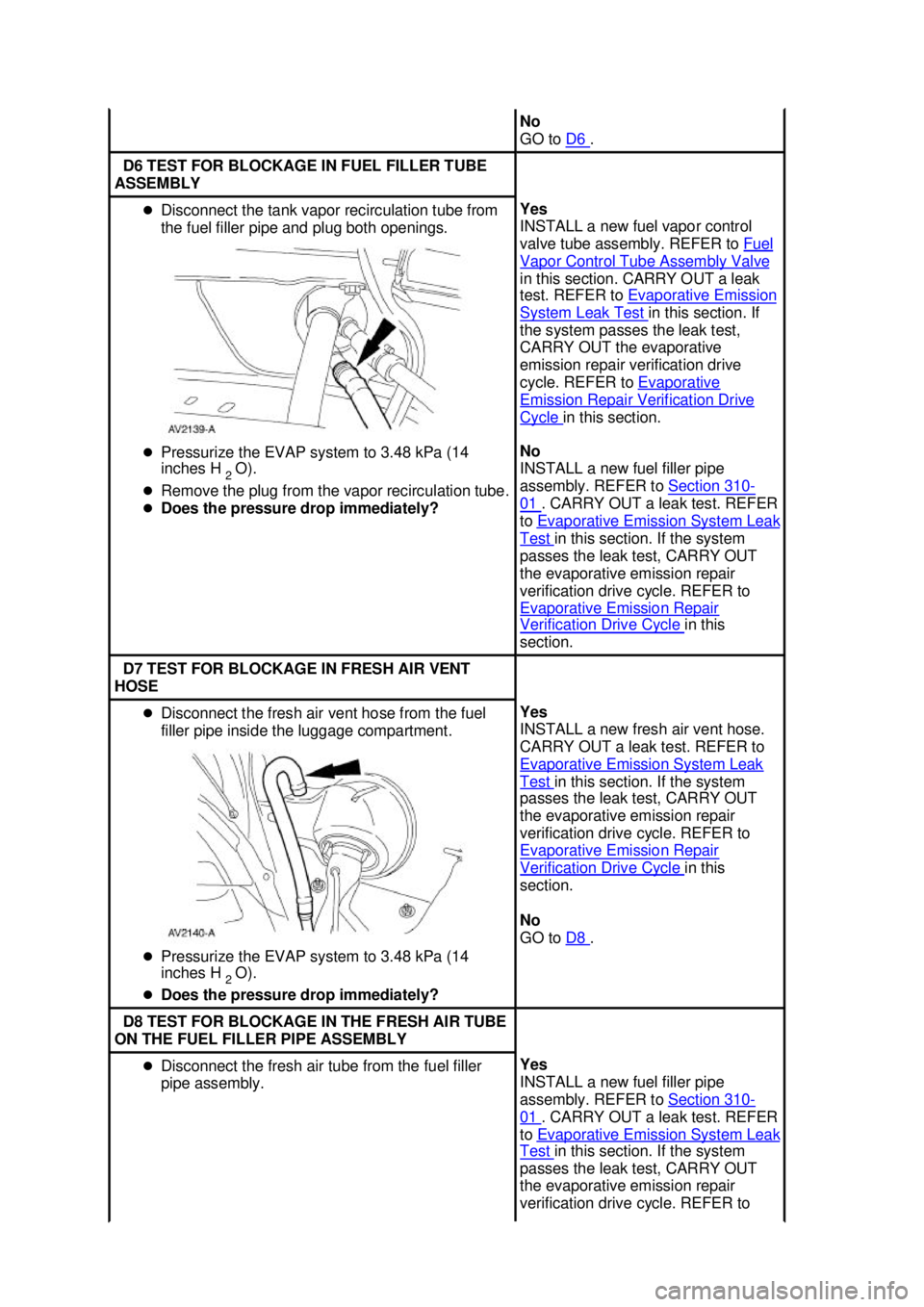

D6 TEST FOR BLOCKAGE IN FUEL FILLER TUBE
ASSEMBLY z
Disconnect the tank vapor recirculation tube from
the fuel filler pipe and plug both openings.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Remove the plug from the vapor recirculation tube.
z Does the pressure drop immediately? Yes
INSTALL a new fuel vapor control
valve tube assembly. REFER to
Fuel Vapor Control Tube Assembly Valve
in this section. CARRY OUT a leak
test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test,
CARRY OUT the evaporative
emission repair verification drive
cycle. REFER to Evaporative Emission Repair Verification Drive
Cycle in this section.
No
INSTALL a new fuel filler pipe
assembly. REFER to Section 310 -
01 . CARRY OUT a leak test. REFER
to Evaporative Emission System Leak Test in this section. If the system
passes the leak test, CARRY OUT
the evaporative emission repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this
section. D7 TEST FOR BLOCKAGE IN FRESH AIR VENT
HOSE z
Disconnect the fresh air vent hose from the fuel
filler pipe inside the luggage compartment.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Does the pressure drop immediately? Yes
INSTALL a new fresh air vent hose.
CARRY OUT a leak test. REFER to
Evaporative Emission System Leak
Test in this section. If the system
passes the leak test, CARRY OUT
the evaporative emission repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this
section.
No
GO to D8 .
D8 TEST FOR BLOCKAGE IN THE FRESH AIR TUBE
ON THE FUEL FILLER PIPE ASSEMBLY z
Disconnect the fresh air tube from the fuel filler
pipe assembly. Yes
INSTALL a new fuel filler pipe
assembly. REFER to
Section 310 -
01 . CARRY OUT a leak test. REFER
to Evaporative Emission System Leak Test in this section. If the system
passes the leak test, CARRY OUT
the evaporative emission repair
verification drive cycle. REFER to Klj . 13 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Load next 8 pages

Page: < prev 1-10 ... 2121-2128 2129-2136 2137-2144 2145-2152 2153-2160 2161-2168 2169-2176 2177-2184 2185-2192 ... 4384 next >

charging bulb auxiliary battery window airbag disable inflation pressure
